cgarcia2097/8-pack

Download board files

Files for version 1. Choose the source project or an available generated package.

Source package

Original hardware design source archive

Original KiCad project zip1.3 MB

Fabrication package

Gerbers and drill, pick-and-place, DRC report, and the 3D model

Gerbers and drill zip240 KBGerbers and drill zip: 8-key-bottom-1.288 KBGerbers and drill zip: 8_key_simple162 KBGerbers and drill zip: 8_key_simple172 KBGerbers and drill zip: 8_key_simple_graphics (copy)348 KB

Review package

Schematics, PCB views, BOM, and extracted files

PCB SVG373 KBPCB SVG: 8-key-bottom-1.2296 KBPCB SVG: 8_key_simple360 KBPCB SVG: 8_key_simple368 KBPCB SVG: 8_key_simple_graphics (copy)372 KB

Share 8-pack

Check access before sharing the link.

Who can open this board

Anyone can open this board. No sign-in is required.

https://boardrepo.com/cgarcia2097/8-pack

This link opens the latest version. Copying it does not grant additional access.

Loading 3D model… large boards can take a moment.

README

8-Pack

img img img

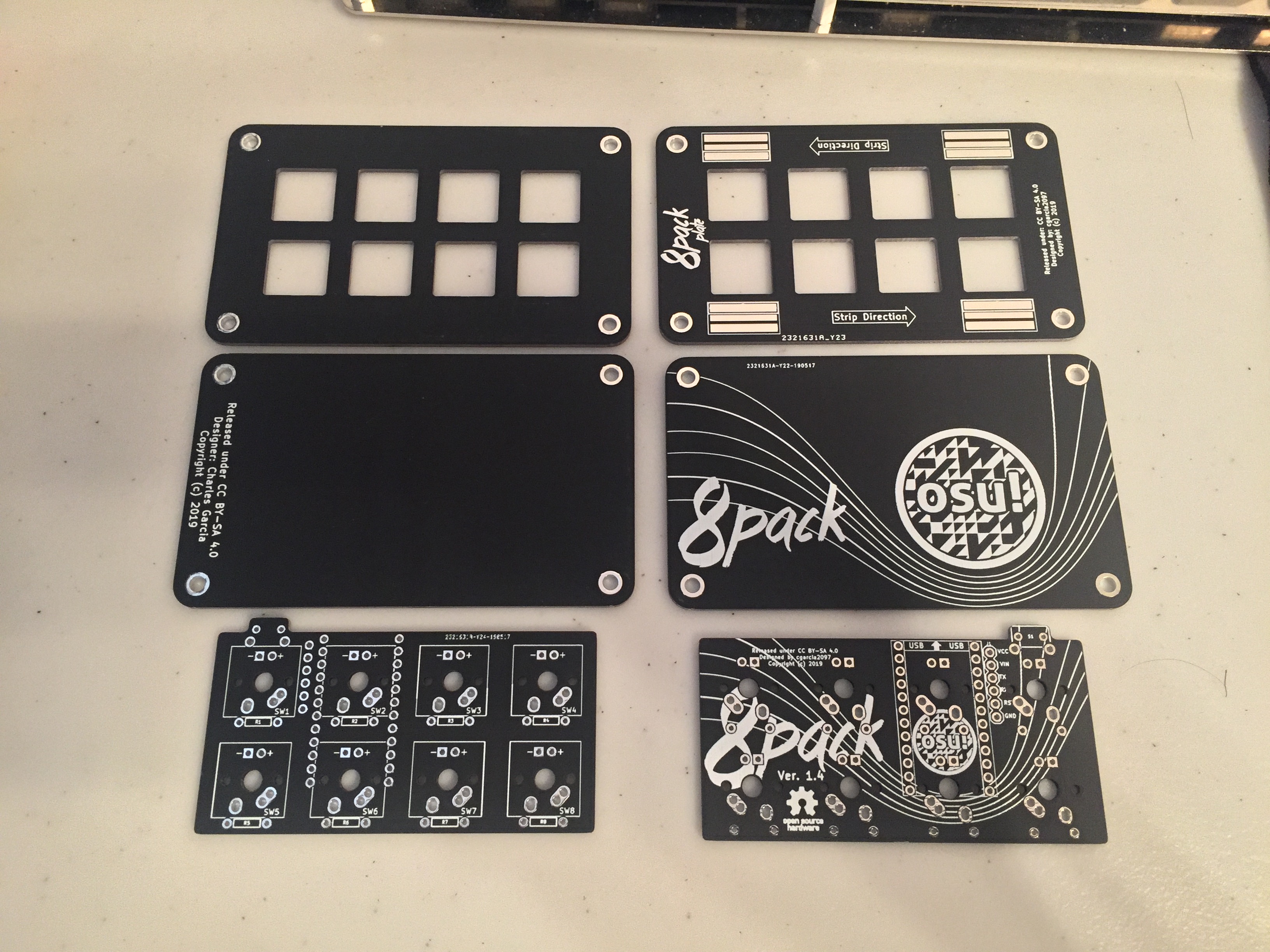

Inspired by di0ib's Six Pack design, this keypad project is intended for me on learning how to use KiCAD by extending their design to 8 keys. Mishaps, snafus and foobars expected and incoming.

Features

PCB

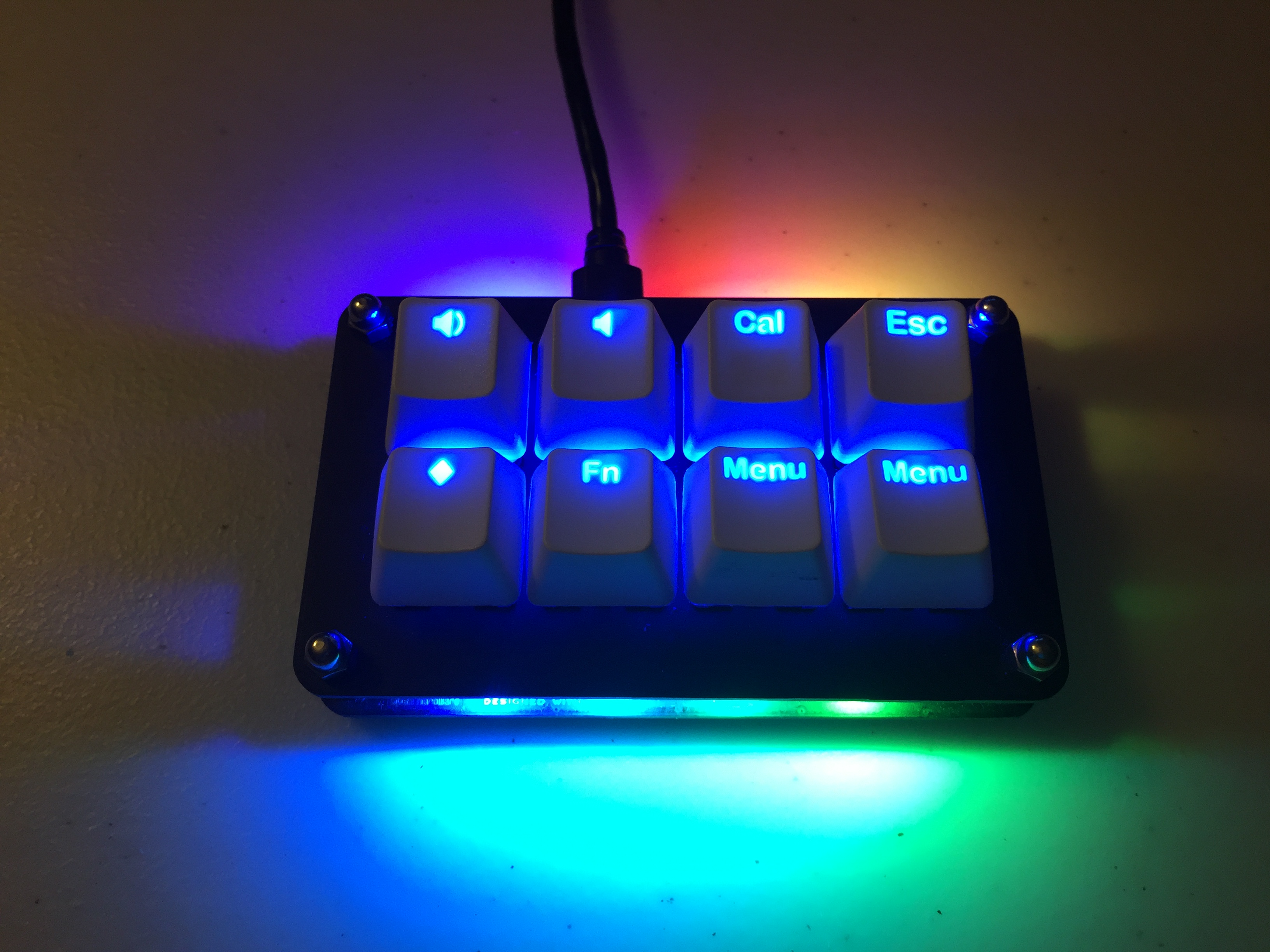

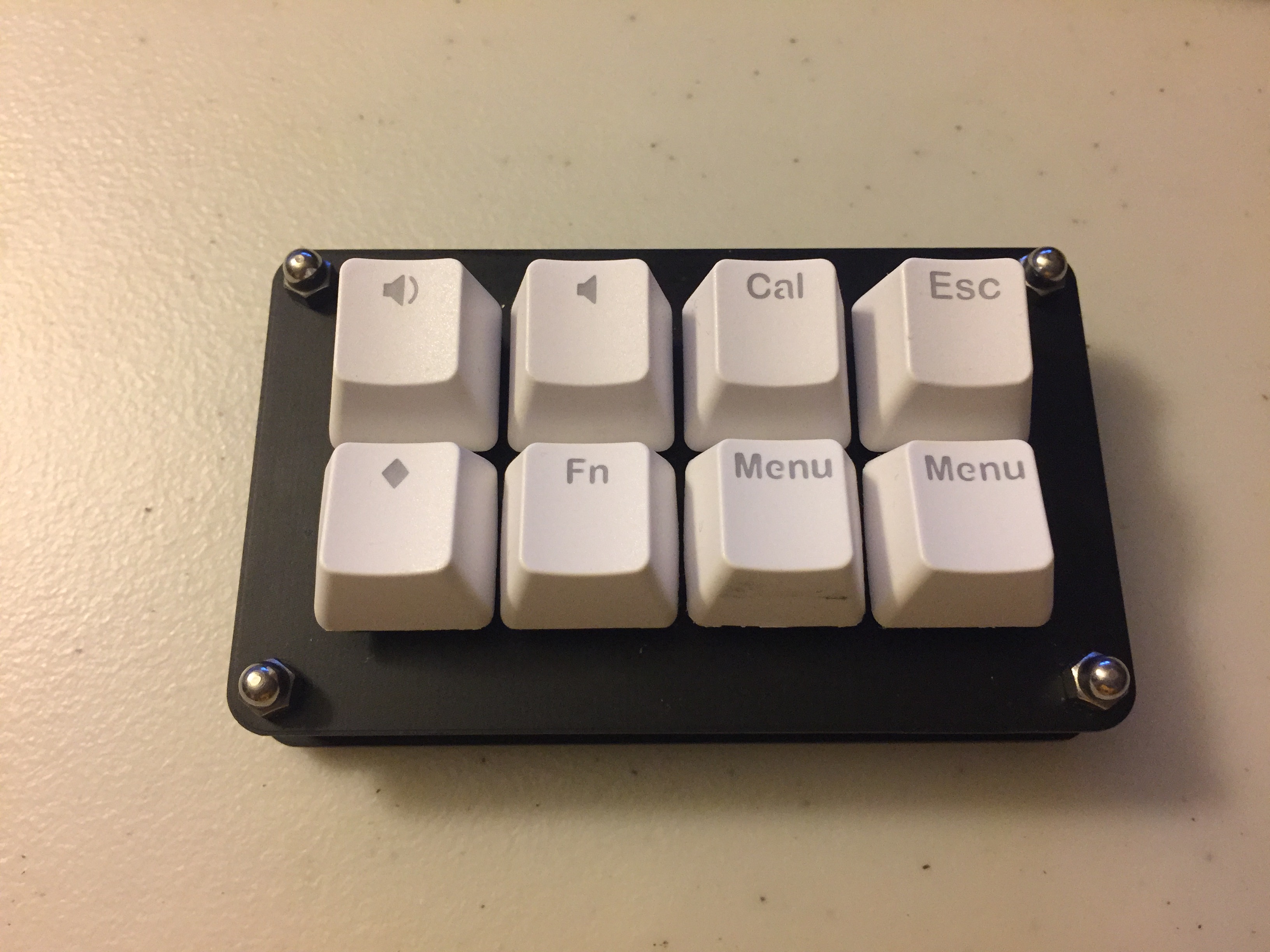

  • 8 keys, directly connected to MCU pins
  • 8 backlight LEDs, individually addresssable
  • Powered by the Pro Micro
  • Alps or MX button support
  • Runs on a simple Arduino sketch, or optionally QMK firmware

Plates

Third-party firmware ports

Assembly guides

Assembly guide can be found here: GUIDE

Programming guides

Programming guide can be found here: GUIDE

Updates

Updates are posted here: UPDATES

Comments

No comments yet. Be the first to ask about this board.
