Gear60

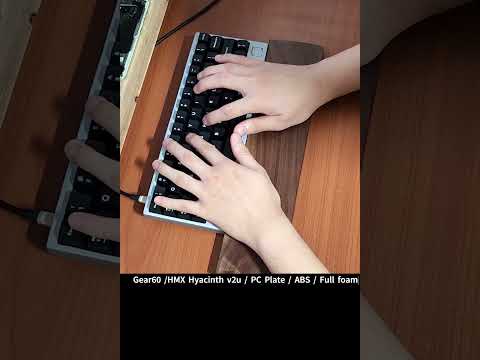

Gear60 is a 60% multi-layout keyboard based on the rp2040.

It's mostly compatible with 60% layout keyboards. Just modify usb and plate to suit your keyboard housing

split_hhkb (fdm print)

hhkb - B type (sla print)

Layout

• solder




• hotswap




There is also a keyboard plate.
Keyboard case corresponding to this layout.

PCB

There is a change from the initial pcb design. More pcb

This pcb was made by jlcpcb.(list of pcb parts)

This pcb prepared the vial as firmware

Reference

• keyboard-layout-editor

• Hardware design with RP2040, Hardware design for the RP2040

• kicad, marbastlib, kleeb

• KiCAD KLE Placer, Firmware 'scripts'

• vial, qmk

• ai03 Plate Generator v2
