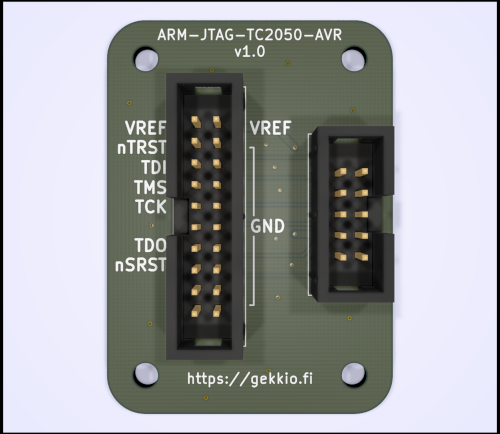

Adapts 20-pin (2x10) 2.54 inch ARM JTAG to 10-pin IDC connector using AVR JTAG pinout (compatible with Tag-Connect TC2050).

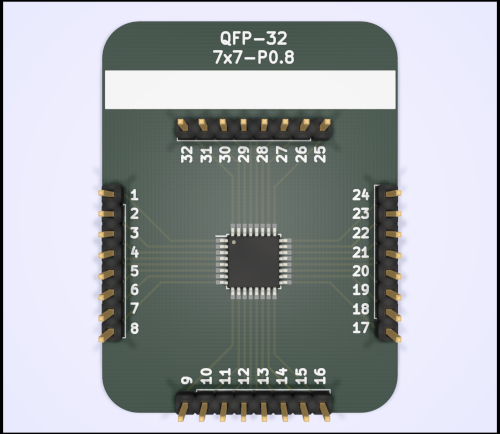

Breakout board for one QFP-32 component (7x7mm body, pitch 0.8mm).

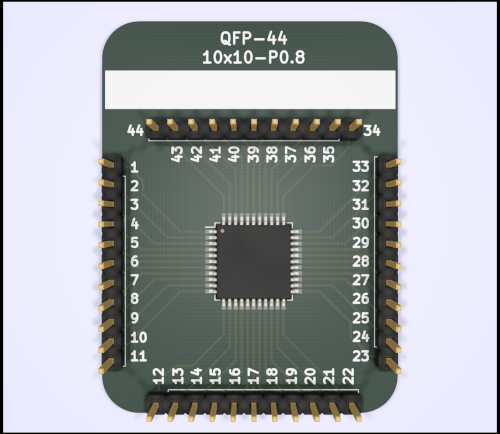

Breakout board for one QFP-44 component (10x10mm body, pitch 0.8mm).

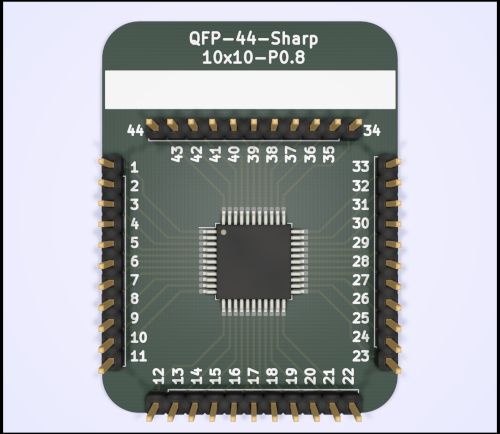

Breakout board for one QFP-44 component (10x10mm body, pitch 0.8mm, different footprint used by Sharp Corporation).

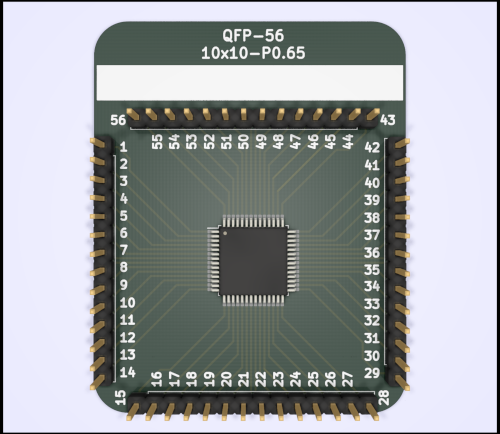

Breakout board for one QFP-56 component (10x10mm body, pitch 0.65mm).

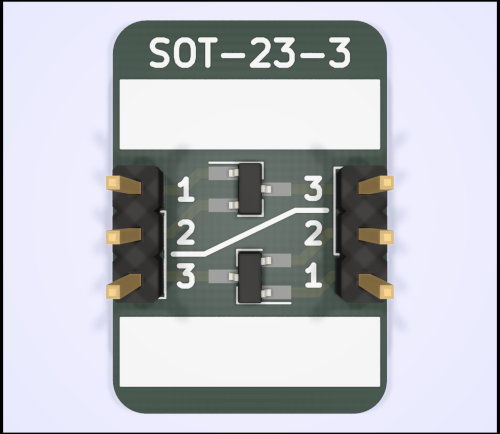

Breakout board for two SOT-23-3 components.

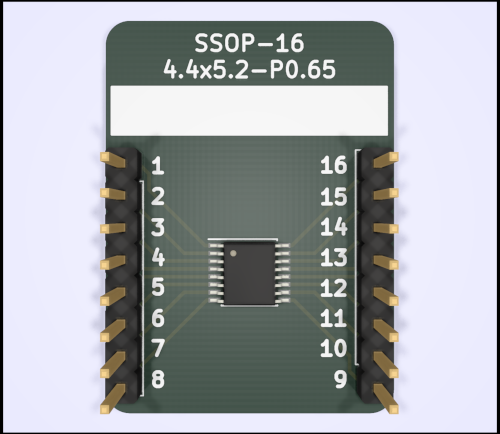

Breakout board for one SSOP-16 component (4.4x5.2mm body, pitch 0.65mm).

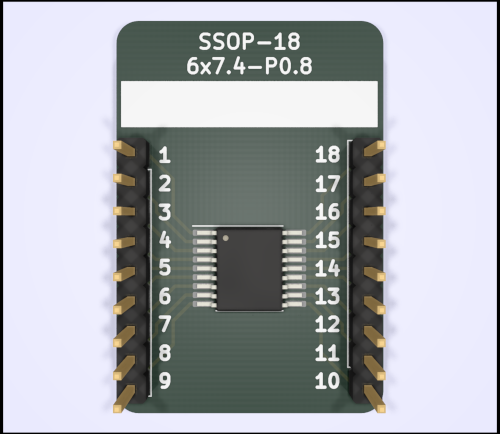

Breakout board for one SSOP-18 component (6x7.4mm body, pitch 0.8mm).

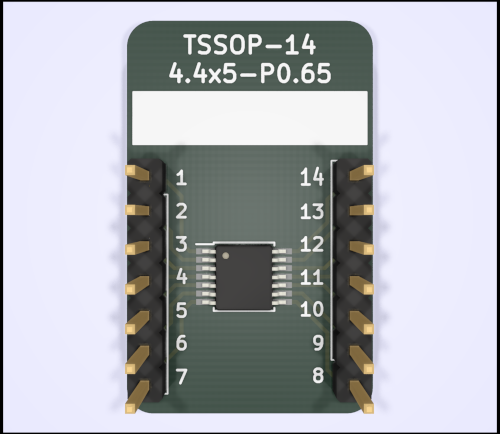

Breakout board for one TSSOP-14 component (4.4x5mm body, pitch 0.65mm).

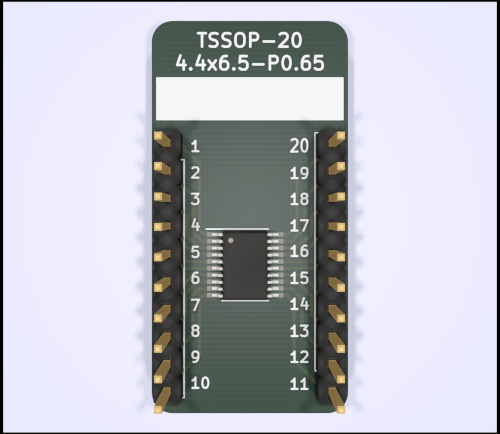

Breakout board for one TSSOP-20 component (4.4x6.5mm body, pitch 0.65mm).

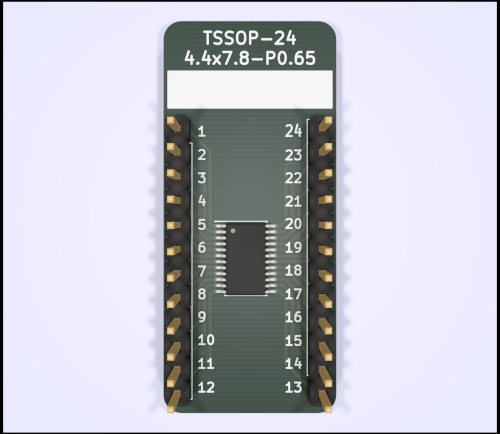

Breakout board for one TSSOP-24 component (4.4x7.8mm body, pitch 0.65mm).

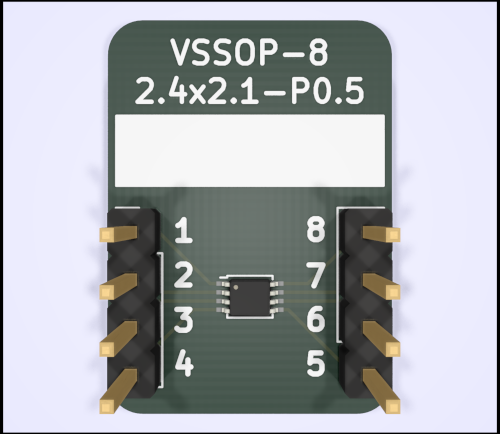

Breakout board for one VSSOP-8 component (2.4x2.1mm body, pitch 0.5mm).

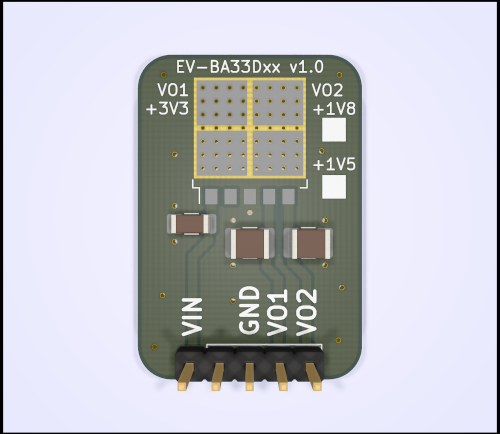

Evaluation/breakout board for Rohm BA33Dxx linear regulators.

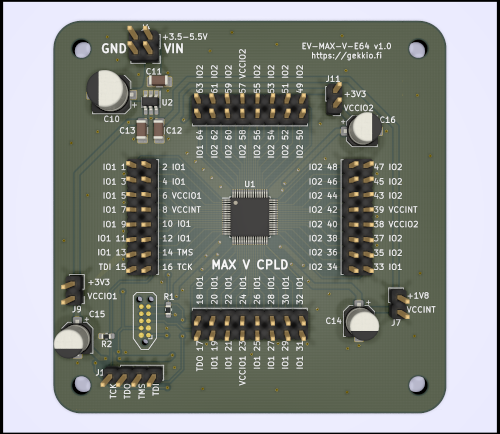

Evaluation/breakout board for MAX V CPLDs in EQFP-64 package.

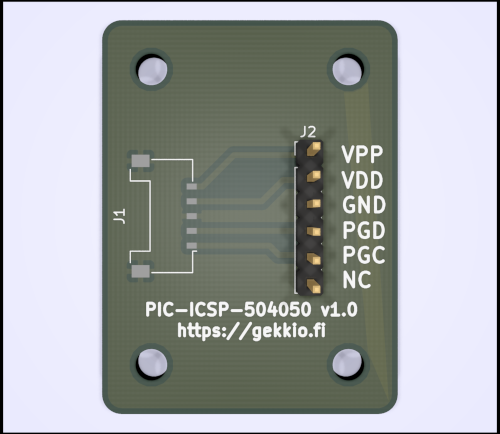

Adapts 6-pin (1x6) PIC ICSP to 5-pin Molex 504050 connector.

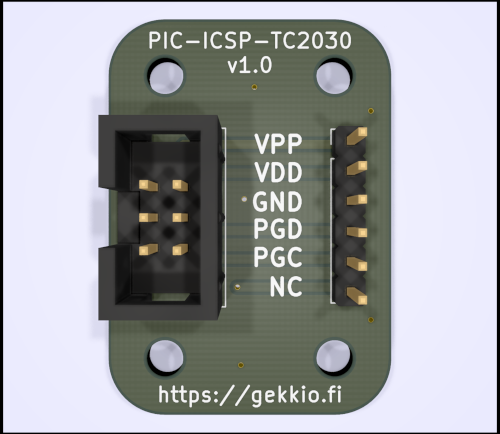

Adapts 6-pin (1x6) PIC ICSP to 6-pin IDC connector (compatible with Tag-Connect TC2030).

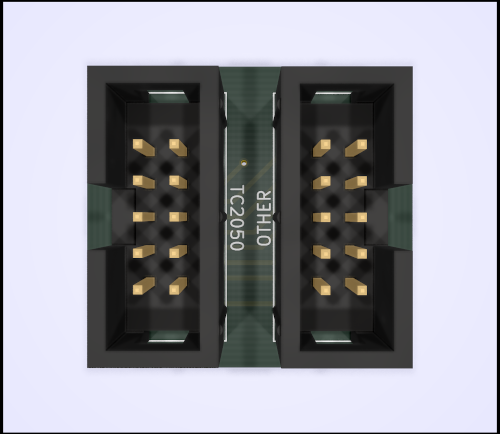

Did you use Counter_Clockwise footprint instead of Odd_Even for TC2050 in some design? Oops! This board fixes the pinout in this kind of scenario.
