Front Panel Header Adapters for Dell Optiplex Motherboards

Adapters

Get it at our store:

https://store.harbinrepairs.com/index.php/product/dell-optiplex-390-3010-3020-front-panel-header-adapter-3pc-kit/

https://store.harbinrepairs.com/index.php/product/dell-5-6-pin-power-button-led-panel-adapter/

Get it on eBay:

https://www.ebay.com/itm/264638815586

https://www.ebay.com/itm/264638806788

License

Harbin Repairs 2020 Creative Commons Attribution ShareAlike 4.0 https://creativecommons.org/licenses/by-sa/4.0/

GNU General Public License v3.0

Harbin Repairs is not affiliated with Dell in any way shape or form.

Documentation

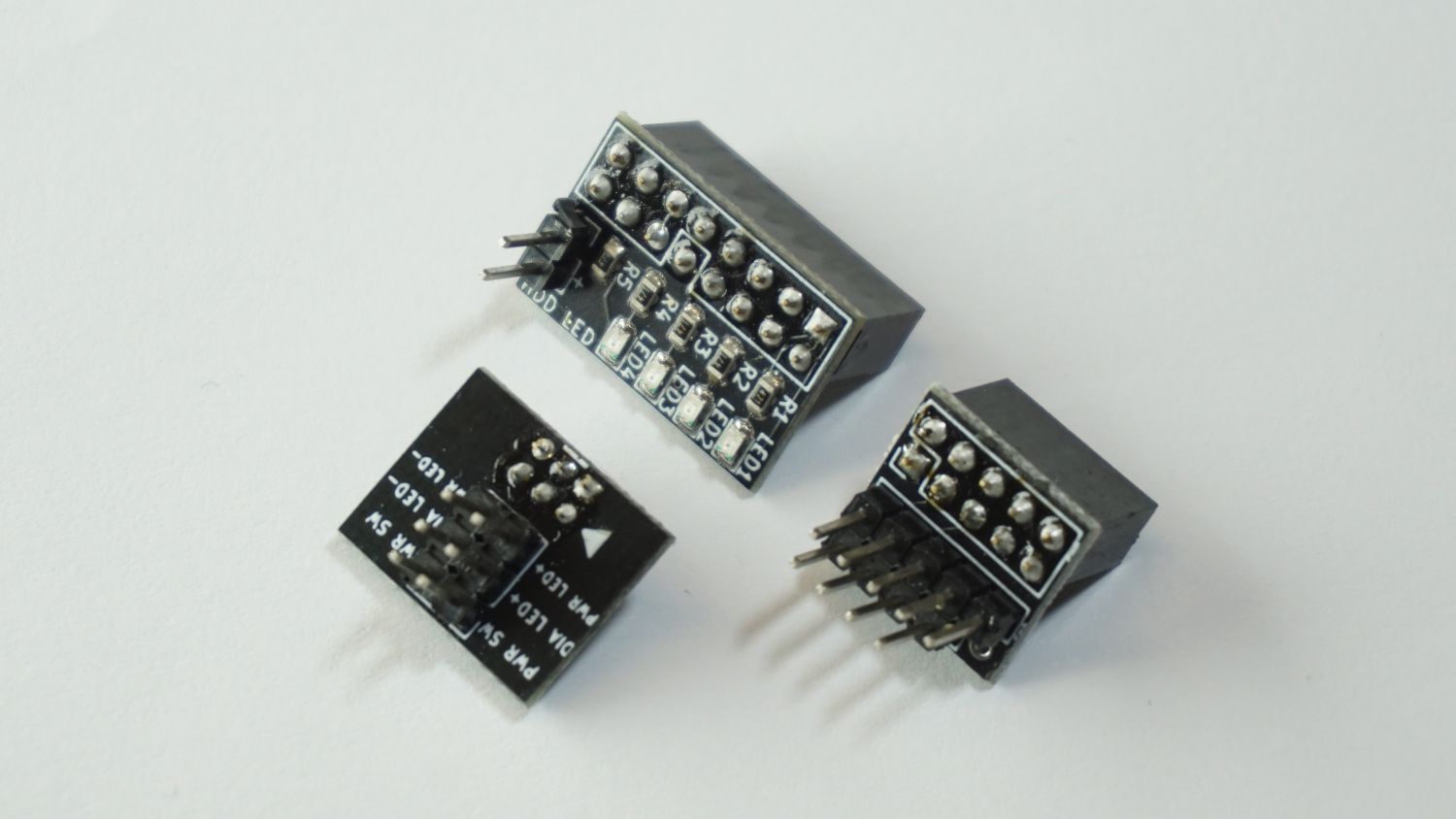

This kit is designed for the mid tower (not SFF or small form factor) desktops. It allows you to connect standard PC case front panel headers to the Dell Optiplex 390, 3010, and 3020 motherboards. These are often used to build budget gaming PC’s using decommissioned office desktops and convert them to work with modern PC cases. WARNING! Connecting these adapters in the wrong orientation or with the wrong models could result in damage to your motherboard. Do not use these adapters with models other than the ones mentioned above and make sure to check out our assembly video below.

Installation Guide Video

https://www.youtube.com/watch?v=3fb6-B5Ux_s

Alt text

Compatibility

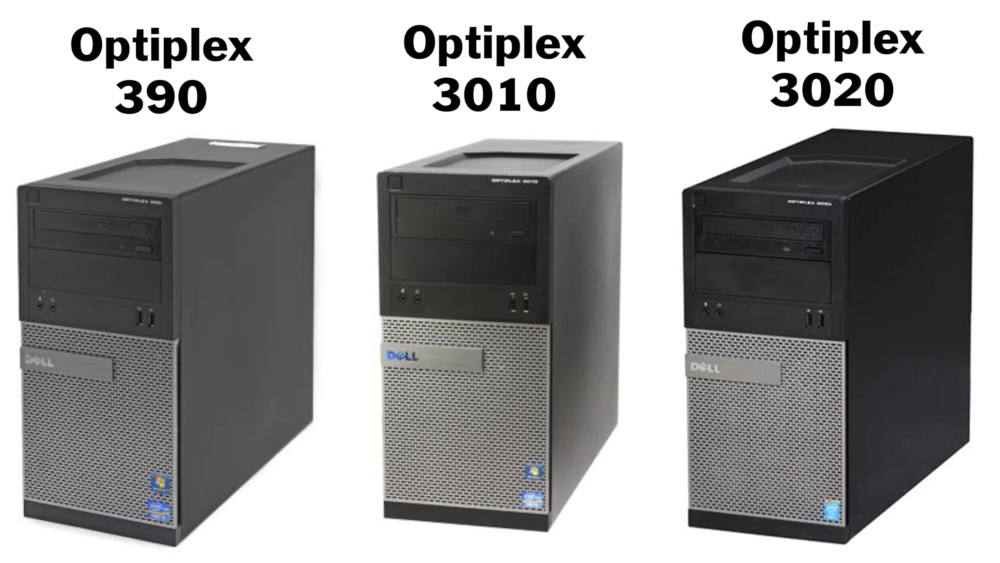

The three piece adapter kit is only compatibile with the Dell optiplex 390, 3010, and 3020 DT & MT Dekstops. It will not work on the SFF desktops since they use a different connector and are not ideal since they do not have a removable I/O shield. The 5/6 pin power button however may work with most dell desktops that have a 5/6 pin header for the front panel power button/LED.

Tower Comparison

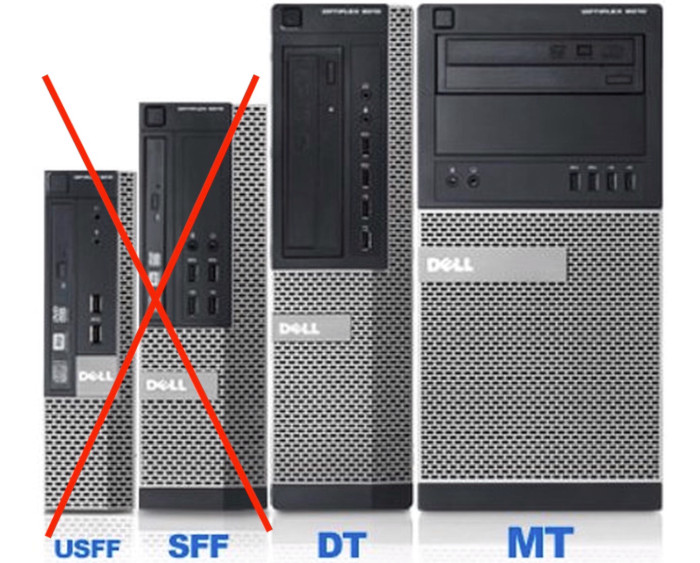

Tower Sizes

Bill of Materials

QtyDescriptionAliexpresseBay Links (Affiliate)Amazon Links (Affiliate)
3PCBManufacturer of choice
12x3 2mm 6pin Female Straight THT Connectorhttp://bit.ly/2SQY12Ehttps://ebay.to/2P2j5lkN/A
12x5 2.54mm 10pin Female Straight THT Connectorhttp://bit.ly/3bOo6ruhttps://ebay.to/2ubbdXKhttps://amzn.to/2u3uMky
12x8 2.54mm 16pin Female Straight THT Connectorhttp://bit.ly/39JsCpEhttps://ebay.to/2SA2zeAhttps://amzn.to/2Hwy3Mr
11x40 2.54mm Male Pin Header THThttp://bit.ly/2HzO3NShttps://ebay.to/2V6OmYahttps://amzn.to/38CYH2a
40805 SMD Yellow LEDhttp://bit.ly/38DWLGBhttps://ebay.to/2UW0tHLhttps://amzn.to/38CjiUj
50805 SMD 470Ω Resistorhttp://bit.ly/2SOXqOOhttps://ebay.to/38CF7D5https://amzn.to/38E2ThY
