README

8086 PC Compatible

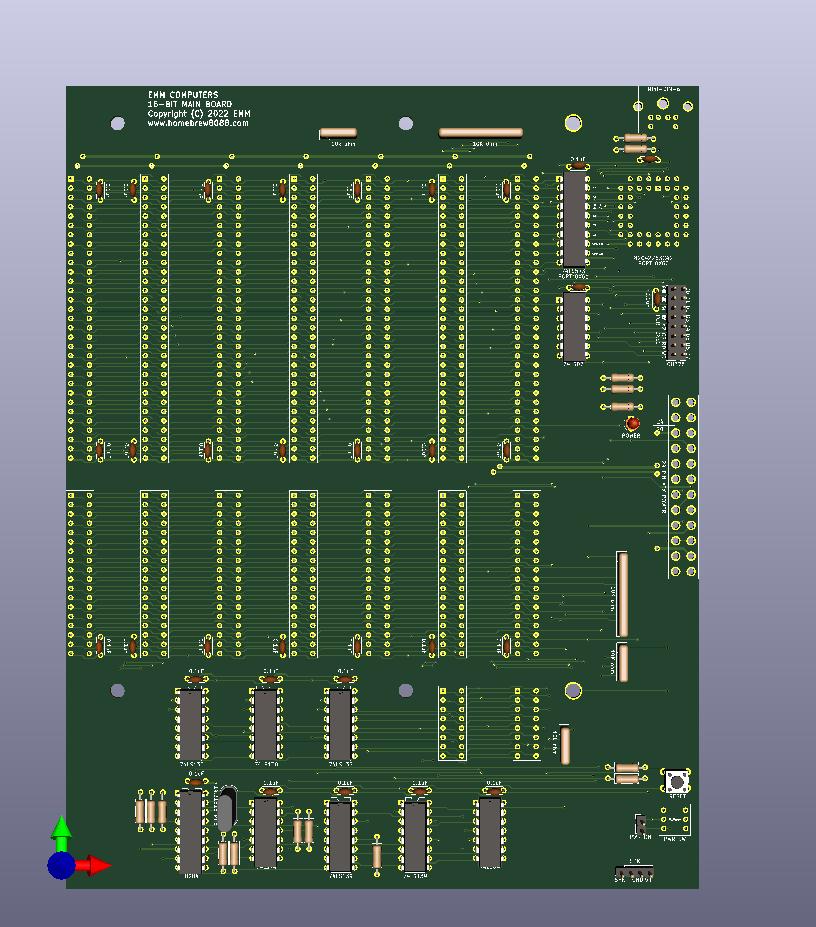

This is a repository for my 8086 PC Compatible project developed in 2021. The Motherboard is built to be generally PC XT/AT compatible.

THIS DOES NOT WORK CORRECTLY FOR REFERENCE ONLY

https://www.homebrew8088.com
http://www.ebay.com/sch/emil6190/m.html

Features:

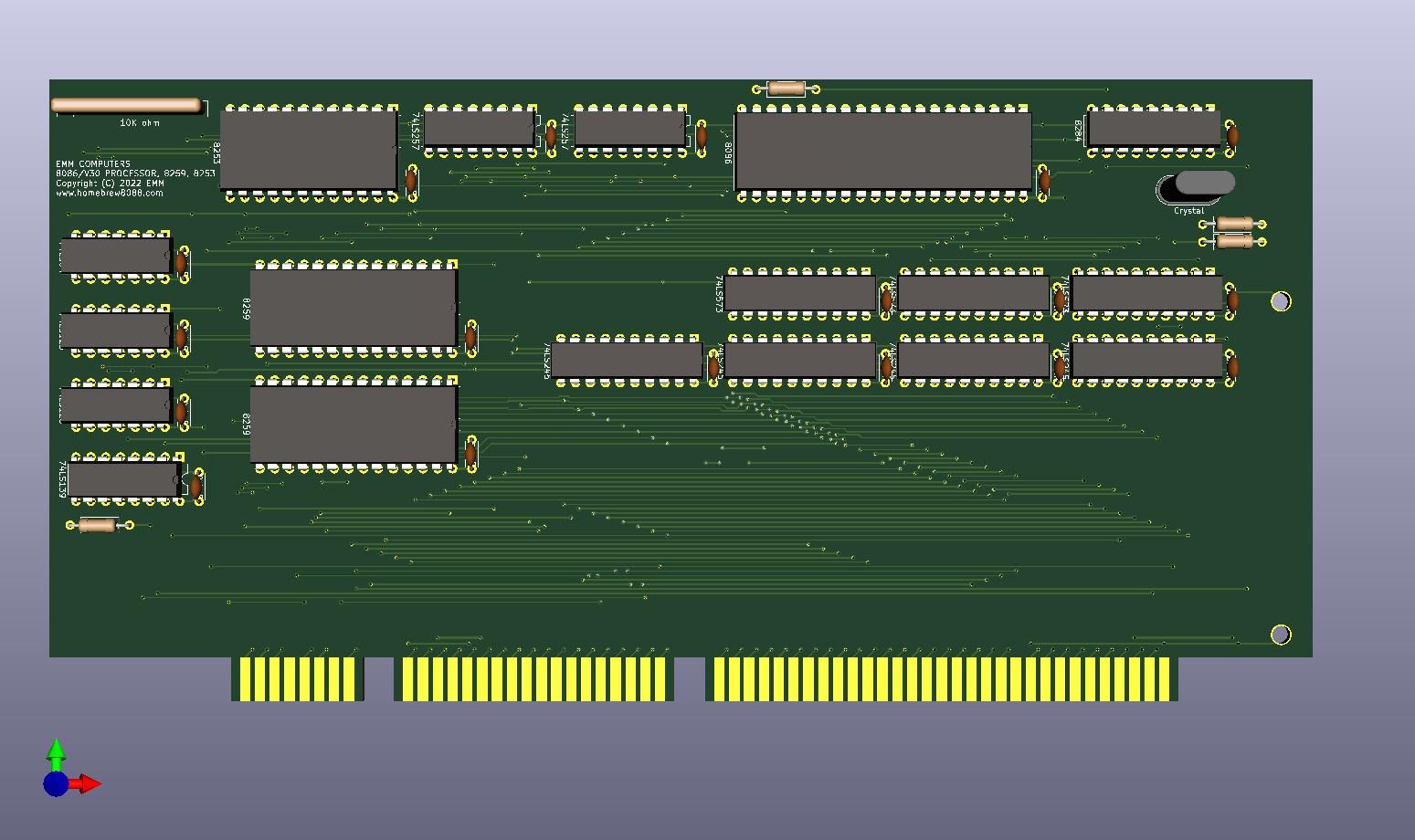

-8086, NEC V30

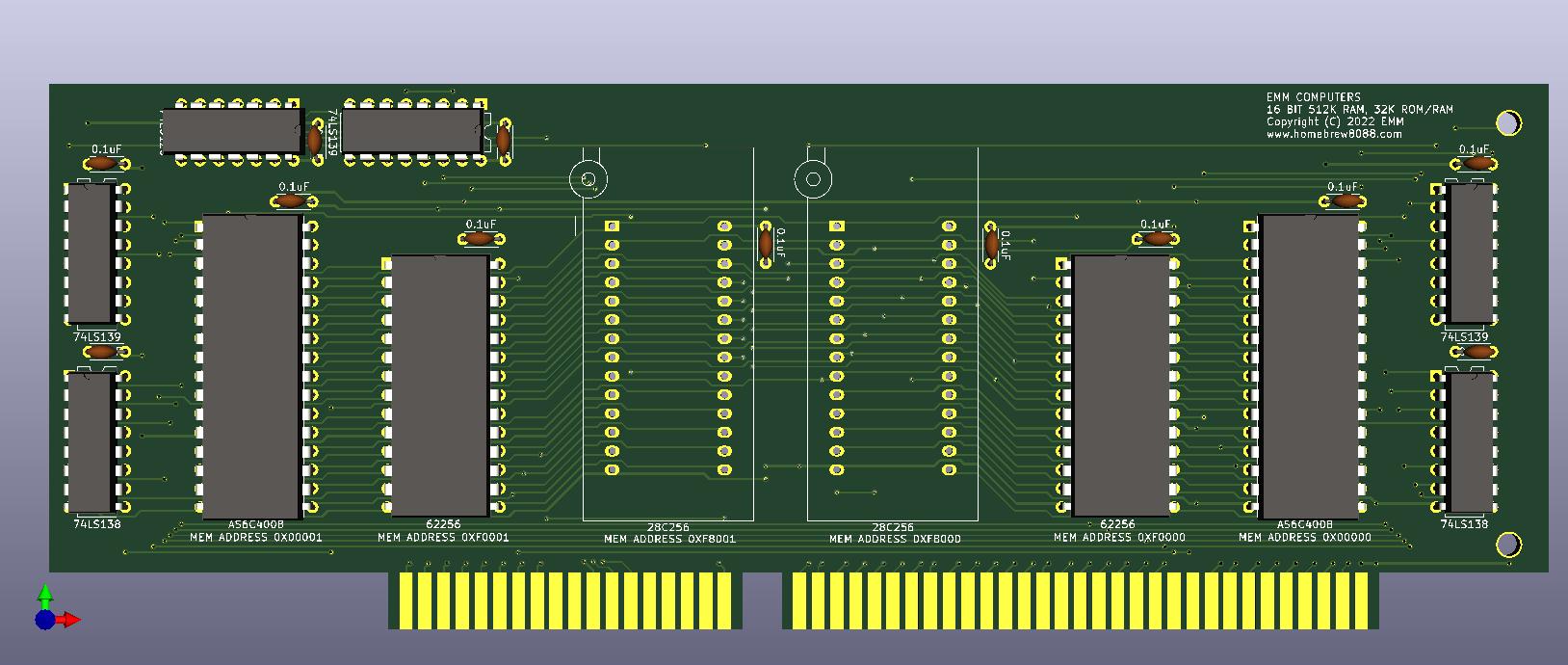

-512k RAM (This can be changed)
-16 Bit ISA Slots
-PC Speaker
-USB "Hard Drive"
-PS/2 Keyboard
-ATX form factor
-Add on DMA controller (Has not been built)

This project is very closely related to my other 8088 PC Compatible project https://github.com/homebrew8088/8088-PC-Compatible

alt text alt text alt text
