Description

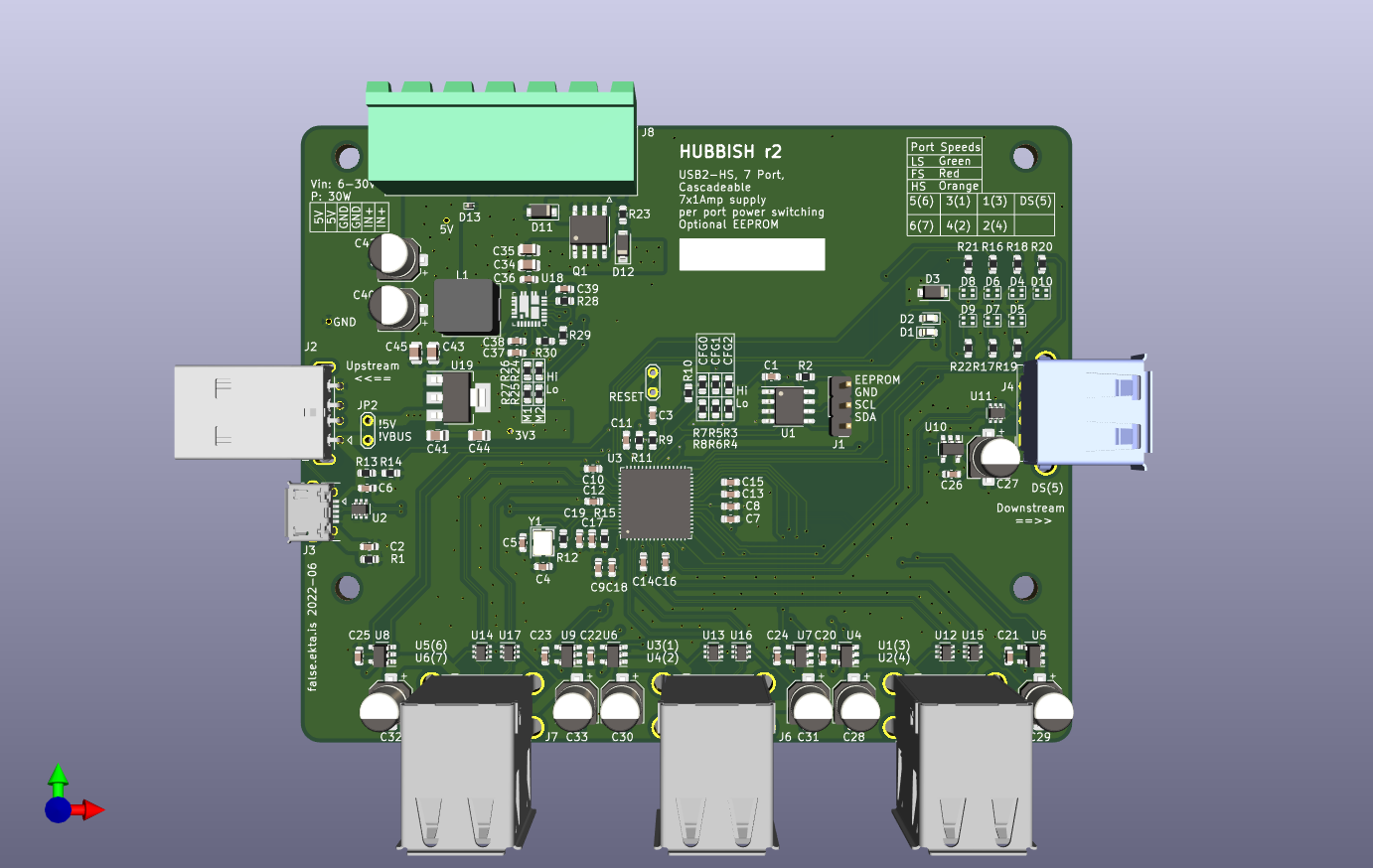

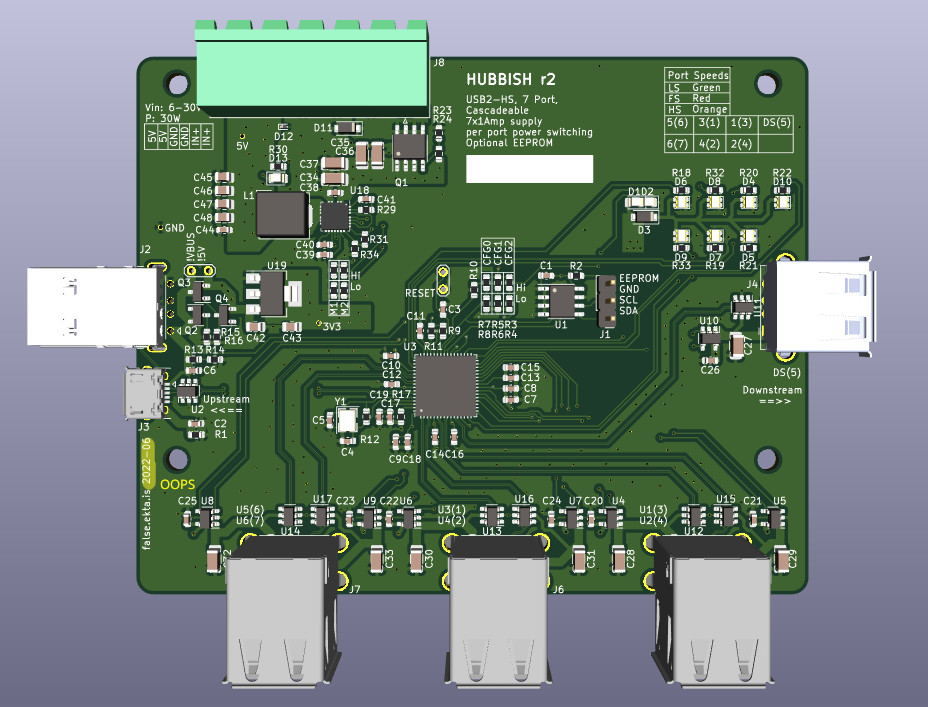

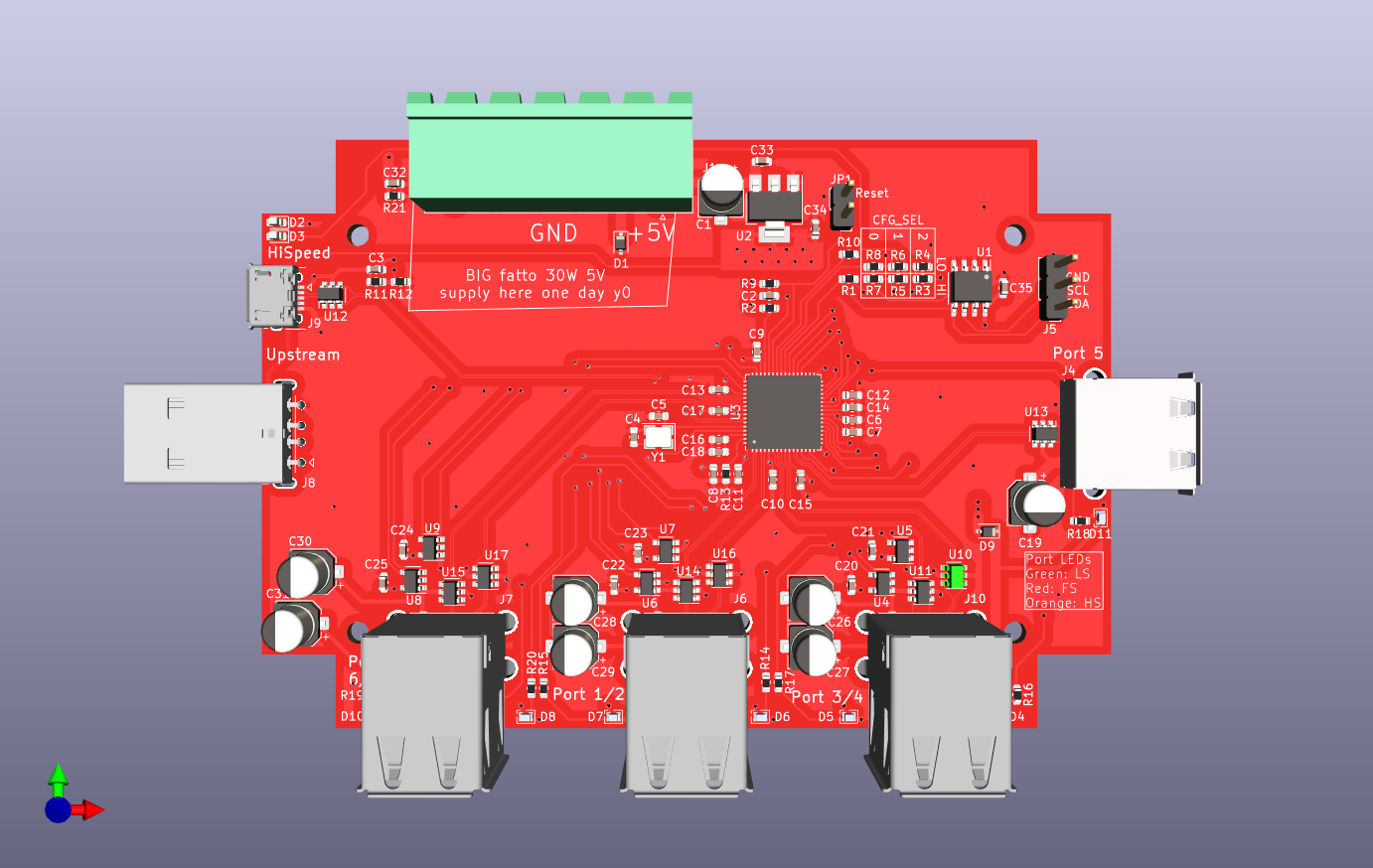

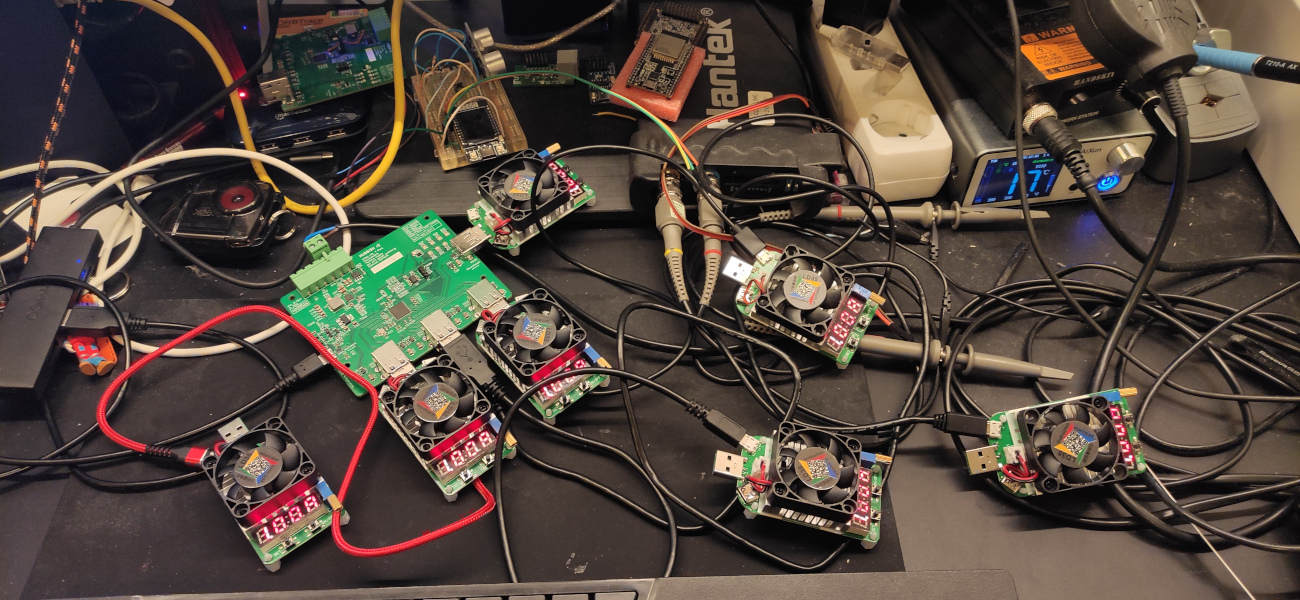

Cascading, per port power switching usb2.0-HS 7 port hub

publicNo license

hubbish

@karlp

Cascading, per port power switching usb2.0-HS 7 port hub

Tags

usb-hubs-docksresistorinductorcapacitorcrystalICregulatortransistorconnector

006Sign in to save

Open in GitHub

Project info

Files8

Source4.8 MB

Extracted26 MB

Source formatKiCad KiCad project format 2

GitHub stars3

Imported fromGitHub

Saves0

Downloads6

UpdatedJun 28, 2026

Downloads

Source packageOriginal hardware design source archive

Original KiCad project zip

4.8 MB

Download

Fabrication packageManufacturing outputs for the board house

Gerbers and drill zip

694 KB

Download

Review packageSchematics, PCB views, BOM, and extracted files

Schematic PDF

390 KB

Download

Schematic, downstream-port-power sheet

1.7 MB

Download

Schematic, power_input sheet

1.2 MB

Download

Schematic, r2022-10 sheet

306 KB

Download

Schematic, upstream-config-leds sheet

1.8 MB

Download

PCB SVG

2.0 MB

Download

BOM CSV

7.7 KB

Download
