NewSky📺
Overview📖
=======
Overview📖
Let beginners start making their own aircraft from scratch✈️ Projects that you can personally create:flight control ，racks (At present, we are not considering the production of ESC (the cost is too high))
Supports multiple firmware options💿 NewSky Currently possessingPX4 Betaflight Inav Ardupolit firmware
Having different flight control models⚙️ NewSky use STM32 series as the main controller
⚠️⚠️⚠️ Commercial use without permission is strictly prohibited❗❗❗
📊Project Status
| Complete | Making | Not started |
|---|---|---|
| ✔ | 🛠️ | ❌ |
⚙️Hardware
Flight controller
- NewSkyF7-Air ✔

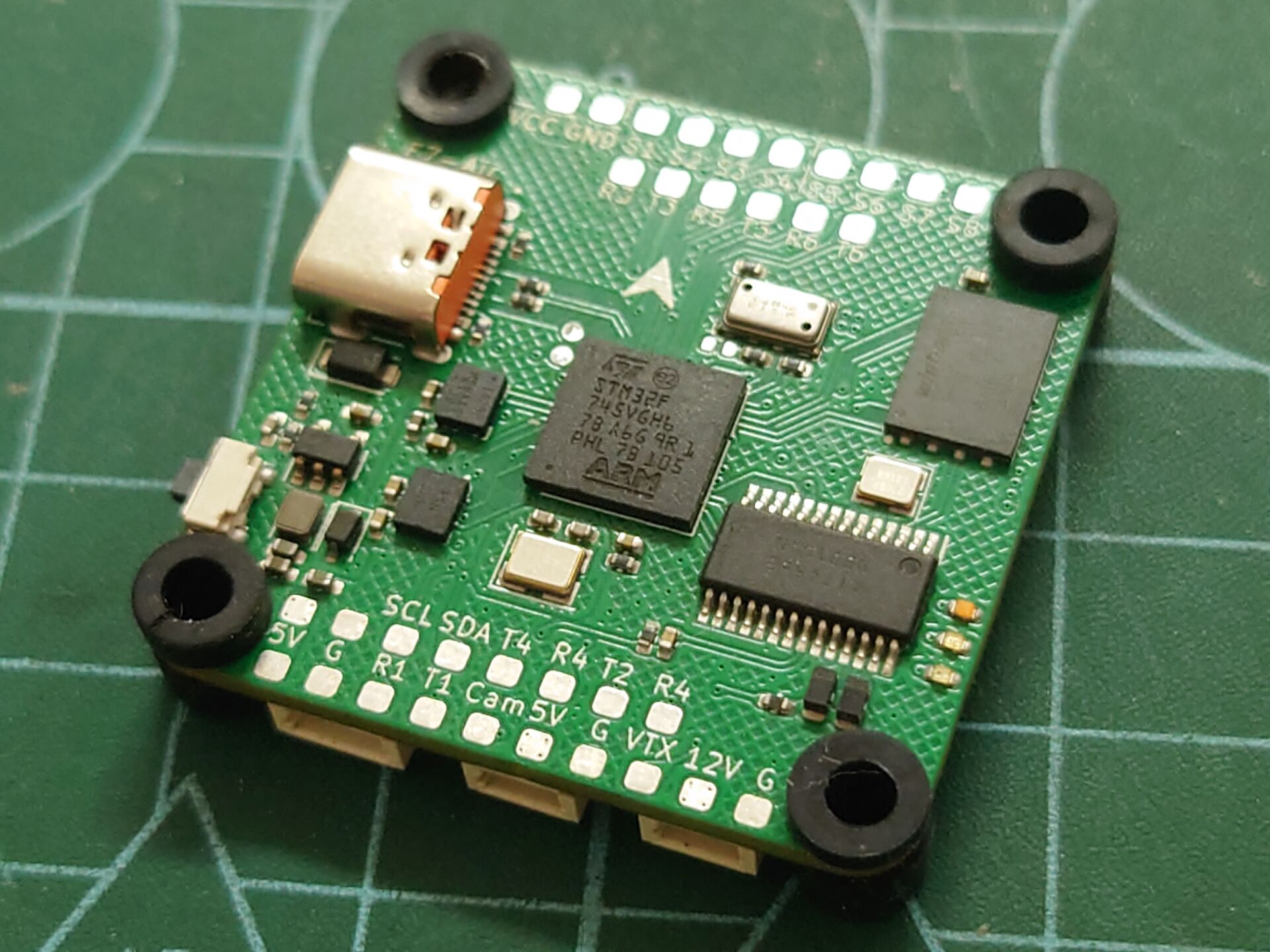

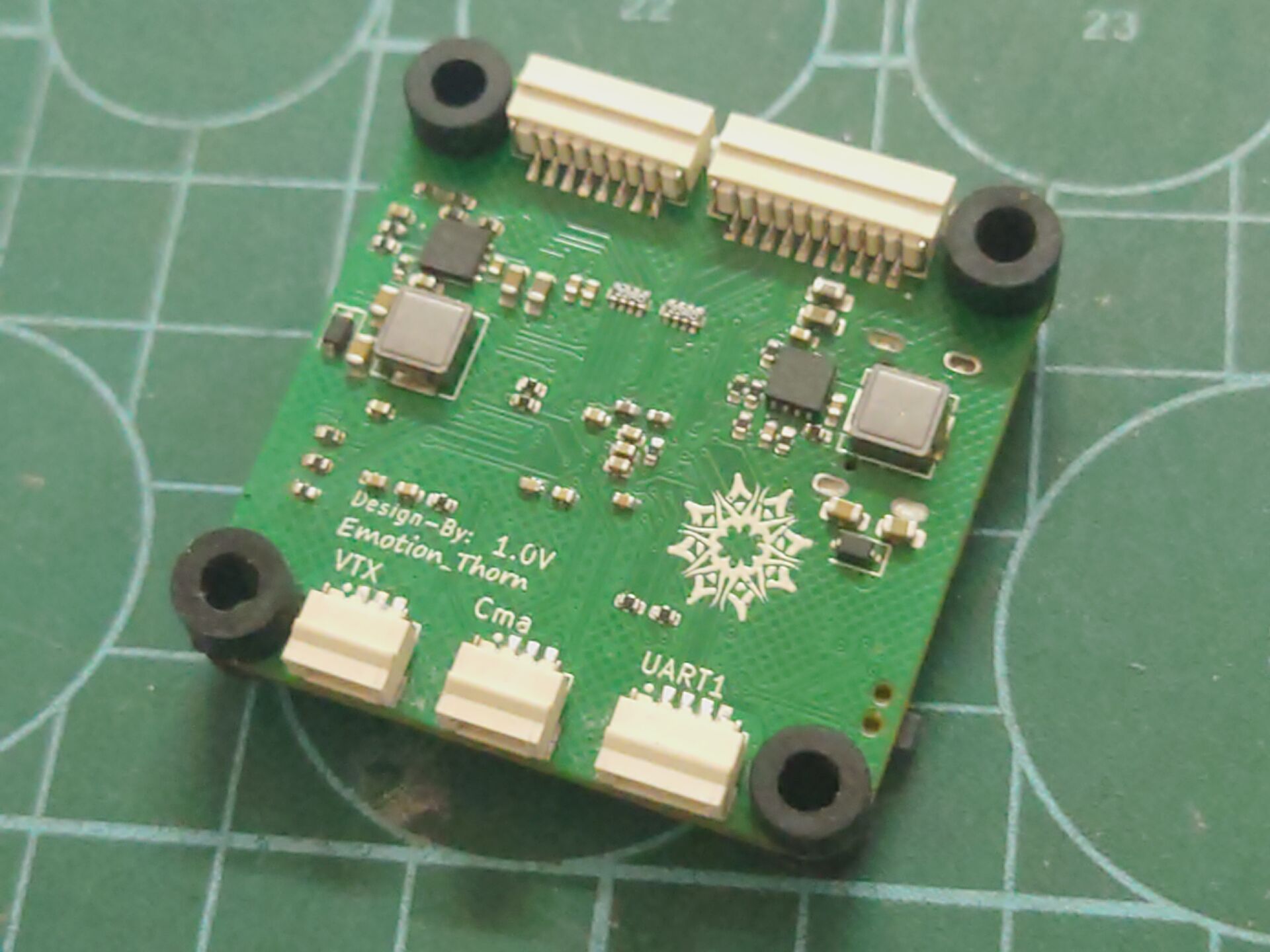

| Top | Bottom |
|---|---|
 |  |
- STM32F745VG(Cortex-M7)
- Have three BEC (Max input 36V)
- 12V 3A
- 5V 3A
- 3V3 2A
- Have two IMU
- BMI270
- IMC4288P
- On-board barometer(MS5611)
- On-board FLASH(W25Q256/W25N01G)
- On-board OSD(AT7456)
In addition to the provided pad, which can be soldered, the board can use JST-SH
Due to the lack of DMA channels in S5 S6, it seems that X8 mode (8 motors) cannot be activated on Betaflight at present
The PCB engineering files have been open-source
- H7-Pro 🛠️
....
💿Firmware
- Betaflight
- NewSkyF7-Air (4.4.4-Beta)
- Ardupolit🛠️
- Inav🛠️
- PX4🛠️
🌐Wireless connection ground station 🛠️
