Audio and video board for b68k computer

README

Overview

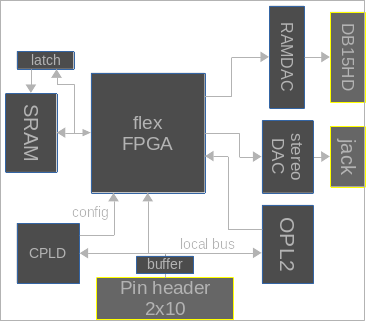

This board provides audio and video capabilities to the b68k computer. Main components:

• CPLD for local bus decoding and FPGA configuration
• flex FPGA
• SRAM 16-bits, 256kiB or 512 kiB
• video RAMDAC
• OPL2 audio chip

external interfaces: video (VGA, DIN 15 pins) and audio (3.5mm jack)

Memory mapping

The AVMGR CPLD decodes local bus accesses to address itself, the RAMDAC, the OPL2 or the flex FPGA.

address range	size	memory area
00000h - 0007Fh	128B	AVMGR registers. address bit 0 is ignored
00080h - 000FFh	128B	flex registers
00100h - 0017Fh	128B	RAMDAC registers. address bit 0 is ignored
00180h - 001FFh	128B	OPL2 registers. address bit 0 is ignored
00200h - 07FFFh	512B*63	mirrors x63 address range 000h-1FFh
08000h - 0FFFFh	32kiB	SRAM access (upper 32kiB, banking through flex register)
10000h - 1FFFFh	64kiB	SRAM access (banking through flex register)

AVMGR registers

These registers provide an interface to configure the flex FPGA. Address bit 0 is ignored, so that odd address target the same register as at even address.

address offset	name	description
00000h	cfgnsts	bit 0: (r) flex nSTATUS signalbit 1: (r) flex CONF_DONE signalbit 6: (rw) flex nCONFIG signalbit 7: (rw) flex reset signal (active low)
00002h	dat	bit 0: (rw) flex DAT0 signalWhen this register is written, the flex DAT0 signal is driven and a pulse is generated on DCLK
00004h	dbg0	spare register for debug purpose
00006h	dbg1	spare register for debug purpose

These registers mirror every 8 bytes.

OPL2 registers

Provide access to the 2 OPL2 registers. Address bit 0 is ignored, so that odd address target the same register as at even address.

address offset	name	description
00000h	regad	OPL2 Address (write) and status (read) register
00002h	regdt	OPL2 Data register

RAMDAC registers

Provide access to the RAMDAC registers (Bt476 / IMS G176 or compatible). Address bit 0 is ignored, so that odd address target the same register as at even address.

address offset	name	description
00000h	ad_write	Address Register (RAM Write Mode)
00002h	color	Color Palette RAM
00004h	mask	Pixel read Mask Register
00006h	ad_read	Address Register (RAM Read Mode)

flex registers

See flex FPGA documentation.

BOM

Reference	Part
RN1	not populated
U1	74F245
U2	EPM7064SLC44-10
U3	MPC6002
U4	LM337
U6	EPF10K10LC84-4
U7, U8	74F373
U11	YM3812 (OPL2)
U12	KDA0476BCN-66
D5	BAT48 (shottky)
X1 or X3	25-MHz
