IOT Antenna Switch Control

README

Antenna Switch Control (Hardware)

This is a board that allows a Raspberry Pi Pico-W to control 16 SPST relays.

The original purpose is to provide better automation for a 2-in, 6-out remote antenna switch, but it is built with extra capacity to allow a 2-in, 8-out remote switch as well.

3D image from KiCad

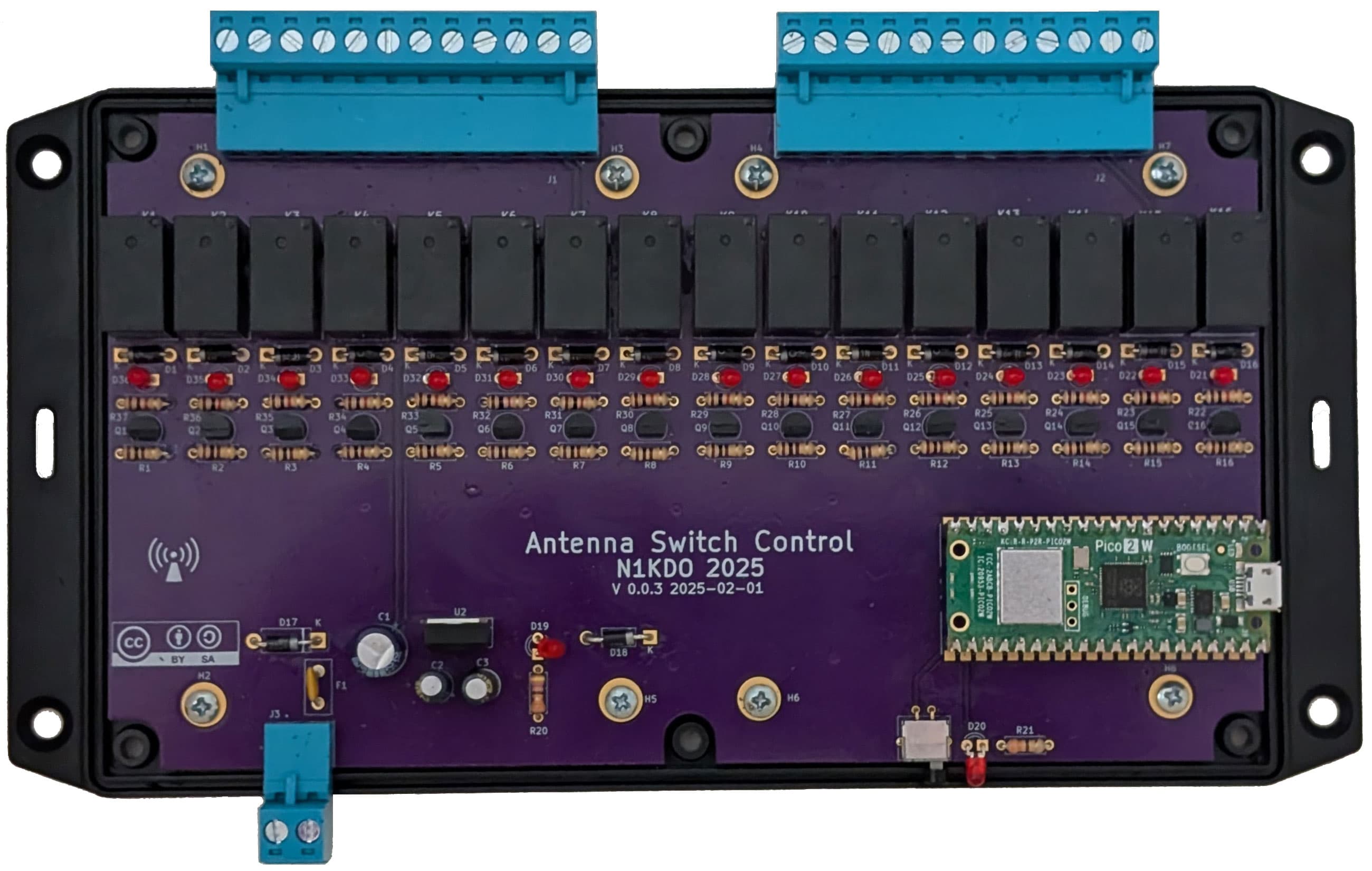

Real World Image

20250324 n1kdo
