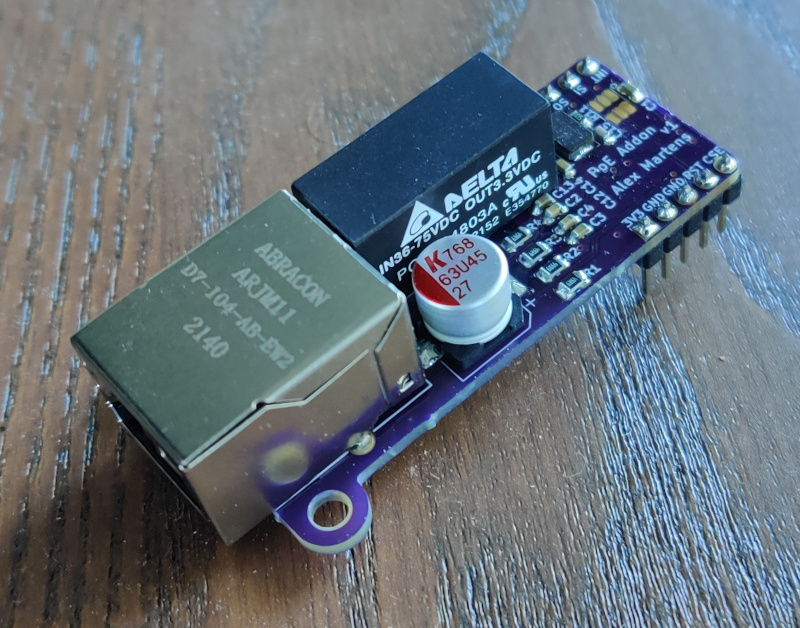

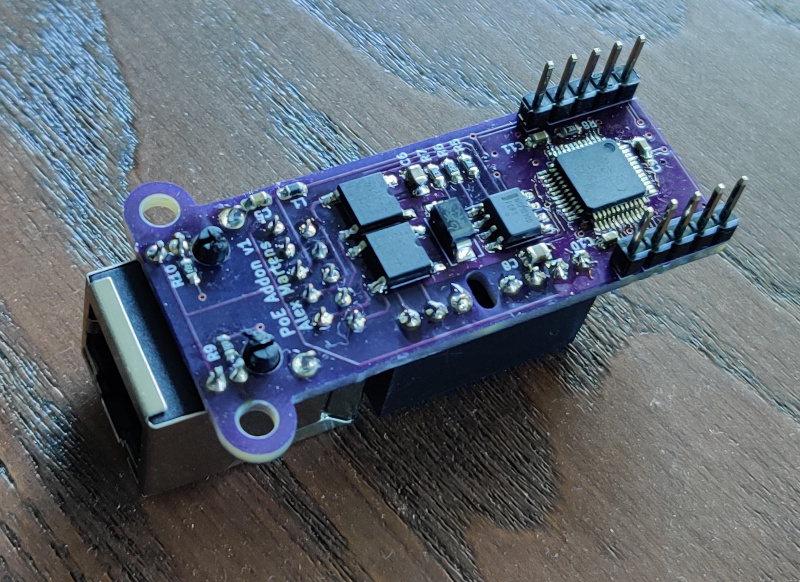

PoE Addon

Simple board to add power over Ethernet to a project.

This uses the Wiznet W5500 for TCP/IP offload, and a Microchip 25AA02E48 for a valid EUI-48 MAC address.

Bill of Materials

A bill of materials generated by InteractiveHtmlBom can be viewed at https://newam.github.io/poe-addon/
