Description

ThermalGuard HAT is a Raspberry Pi HAT for rack and enclosure monitoring, combining dual fan control, RPM tracking, temperature and humidity sensing, local data logging, and a web dashboard for live status and history.

README

ThermalGuard HAT

ThermalGuard HAT is a Raspberry Pi HAT for monitoring and controlling airflow in a server rack or enclosed equipment bay.

This repository contains both the hardware design and the software stack:

• a custom KiCad HAT
• a Python hardware service running on the Raspberry Pi
• a .NET 8 API
• an Angular web dashboard

Demo

https://github.com/user-attachments/assets/547ba5f1-9dda-4290-b39c-db074ba426f6

Board Renders And Wiring

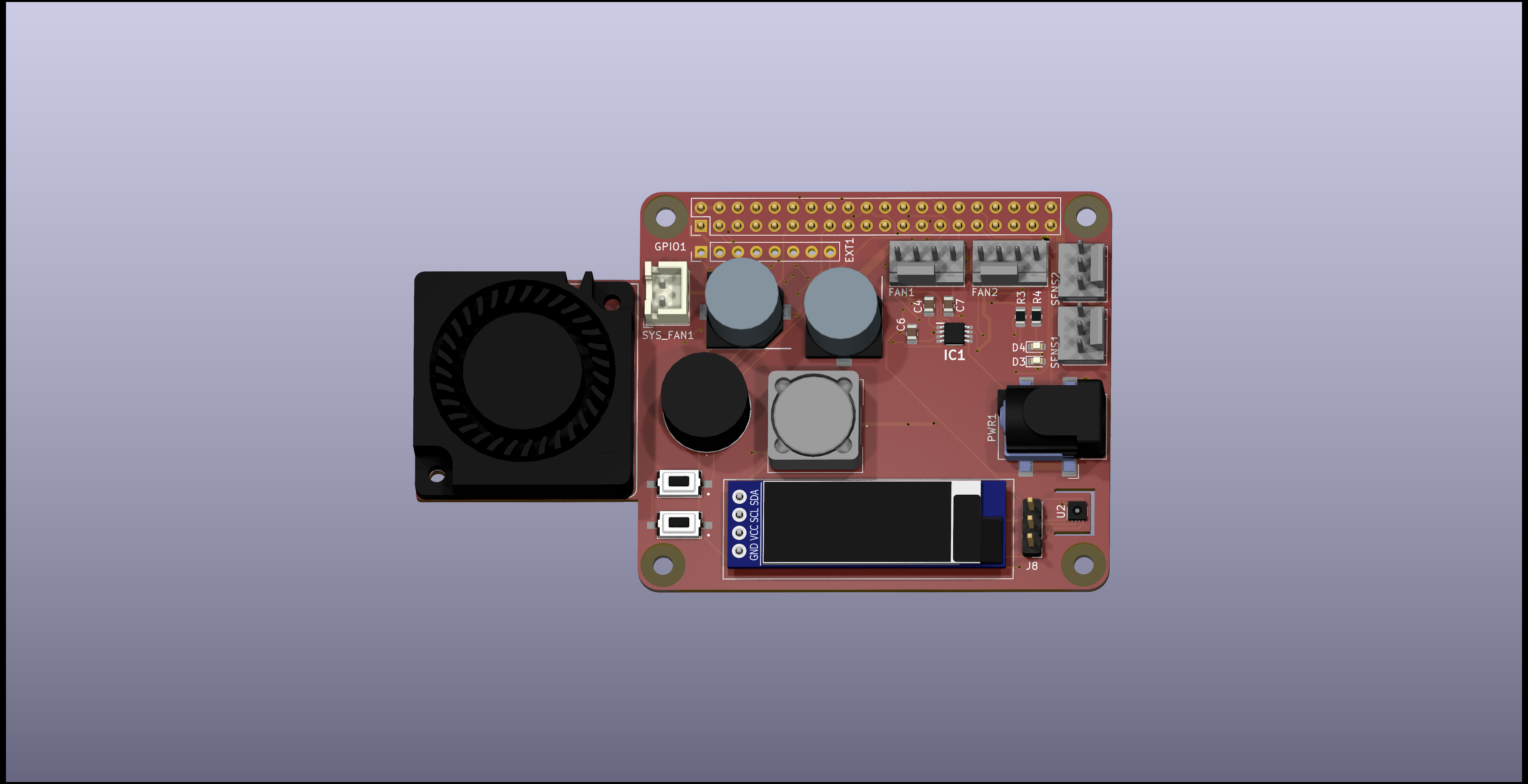

KiCad 3D render - front

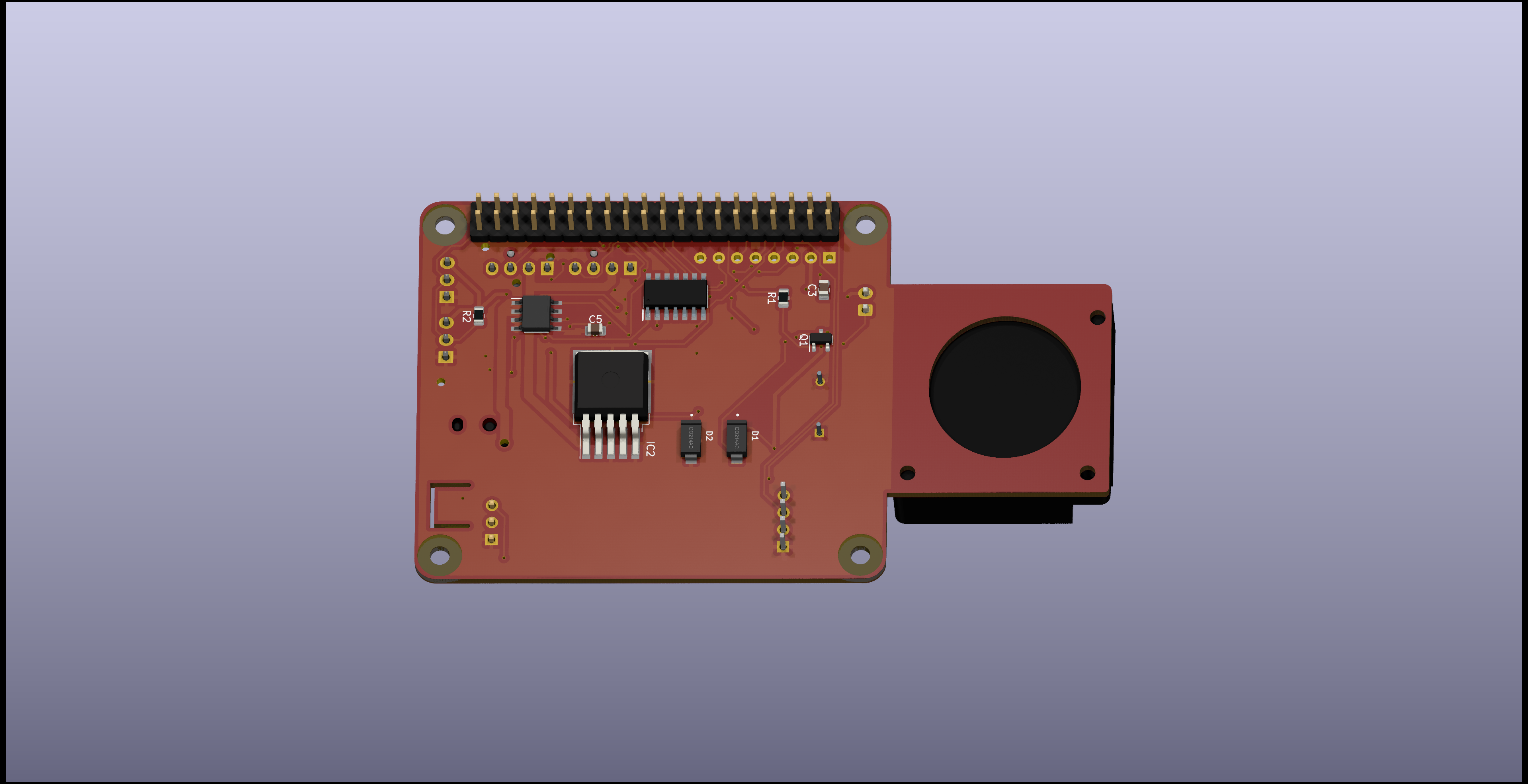

KiCad 3D render - back

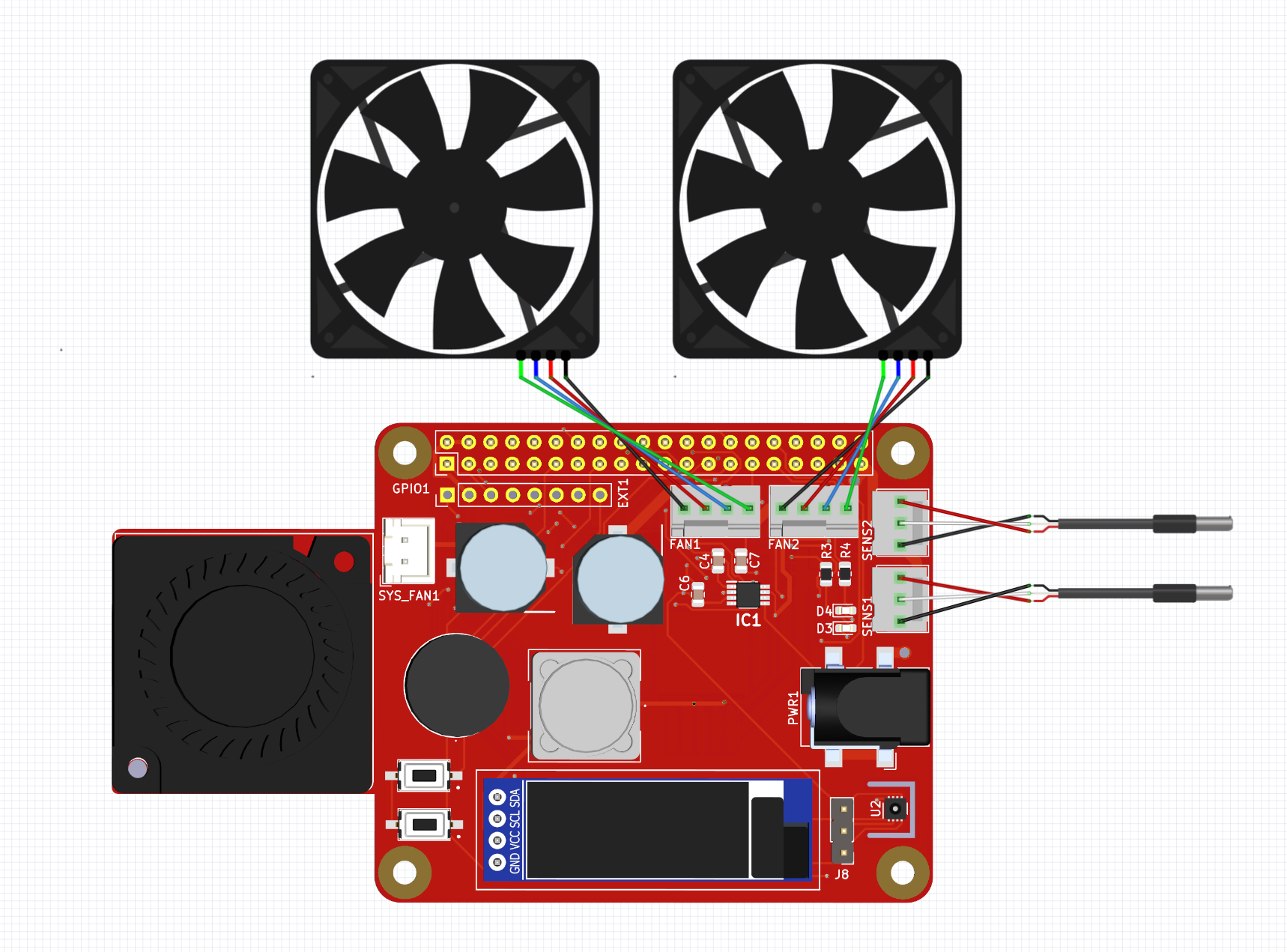

Wiring overview

Features

• System monitoring for onboard temperature, power consumption and relative humidity
• Two configurable temperature probes for rack, ambient or custom placement
• Dual fan control with RPM tracking and airflow estimation
• Onboard display showing temperatures, fan RPM, IP address and MAC address
• Automatic fan curves with linked or independent behavior
• Temporary boost mode to force maximum cooling for a defined duration
• Audible alert when a fan or temperature probe is disconnected
• Onboard button control to mute or disable the audible alert
• Web dashboard with live status cards and historical charts
• History browsing by custom period, day or hour
• Local or remote access with authentication
• Kiosk mode for dedicated wall display or rack display usage
• End-to-end installation assistant, including kiosk setup
• Configurable SQLite storage location, including external USB or disk-based storage

The reference platform for this project is a Raspberry Pi 2B. The goal is also to make practical use of older Raspberry Pi hardware for a dedicated monitoring appliance, rather than requiring a newer and more expensive board.

Repository Structure

thermalguard-hat/
|-- backend/
|   |-- src/      .NET 8 API, persistence, workers, static frontend hosting
|   `-- tests/    .NET test project
|-- frontend/     Angular frontend
|-- services/     Raspberry Pi hardware service and Python tests
|-- kicad/        KiCad project for the HAT PCB
|-- config/       Shared example configuration
|-- docs/         README media assets
`-- install.sh    Raspberry Pi installation script

Hardware

Main hardware blocks currently present in the project:

• Raspberry Pi 2B host
• custom HAT PCB designed in KiCad
• 2 x DS18B20 probes
• 1 x SHT31D temperature and humidity sensor
• 2 x PWM-controlled fans
• fan tachometer and current measurement circuitry
• OLED display and onboard controls

The repository is not only a software project. It also includes the PCB design files required to fabricate the HAT.

Software Architecture

flowchart TB
    browser([Browser])
    kiosk([Kiosk Display])
    front["Angular Dashboard"]
    api[".NET 8 API"]
    proxy["MQTT Proxy (/mqtt)"]
    mqtt[("Mosquitto Broker")]
    py["Python Hardware Service"]
    db[("SQLite Database")]
    hw["Sensors / Fans / GPIO"]
    svc["systemd"]

    browser -->|"UI"| front
    kiosk -->|"Kiosk UI"| front
    front -->|"REST"| api
    front -->|"WebSocket MQTT"| proxy
    proxy -->|"MQTT"| mqtt
    mqtt -->|"Live telemetry"| proxy
    py -->|"Publish"| mqtt
    py -->|"Store samples"| db
    api -->|"Read / write"| db
    api -->|"Control service"| svc
    svc -->|"Manage"| py
    py -->|"Read / drive"| hw

    classDef client fill:#202534,stroke:#90a4ff,color:#ffffff,stroke-width:1.5px;
    classDef ui fill:#2f3d56,stroke:#6ea8fe,color:#ffffff,stroke-width:1.5px;
    classDef backend fill:#304b46,stroke:#58c4a3,color:#ffffff,stroke-width:1.5px;
    classDef msg fill:#4b3561,stroke:#d08bff,color:#ffffff,stroke-width:1.5px;
    classDef data fill:#5a4330,stroke:#f2a65a,color:#ffffff,stroke-width:1.5px;
    classDef device fill:#4a3f46,stroke:#ff7b7b,color:#ffffff,stroke-width:1.5px;

    class browser,kiosk client;
    class front ui;
    class api,proxy,svc backend;
    class mqtt msg;
    class db data;
    class py,hw device;

Python service

The Python service is the hardware-facing part of the system. It:

• initializes GPIO and sensors
• controls the fans
• reads live measurements
• publishes telemetry on MQTT
• persists data into SQLite

Main entry points:

• services/main.py
• services/service.py

Backend API

The backend is a .NET 8 application that:

• serves the web application
• exposes authenticated API endpoints
• stores and queries historical data
• exposes configuration for the frontend
• manages service status operations

Main entry points:

• backend/src/NetApi/Program.cs
• backend/src/NetApi/Api/Controllers

Frontend

The frontend is an Angular application providing:

• dashboard views
• setup and login screens
• kiosk mode
• live MQTT-backed monitoring cards and graphs

Main entry points:

• frontend/src/app/features/dashboard/pages/dashboard.component.ts
• frontend/src/app/core/app.routes.ts

Dashboard

The web interface provides both live monitoring cards and historical charts.

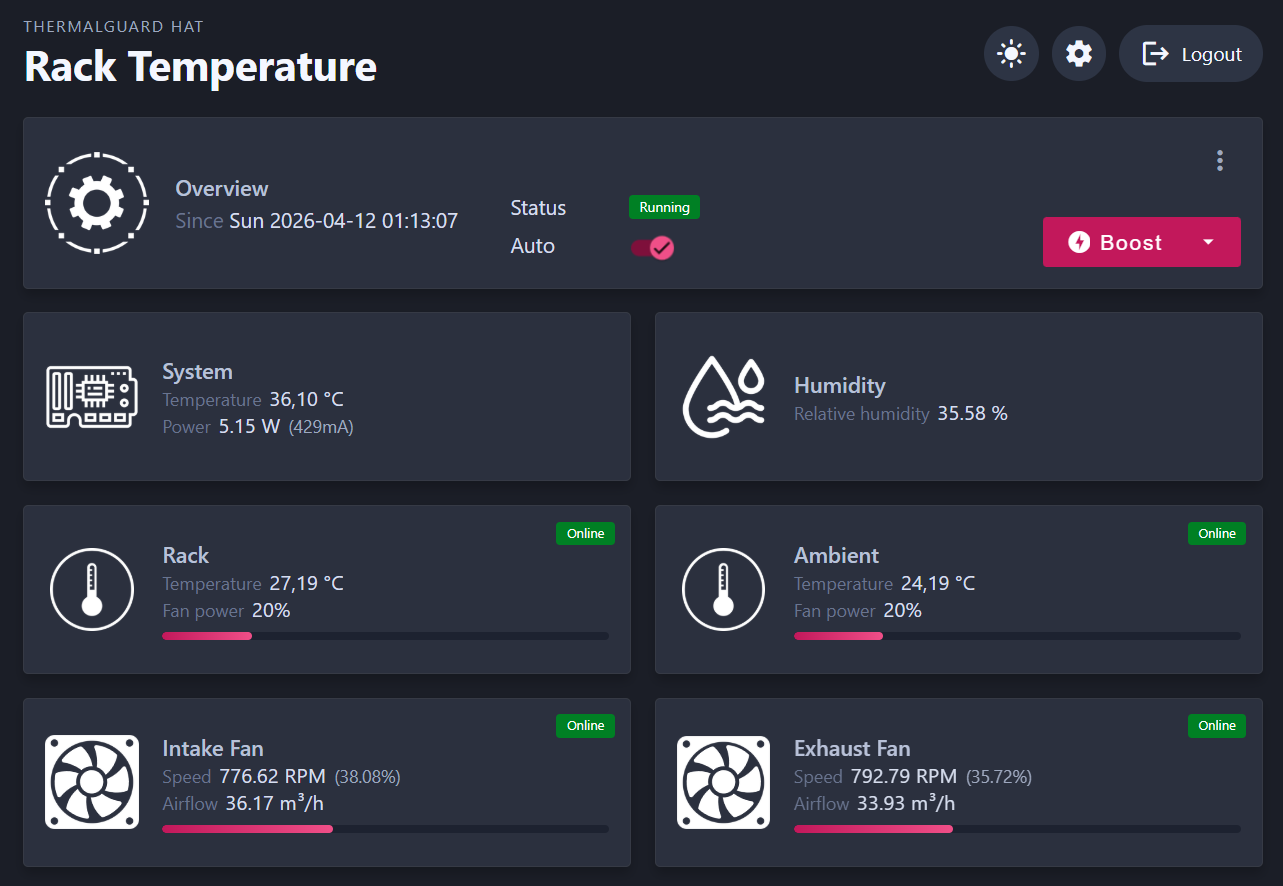

Live overview

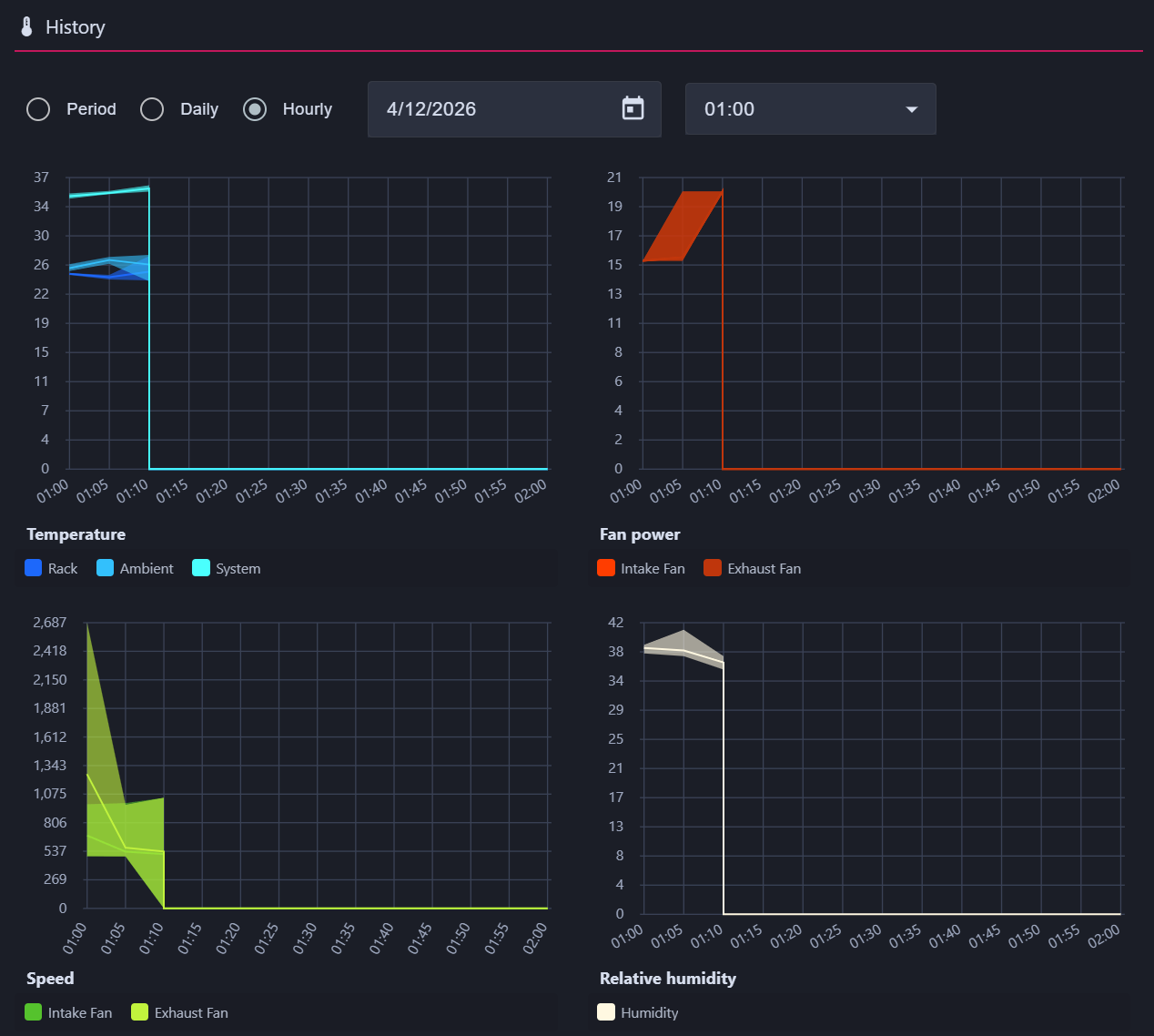

History view

Kiosk Mode

ThermalGuard HAT can run in kiosk mode for a dedicated rack display, with optional autologin, Chromium autostart, cursor hiding and screen blanking control.

https://github.com/user-attachments/assets/b98a219e-978e-4593-a772-88bbc4d270f7

Installation

Run the installation script on the Raspberry Pi as root:

sudo bash -c "$(curl -sSL https://raw.githubusercontent.com/olivierpetitjean/thermalguard-hat/main/install.sh)"

The script installs the software stack, prepares the Raspberry Pi environment and deploys the backend, frontend and Python service.

Storage Recommendation

For a permanent installation, it is strongly recommended to store the SQLite database on an external storage device such as:

• a USB flash drive
• an external SSD
• an external hard drive

Reason:

• the system performs repeated read and write operations
• keeping the database on the Raspberry Pi SD card increases wear
• the SD card also hosts the operating system, so avoiding unnecessary writes improves reliability

The database location is configurable through the shared connection string in config/settings.example.json.

Configuration

The main configuration reference is config/settings.example.json.

The setup wizard intentionally hides a few advanced low-level values such as the GPIO chip index and PWM channel mapping. They remain available in the shared configuration file if manual tuning is ever needed.

The installation also runs an interactive configuration wizard. Its main sections are:

Wizard section	What it configures
API & Security	CORS origin, JWT secret, token lifetime, retention policy and kiosk IP bypass rules
Display & Naming	Dashboard title, sensor names, fan names, locale, units and airflow display values
Kiosk Mode	Dedicated kiosk display behavior, local user, inline layout, cursor hiding, autologin, screen blanking and autostart
MQTT Broker	Local Mosquitto setup, WebSocket port, optional local authentication and optional MQTT bridge settings
1-Wire Temperature Sensors	Detection and assignment of the two DS18B20 probe identifiers
Thresholds & Timing	System fan threshold, database write interval, LCD screen standby delay, fan tach filter and PWM timing settings

If kiosk mode is enabled, the installer then runs a second kiosk-specific step to apply the desktop autologin, screen blanking and Chromium autostart configuration.

Core settings

Key	Purpose	Example
ConnectionStrings.WebApiDatabase	Shared SQLite database path used by the API and Python service	Data Source=/opt/thermalguard-hat/api/db/LocalDatabase.db
RetentionDays	Number of days of historical data to keep	30
Auth.JwtSecret	Secret used to sign JWT tokens	change-me-in-production-at-least-32-chars!!
Auth.TokenExpiryHours	JWT validity duration in hours	12
AllowedOrigins	Allowed frontend origin for CORS	http://raspberrypi.local

MQTT and broker settings

Key	Purpose	Example
BrokerHostSettings.Host	MQTT broker hostname or IP	127.0.0.1
BrokerHostSettings.Port	MQTT TCP port	1883
BrokerHostSettings.WsPort	MQTT over WebSocket port	1884
BrokerHostSettings.User	MQTT username	your-user
BrokerHostSettings.Password	MQTT password	your-password
BrokerHostSettings.UseTls	Enable TLS for broker communication	false
Mosquitto.Local.Authentication.Enabled	Enable authentication on local Mosquitto	false
Mosquitto.Bridge.Enabled	Enable broker bridge mode	false
Mosquitto.Bridge.Host	Upstream broker hostname	mqtt.example.com
Mosquitto.Bridge.Port	Upstream broker port	1883

Sensors, cooling and hardware pins

Key	Purpose	Example
Python.Sensor1Uid	1-Wire identifier for probe 1	xxxxxxxxxxxx
Python.Sensor2Uid	1-Wire identifier for probe 2	xxxxxxxxxxxx
Python.SysFanThreshold	Temperature threshold for the system fan	38
Python.Fan1Pin	PWM pin for fan 1	12
Python.Fan2Pin	PWM pin for fan 2	13
Python.Fan1Sensor	Tachometer input for fan 1	25
Python.Fan2Sensor	Tachometer input for fan 2	24
Python.SystemFan	GPIO pin for the auxiliary system fan	23
Python.SysBuzzer	GPIO pin for the buzzer	22
Python.Button1Pin	GPIO pin for button 1	17
Python.Button2Pin	GPIO pin for button 2	0

Display and UI labels

Key	Purpose	Example
Display.DashboardTitle	Dashboard title shown in the UI	Dashboard
Display.Sensor1Name	Label for probe 1	Rack
Display.Sensor2Name	Label for probe 2	Ambient
Display.Fan1Name	Label for fan 1	Intake Fan
Display.Fan2Name	Label for fan 2	Exhaust Fan
Display.Locale	UI locale	en-US
Display.TemperatureUnit	Temperature unit	C
Display.AirflowUnit	Airflow unit displayed in the UI	m3h
Display.Fan1MaxAirflow	Reference airflow value for fan 1	95.0
Display.Fan2MaxAirflow	Reference airflow value for fan 2	95.0

Kiosk settings

Key	Purpose	Example
Kiosk.BypassIPs	IP addresses allowed to access kiosk mode without standard login	[]
KioskSetup.Enabled	Enable kiosk setup during installation	false
KioskSetup.User	Desktop user used for kiosk autologin	pi
KioskSetup.HideCursor	Hide mouse cursor in kiosk mode	true
KioskSetup.DesktopAutologin	Enable desktop autologin	true
KioskSetup.DisableScreenBlanking	Disable screen blanking and sleep	true
KioskSetup.Autostart	Launch kiosk automatically on boot	true

Security

• API endpoints are protected with JWT authentication except the authentication bootstrap endpoints
• passwords are hashed with BCrypt
• the JWT secret must be changed before deployment
• CORS origins should be restricted to the actual deployed frontend origin

License

MIT. See LICENSE.
