a robot that learns and recognizes patterns on the go

README

zumo-jetson

A robot that learns and recognizes patterns on the go.

  1. The robot is based on Jetson Nano.

  2. The demo script reads the camera frames. Masks the blob, here green (for recognizing) and blue (for learning), using color based segmentation by converting the frames to HSV color space. A check is applied to avoid blobs overlapping with the edge of the frame. The masked image is then inputted to pyrebel which learns/recognizes the blob (using https://github.com/ps-nithin/pyrebel#5-pattern-recognition-demo). Here the recognized symbols are mapped with audio recordings made during learning the pattern. The recorded audio is played back during recognition.

  3. The robot uses an Arduino Nano RP2040 Connect as motor controller. It is connected to jetson nano over usb. The arduino firmware has common functions to drive motors and leds connected to it. For example, sending "blinkledwhite_1" over serial to the arduino turns on the white led.

  4. Three leds (white, green and blue) connected to the arduino shows the current state of the program. The white led blinks when the program is ready to accept input. The green led blinks when a green blob is detected in the input and the program tries to recognize the input. The blue led blinks when a blue blob is detected in the input and the program tries to learn the input. When both the green and the blue led blinks it indicates that both green and blue blobs are present in the input.

  5. A speaker and microphone is connected to jetson nano over usb. A Raspberry pi camera module v2 is connected to csi camera port of the jetson nano. Wireless connectivity nor internet is needed to run the program but is used for setting up jetson nano.

Patterns

The program can handle both green and blue patterns simultaneously. These different combinations of green and blue patterns can occur,

  1. Only green patterns are present in the input. In this case only recognition happens, either in 'image', or 'audio' channel. Channel having higher weightage is selected.

  2. Only blue patterns are present. In this case only learning happens. Since there are no green patterns, all the learning happens in 'audio' channel only. If there are multiple blue patterns, each constituent blue pattern has to be learned seperately in 'audio' channel before learning the pattern as a whole.

  3. Input contains a combination of green and blue patterns. In this case both learning and recognition happens. The blue patterns are learned with the symbol recognized from reading the green patterns. Both recognizing green patterns and learning blue patterns takes place in channel 'image'.

Pre-training

Letters of the English alphabets are pre-trained to provide a vocabulary for learning more complex patterns. The pre-trained letters can be relearned later to update the knowbase with different variations of the pre-trained letters as required.

Motors

The motors are controlled by four keywords in channel 'image'.

  1. 'fw' for moving forward.
  2. 'bw' for moving backward.
  3. 'sc' for spinning in clockwise direction.
  4. 'sa' for spinning in anti clockwise direction.

These keywords can be reassigned later to any arbitrary pattern you like by relearning.

Channels

When an image is learned its signatures are stored in channel 'image'. When a recording is made the signatures are stored in channel 'audio'. During recognition, different symbols may be recognized for each channels. The symbol from channel with higher weightage is selected.

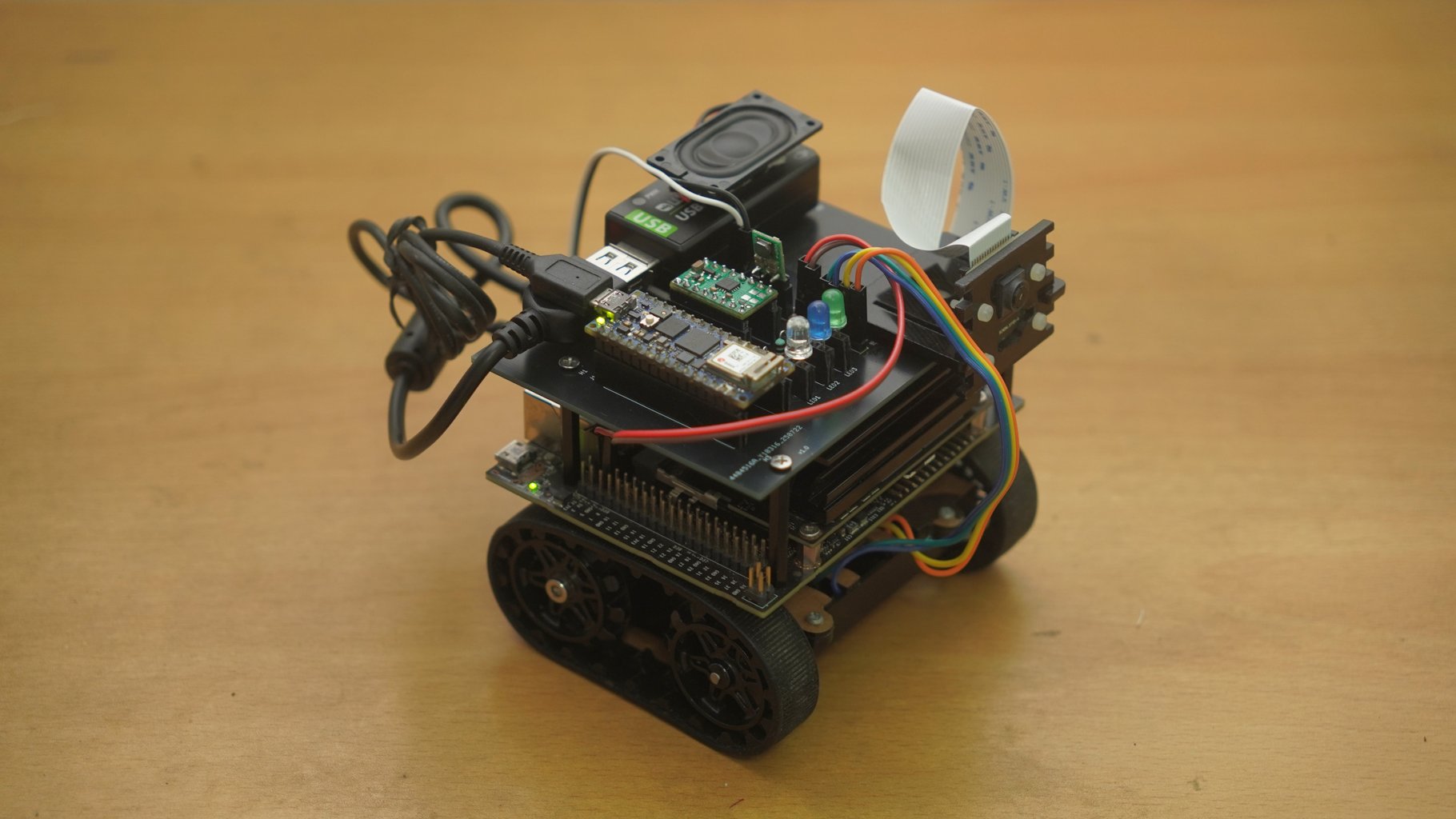

Build

  1. Zumo chassis (Pololu - Zumo Chassis Kit (No Motors) https://www.pololu.com/product/1418) act as the main chassis.
  2. Motors (Pololu - 298:1 Micro Metal Gearmotor HPCB 6V https://www.pololu.com/product/3069)
  3. Motor driver (Pololu - DRV8833 Dual Motor Driver Carrier https://www.pololu.com/product/2130)
  4. Voltage regulator (Pololu - 5V Step-Up/Step-Down Voltage Regulator S9V11F5 https://www.pololu.com/product/2836)
  5. Arduino Nano RP2040 connect as motor controller
  6. Raspberry Pi Camera v2 for camera with acrylic camera mount
  7. USB microphone
  8. USB speaker
  9. USB Wifi dongle / AC8265 Wireless NIC for Jetson Nano for wifi
  10. Standoffs and PCBs for structure holding the components
  11. Powered by 4xAA batteries.

You could hook up the wires using schematic or there is a robot controller board (please find design files in docs/zumo-jetson-pcb).

Setup

Tested to run on a Jetson Nano with Jetpack 4.6.1.

  1. Update packages sudo apt update sudo apt upgrade

  2. Install jetson-utils https://github.com/dusty-nv/jetson-utils

  3. Install miniforge with https://github.com/conda-forge/miniforge#unix-like-platforms-macos-linux--wsl Numba is installed inside miniforge environment. Run the following commands to install numba, source $HOME/miniforge3/bin/activate conda install python=3.8 conda install -c numba numba

    Copy jetson-utils library files from /usr/lib/python3.6/dist-packages/ to $HOME/miniforge3/lib/python3.8/site-packages

    python3 -m pip install pyserial python3 -m pip install scipy python3 -m pip install sounddevice sudo apt install libportaudio2 espeak-ng

  4. Install pyrebel cd git clone https://github.com/ps-nithin/pyrebel cd pyrebel python3 -m pip install .

    Patterns can also be learned using pyrebel/demo/pyrebel_main_learn_multiple.py (https://github.com/ps-nithin/pyrebel#5-pattern-recognition-demo). For example, images in zumo-jetson/scripts/images/train-hand/ are learned to learn English vocabulary. python3 pyrebel_main_learn_multiple.py --learn images/train-hand/

You may also need to change the microphone and speaker settings.

Running the script

  1. Demo script 1 - Single pattern cd git clone https://github.com/ps-nithin/zumo-jetson cd zumo-jetson/scripts sudo $HOME/miniforge3/bin/python3 pyrebel_main_learn_sound_jetson.py --camera 1 --user=$USERNAME

  2. Demo script 2 - Multiple patterns cd git clone https://github.com/ps-nithin/zumo-jetson cd zumo-jetson/scripts sudo $HOME/miniforge3/bin/python3 pyrebel_main_learn_sound_jetson_multiple.py --camera 1 --user=$USERNAME

Running the script on startup

sudo cp zumo-jetson.service /etc/systemd/system/ sudo systemctl daemon-reload sudo systemctl enable zumo-jetson.service sudo systemctl start zumo-jetson.service

If everything went right you should see the white led blinking!

Demo

  1. https://youtu.be/uzXOSZ4ztho Intro
  2. https://youtu.be/M06xsy5dlf4 Motor control
