Kerbal Guidance Computer

README

Kerbal Guidance Computer

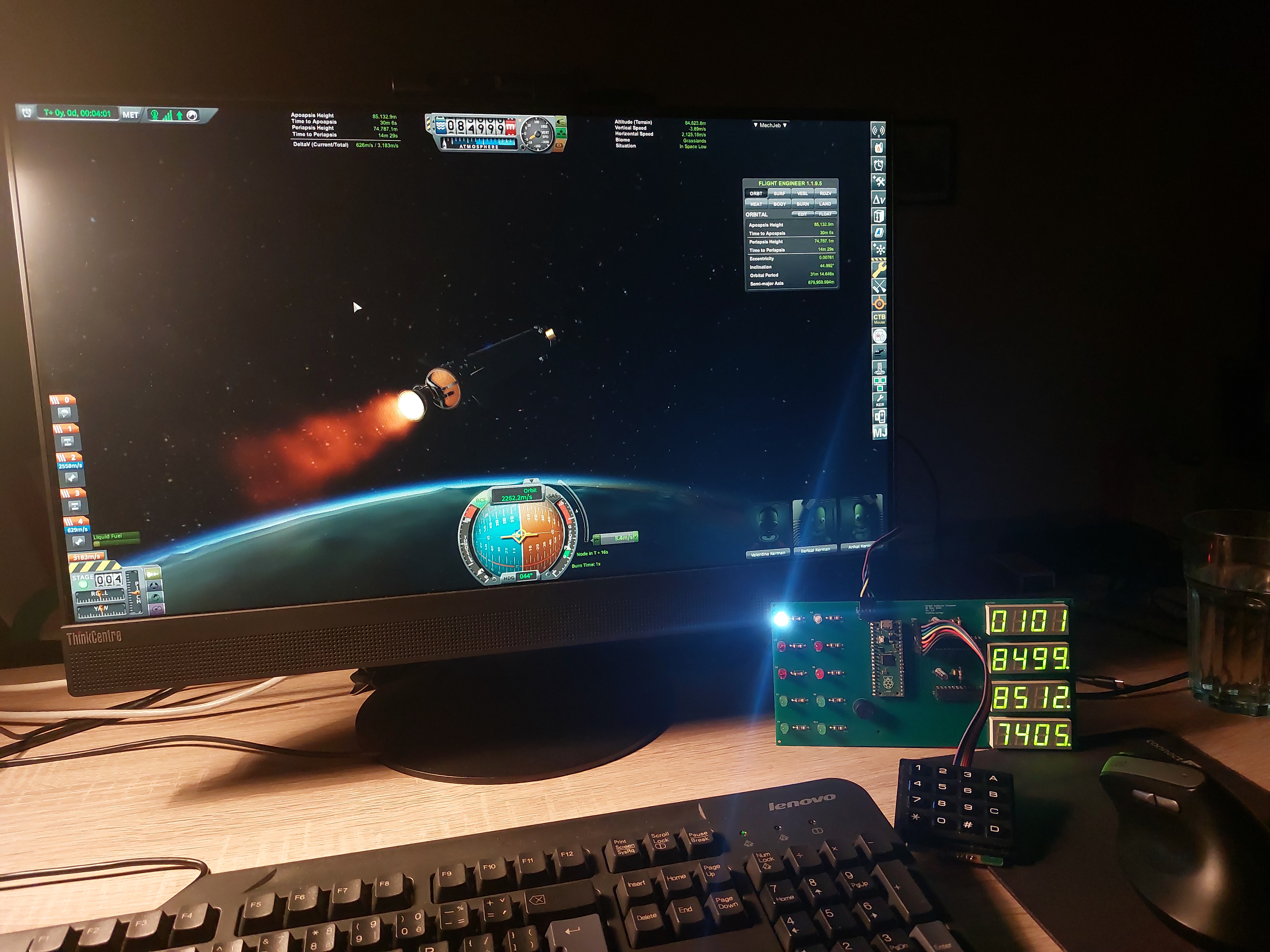

KGC DSKY

A HW flight computer for Kerbal Space Program inspired by NASA's DSKY - interface for Apollo Guidance Computer.

It consists of Python script for PC which grab data from the kRPC mod, KGC's DSKY based on Raspberry Pi Pico and program for it. DSKY communicate with PC via UART, so you also need some USB-UART converter. KiCad project for DSKY is located in kicad directory.

Project is still in developement, it's pretty buggy and some of planned features are stil unimplemented.

Features

Implemented

Display several flight informations depending on selected Verb and Noun.
Ship control:
- SAS control
- RCS control
- Gear control
- Lights control
- Brakes control
- Solar panels control (extend/retract)
- Antennas control (extend/retract)
- Next stage activation
- Abort group activation
Maneuver planning
MechJeb control:
- Ascent guidance

Planned

Ship control:
- Thrust control
MechJeb control:
- Landing guidance
- Rendezvous autopilot
- Docking autopilot
- Maneuver planner

Installation

TODO

Usage

TODO

Verbs and Nouns list

Verb	Noun	Input/Output	Actions	Notes
00	00		No op
01	01		Disconnect from server
00	02		Reboot
01	00		No op
01	01	O: Altitude above sea level [m]
		O: Apoapsis [m]
		O: Periapsis [m]
01	02	O: Orbital inclination [°]
		O: Orbital eccentricity [°]
		O: Mean anomaly [°]
01	03	O: Time to apoapsis [hrs]
		O: Time to apoapsis [min]
		O: Time to apoapsis [sec]
01	04	O: Time to apoapsis [days]
		O: Time to apoapsis [hrs]
		O: Time to apoapsis [min]		Kerbin days
01	05	O: Time to periapsis [hrs]
		O: Time to periapsis [min]
		O: Time to periapsis [sec]
01	06	O: Time to periapsis [days]
		O: Time to periapsis [hrs]
		O: Time to periapsis [min]		Kerbin days
01	07	O: Orbital period [hrs]
		O: Orbital period [min]
		O: Orbital period [sec]
01	08	O: Orbital period [days]
		O: Orbital period [hrs]
		O: Orbital period [min]		Kerbin days
01	09	O: Time to sphere of influence change [hrs]
		O: Time to sphere of influence change [min]
		O: Time to sphere of influence change [sec]
01	10	O: Time to sphere of influence change [days]
		O: Time to sphere of influence change [hrs]
		O: Time to sphere of influence change [min]		Kerbin days
01	11	O: Heading [°]		TODO: check ref. frame
		O: Pitch [°]		TODO: check ref. frame
		O: Roll [°]		TODO: check ref. frame
01	12	O: Velocity - x [m/s]		TODO: check ref. frame
		O: Velocity - y [m/s]
		O: Velocity - z [m/s]
01	13	O: Orbital speed [m/s]
		O: Surface speed [m/s]
02	00		No op
02	01	O: Mission elapsed time [hrs]
		O: Mission elapsed time [min]
		O: Mission elapsed time [sec]		Strange bug
02	02	O: Mission elapsed time [days]
		O: Mission elapsed time [min]		Strange bug
		O: Mission elapsed time [hrs]		Strange bug
02	03	O: Mass [kg]
		O: Available thurst [N]
		O: Specific impulse [sec]
02	04	O: Electric charge capacity [-]
		O: Monopropellant capacity [-]
		O: Liquid fuel capacity [-]
02	05	O: Electric charge amount [-]		TODO: float
		O: Monopropellant amount [-]		TODO: float
		O: Liquid fuel amount [-]		TODO: float
02	06	O: Electric charge amount [%]
		O: Monopropellant amount [%]
		O: Liquid fuel amount [%]
02	07	O: Electric charge capacity [-]
		O: Electric charge amount [-]		TODO: float
		O: Electric charge amount [%]
02	08	O: Monopropellant capacity [-]
		O: Monopropellant amount [-]		TODO: float
		O: Monopropellant amount [%]
02	09	O: Liquid fuel capacity [-]
		O: Liquid fuel amount [-]		TODO: float
		O: Liquid fuel amount [%]
03	01	O: Surface speed [m/s]
		O: Vertical speed [m/s]
		O: Altitude above surface [m]
03	02	O: Altitude above sea level
		O: Apoapsis [m]
		O: Orbital inclination [°]
03	03	O: Apoapsis [m]
		O: Periapsis [m]
		O: Orbital inclination [°]
04	01	O: Time to node [hrs]
		O: Time to node [min]
		O: Time to node [sec]
04	02	O: Δv magnitude - prograde direction [m/s]
		O: Δv magnitude - normal direction [m/s]
		O: Δv magnitude - radial direction [m/s]
04	03	O: Δv [m/s]
		O: Remaining Δv [m/s]
		O: Time to node [sec]
04	04	O: Result apoapsis [m]
		O: Result periapsis [m]
		O: Result inclination [°]
05	01	O: Altitude above surface [m]
		O: Surface speed [m/s]
		O: Liquid fuel amount [%]
05	02	O: Altitude above surface [m]
		O: Vertical speed [m/s]
		O: Horizontal speed [m/s]
12	01		Activate SAS in stability assist mode	Then return to previous Verb + Noun
12	02		Activate SAS in maneuver mode	Then return to previous Verb + Noun
12	03		Activate SAS in prograde mode	Then return to previous Verb + Noun
12	04		Activate SAS in retrograde mode	Then return to previous Verb + Noun
12	05		Activate SAS in normal mode	Then return to previous Verb + Noun
12	06		Activate SAS in anti-normal mode	Then return to previous Verb + Noun
12	07		Activate SAS in radial mode	Then return to previous Verb + Noun
12	08		Activate SAS in anti-radial mode	Then return to previous Verb + Noun
12	09		Activate SAS in target mode	Then return to previous Verb + Noun
12	10		Activate SAS in anti-targer mode	Then return to previous Verb + Noun
12	11		Deactivate SAS	Then return to previous Verb + Noun
12	12		Activate RCS	Then return to previous Verb + Noun
12	13		Deactivate RCS	Then return to previous Verb + Noun
12	14		Extend gear	Then return to previous Verb + Noun
12	15		Retract gear	Then return to previous Verb + Noun
12	16		Activate ligts	Then return to previous Verb + Noun
12	17		Deactivate lights	Then return to previous Verb + Noun
12	18		Activate brakes	Then return to previous Verb + Noun
12	19		Deactivate brakes	Then return to previous Verb + Noun
12	20		Extend solar panels	Then return to previous Verb + Noun
12	21		Retract solar panels	Then return to previous Verb + Noun
12	22		Extend antennas	Then return to previous Verb + Noun
12	23		Retract antennas	Then return to previous Verb + Noun
12	24		Activate next stage	Then return to previous Verb + Noun
12	25		Activate abort group	Then return to previous Verb + Noun
12	30		Initialize node creation
12	31	I: UT - year
		I: UT - day
12	32	O: UT - year
		O: UT - day
12	33	I: UT - hour
		I: UT - minute
		I: UT - second
12	34	O: UT - hour
		O: UT - minute
		O: UT - second
12	35	I: Δv - prograde [m/s]
		I: Δv - normal [m/s]
		I: Δv - radial [m/s]
12	36	O: Δv - prograde [m/s]
		O: Δv - normal [m/s]
		O: Δv - radial [m/s]
12	37		Create node	Incorrect time
13	00		Initialize ascent autpoilot	MechJeb is used
13	01	I: Orbit altitude [km]
		I: Orbit inclination [°]
		I: Ascent profile {1; 2; 3}		1 = Classic ascent profile
				2 = Stock-style GravityTurn ascent profile
				3 = Primer Vector Guidance ascent profile
13	02	O: Orbit altitude [km]
		O: Orbit inclination [°]
		O: Ascent profile {1; 2; 3}
13	03	I: Acceleration limit [m/s]		-1 for disable; -2 for ignore
		I: Throttle limit [%]		-1 for disable; -2 for ignore
13	04	O: Acceleration limit [m/s]
		O: Throttle limit [%]
13	05	I: Force roll - climb [°]		-1 for disable; -2 for ignore (whole force roll)
		I: Force roll - turn [°]
13	06	O: Force roll - climb [°]
		O: Force roll - turn [°]
13	07	I: Autostage pre-delay [s]		-1 for disable; -2 for ignore (whole autostage)
		I: Autostage post-delay [s]
		I: Clamp autostage thrust [%]
13	08	O: Autostage pre-delay [s]
		O: Autostage post-delay [s]
		O: Clamp autostage thrust [%]
13	09	I: Minimal throttle [%]		-1 for disable; -2 for ignore
		I: Autostage stop stage		Details in truth table
		I: Other options
13	10	O: Minimal throttle [%]
		O: Autostage stop stage
		O: Other options
13	11	I: Turn start altitude [km]		Classic ascent profile
		I: Turn start velocity [m/s]		Classic ascent profile
		I: Turn end altitude [km]		Classic ascent profile
13	12	O: Turn start altitude [km]		Classic ascent profile
		O: Turn start velocity [m/s]		Classic ascent profile
		O: Turn end altitude [km]		Classic ascent profile
13	13	I: Final flight path angle [°]		Classic ascent profile; -1 for disable; -2 for ignore
		I: Turn shape [%]		Classic ascent profile; -1 for disable; -2 for ignore
13	14	O: Final flight path angle [°]		Classic ascent profile
		O: Turn shape [%]		Classic ascent profile
13	15	I: Turn start altitude [km]		Stock-style GravityTurn ascent profile
		I: Turn start velocity [m/s]		Stock-style GravityTurn ascent profile
		I: Turn start pitch [°]		Stock-style GravityTurn ascent profile
13	16	O: Turn start altitude [km]		Stock-style GravityTurn ascent profile
		O: Turn start velocity [m/s]		Stock-style GravityTurn ascent profile
		O: Turn start pitch [°]		Stock-style GravityTurn ascent profile
13	17	I: Intermediate altitude [km]		Stock-style GravityTurn ascent profile
		I: Hold AP time [s]		Stock-style GravityTurn ascent profile
13	18	O: Intermediate altitude [km]		Stock-style GravityTurn ascent profile
		O: Hold AP time [s]		Stock-style GravityTurn ascent profile
13	19	I: Apoapsis altitude [km]		Primer Vector Guidance ascent profile
		I: Attach altitude [km]		Primer Vector Guidance ascent profile
		I: Booster pitch start velocity [m/s]		Primer Vector Guidance ascent profile
13	20	O: Apoapsis altitude [km]		Primer Vector Guidance ascent profile
		O: Attach altitude [km]		Primer Vector Guidance ascent profile
		O: Booster pitch start velocity [m/s]		Primer Vector Guidance ascent profile
13	21	I: Booster pitch rate [°/s]		Primer Vector Guidance ascent profile
		I: PVG after stage		Primer Vector Guidance ascent profile; -1 for disable; -2 for ignore
13	22	O: Booster pitch rate [°/s]		Primer Vector Guidance ascent profile
		O: PVG after stage		Primer Vector Guidance ascent profile
13	23	I: Q trigger [kPa]		Primer Vector Guidance ascent profile
		I: Fixed coast length [s]		Primer Vector Guidance ascent profile; -1 for disable; -2 for ignore
13	24	O: Q trigger [kPa]		Primer Vector Guidance ascent profile
		O: Fixed coast length [s]		Primer Vector Guidance ascent profile
13	25		Enage ascent autopilot
13	26		Disenage ascent autopilot

Truth table for other options value in Ascent autopilot

Prevent overheat	Solar panels	Antennas	Skip circularization	Dec
0	0	0	0	0
0	0	0	1	1
0	0	1	0	2
0	0	1	1	3
0	1	0	0	4
0	1	0	1	5
0	1	1	0	6
0	1	1	1	7
1	0	0	0	8
1	0	0	1	9
1	0	1	0	10
1	0	1	1	11
1	1	0	0	12
1	1	0	1	13
1	1	1	0	14
1	1	1	1	15

Error codes

Ascent guidance:

1301: Noun doesn't exist
1302: Autopilot wasn't initialized
1303: Ascent profile selected in V13;N01 doesn't exist
