Description
A candy size ElectroMyoGraphy (EMG) sensor for precise muscle bio-potential signals recording.
README
Muscle-BioAmp-Candy
-white){kind=icon}

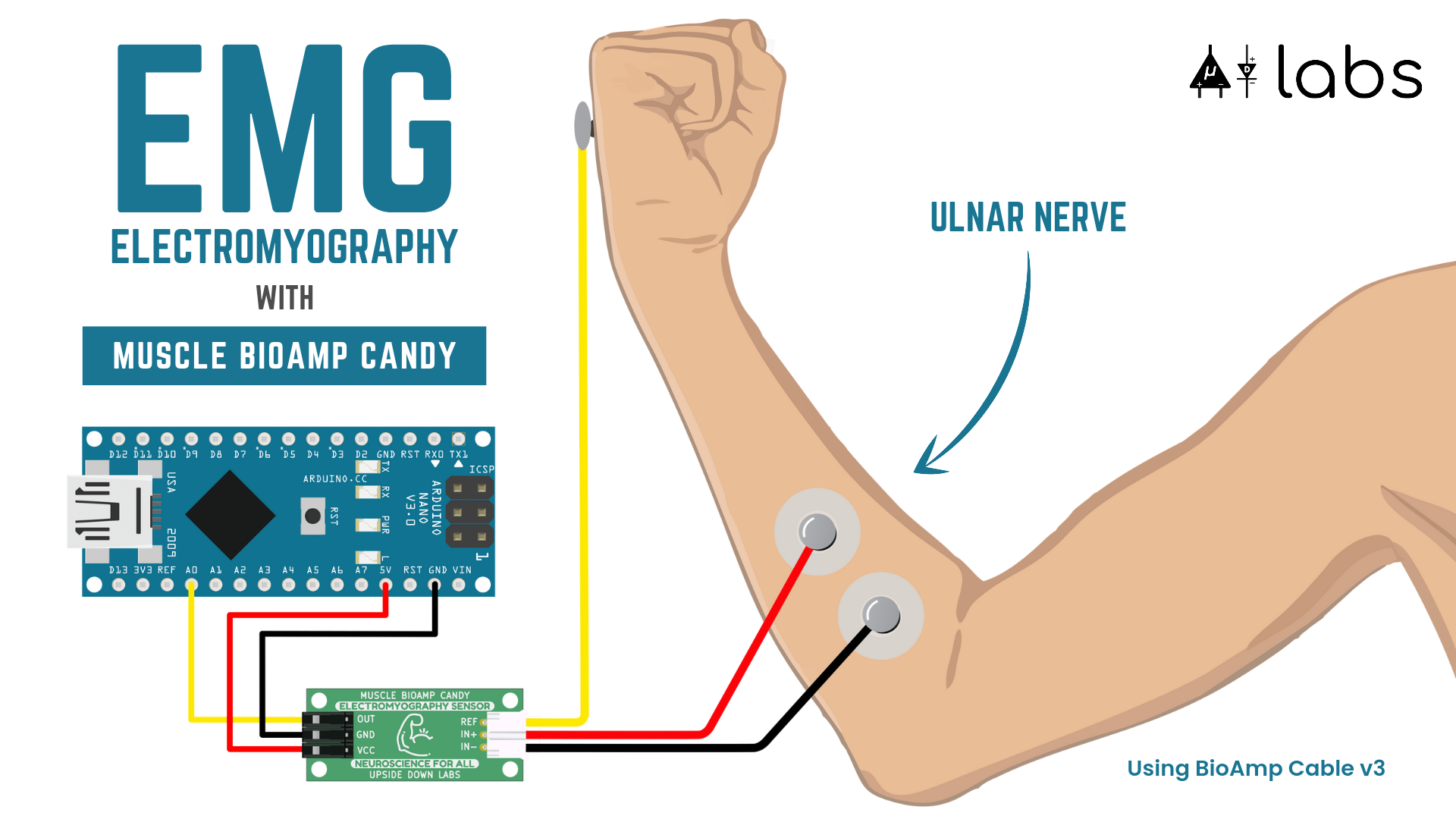

A candy size ElectroMyography (EMG) sensor for precise muscle bio-potential signals recording at an affordable cost. It comes with a fixed gain of x2420 and BandPass filter of 72Hz - 720Hz. To record the EMG signals you can use any standalone ADC like ADS1115 or any microcontroller development board with an ADC of your choice like Arduino UNO/Nano.
Hardware

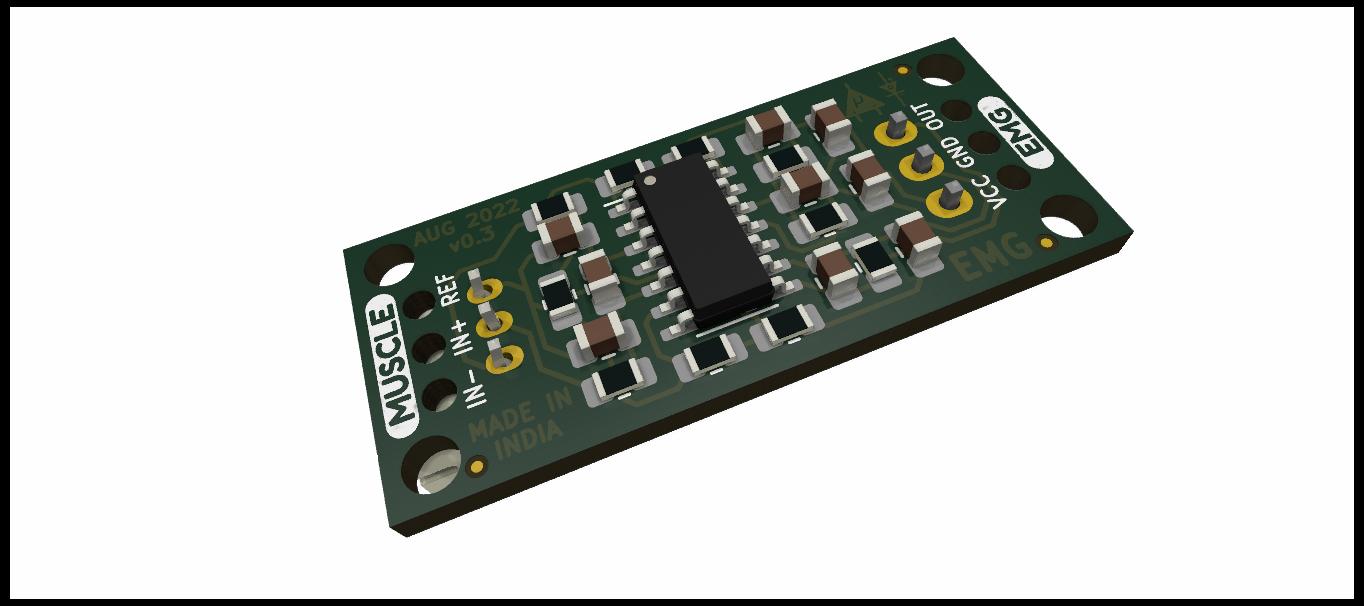

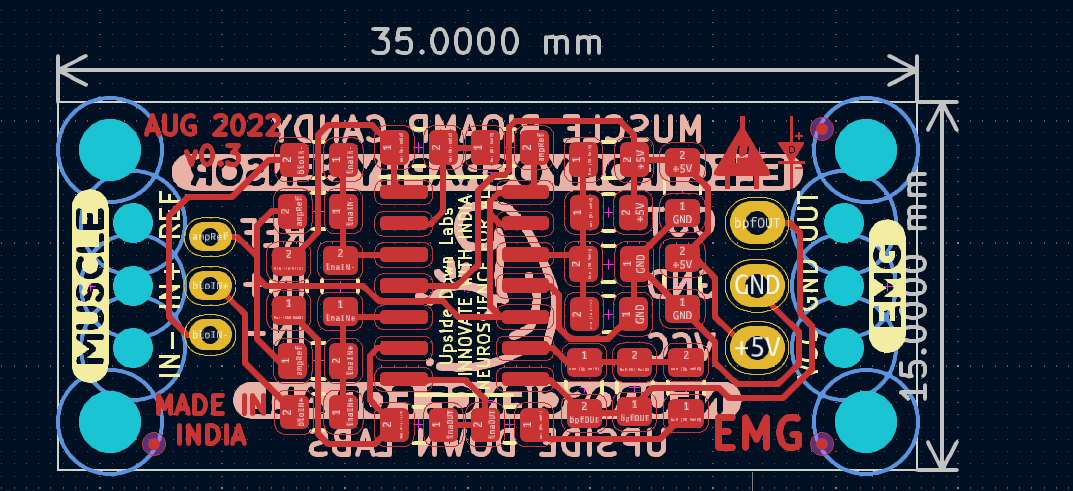

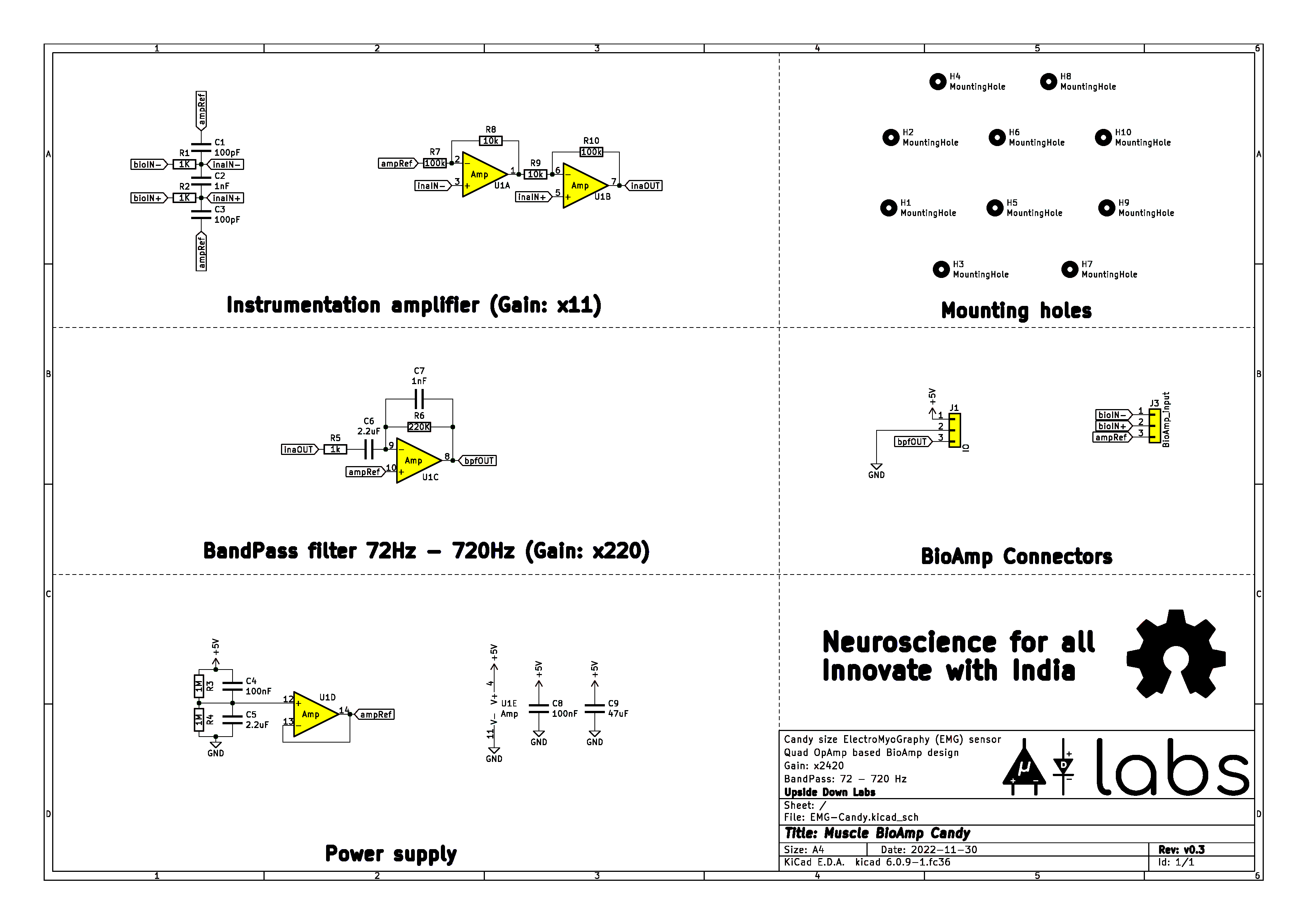

Muscle BioAmp Candy has been created using KiCad and all the design files can be found under hardware folder. Images below shows a quick overview of the hardware design.

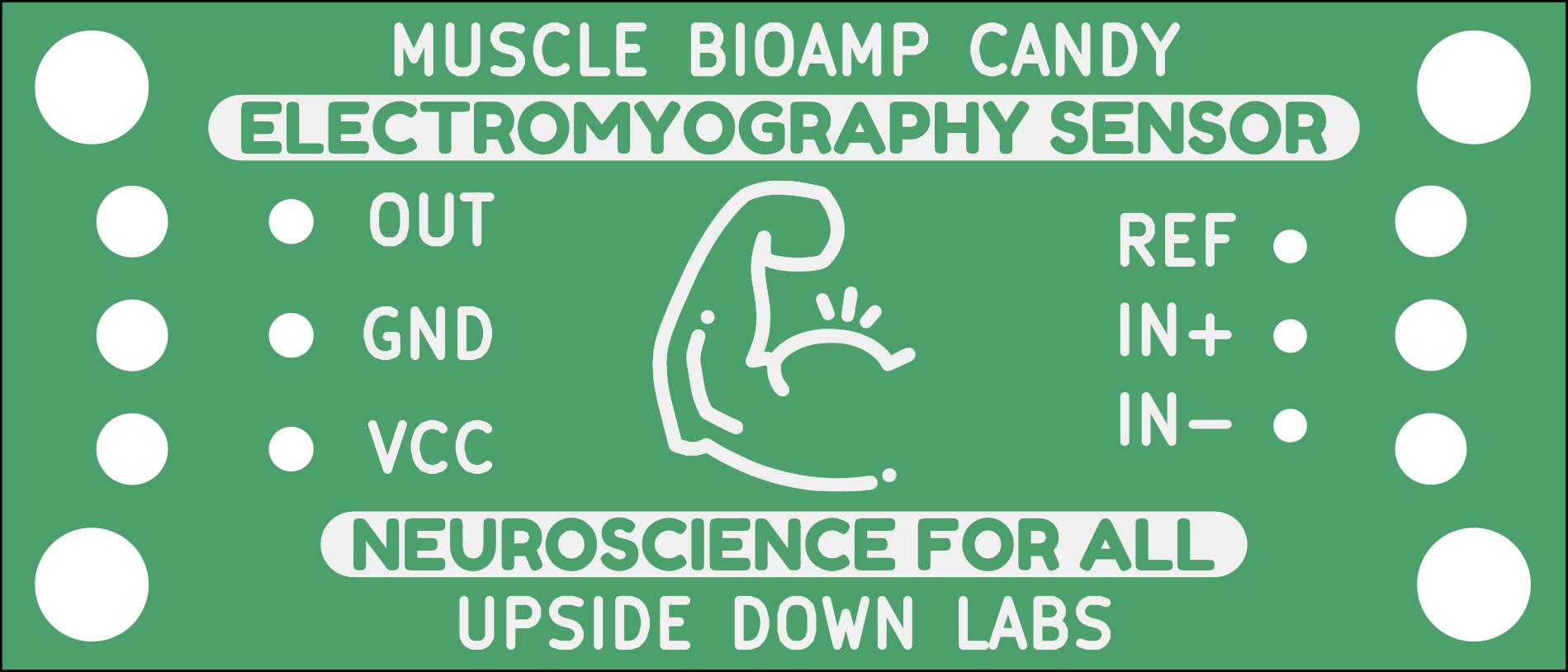

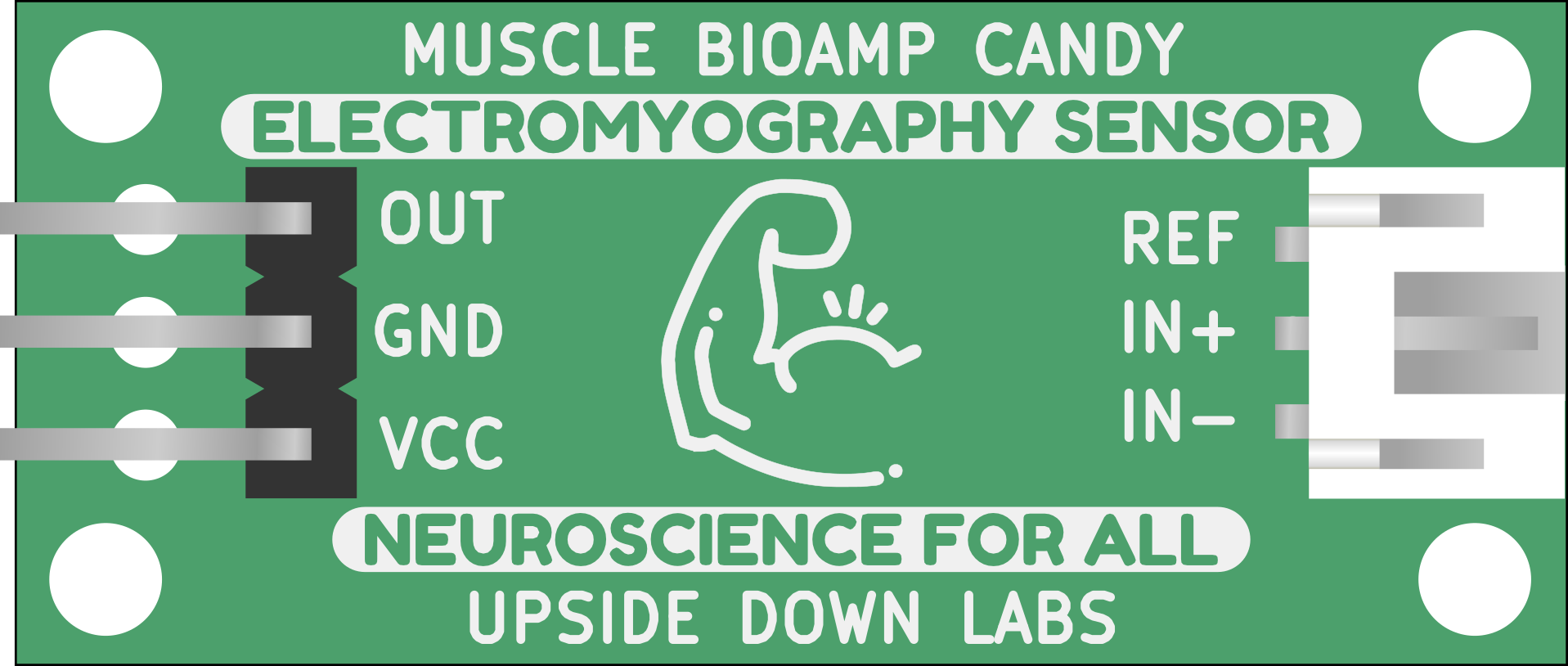

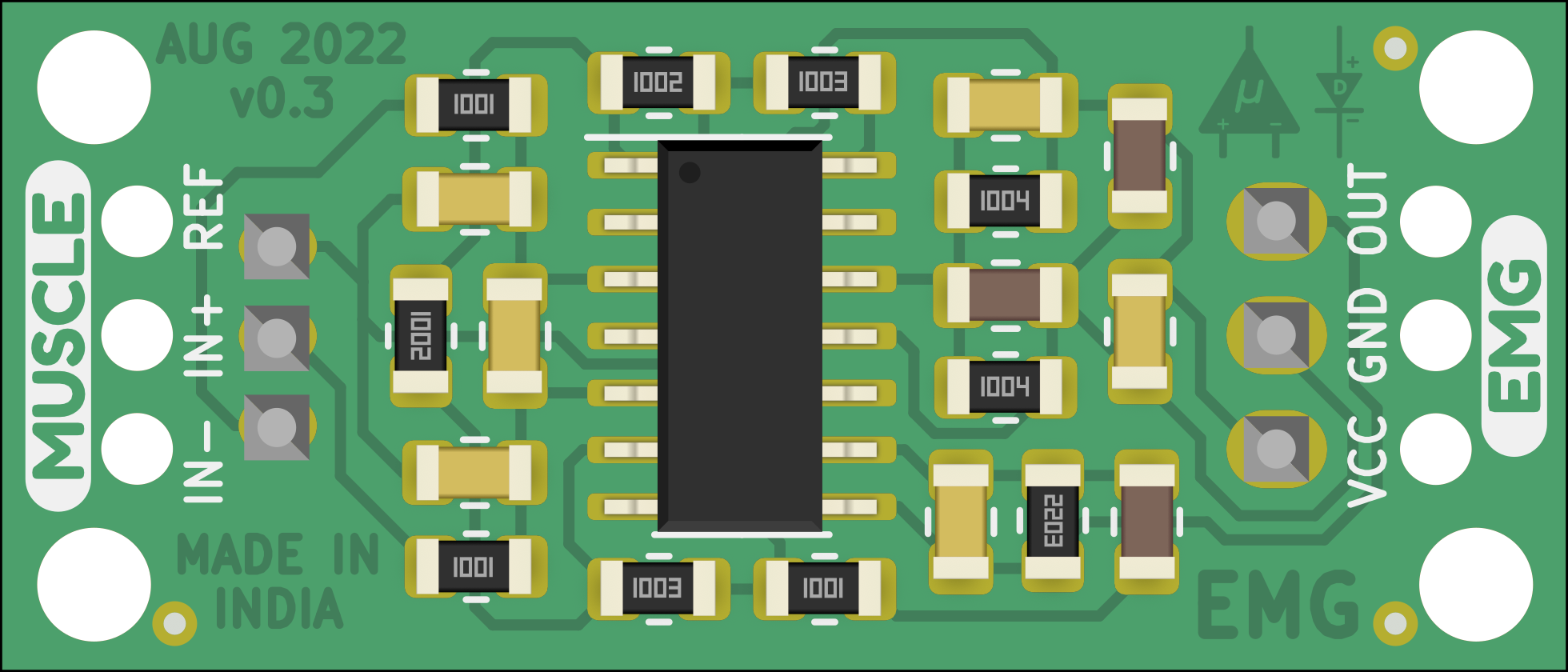

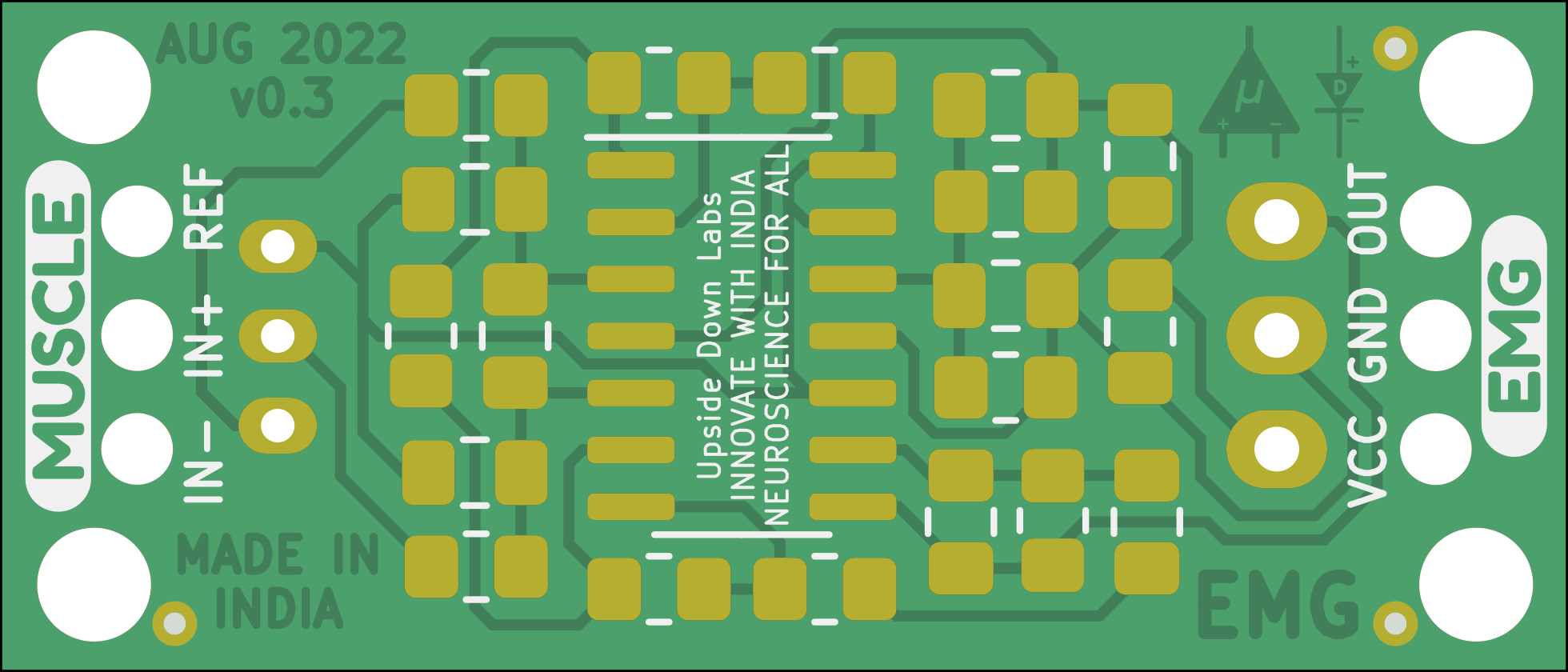

| PCB Front | PCB Back |
|---|---|
 |  |
License
| Licenses Facts | OSHWA Certification |
|---|---|
Hardware
CERN Open Hardware License Version 2 - Strongly Reciprocal (CERN-OHL-S-2.0).
Software
MIT open source license.
Documentation:
This work is licensed under a Creative Commons Attribution 4.0 International License.
