README

name: "Vincent Cayadi" slack_handle: "@vincentcayadi" github_handle: "@vincentcayadi"

breakout-TB67H450FNG

The TB67H450FNG Breakout/Evaluation Board is a custom-designed board for the Toshiba TB67H450FNG motor driver IC. The datasheet for this component can be found here.

This board is ideal for low-power robotics applications that require minimal torque, with a maximum current rating of 3.0A and a typical current rating of 1.5A. While the board features Surface Mounted Devices (SMD) components, soldering is relatively straightforward, making it accessible to a wide range of users.

I have designed the components using KiCAD EDA, a free EDA software.

Bill-Of-Materials

PartQuantityDescriptionLink
TB67H450FNG1Toshiba TB67H450FNG Motor Driver IChttps://www.mouser.sg/ProductDetail/Toshiba/TB67H450FNGEL?qs=h6V4JsTaLXeReNg2bp0jug%3D%3D

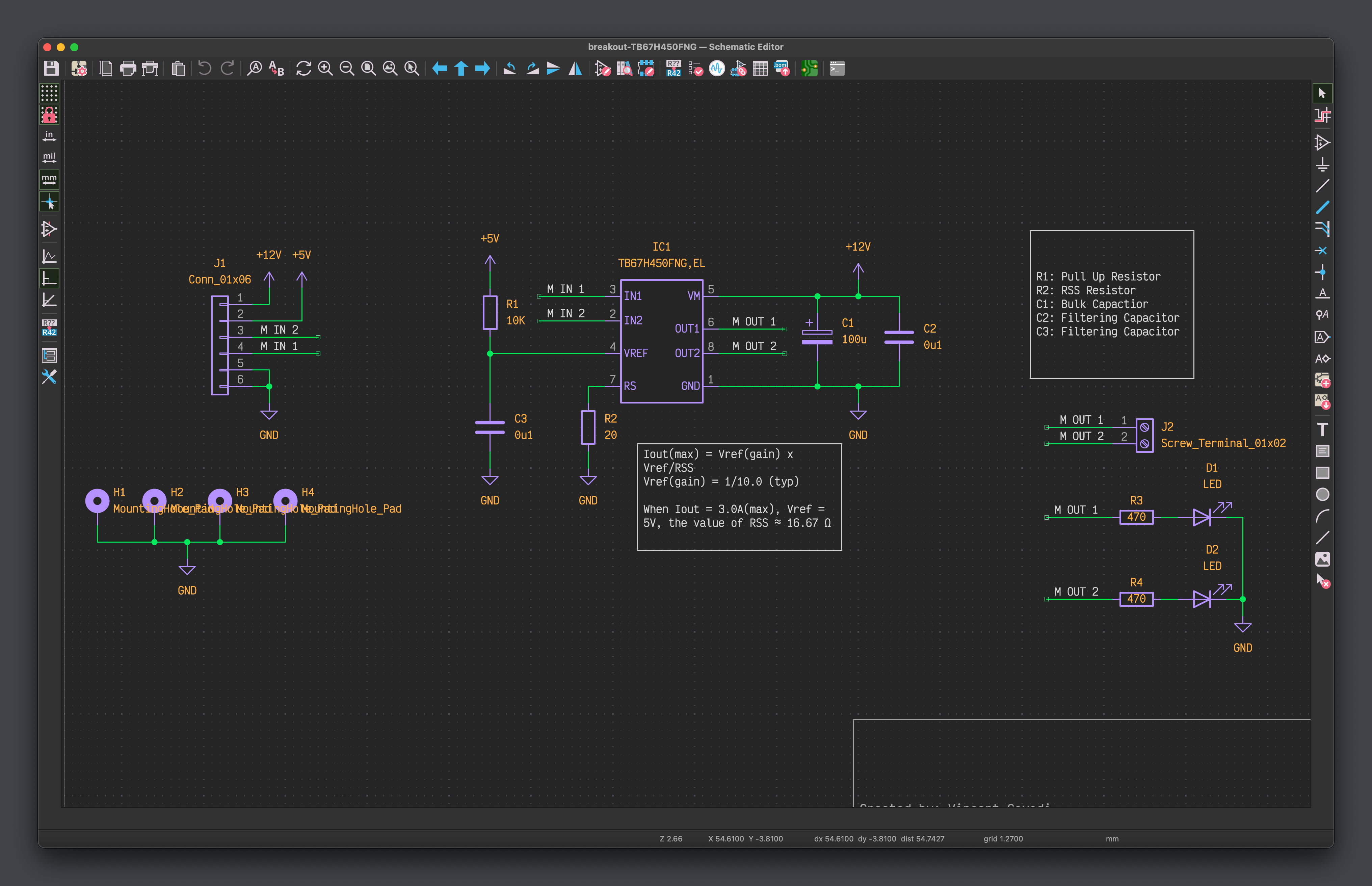

Schematic

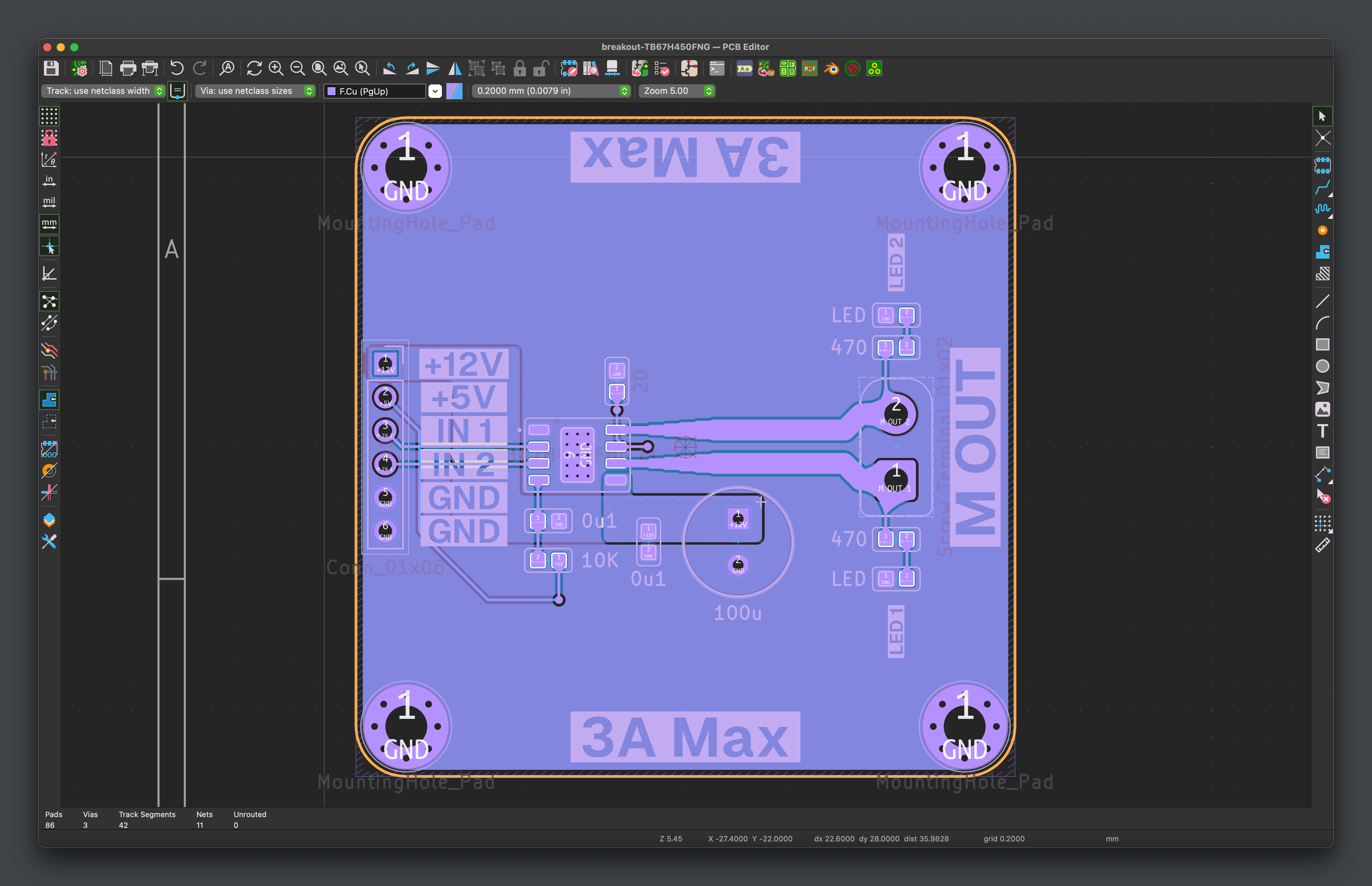

PCB

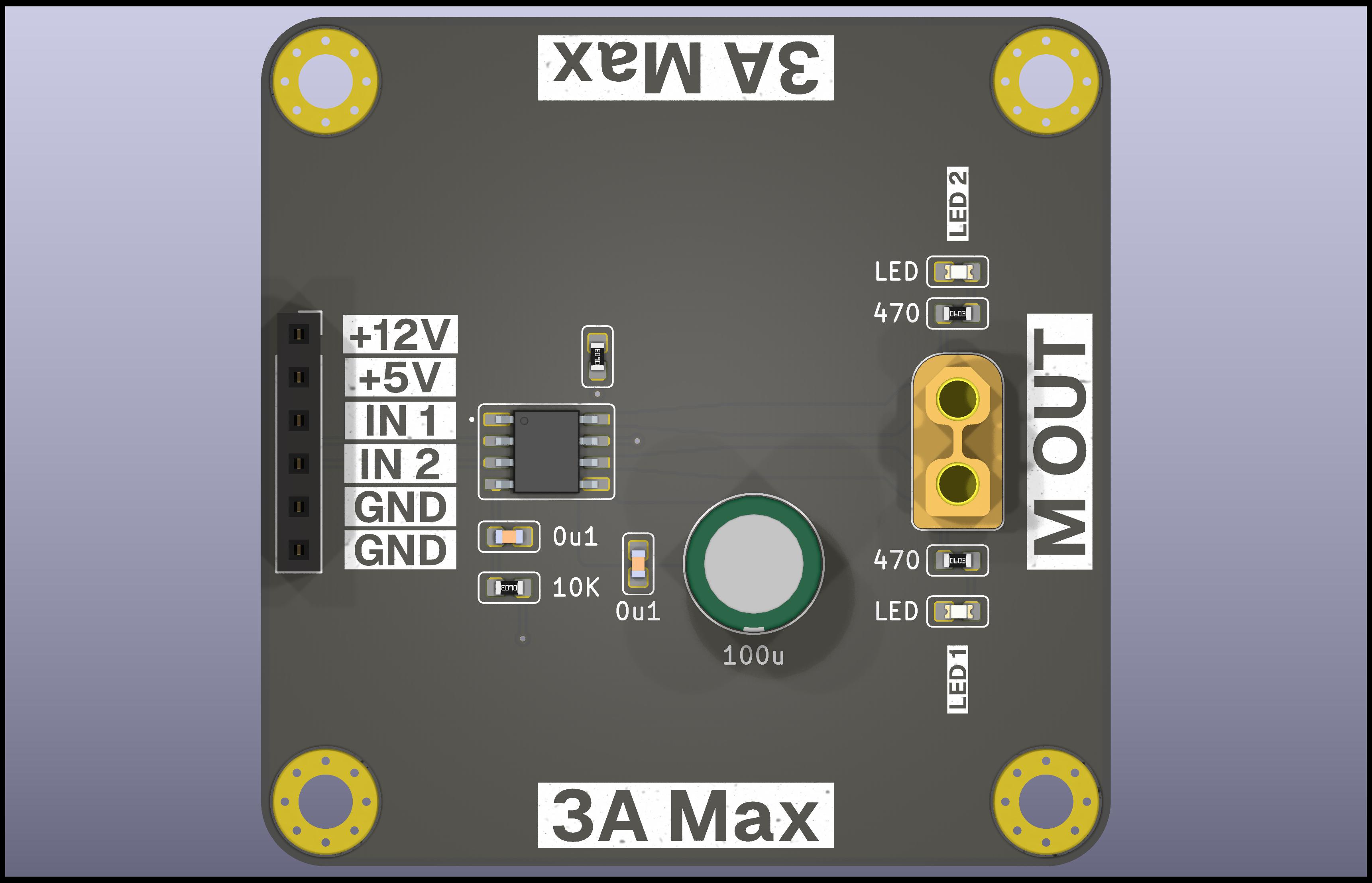

PCB Render
