ESP32_mini_8Port_WLED

Comments

Eliminated short circuit, corrected schematic & PCB!

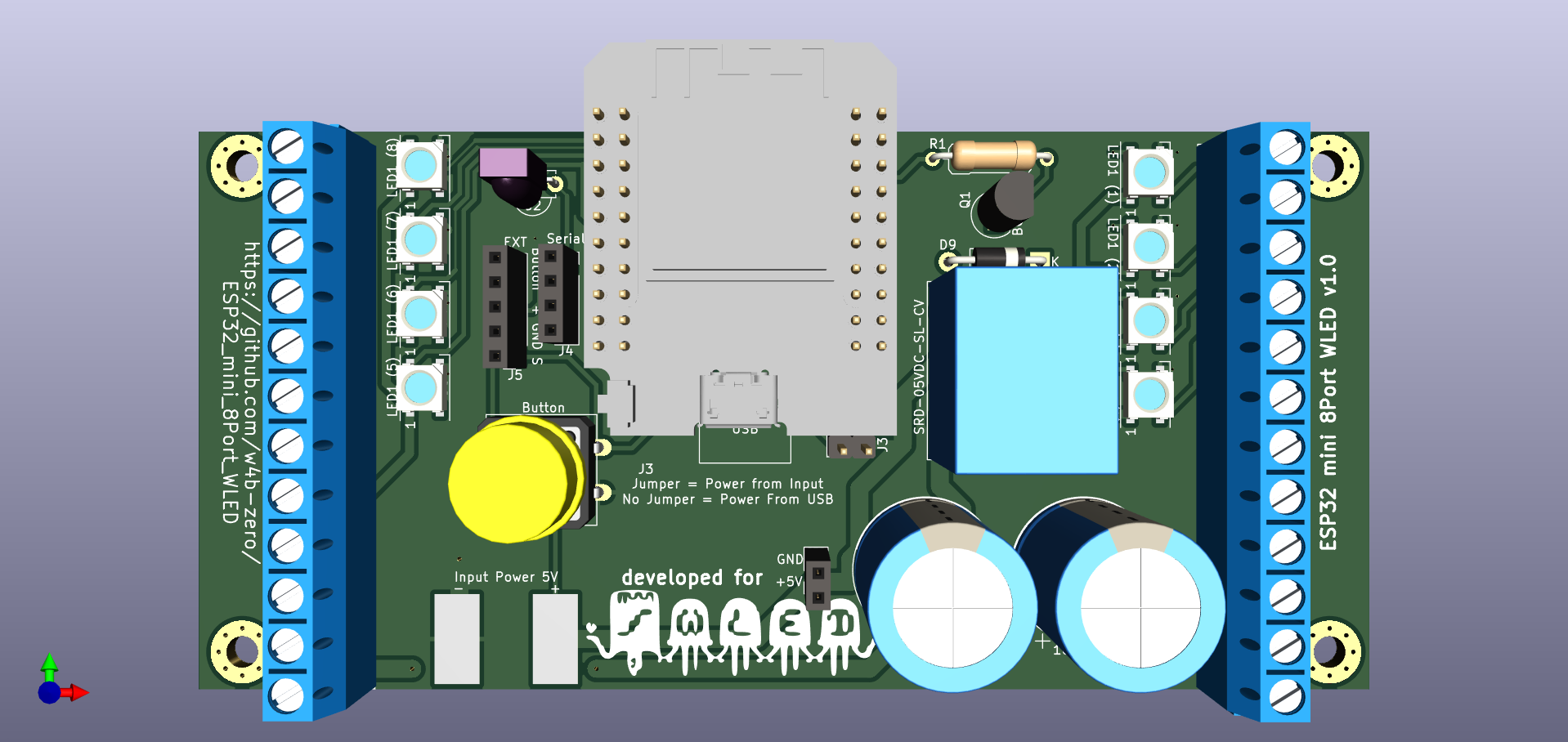

PCB and KiCad-Files for a 8Port WLED ESP32_mini Board

Gerber Files
KiCad 7 Project Files
included used Library Files where not in official KiCad-Library for KiCad 7

KiCad Symbol Librarys

button:SW_PUSH-12mm
button:SW_PUSH-12mm_roundKnob
button:SW_PUSH-12mm_squareKnob
eec:TSOP38238
ESP32_mini:mini_esp32
wemos_mini:WeMos_D1_mini

KiCad Footprints inkl. 3D-Models

button:SW_PUSH-12mm
button:SW_PUSH-12mm_roundKnob
button:SW_PUSH-12mm_squareKnob
eec:Vishay_Semiconductors-TSOP38238-Manufacturer_Recommended
ESP32_mini:ESP32_mini-only-connector
ESP32_mini:ESP32_mini-with-pin-header
ESP32_mini:ESP32_mini-with-pin-header-and-connector
logocircuit:brain
logocircuit:brainbig
logocircuit:WLED_Logo_micro
logocircuit:WLED_Logo_micro_cu
logocircuit:WLED_Logo_mini
logocircuit:zeroTM_Logo
logocircuit:zeroTM_Logo_layerB
logocircuit:zeroTM_Logo_micro
logocircuit:zeroTM_Logo_micro_cu
logocircuit:zeroTM_Logo_mini
mounts:MountingHole_3.2mm_M3_Pad_Via
Terminal_dg306:TerminalBlock_RND_205-00045_1x02_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00046_1x03_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00047_1x04_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00048_1x05_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00049_1x06_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00050_1x07_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00051_1x08_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00052_1x09_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00053_1x10_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00054_1x11_P5.00mm_Horizontal
Terminal_dg306:TerminalBlock_RND_205-00055_1x12_P5.00mm_Horizontal
wemos-d1-mini:wemos-d1-mini-connectors-only
wemos-d1-mini:wemos-d1-mini-embedded
wemos-d1-mini:wemos-d1-mini-with-pin-header
wemos-d1-mini:wemos-d1-mini-with-pin-header-and-connector

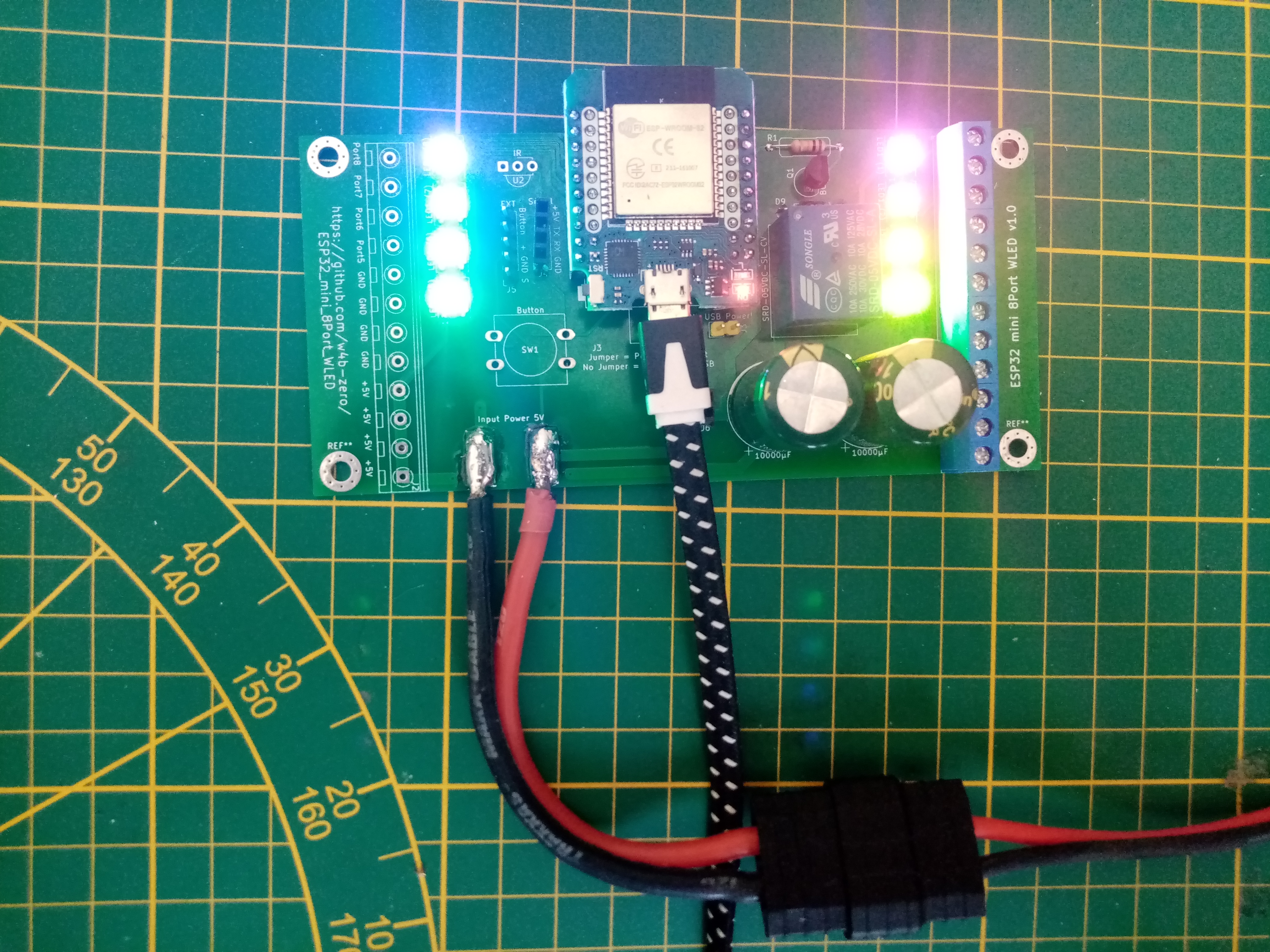

WLED-Board for ESP23 mini in use

Test

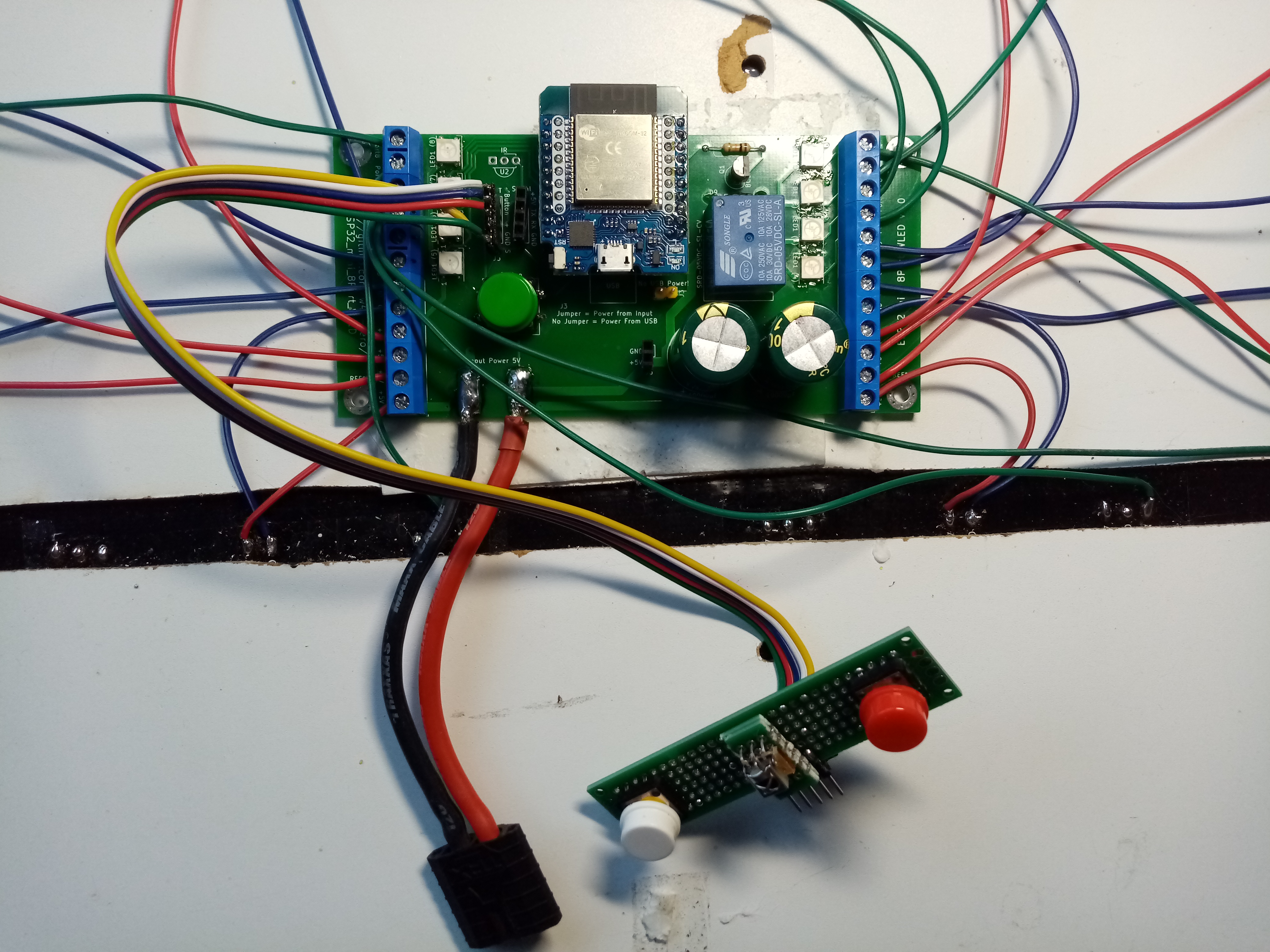

Connected

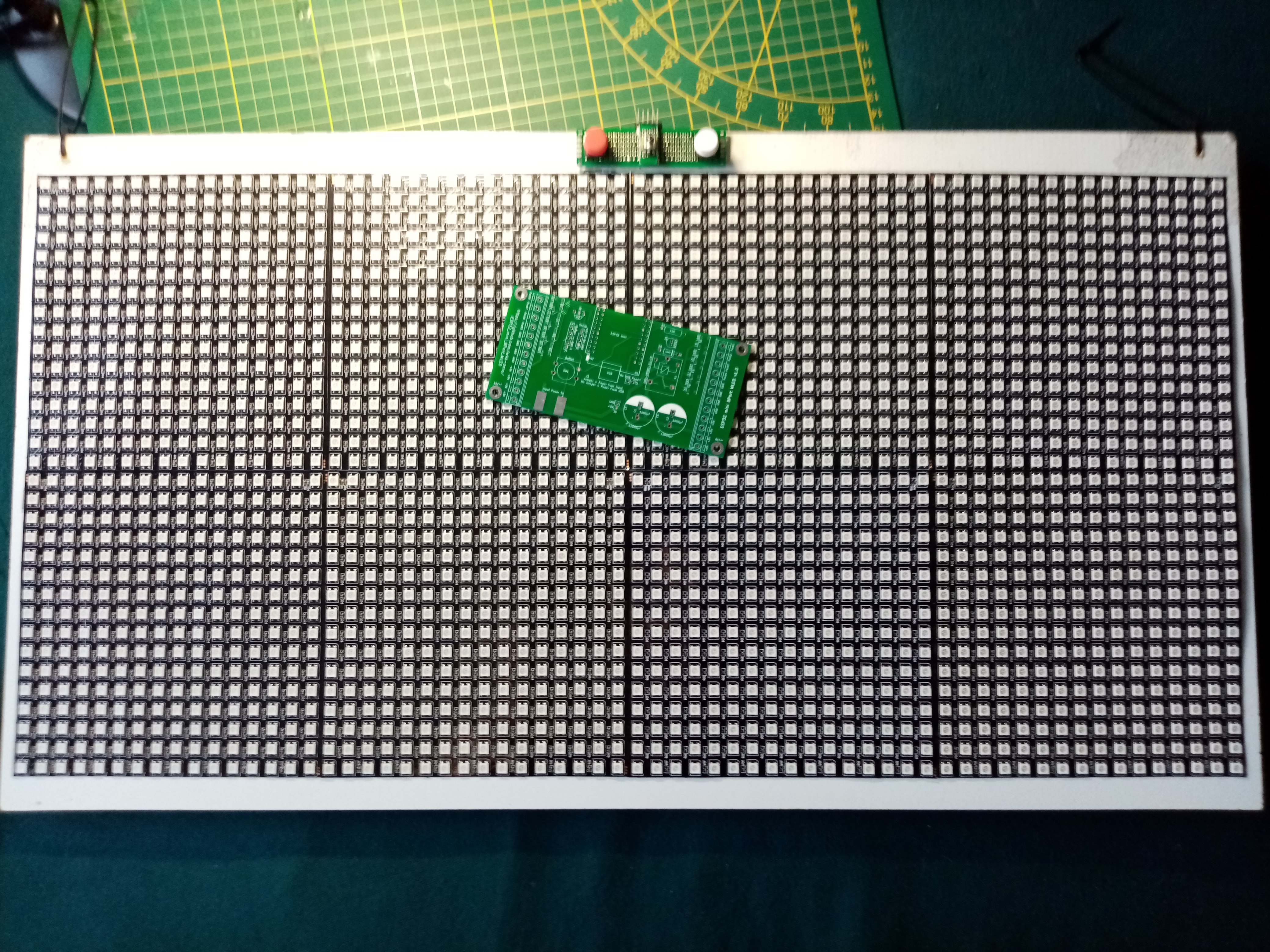

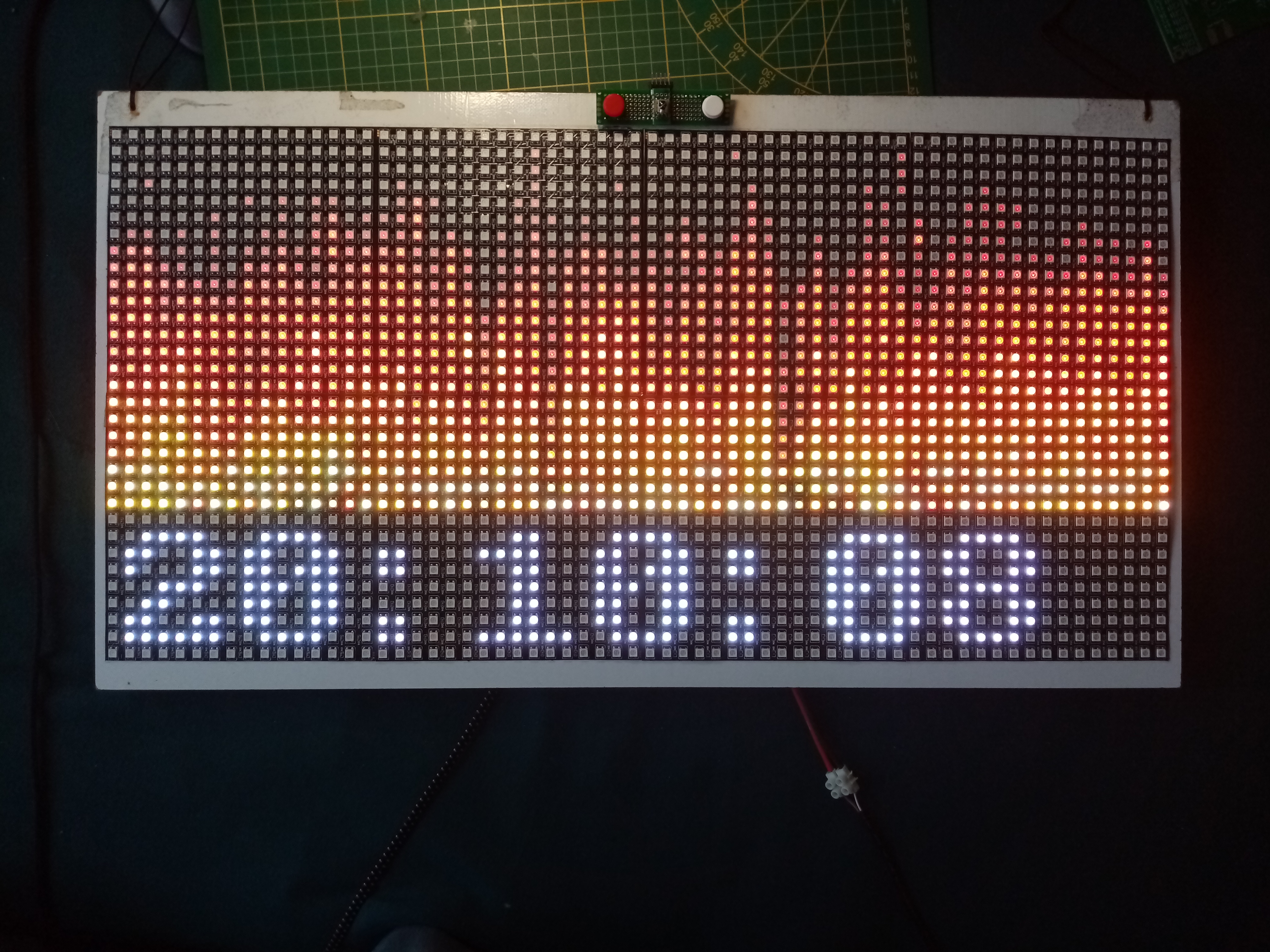

Matrix with 2048 WS2812 LEDs

ESP32_mini_8Port_WLED drived the Matrix

Firmware: WLED https://github.com/Aircoookie/WLED
Leds: 2048 (256 to each port)

Youtube Videos

2048 WS2812b Led's. first test.

2048 WS2812b Led's - capture the screen test.

2048 WS2812b Led's - colorscroll

Firmware: WLED https://github.com/Aircoookie/WLED
PC Software: Jinx! http://www.live-leds.de/
Leds: 2048 (512 to each port)

My Discord Server

usefull Links!!

WLED Projectpage: https://kno.wled.ge/

Join the WLED Discord server to discuss everything about WLED!

Check out the WLED Discourse forum!

Firmware: WLED Sourcecode https://github.com/Aircoookie/WLED

PCB Manufacturing & Assembly: JLBPCB https://jlcpcb.com/
