A 12U 40% keyboard supporting multiple layouts, offset space bar row, and LEDs.

README

SHIVA

A 12U 40% keyboard supporting multiple layouts, offset space bar row, and LEDs.

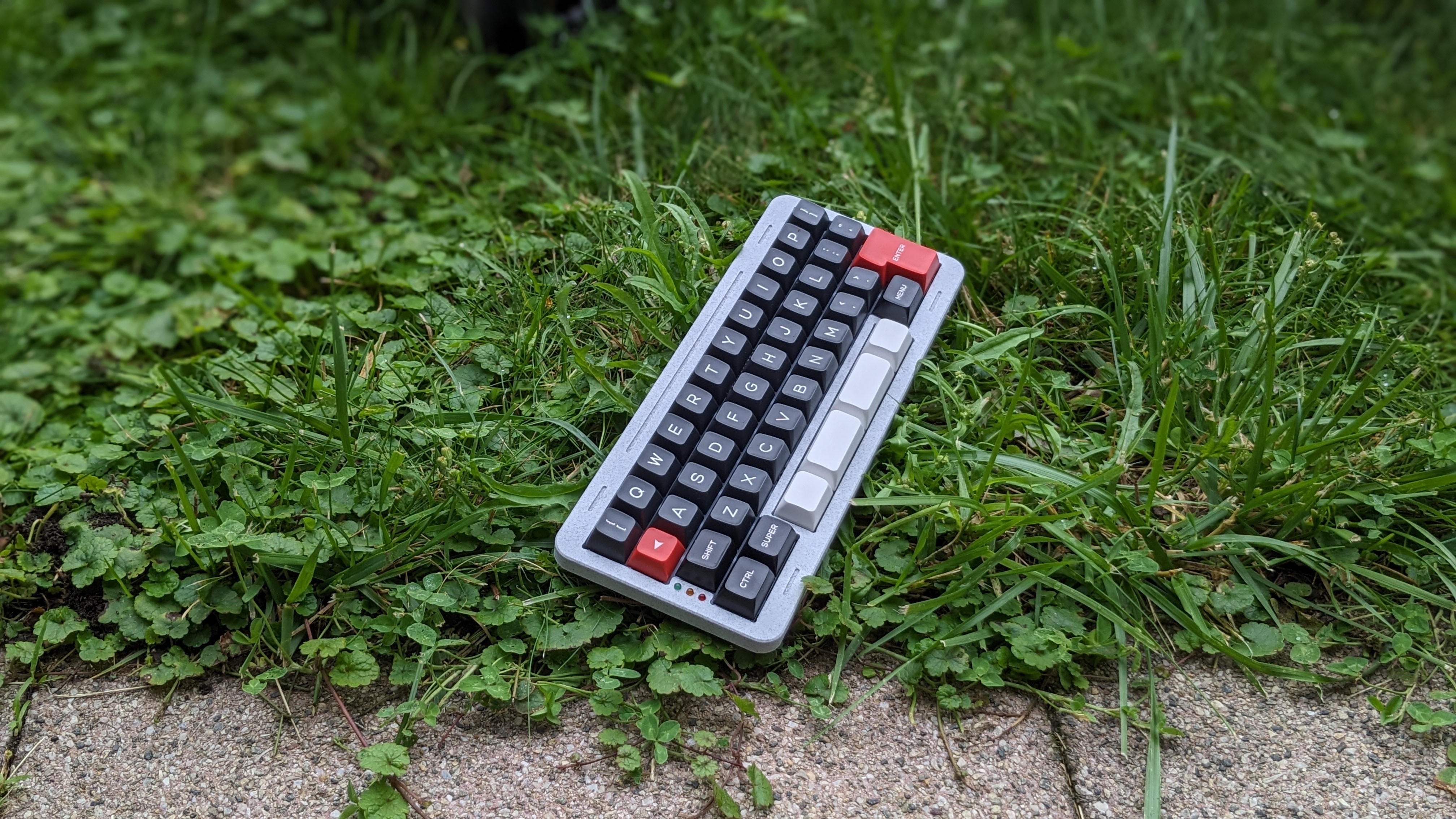

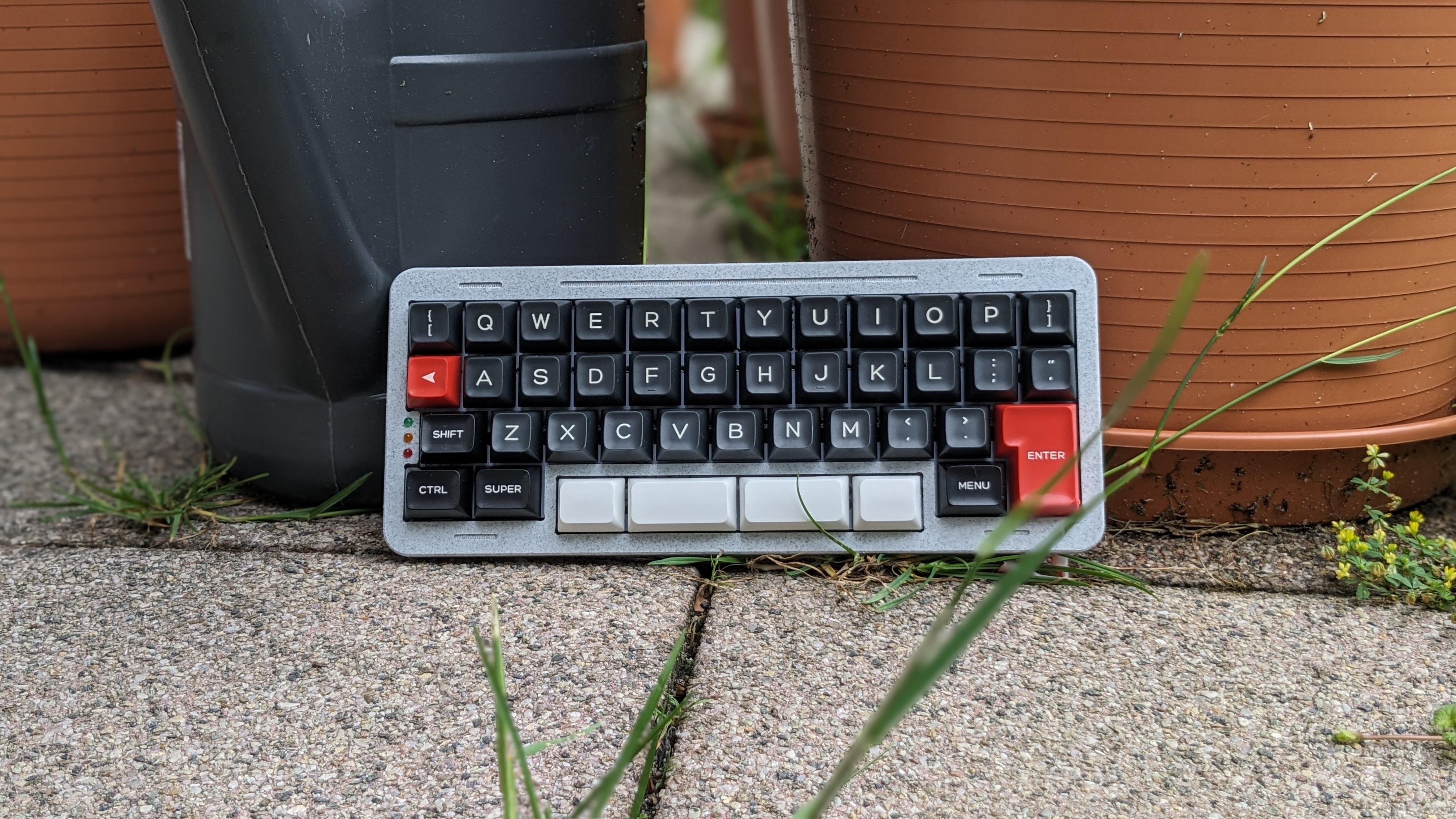

Front1

About

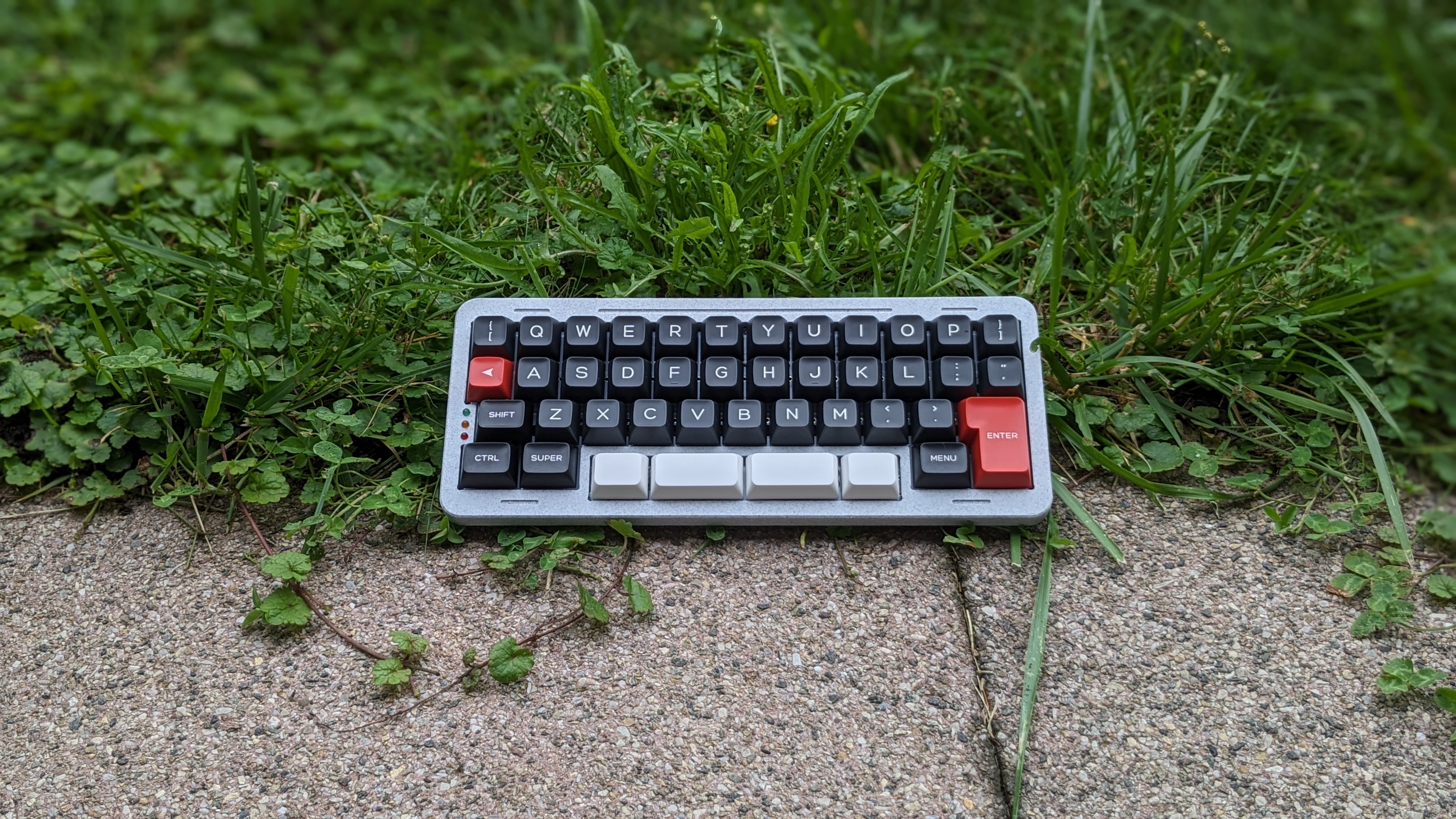

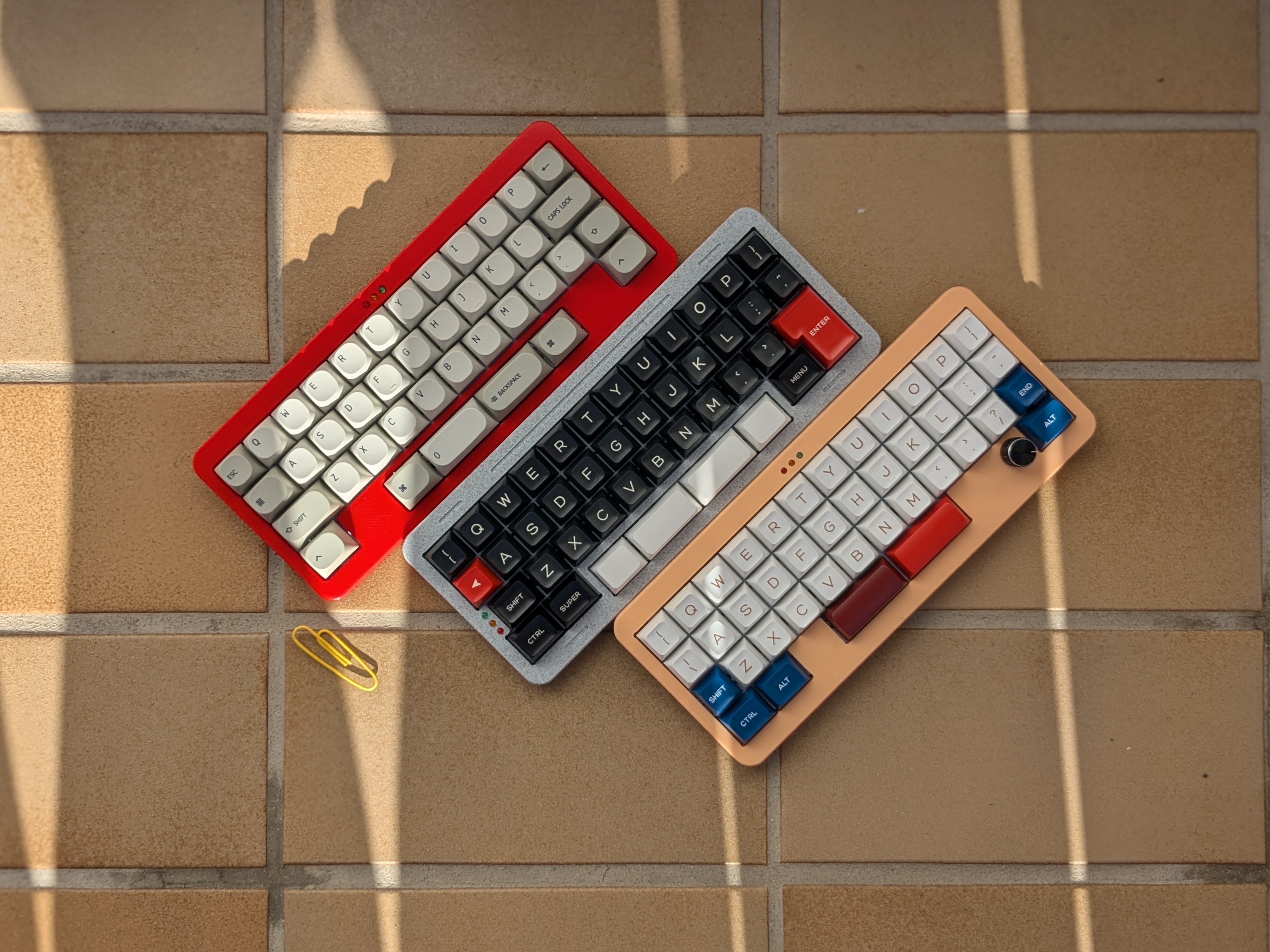

This keyboard supports as many different layouts as possible. Currently supported are: ortho, alpha stagger, uniform 0.25U stagger, normal stagger, plus multiple space row configurations. After all, you got 5 PCBs.

designed around Gateron KS27/KS33 low profile switches.
rotary encoder support.
bluetooth connection only. USB connection possible with an appropriate case.

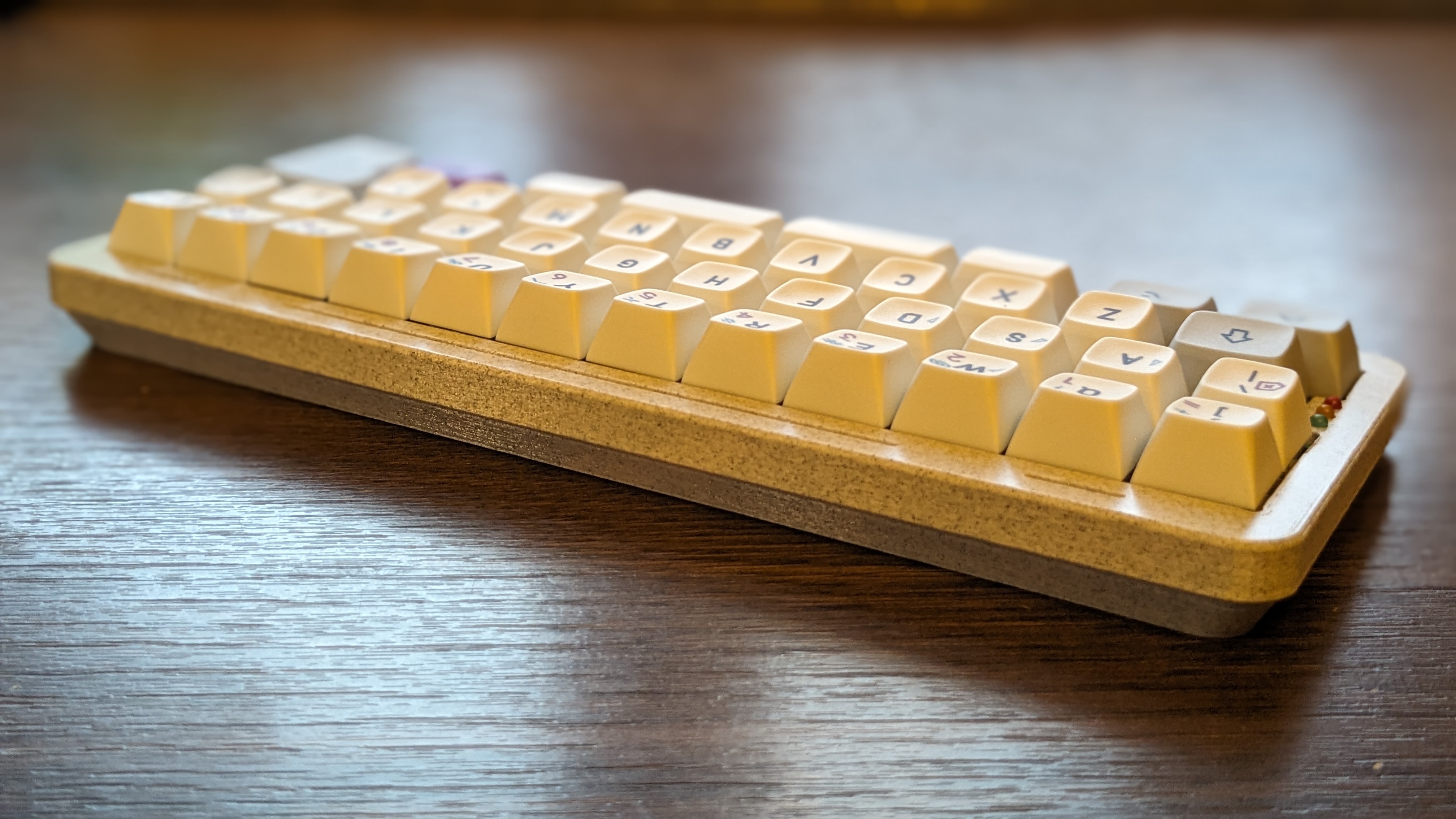

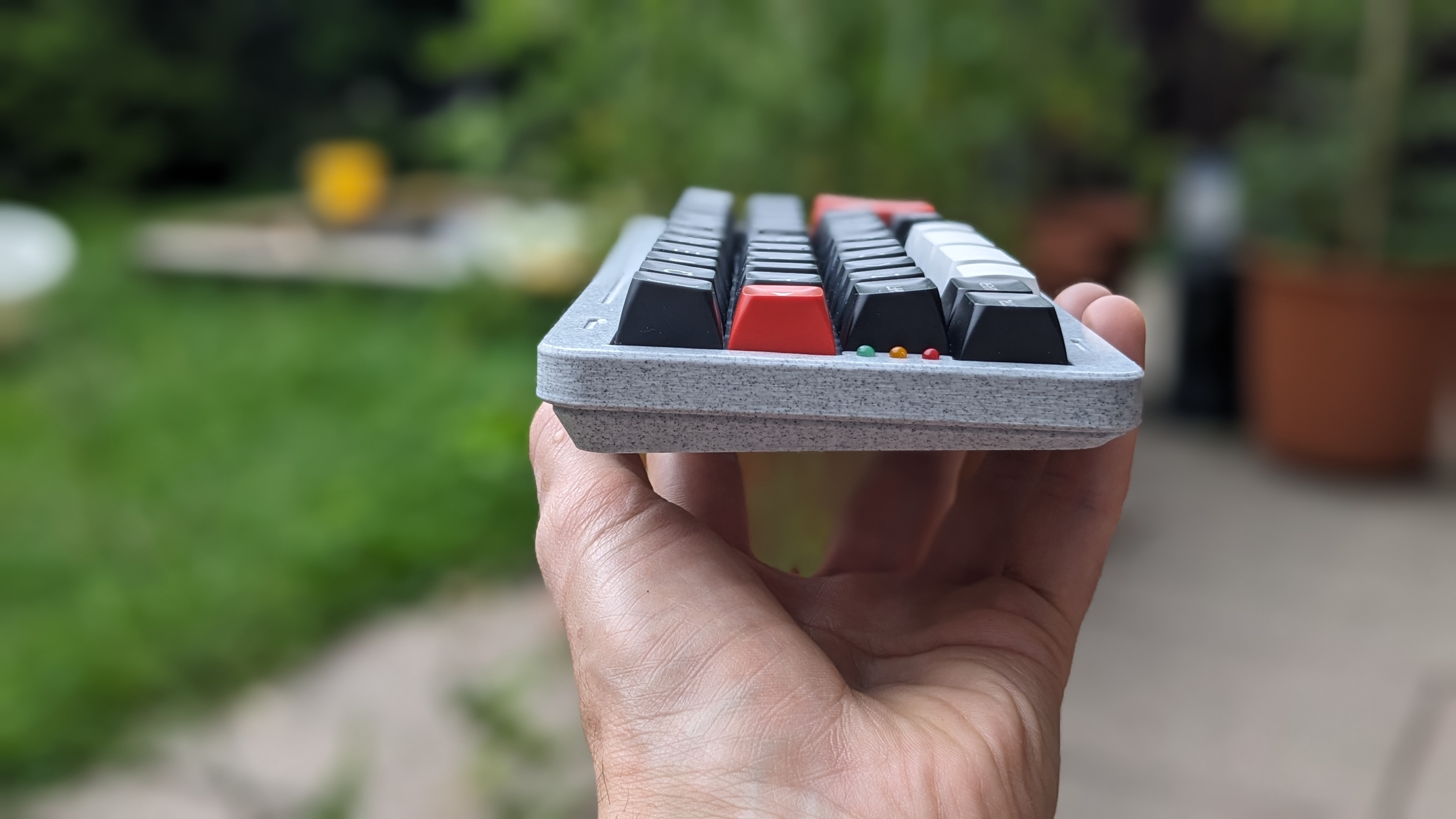

leds to display connection/battery status.
nice!nano MCU.
ZMK keyboard firmware support.
open source.

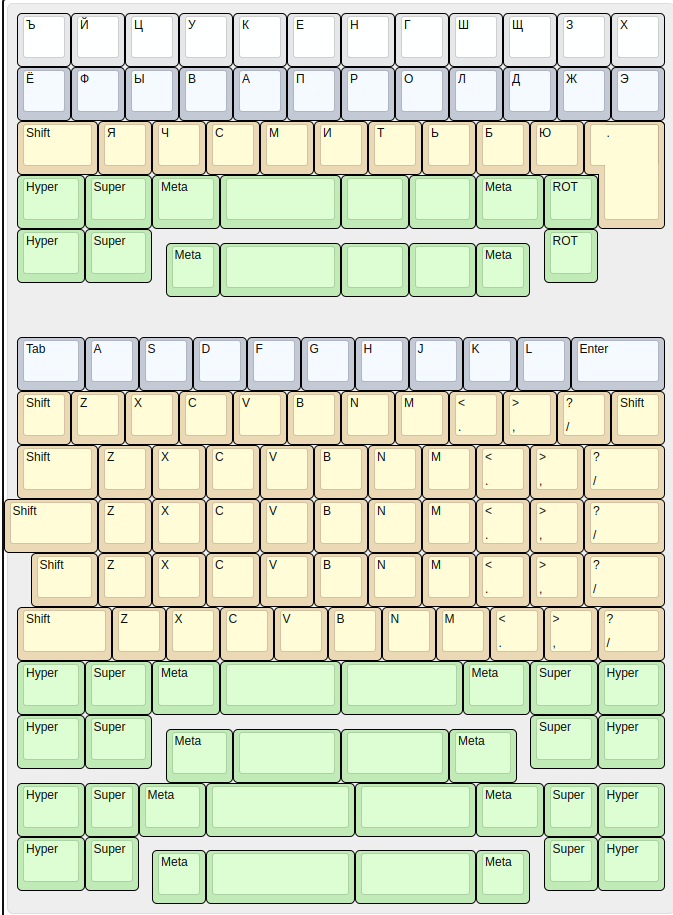

KLE

See possible configurations below:

How to build one

I provide all the production files you will need in order to assemble the keyboard. In prod folder you will find the PCB gerbers and STLs for case (only one configuration is supported now). I intended the case to be CNC'd from PC, however it is not tested yet and only 3D printed it so far. There are no build instructions, as everything should be self-explanatory.

Part list

#	name	comments
1	main PCB	Order at fabricator of your choice
1	Nice!nano v2	Controller board. Make sure you have enough sockets for all pins.
1	EC11	Rotary Encoder through hole style (optional)
~45	1N4148 - SOD-123	Diodes
3	LED 3mm	Choose red, yellow (orange), and green
1	MSK-12C02	Power switch
1	JST 1.25mm pitch	Battery connector, 2pin. I used S2B-PH-K-S(LF)(SN)
1	3.7V LiPo	Battery
~45	KS33 or KS27	Gateron Low Profile switches
~45	Keycaps	MX-compatible keycaps of your choice

My personal ZMK config: https://github.com/1000eyed/zmk-config-shiva

Open source

In source directory you will find the source files for the PCB and the case. You may use them however you like, I kindly ask you though to link back to my project, should you build it or update something.
