WCH-LinkE-Mini

README

WCH-LinkE-Mini

This project is compatible with WCH-LinkE.

Boards is optimized for JLCPCB (includes gerber, bom, cpl, and tooling holes). All components except the CH32V305, USB-C Connector, and 3.3V LDO are Basic Parts.

Requirements

• KiCAD 9.0
• Fabrication-Toolkit (Optional)

LICENSE

MIT LICENSE

Production files

• Gerber
• BOM
• Parts List

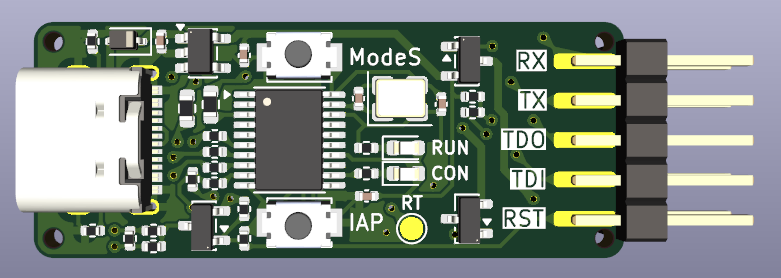

Schematic and Board image

Board schematic

IDC Connectors are available here

• IDC-Header(socket)
• IDC-Header(header)
