README

NFC Business Card

Wireless corporate schmuck

⇁ Welcome

A business card I made for my course IE1332 Electronic Product Development at KTH.

Feel free to copy my code and designs for your own.

⇁ Figures

Schematic

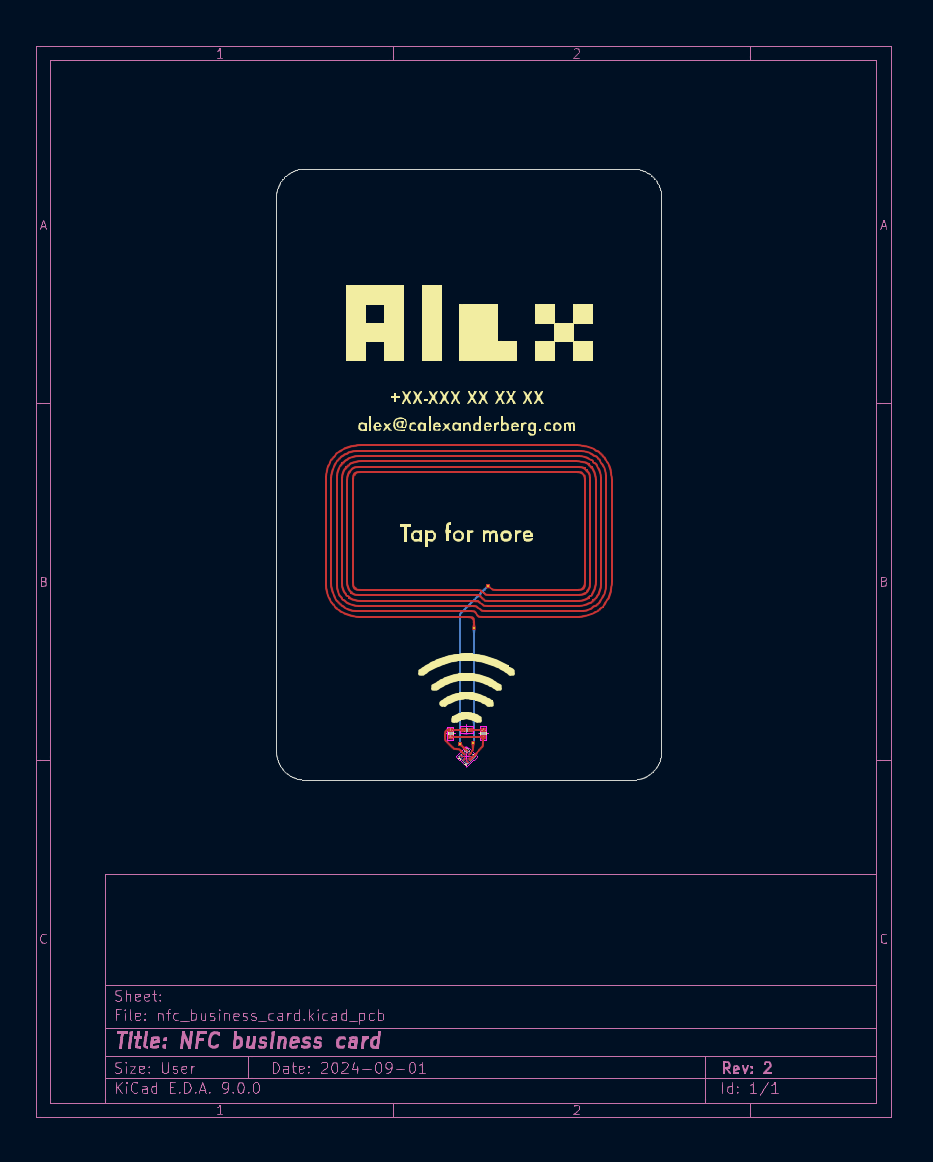

PCB

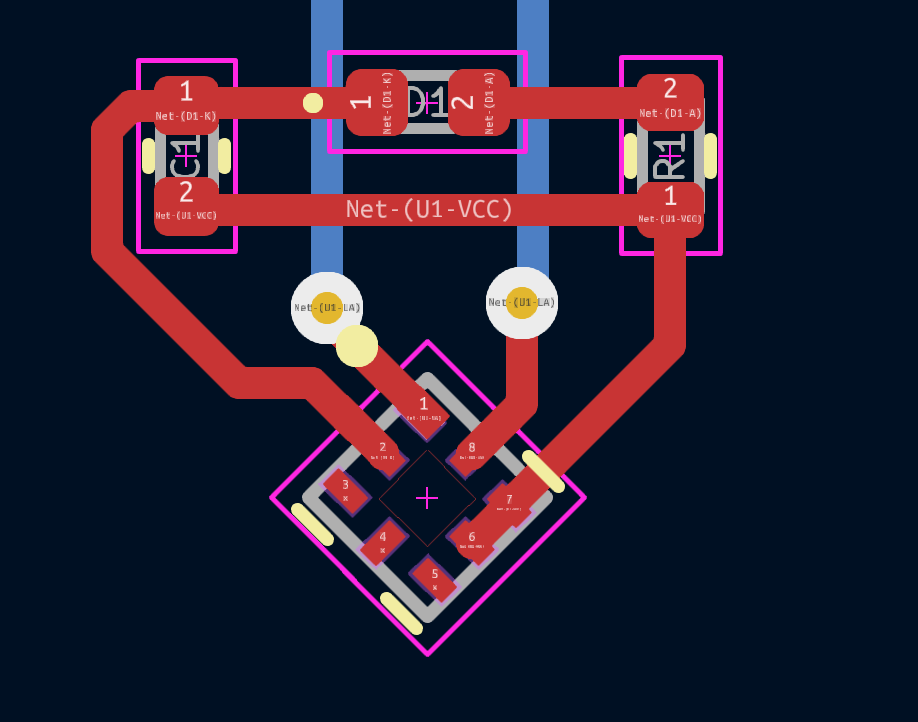

PCB close up

⇁ BOM

IdDesignatorFootprintQuantityDesignation
1U1NT3H11011NT3H1101W0FHKH
2R1R_0402_1005Metric170Ω
3D1LED_0402_1005Metric1LED
4C1C_0402_1005Metric1200nF
