Hardware version of z-controller (SD Card)
My motivation on creation this design was to avoid usage of CPLD and show that it's possible to design such controller with ICs.

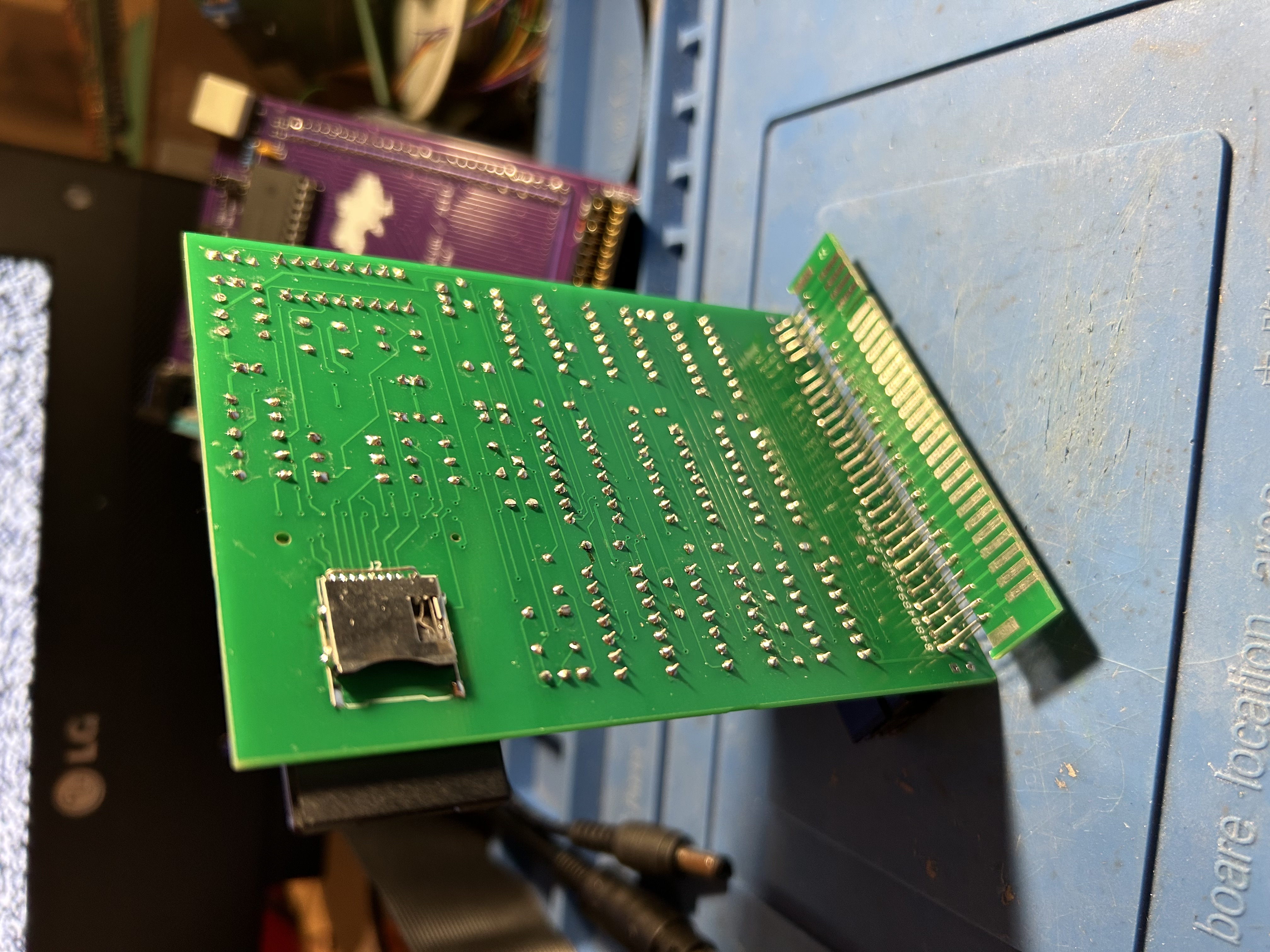

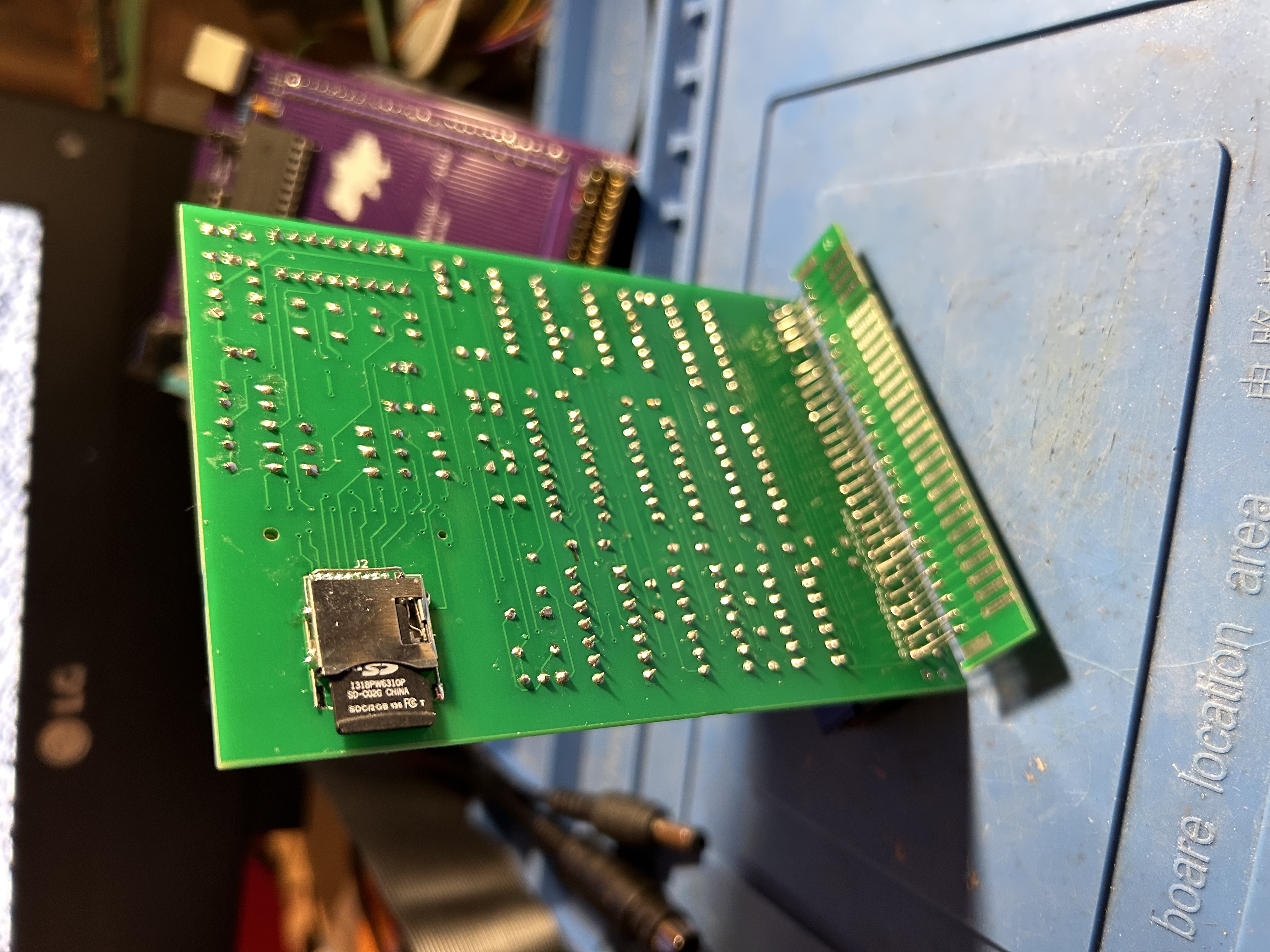

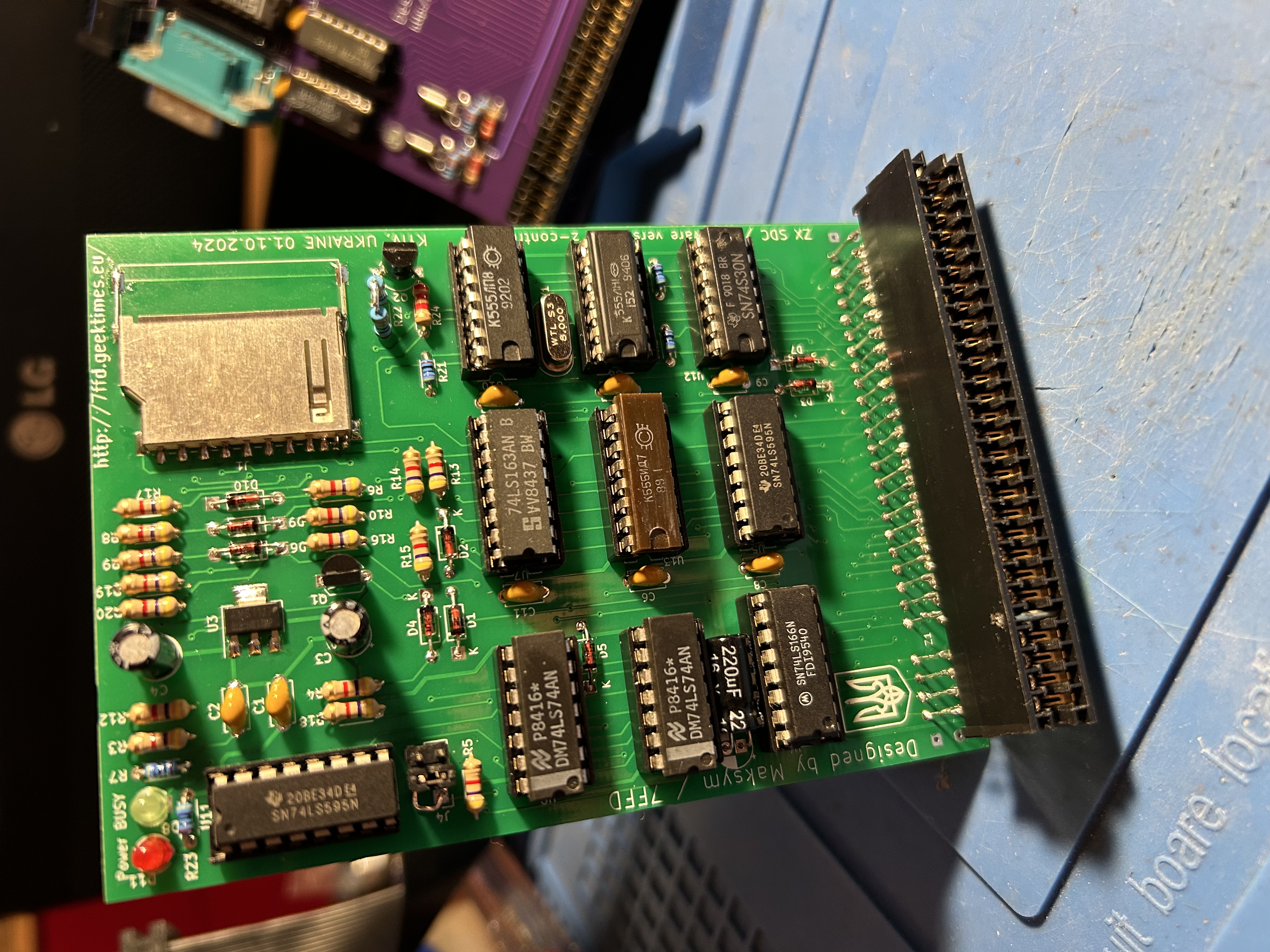

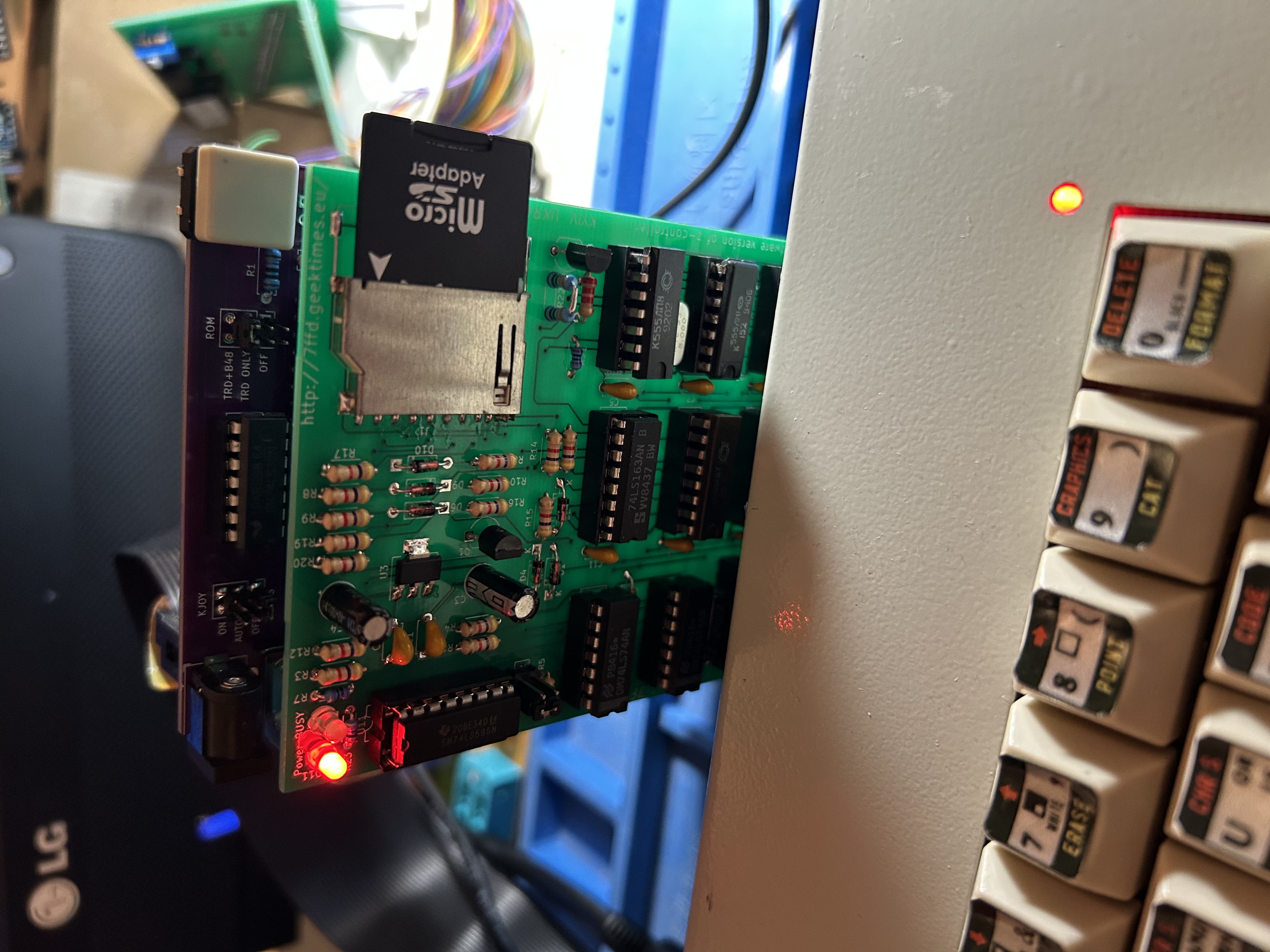

This controller is intended to connect your ZX Spectrum / Clone with SD Card. That gives ability to copy files between SD Card with FAT16/32 to TRDOS (Beta Drive Interface), Nemo IDE and etc.

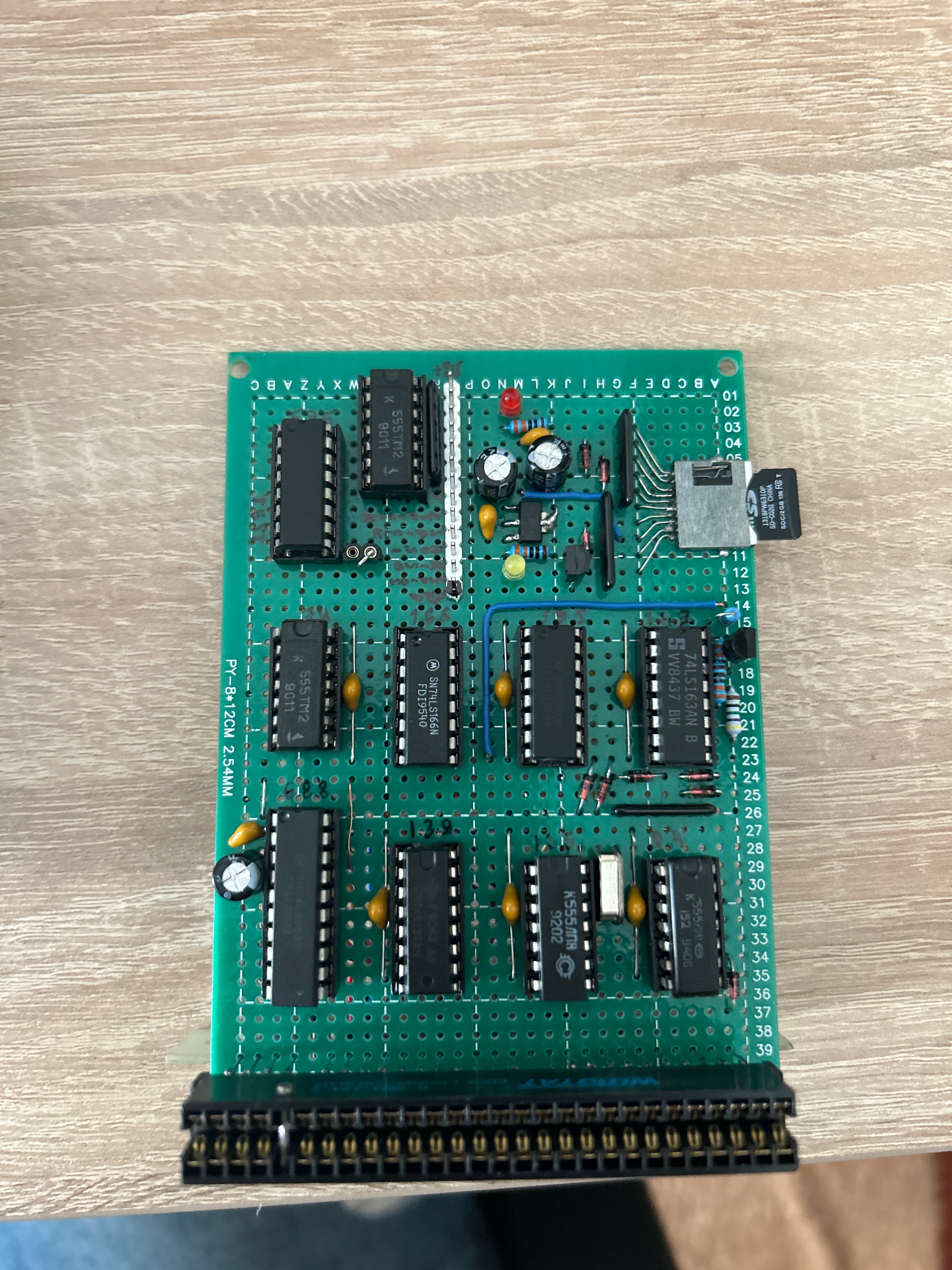

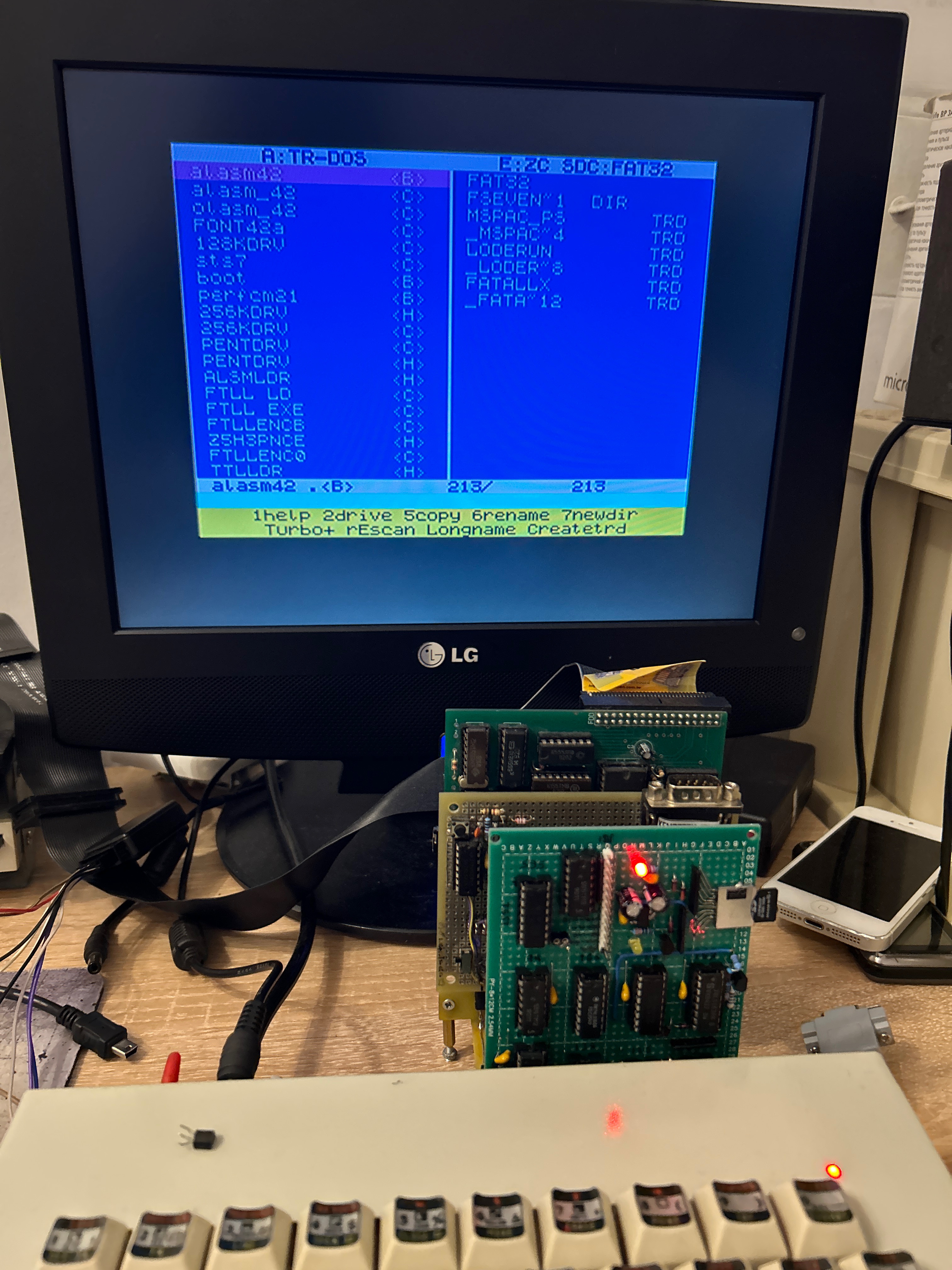

As an example, you can use FATALL file manager that runs from TRD.
This controller is almost fully compatible with original z-controller. There are couple of differences:
Control Port: 0x77
Data Port: 0x57
Because current board design was done for ZXBUS, if you want to connect to your ZX Spectrum clone then you will need to solder adapter based on documentation for your computer. Carefully check all signals, they are all important! As an example: /WAIT.

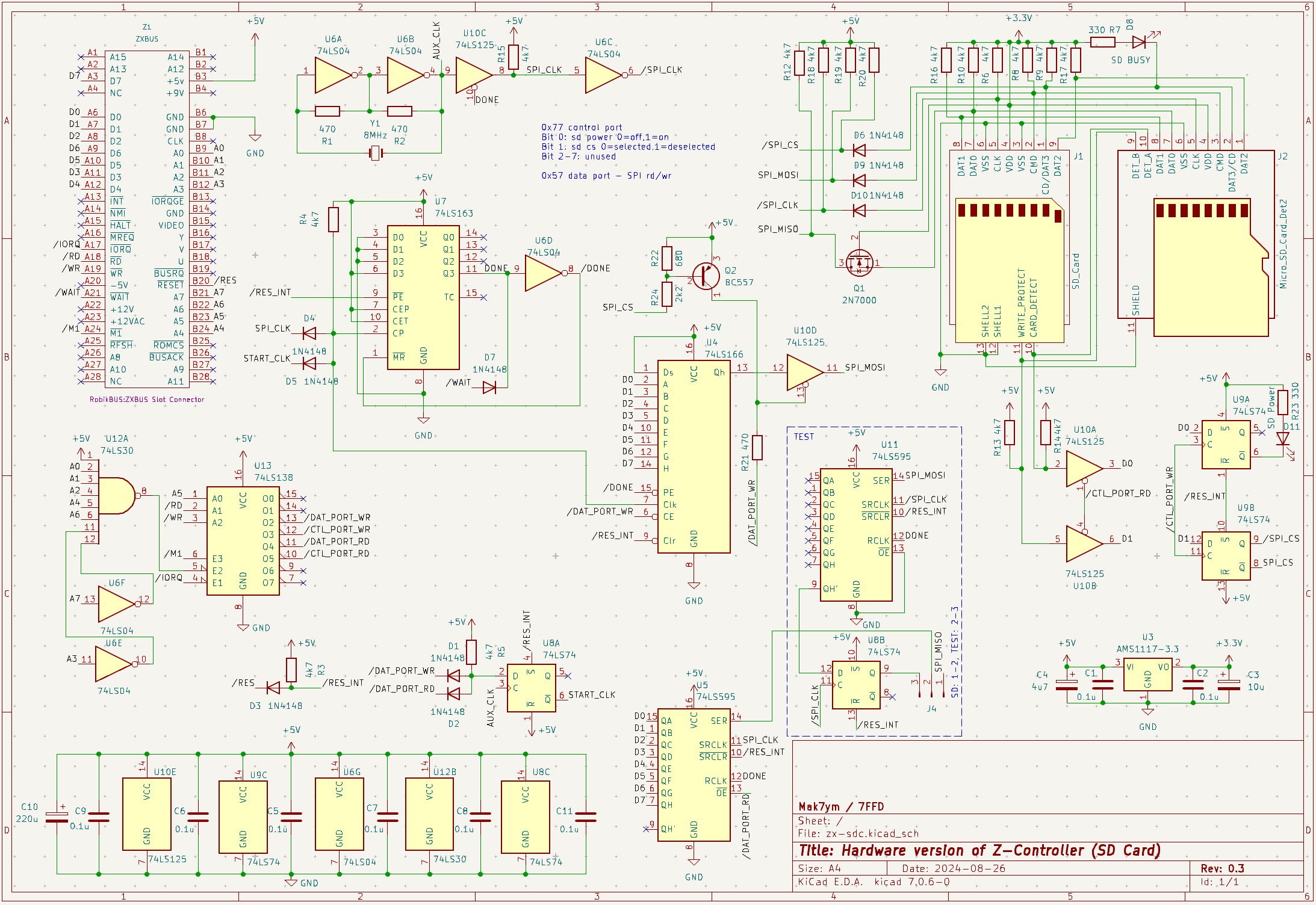

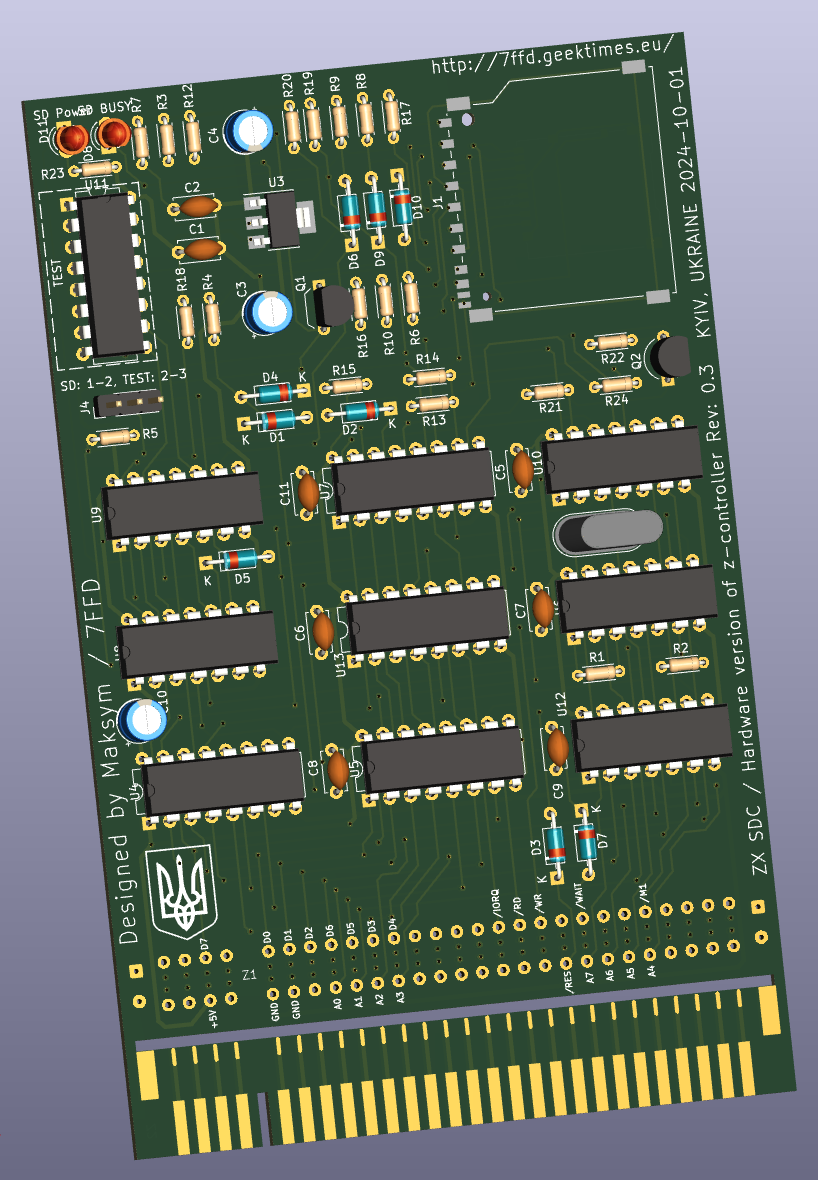

U11 and J4 has been added to the board for debugging purpose. Since board has been tested and doesn't need to be tuned if assembled correct, you can skip soldering U11 or use socket for it. J4: 1-2 SD Card, 2-3 U11 Test IC connection
In case you decided to make sure that board assembled right and works correct, follow this checklist:
NOTE: SD Card must be formatted in FAT32/16!!!
