README

FIIT ESP32 Kit

Board contains these components:

  • 4x Buttons (needs internal pull-up resistor)
  • 4x LED (red, yellow, green, blue)
  • Programmable RGB LED
  • Temperature & Humidity I2C Sensor AHT20
  • Analog Light Sensor SFH320
  • 2x QWIIC I2C connectors

For uploading code use USB UART by default.

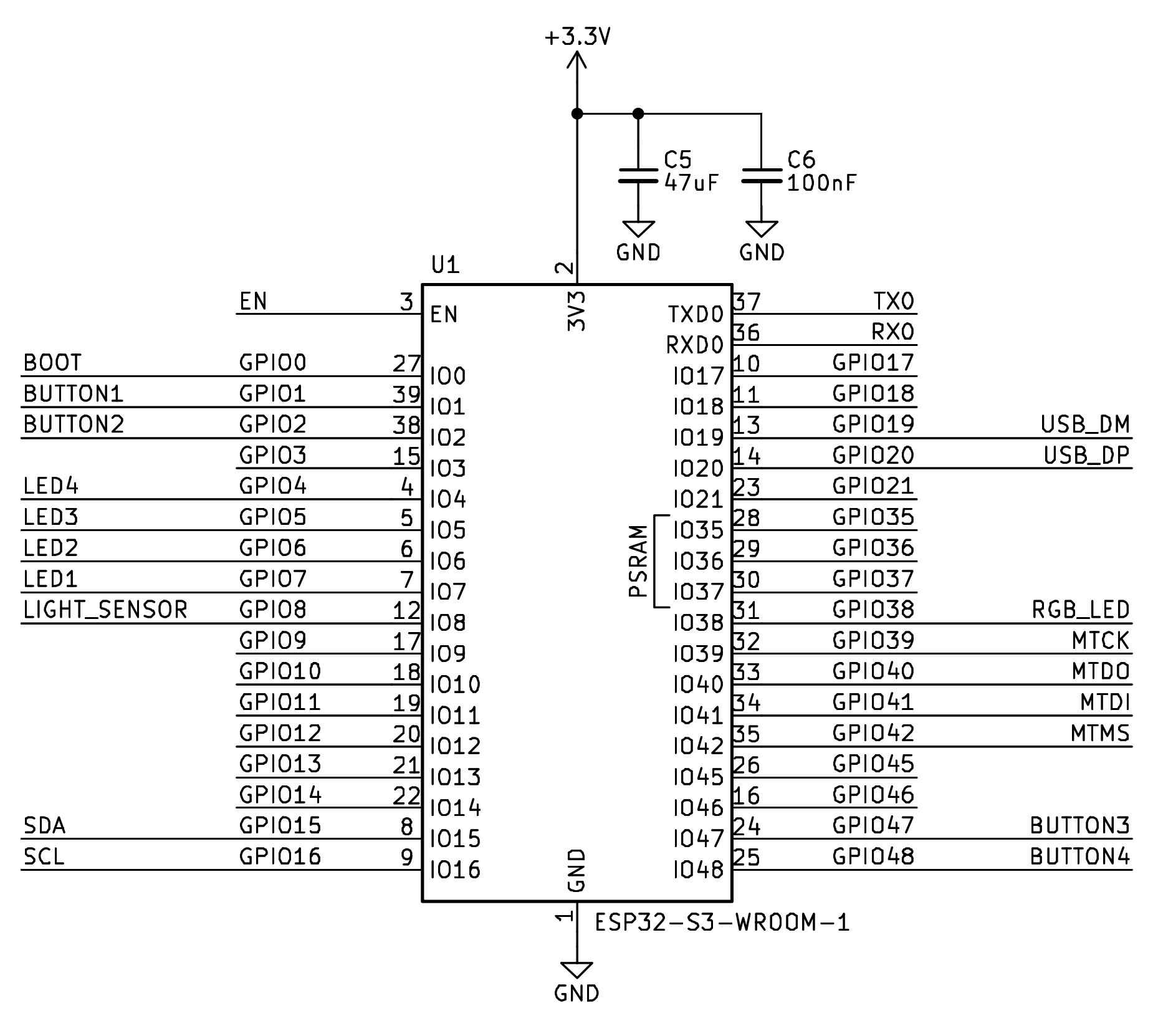

Pinout

GPIOX represents the pin marking, where X is the pin number that needs to be used in the Arduino IDE.

Please consider proper electrical connection to prevent electrical shortcuts.

Arduino IDE

First of all ensure you have Arduino IDE and ESP32 boards properly installed. Select board: ESP32S3 Dev Module For basic examples use default configuration.
