README

DarkLeaf

Adafruit Feather style board for the STM32WB5MMGH6TR 2G RF Module

Quick Specs:

  • STM32WB5MMGH6TR 2G RF Module
  • Adafruit Feather pinout and formfactor
  • ARM Cortex M Debug Port
  • USB C Connector For DFU Flashing (USB 2.0 interface)
  • LiPO powered w/ onboard 3.3V LDO Regulator
  • Can be powered directly by 3.3V when breadboarded

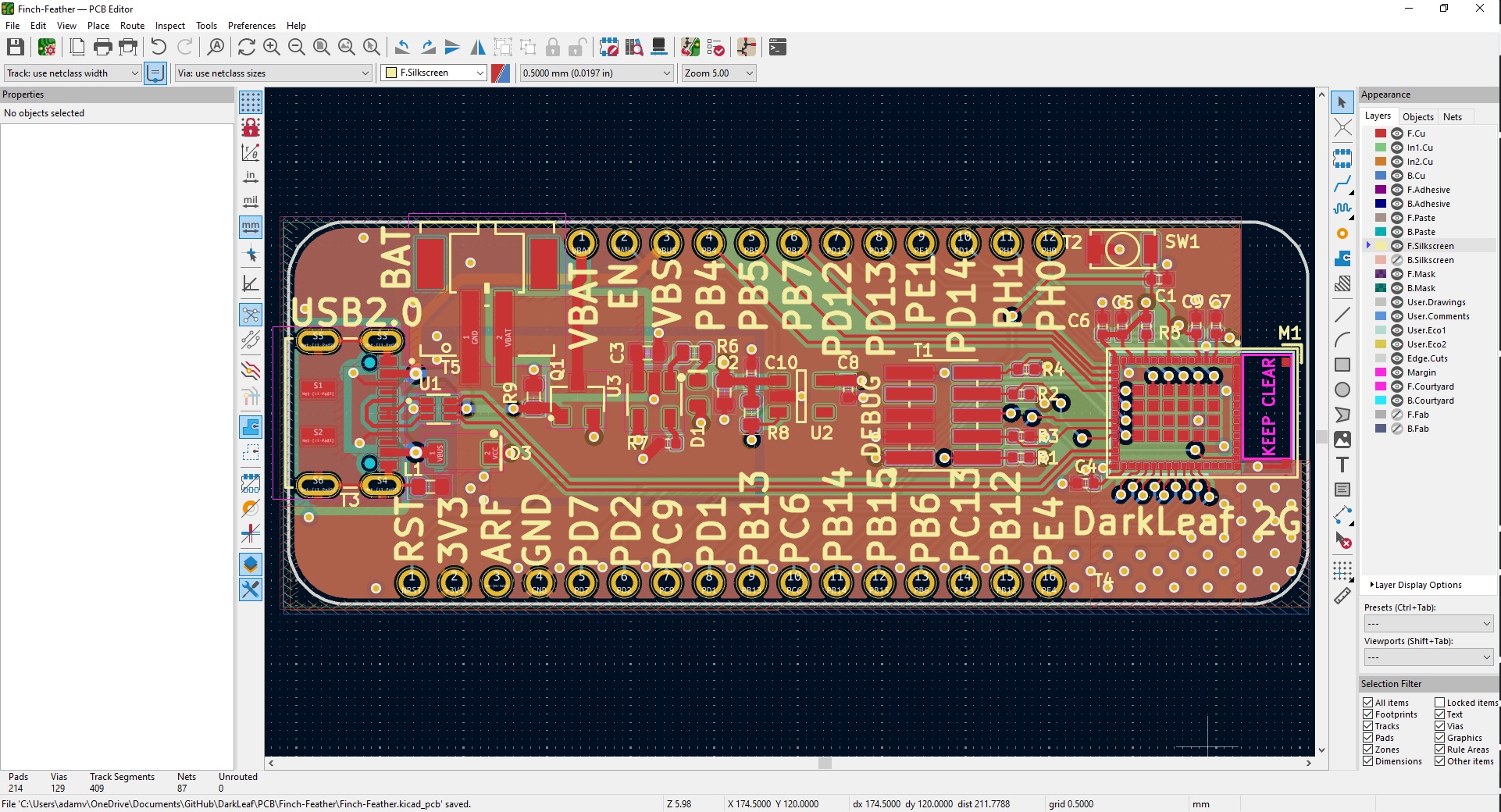

KiCAD 2D PCB Render

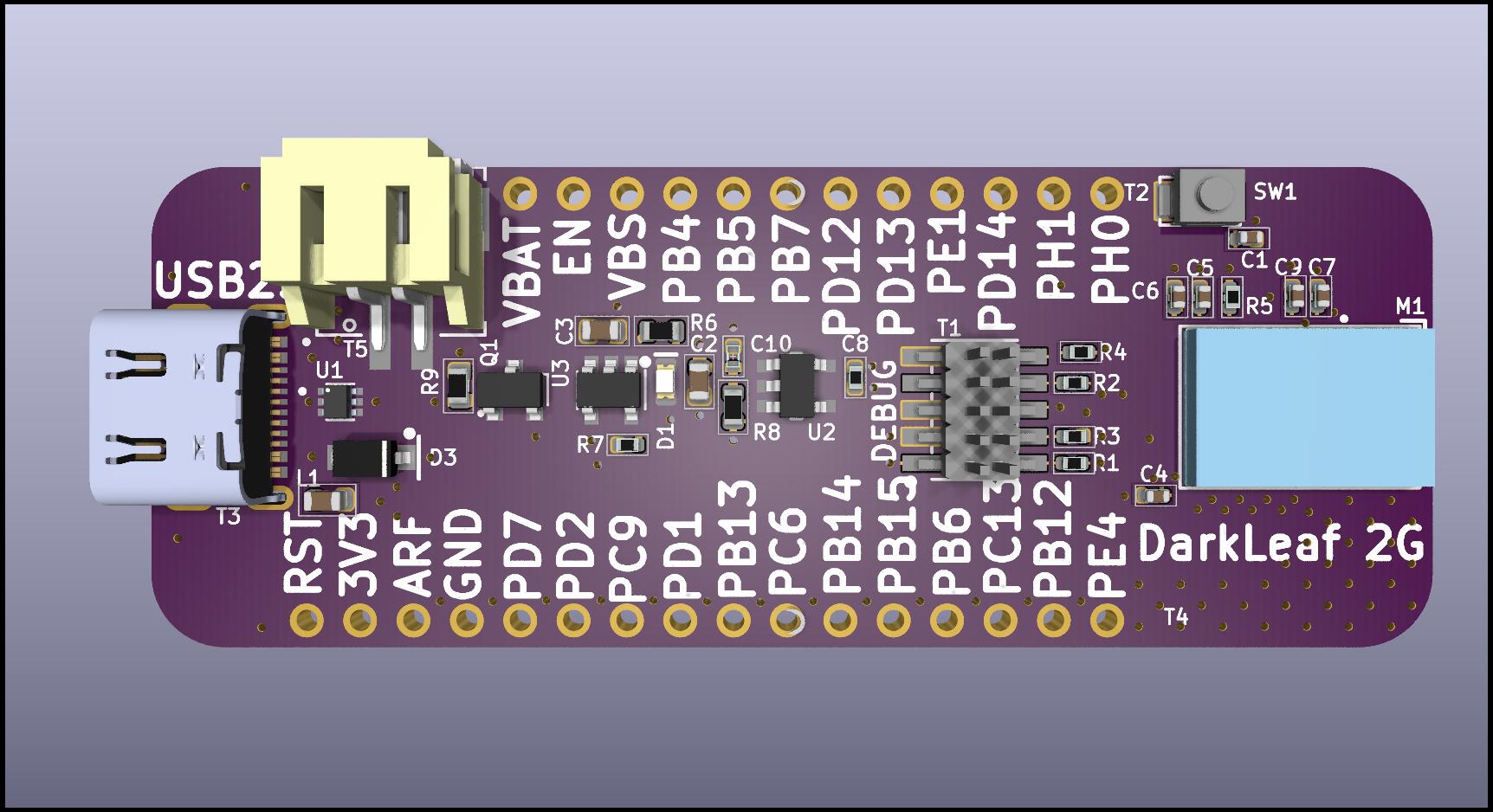

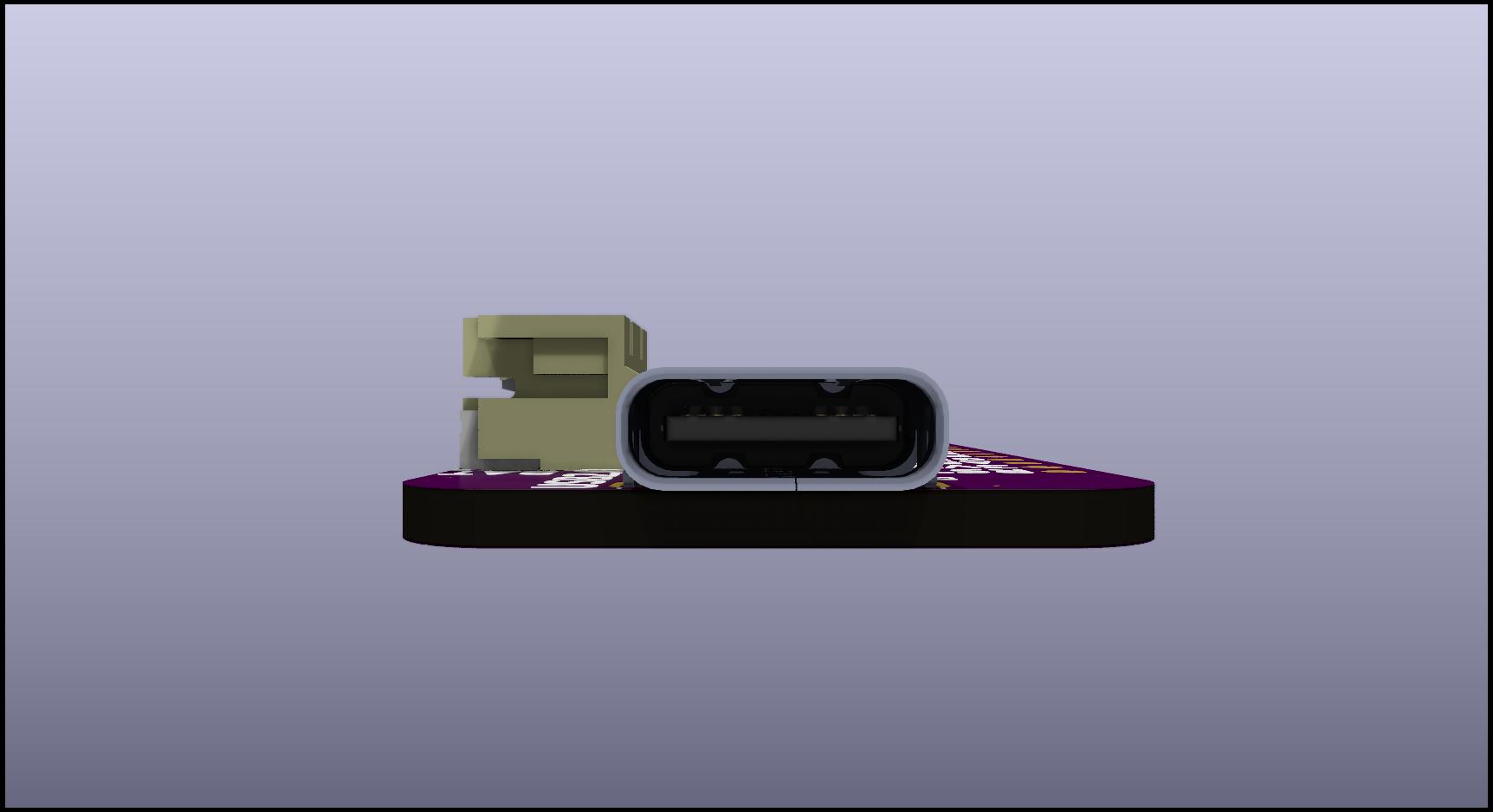

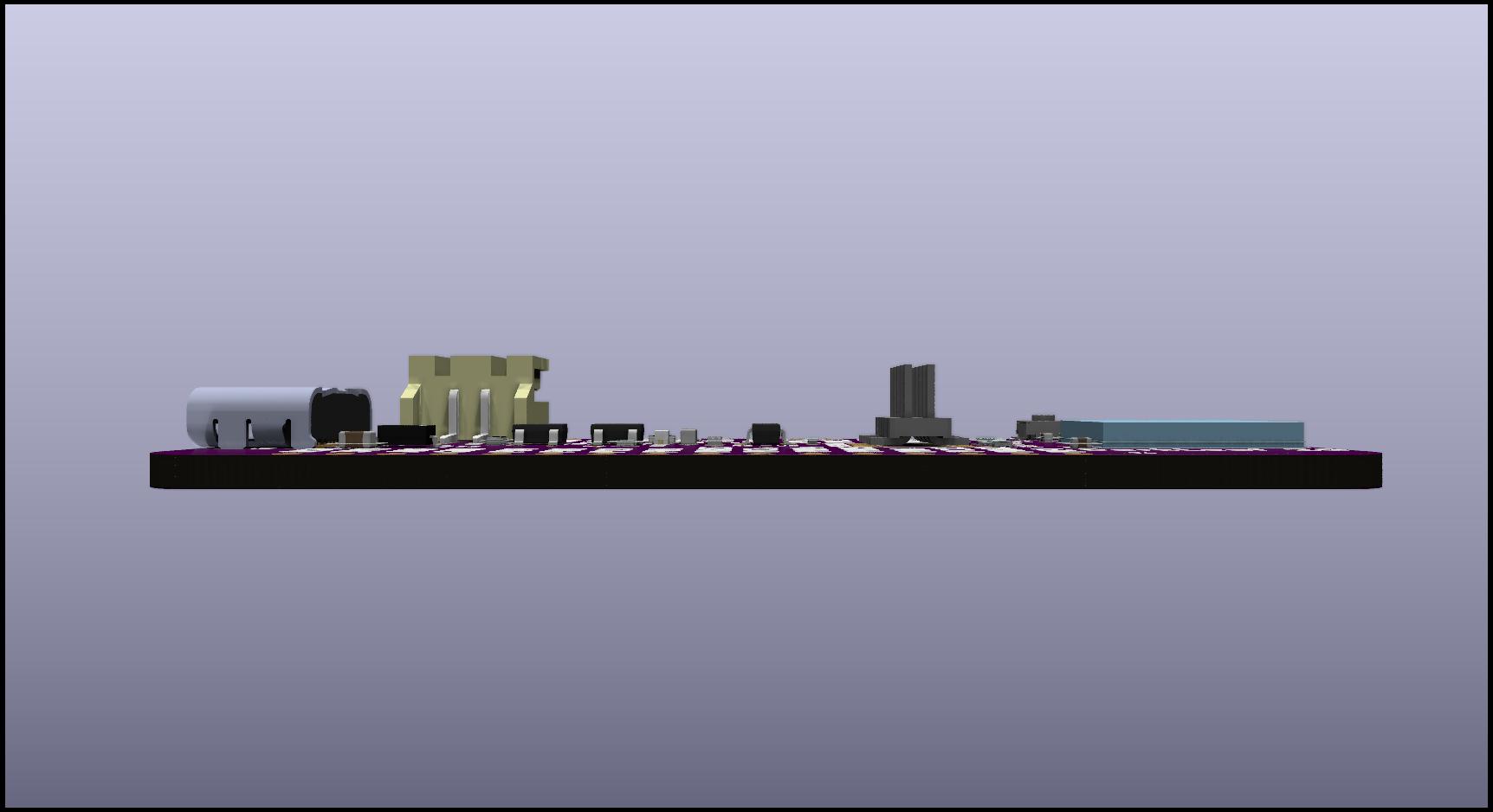

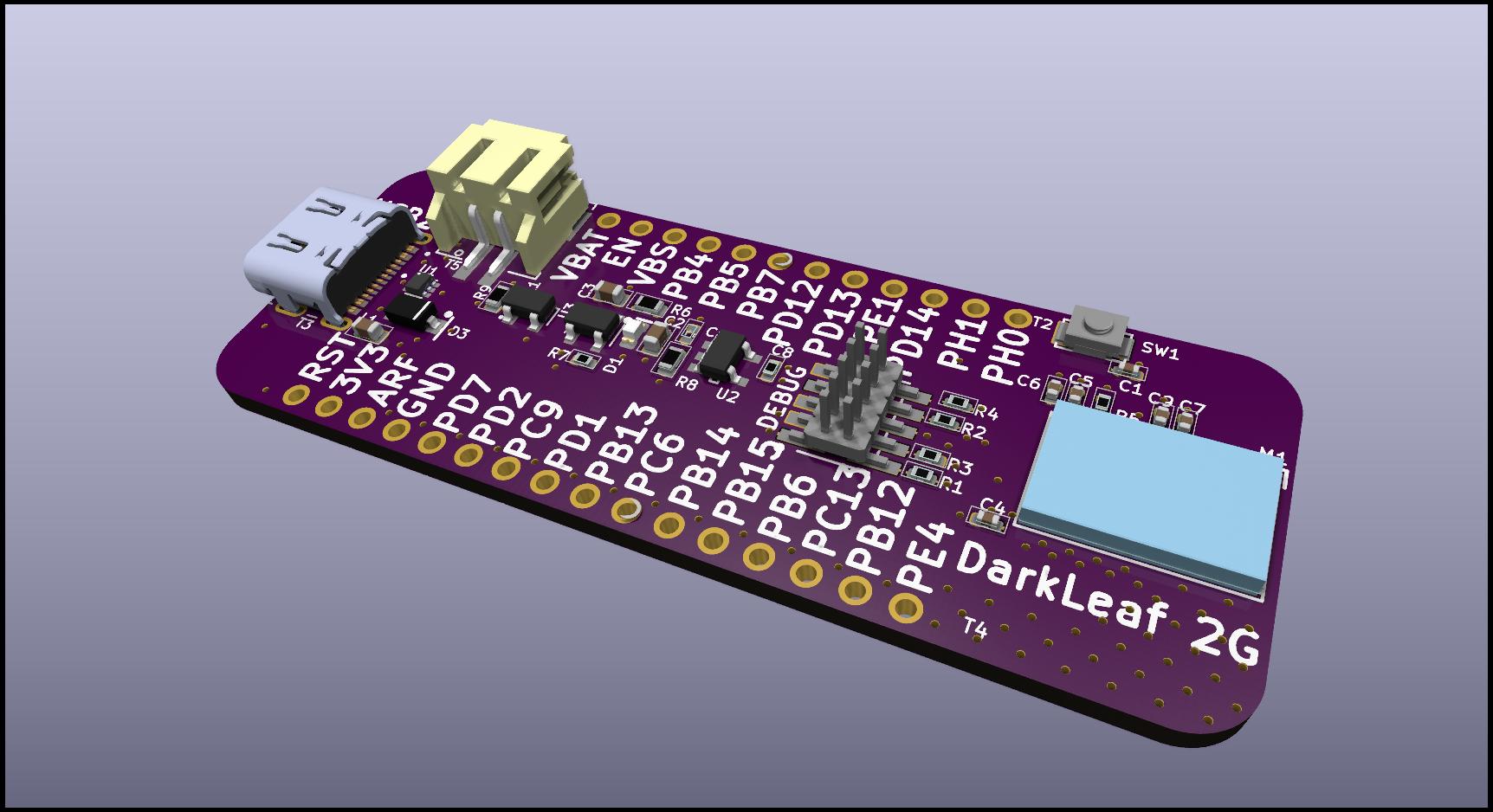

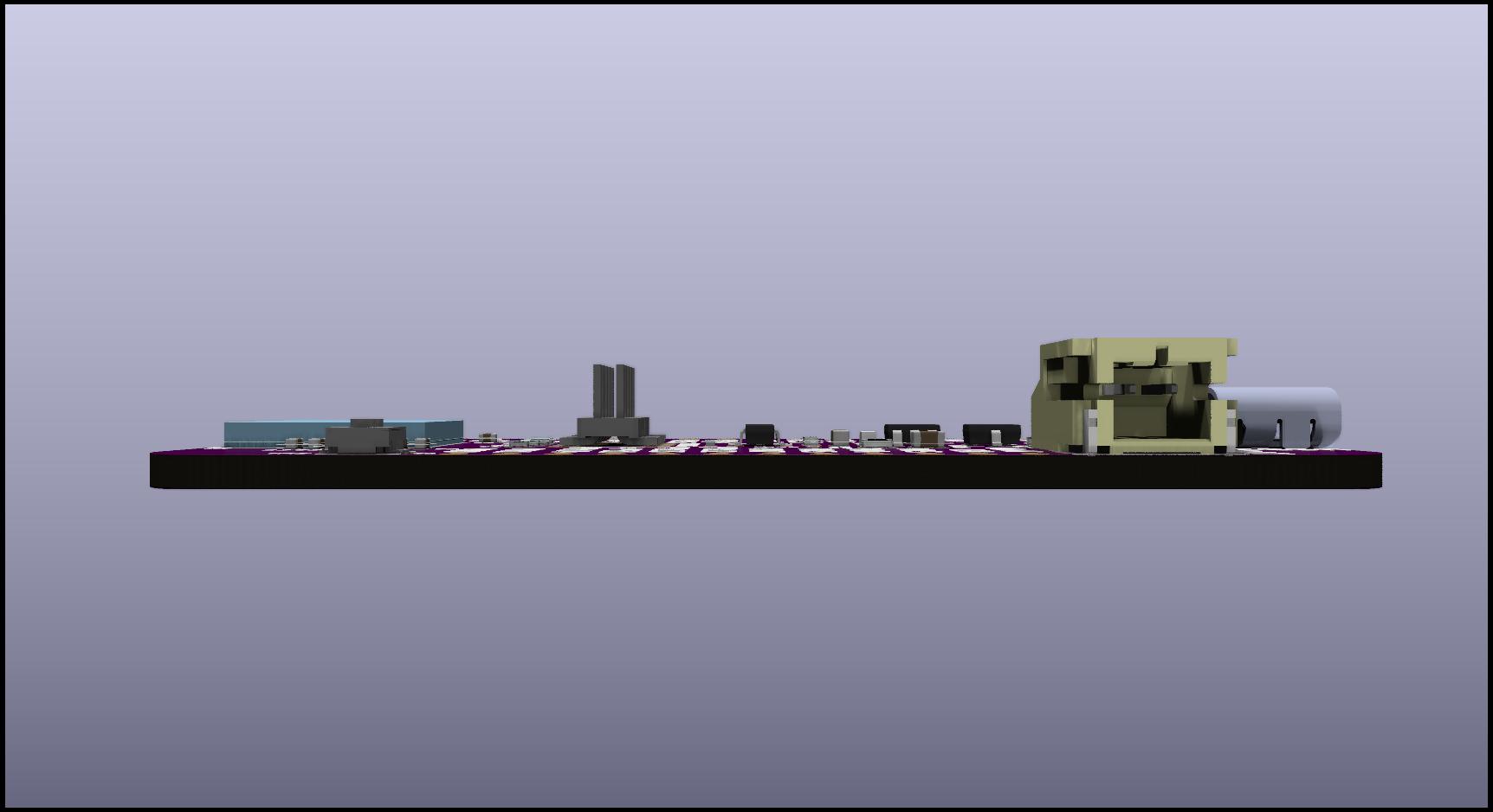

3D KiCAD PCB Renders

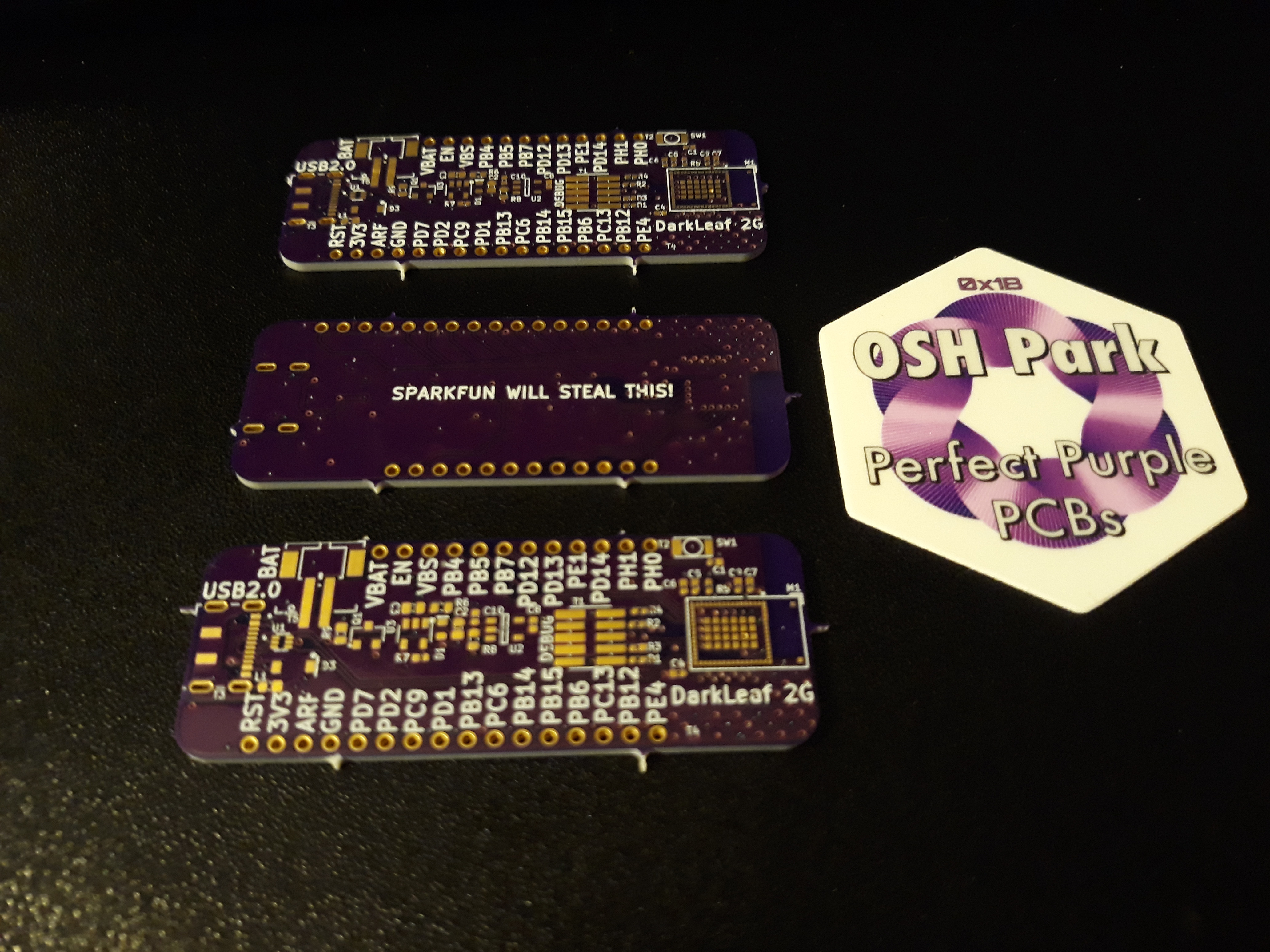

Prototype made by OSHPark.com

Released Under CERN Open Hardware License Version 2
