kicad-kbplacer

KiCad plugin for mechanical keyboard design. It features automatic key placement and routing based on layout descriptions from Keyboard Layout Editor NG and ergogen.

Table of Contents

• Motivation
• Features
• Installation
  • As KiCad plugin
  • As python package
• Use from KiCad
  • Options overview
  • Diode placement and routing
    • Diode automatic orientation adjustment
  • Track templating
  • Additional elements placement
  • Building board outline
  • Run without layout
• Use from CLI or from another tools
  • Run as a script
  • Use in python projects
• Demo keyboard project
• Troubleshooting
  • Plugin does not load
  • Plugin misbehaves or crashes

Motivation

All PCB's for mechanical keyboards shares common properties which creates great opportunity for scripting. Although this project does not aim to provide complete automatic PCB generation tool it speeds up development process by reducing tedious element placement and routing tasks.

Features

• Automatic keys and diodes placement
• Track routing and track template replication
• Support for KLE, VIA, QMK and ergogen inputs
• User selectable diode position in relation to key position
• Configurable additional elements placement
• Board outline generation

[!NOTE] KLE is a layout description format established by https://github.com/ijprest and used by https://www.keyboard-layout-editor.com/

The Keyboard Layout Editor NG referenced in this documentation is a modernized re-implementation using same data format.

[!WARNING] Ergogen support is new experimental feature and it has not been tested extensively

Some examples can be found in examples directory.

See also:

:link: Keyboard PCB design with ergogen and kbplacer

Installation

As KiCad plugin

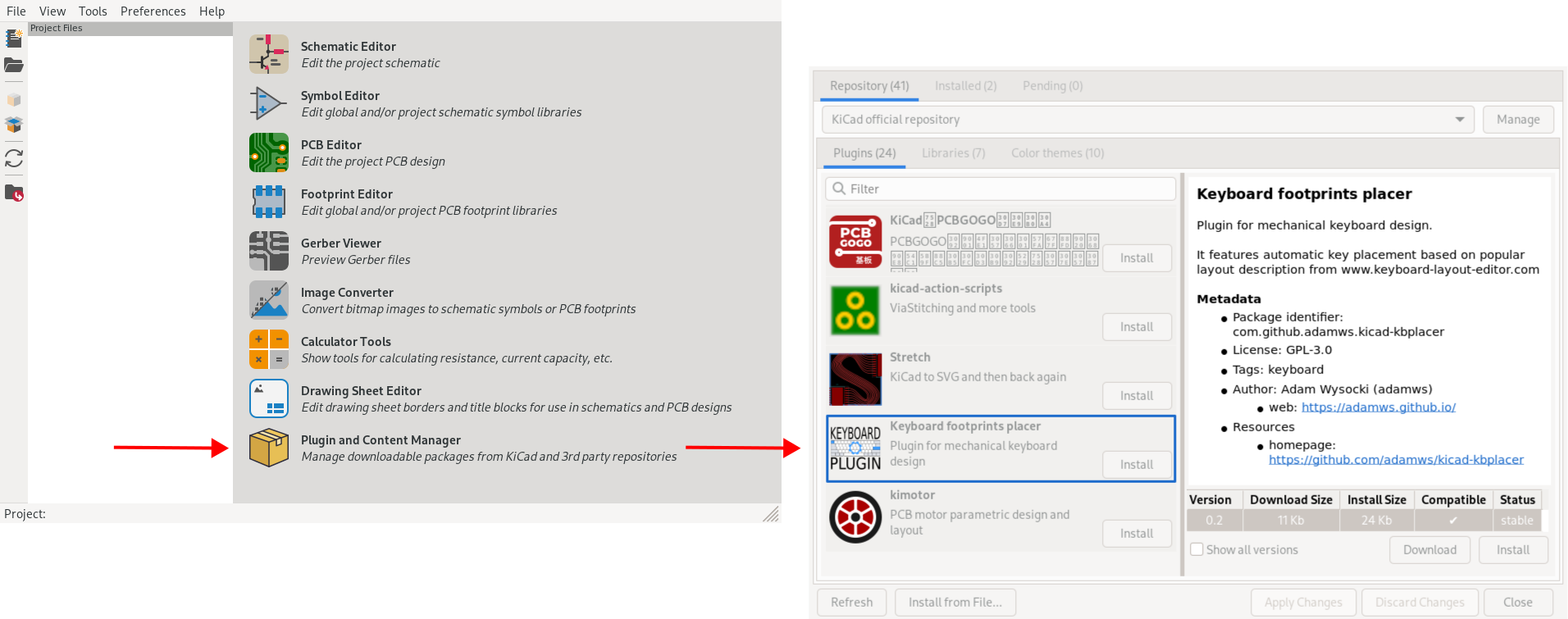

To install release version of this plugin, use KiCad's Plugin and Content Manager and select Keyboard footprints placer from official plugin repository.

To install development version, see how to use custom plugin repository. Custom repository is automatically updated with latest master branch builds and it is available here.

For development activities, it is recommended to checkout this repository and copy (or link) content of kbplacer directory to one of the KiCad's plugin search paths. For more details see this guide.

After installation, plugin can be started by clicking plugin icon on the toolbar:

or selecting it from Tools -> External Plugins menu. For more details about plugin usage see Use from KiCad section.

As python package

The kbplacer can be installed with pip:

pip install kbplacer

When installed this way, it can't be launched from KiCad as KiCad plugin. This option exist for usage via command line interface or for integrating with another tools.

Command line interface provides more options but generally it is recommended for more advanced users. For example it allows to create PCBs without schematic, which is non-typical KiCad workflow. For details see Use from CLI or from another tools section.

[!IMPORTANT] Most of the kbplacer python package functionalities depends on pcbnew package which is distributed as part of KiCad installation. This means, that on Windows it is required to use python bundled with KiCad. On Linux, pcbnew package should be available globally (this can be verified by running python -c "import pcbnew; print(pcbnew.Version())") so it may not work inside isolated environment. To install inside virtual environment created with venv it is required to use --system-site-package option when creating this environment.

[!NOTE] Both installation methods can be used simultaneously. When installed as KiCad plugin, some scripting capabilities are still available, but in order to use kbplacer in another python scripts, installing as python package is required.

Use from KiCad

This is traditional way of using this tool. Before it can be used on kicad_pcb project file, user needs to create it and populate with footprints. In typical KiCad workflow this is started by creating schematic. When PCB file is ready, user can start kbplacer plugin in GUI mode from KiCad and run it with selected options. To use this tool in this way, it needs to be installed following plugin installation guide.

• Create switch matrix schematic which meets following requirements:

  • Each switch has connected diode

    • Diodes can be connected in either direction. Track router attempts to connect closest (to each other) pads of switch and diode as long as both have same netname, i.e. are connected on the schematic
    • Each switch can have multiple diodes

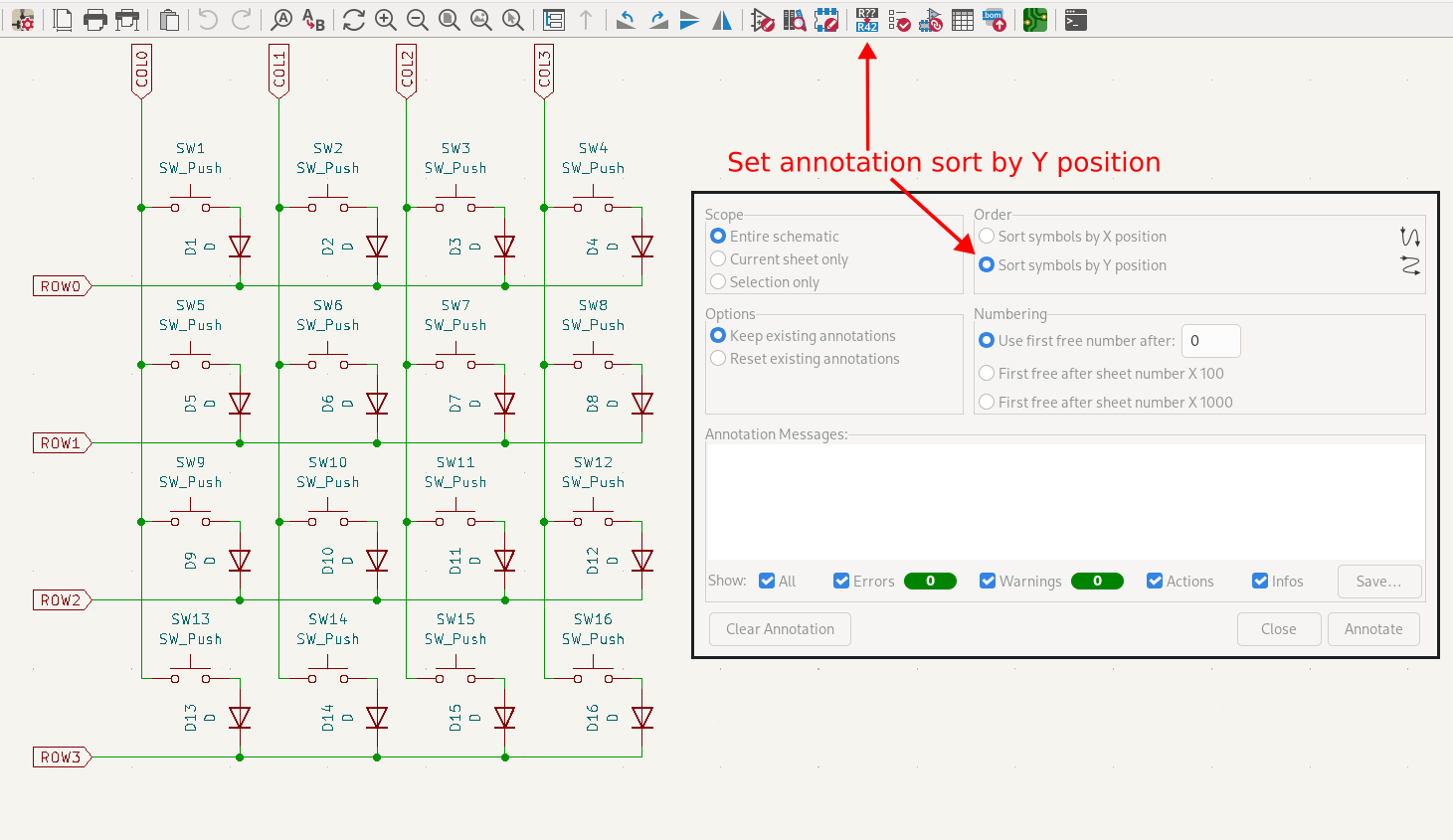

  • Symbols are ordered by Y position.

    • :warning: This annotation scheme might not work well for certain 'ergo' layouts.
    • Annotation order is ignored when using layout with mapping to matrix defined (see VIA specification).

    To learn more see annotation guide.



• Create new PCB and load netlist

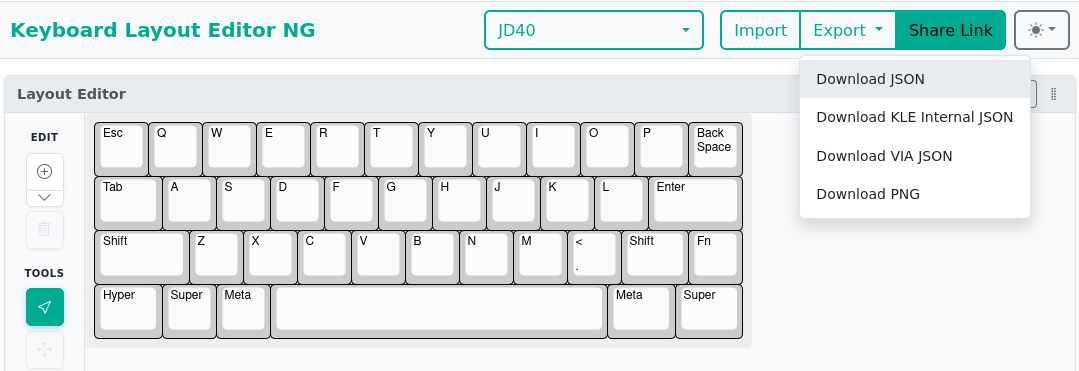

• Obtain json layout file from Keyboard Layout Editor NG or convert ergogen points file to json

  Keyboard Layout Editor NG details (click to expand)



  Plugin supports both raw and internal kle-serial layout files and via files. Detection of layout format will be done automatically.

  [!NOTE] When using via layouts, switch matrix must be annotated according to via rules. If layout supports multiple layout of keys only the default one will be used by kicad-kbplacer.

  ergogen details (click to expand)

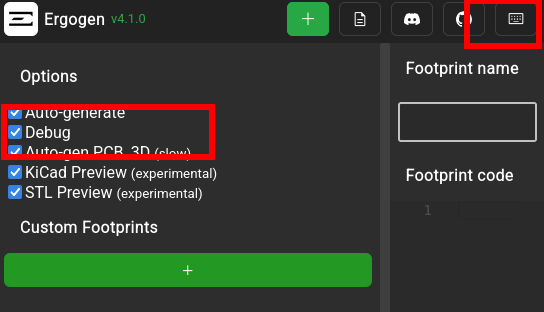

  • open your design in https://ergogen.xyz/ and enable Debug in options

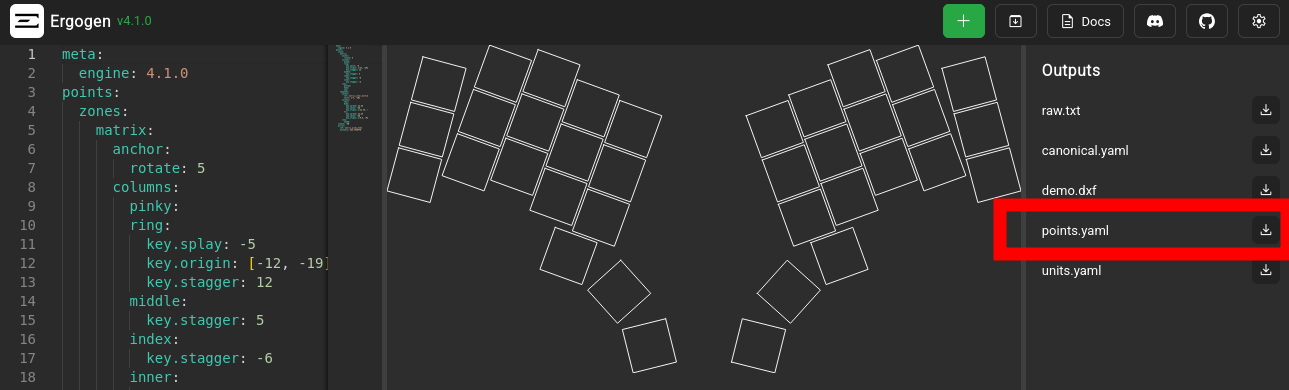

  • download points.yaml



  • convert yaml to json (this operation is not integrated with kicad-kbplacer source because it would require installation of third-party pyyaml package and there is no good way to manage plugin dependencies yet)

    • you can use online converter, for example https://jsonformatter.org/yaml-to-json

  • converted file should be automatically recognized in next steps

• Run kicad-kbplacer plugin

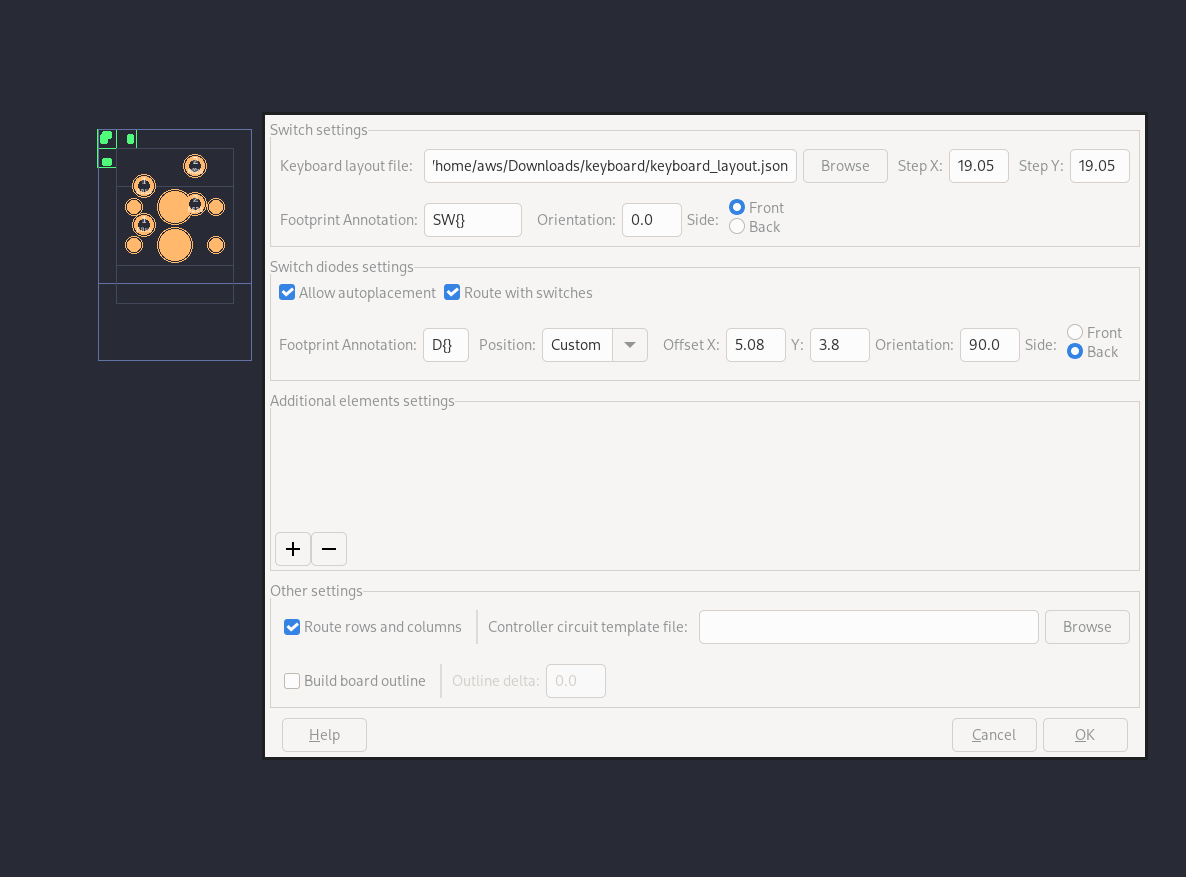

• Select json layout file and plugin options and click OK.



It is possible to run this plugin from command line. Everything which can be done via GUI can be also achieved using command line. Execute following command (in the directory where plugin is installed) to get more details:

python -m com_github_adamws_kicad-kbplacer --help

[!IMPORTANT] On windows, use python bundled with KiCad

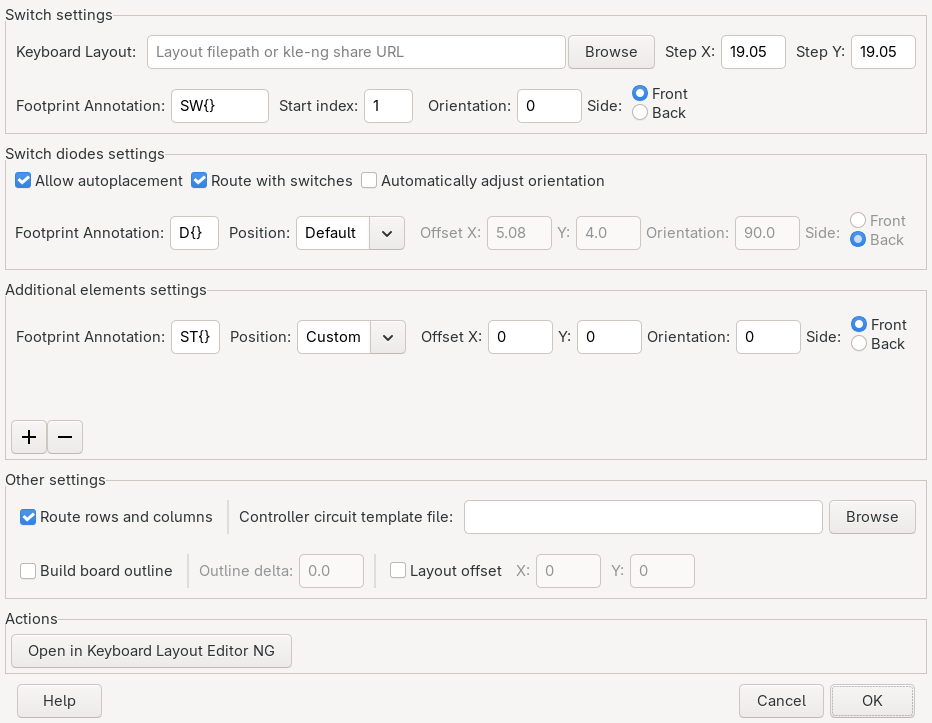

Options overview

Section	Label	Description
Switch settings	Keyboard layout file	Layout file path. Supports Keyboard Layout Editor NG json layouts in both raw and internal form, via and qmk json layouts and ergogen canonical yaml points files converted to json. Can be empty to run without switch footprints placement.
	Step X / Step Y	Distance (in millimeters) of 1U between two switches in X and Y directions.
	Footprint Annotation	The switch footprint annotation format with single replacement field {} which will get replaced with incremented footprint number. This string is internally used by python's str.format function.
	Start index	Starting index used to match footprint annotations (default: 1). Controls which number to use when matching the first switch footprint. For example, with annotation format SW{} and start index 0, the first switch will be SW0 instead of SW1.
	Orientation	Angle (in degrees) of switch footprints.
	Side	Selects Front or Back side of the board.
Switch diodes settings	Allow autoplacement	Enables automatic diodes positioning. When turned on, each diode will be placed next to the switch footprint with common net, according to the position settings. When disabled, diodes will not be moved. If any switch has more than one diode, then Default and Custom position options are not supported.
	Route with switches	Enables automatic routing of switch-diode pairs. If user manually route first pair, then it replicates the connection for remaining pairs. If not, uses automatic internal router. When automatic router used, attempts to connect only two closest pads of the same net. Automatic router will use default track width of a routed netclass.
	Automatically adjust orientation	Enables automatic diode orientation adjustment based on distance between diode and corresponding switch. Useful for some key matrix types, for example Japanese duplex matrix, where diodes are connected with alternating directions.
	Footprint annotation	The diode annotation format. Same rules as for switch footprint annotation applies.
	Position	Diode position option with three possible choices:  Default - positions diodes to default position  Custom - positions diodes based on user defined values  Relative - uses first switch-diode pair to get relative position between them and uses that as reference position for remaining pairs  Preset - uses provided kicad_pcb template file to get relative position and tracks for replication for all switch-diode pairs
	Offset X/Y	Distance (in millimeters) from the center of switch footprint to the center of diode footprint. Accepts floating values with . (dot) decimal separator. Applicable only for Custom position option.
	Orientation	Angle (in degrees) of diode footprint. If switch is rotated it will be automatically adjusted to match switch rotation Applicable only for Custom position option.
	Side	Selects Front or Back side of the board. Applicable only for Custom position option.
	Load from / Save to	The preset kicad_pcb file path to use when position option is equal Preset or optional file path to store current position and tracks when position option is equal Relative.
Additional elements settings	-	This is equivalent of Switch diodes settings section with these exceptions: 1) It is possible to add/subtract elements from the list using +/- buttons 2) Allow autoplacement option is missing, footprints which should not be moved should not be added to the list 3) Footprints from this sections are not routed
Other settings	Route rows and columns	Enables/disables automatic routing of keyboard switch matrix. Works by finding all pads with nets matching COL(\d+) and ROW(\d+) regular expressions (ignoring case) and connecting them using simplified internal router. Configuration of row/column naming scheme is not yet supported. Automatic router will use default track width of a routed netclass.
	Controller template circuit file	Path to kicad_pcb template file which can be used for placing/routing repetitive parts of the PCBs. It is expected that user creates own templates. This is optional and not very well documented process.
	Build board outline	Enables/disables board outline creation based on selected footprints (if any) or all switch footprints. Using selected footprints is supported only for KiCad 7 or above.
	Outline delta	The amount (in millimeters) to inflate/deflate generated outline shape.
	Layout offset	The X and Y placement offset for the keyboard layout in millimeters. If not specified, offset is auto-calculated to align the first key to a grid with an offset to avoid pcbnew's Drawing Sheet borders. Uses topmost-leftmost key as the reference.

Diode placement and routing

By default diodes are placed like shown below. This placement may not work for all switch and diode footprints combinations.

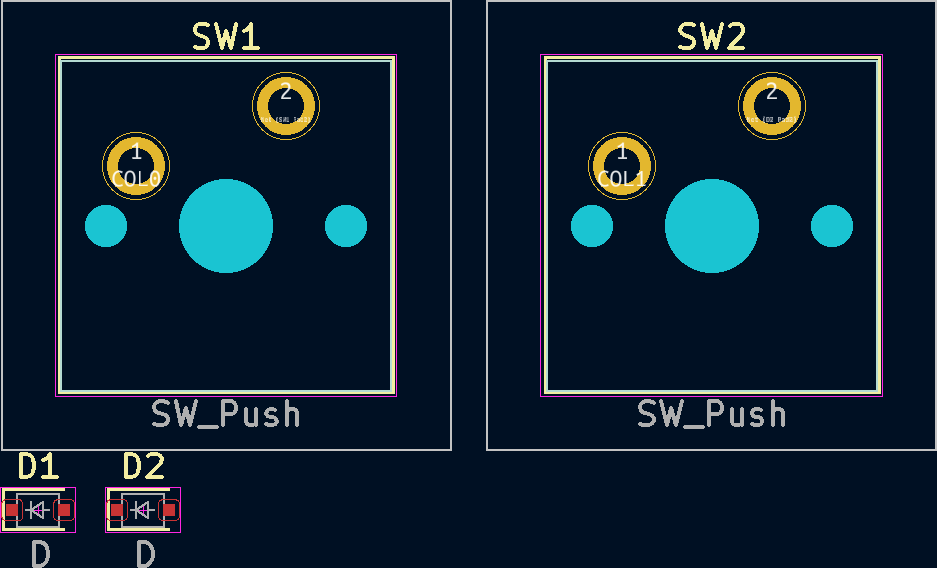

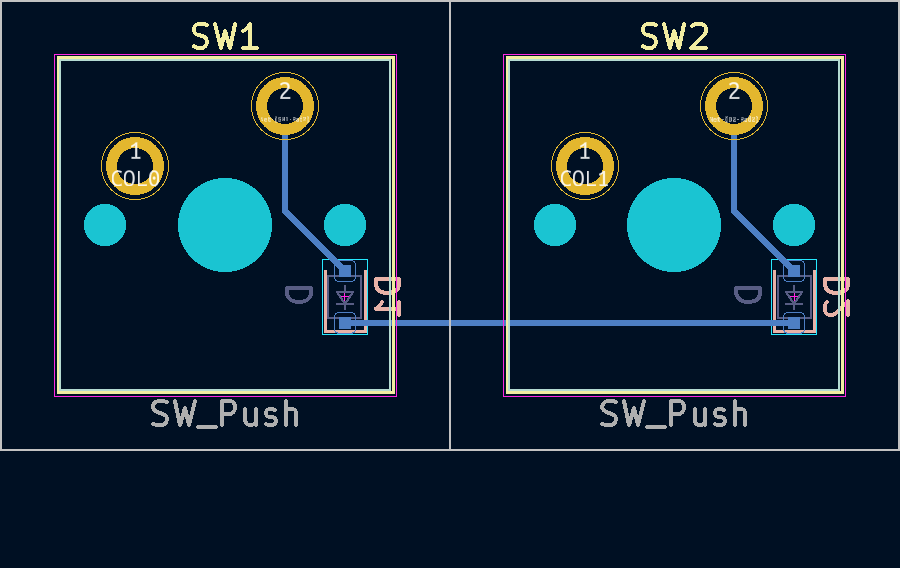

Before	After

To use custom diode position there are two available options. Either select Custom in Position dropdown and define X/Y offset, Orientation and Front or Back side:

or manually place D1 diode to desired position in relation to first switch and run plugin with Relative Position option selected.

Remaining switch-diode pairs will be placed same as the first one. To save current template, set Save to path. This can be later re-used with Preset Position option.

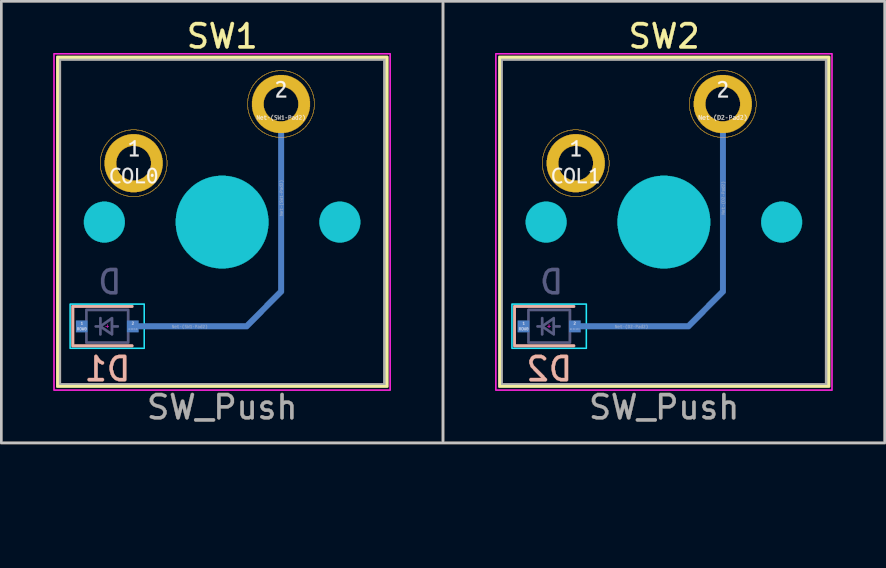

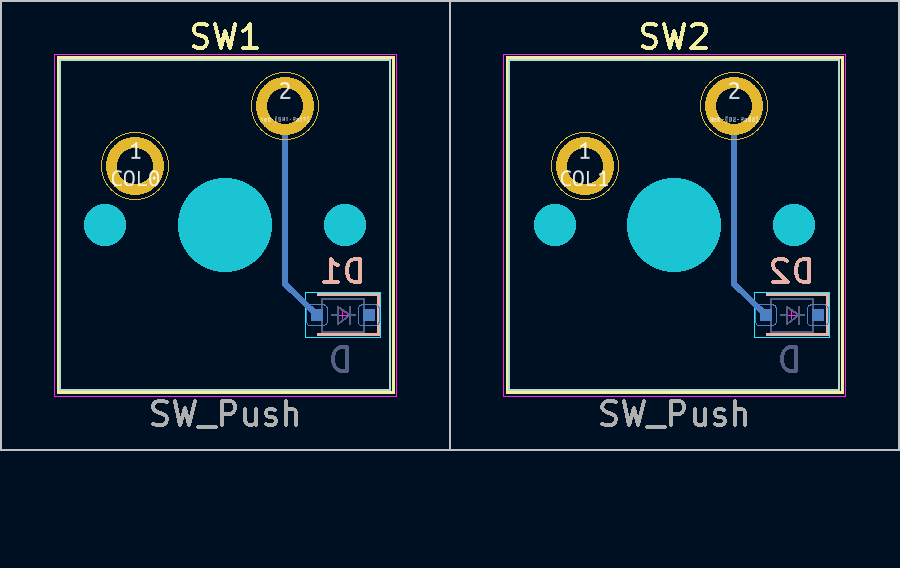

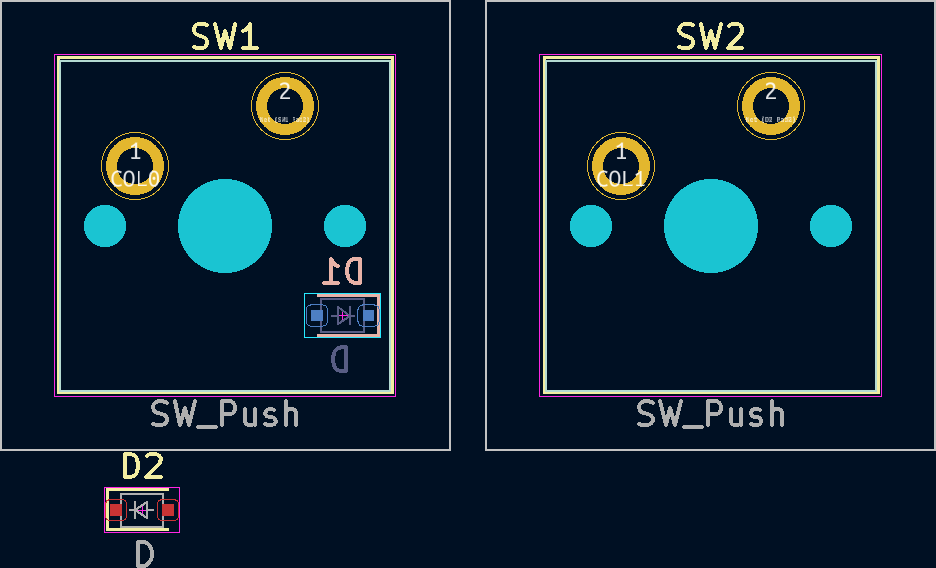

Before	After

Some custom diodes positions may be to difficult for router algorithm. In the above example it managed to connect diodes to switches but failed to connect diodes together.

Switch-to-diode routing is not done with proper auto-routing algorithm and it is very limited. It attempts to create track in the shortest way (using 45° angles) and doesn't look for other options if there is a collision, leaving elements unconnected.

Diode automatic orientation adjustment

Some key matrix types use diodes in alternating directions (see The (Japanese) duplex matrix), making it undesirable to use a single Position value for all of them. When Automatically adjust orientation is enabled, kicad-kbplacer will choose between two positions: the one defined by the Position controls values and another with the orientation rotated by 180 degrees. It then selects the position where the distance between the switch and diode pads is shortest.

Consider following example:

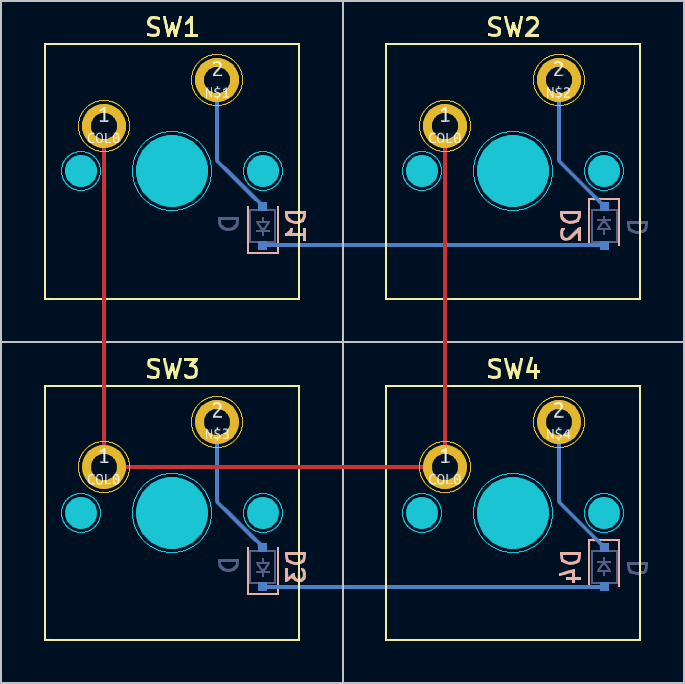

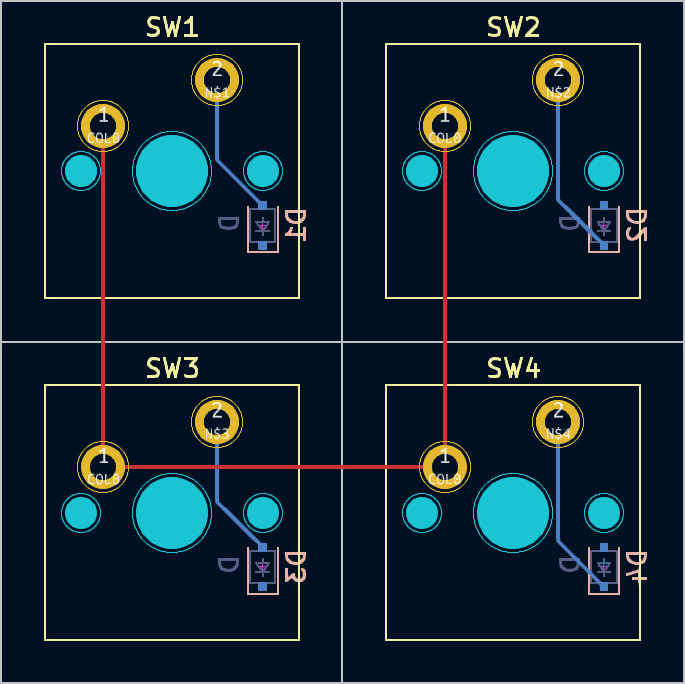

Schematic	Automatic adjustment disabled	Automatic adjustment enabled

Track templating

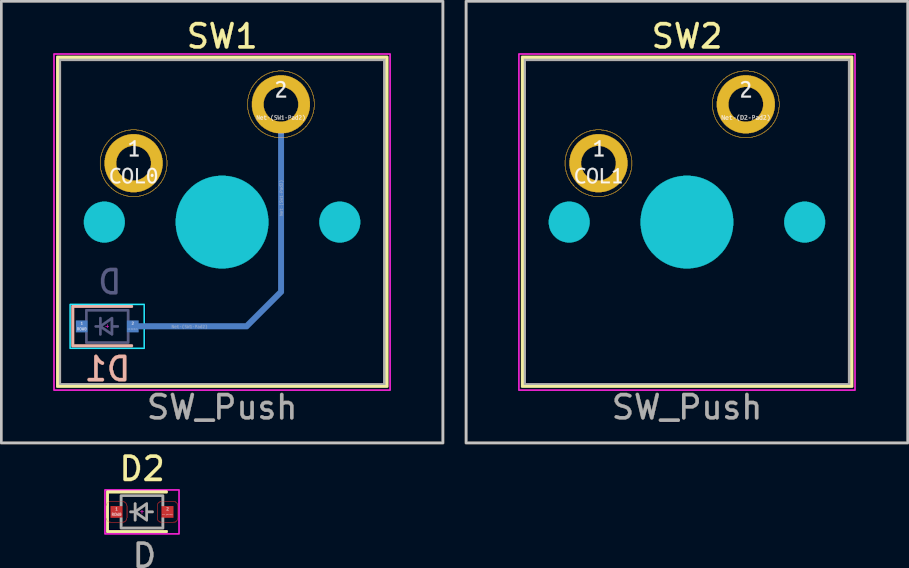

If first switch-diode pair is routed before plugin execution, as shown below, kicad-kbplacer instead of using it's built in routing algorithm, will copy user's track. This allow to circumvent plugin's router limitations. This is applicable only for Relative Position option or when diode placement disabled (with Allow autoplacement unticked). The latter is suited mostly for routing boards generated with ergogen. When using Relative Position and Save to path defined, tracks will be stored in template. Then it can be re-used when using Preset Position option.

Before	After

[!NOTE] Track templating is recommended for more complicated switch footprints, for example reversible kailh. When switch footprint has multiple pads with the same net name, automatic router would try to connect only the two closest pads between diode and switch.

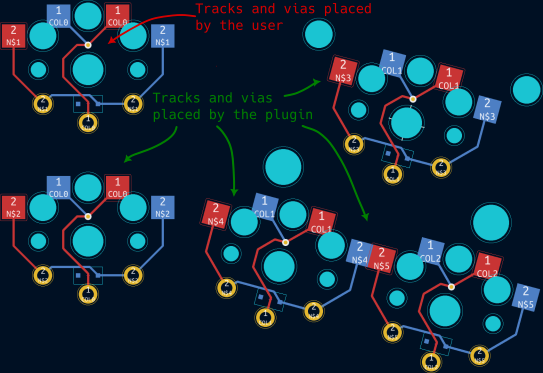

Below example shows more complicated custom diode position with track template pre-routed by the user. Manual work needs to be done only for first switch-diode pair, plugin will replicate layout for the remaining pairs:

[!WARNING] All footprints for diodes and switches must have same pad layouts, otherwise connection replication may yield unexpected results

Additional elements placement

In case additional elements need to be automatically placed next to corresponding switches (for example stabilizer footprints if not integral part of switch footprint, or RGB LEDs), define entries in Additional elements settings section. It behaves very similarly to switch diodes options with few exceptions:

• corresponding switch is matched based on annotation number and not net code
• there is no default position defined
• there is no track routing

Building board outline

The kicad-kbplacer plugin is capable of generating board edges around selected footprints or all switches footprints (matched using Switch Settings - Annotation Footprint value). It uses convex hull algorithm to calculate outline and allows to specify additional increase/decrease amount by Outline delta value.

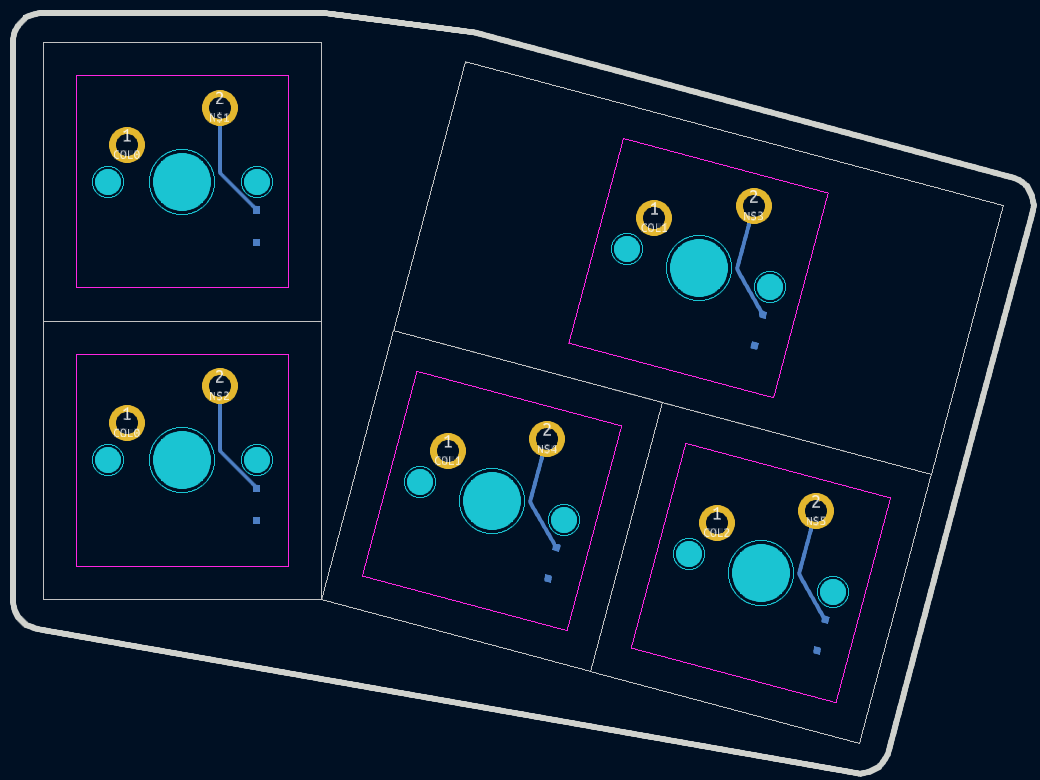

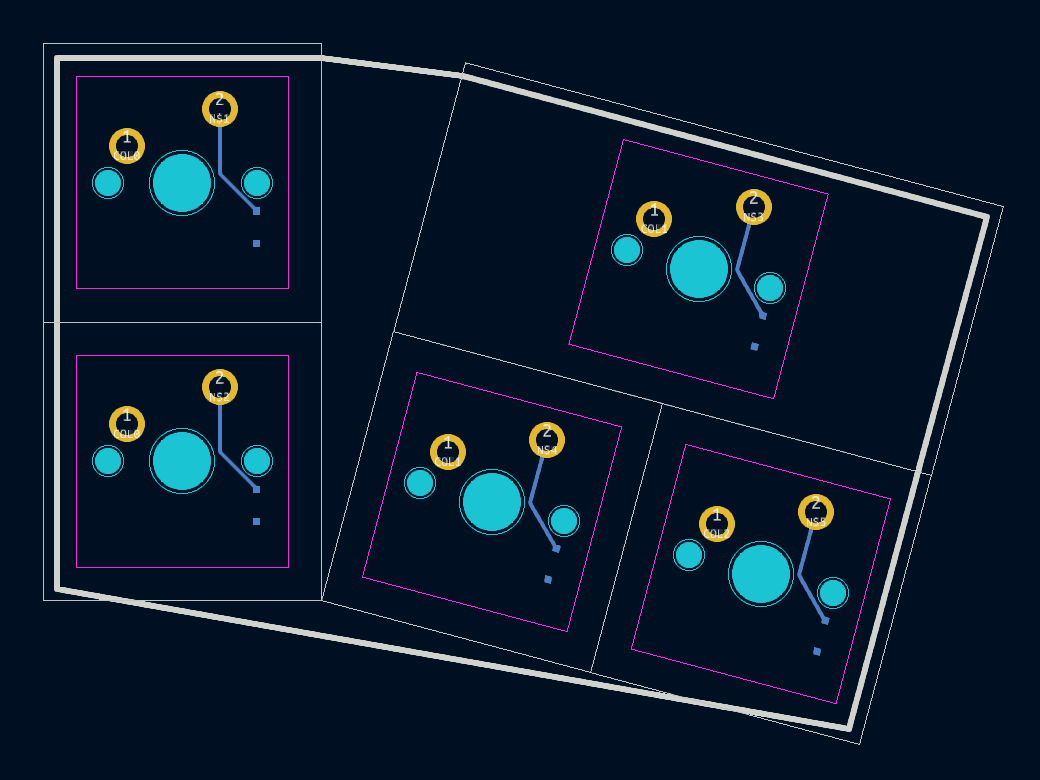

Outline delta 2.0mm	Outline delta -1.0mm

[!IMPORTANT] To build outline using selected footprints, selection must be done before launching plugin and KiCad 7 or above must be used

Run without layout

Creating tracks, placing switch associated elements (like diodes) or building board outline does not require layout file. With empty Keyboard layout file field, switch placement is simply skipped. Placing and routing of other elements will use already placed switches as reference points and won't move them. This might be useful for PCB files generated by other tools, for example ergogen.

This works with custom diode positions and track templating.

Use from CLI or from another tools

Run as a script

The kbplacer module might be executed as a script using python's -m command line option.

python -m kbplacer

This is command line equivalent of running this tool as KiCad plugin but without GUI interface. Run it with --help option to get more details about options and CLI usage.

Layout format conversion script

The kbplacer is capable of converting layouts between various formats. For example, to convert ergogen point file to KLE layout file:

python -m kbplacer.kle_serial \
  --in tests/data/ergogen-layouts/absolem-simple-points.yaml --inform ERGOGEN_INTERNAL \
  --out $(pwd)/absolem-kle.json --outform KLE_RAW

This command generates this file which can be loaded by Keyboard Layout Editor NG.

In case of VIA-like annotated layouts there is an option to perform 'collapse' operation.

python -m kbplacer.kle_serial \
  --in tests/data/via-layouts/wt60_d.json --inform KLE_VIA \
  --out $(pwd)/wt60_d-internal-collapsed.json --outform KLE_INTERNAL --collapse

Before collapse	After collapse

Layout collapsing moves keys to theirs final physical position and removes duplicates. Key is considered duplicate when there is another key of same matrix position and size.

KiCad schematic generation script

To generate schematic file and schematic image based on layout file:

python -m kbplacer.schematic_builder --in <via-annotated-layout.json> --out output.kicad_sch
kicad-cli sch export svg -e output.kicad_sch

[!WARNING] This requires installation with optional schematic dependencies:

pip install kbplacer[schematic]

Extra tools

The kbplacer is used by additional tools available in tools directory.

Tool	Example result
layout2image.py - generates KLE-like image for layout
layout2openscad.py - generate plate for openscad (⚠️ experimental)

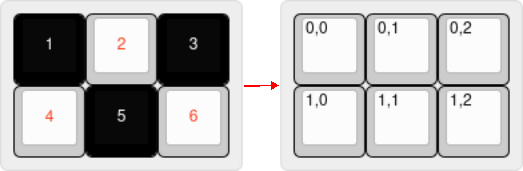

kle2kle.py - edit KLE layout, supports: labels and colors reset and automatic VIA style row,column matrix label annotation.

Use in python projects

Some kbplacer functionality might be reused in another projects. For example, to parse raw KLE data to it's internal form run:

from kbplacer.kle_serial import parse_kle
keyboard = parse_kle([["", ""]])
print(f"This keyboard has only {len(keyboard.keys)} keys")

The kbplacer API is used in following projects:

• keyboard-pcbs (repository) - benchmark for kbplacer - website with collection of pre-generated KiCad projects (both schematics and PCB files) based on via layouts. Combines usage of kbplacer KiCad plugin and accompanying tools.
• keyboard-tools (repository) - website for generating PCB files from user uploaded layout files, combines kbplacer plugin with its schematic_builder module to generate KiCad schematics and PCBs, providing a decent starting point for traditional KiCad projects.

Creating keyboard PCB file from scratch (without a schematic, or using schematic generated with the schematic_builder module) is also possible using kbplacer CLI interface although it is currently considered experimental.

Using the CLI also enables more advanced workflows. For example, the schematic_builder module can generate schematics that include additional components such as stabilizers and rotary encoders, and the resulting PCB can be created with the proper footprints assigned to them. This goes beyond the basic switch-and-diode matrix and allows building more complete keyboard projects programmatically.

Demo keyboard project

For example keyboard project see demo directory. This project contains 4x4 switch matrix with layout json files in raw (kle.json) and internal (kle_internal.json) formats. It requires keyswitch-kicad-library to be installed. Use this project to validate plugin installation.

Troubleshooting

Plugin does not load

If plugin does not appear on the Tools -> External Plugins menu and its icon is missing on toolbar, launch python scripting console Tools -> Scripting Console and type:

import pcbnew; pcbnew.GetWizardsBackTrace()

This should return backtrace with an information about the fault. Include this information in bug report.

Plugin misbehaves or crashes

• Read stacktrace in error pop-up
• See kbplacer.log file, created in PCB directory

For bug reports please use this template.
