My own ClockClock 24 replica

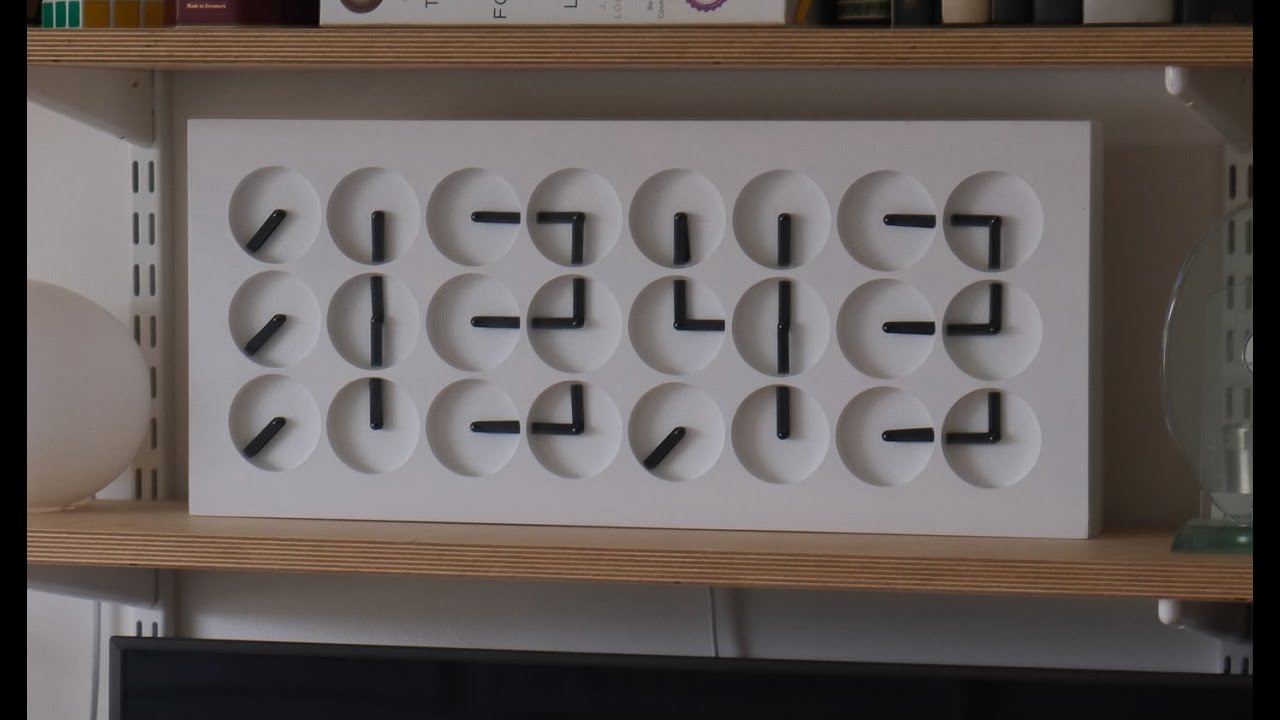

My own take/version of the ClockClock 24 by Humans Since 1982 - A digital clock made from 24 analog clocks. All credit goes to them for coming up with such an awesome design.

Video

My version is made 100% from scratch using my own hardware design. Mine is also slightly smaller, made to fit perfectly on my shelf. This design uses 6 Arduino nanos, each in control of 4 individual clocks, and an ESP32 which orchestrates and sends commands to all Arduinos.

The physical clock is made from MDF, which was routed using a 3d printed jig (I don't own a CNC). That process will not be published.

The software is still WIP and not finished.
