README

ATF1504 Breakout

Breakout board for Atmel's AFT1504 and ATF1502 CPLDs in a through-hole PLCC-44 socket. The size is friendly for breadboard use, with two rows of holes left available on each side of the breadboard for wires to come in.

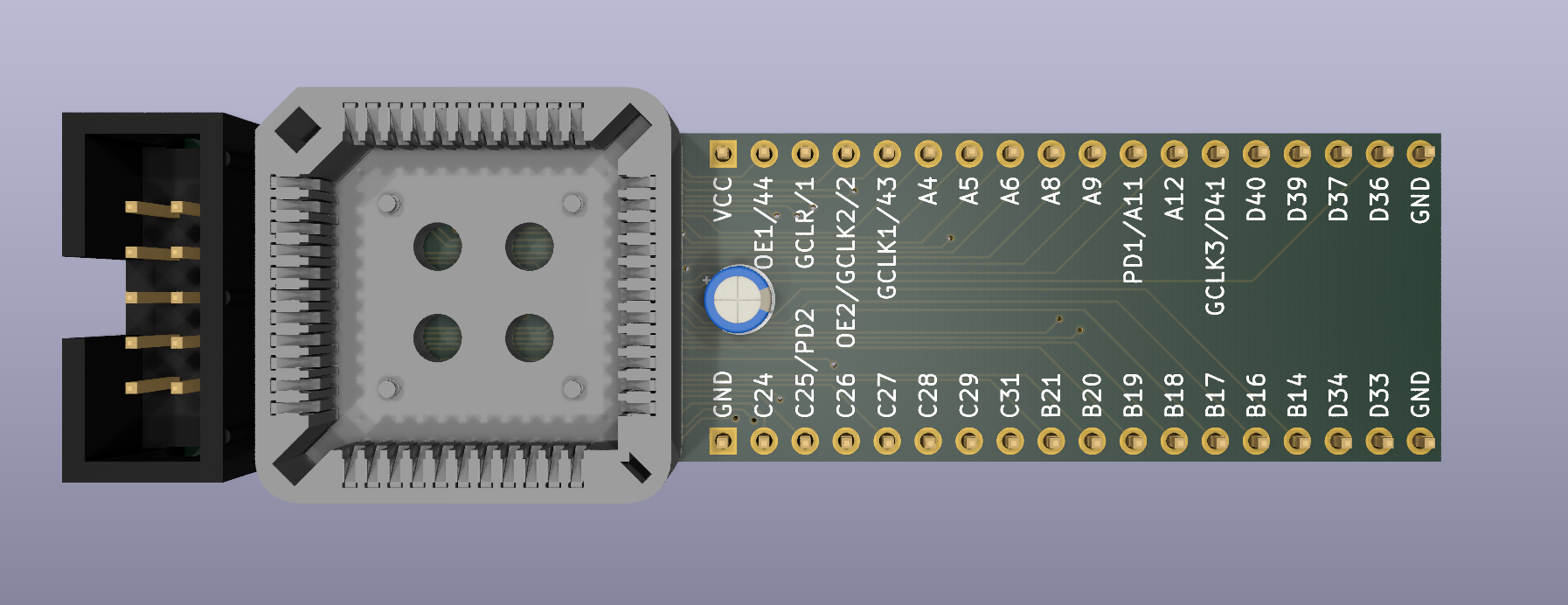

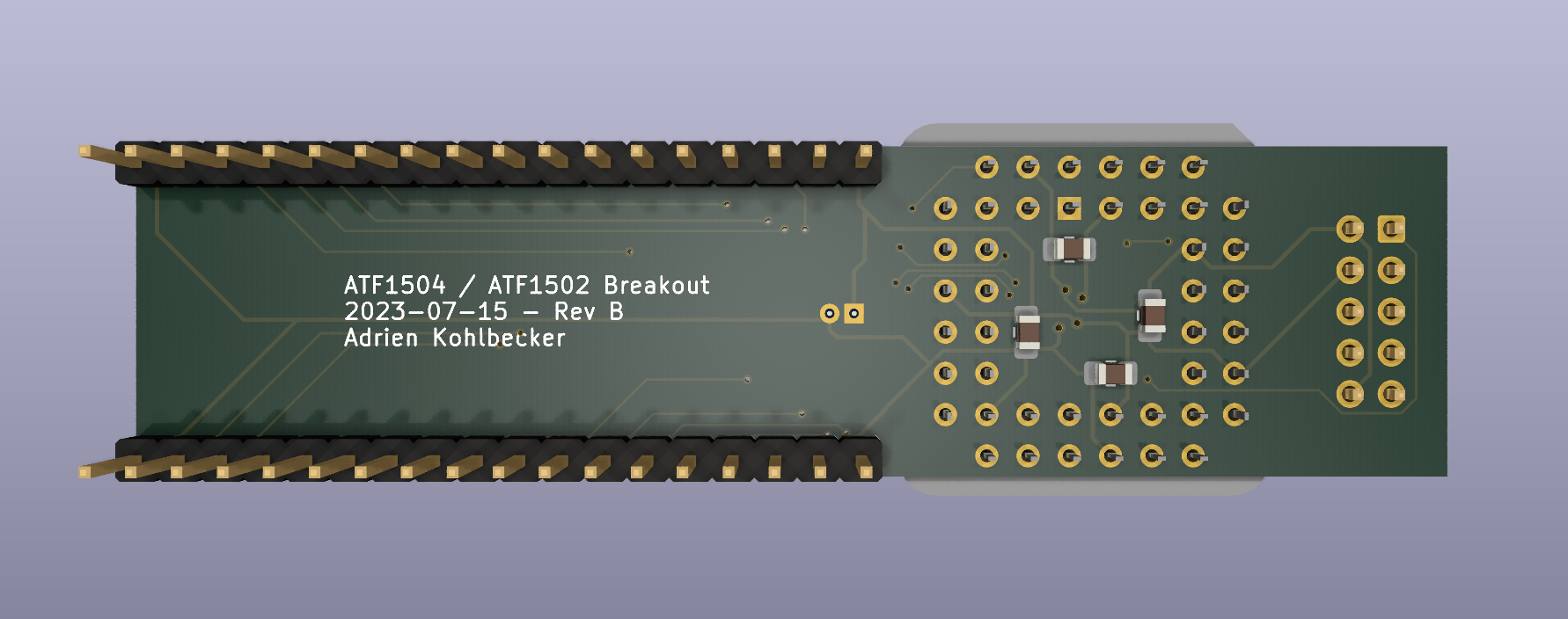

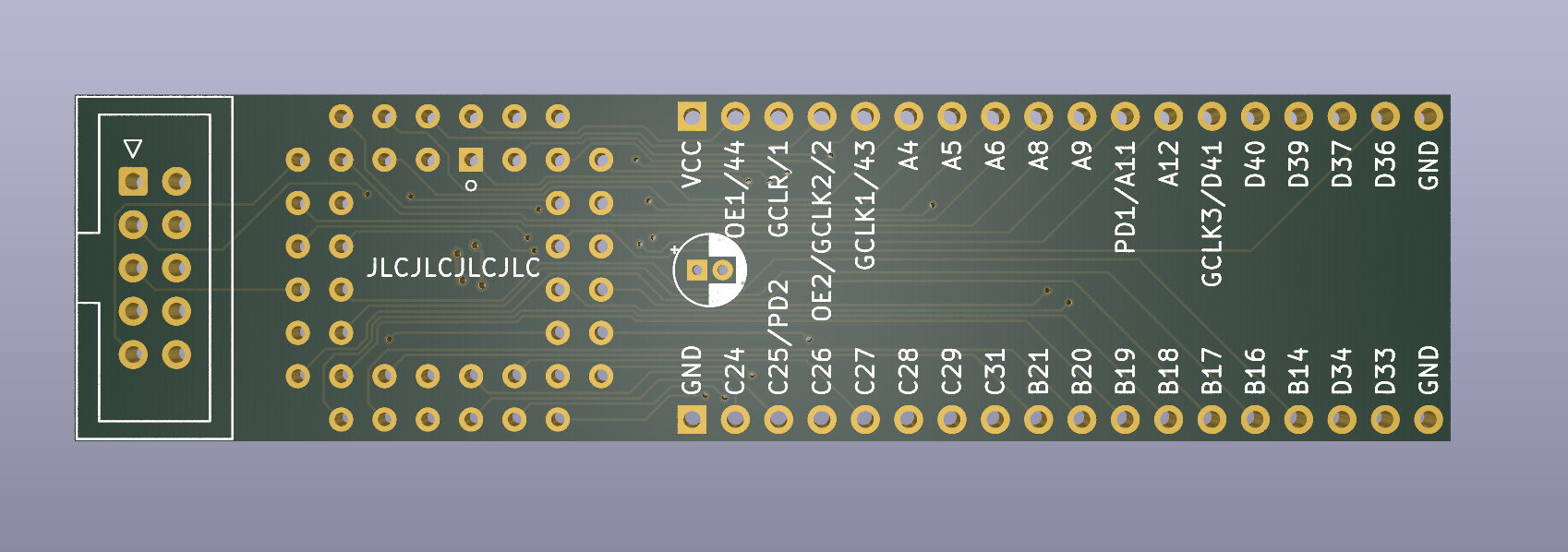

Board

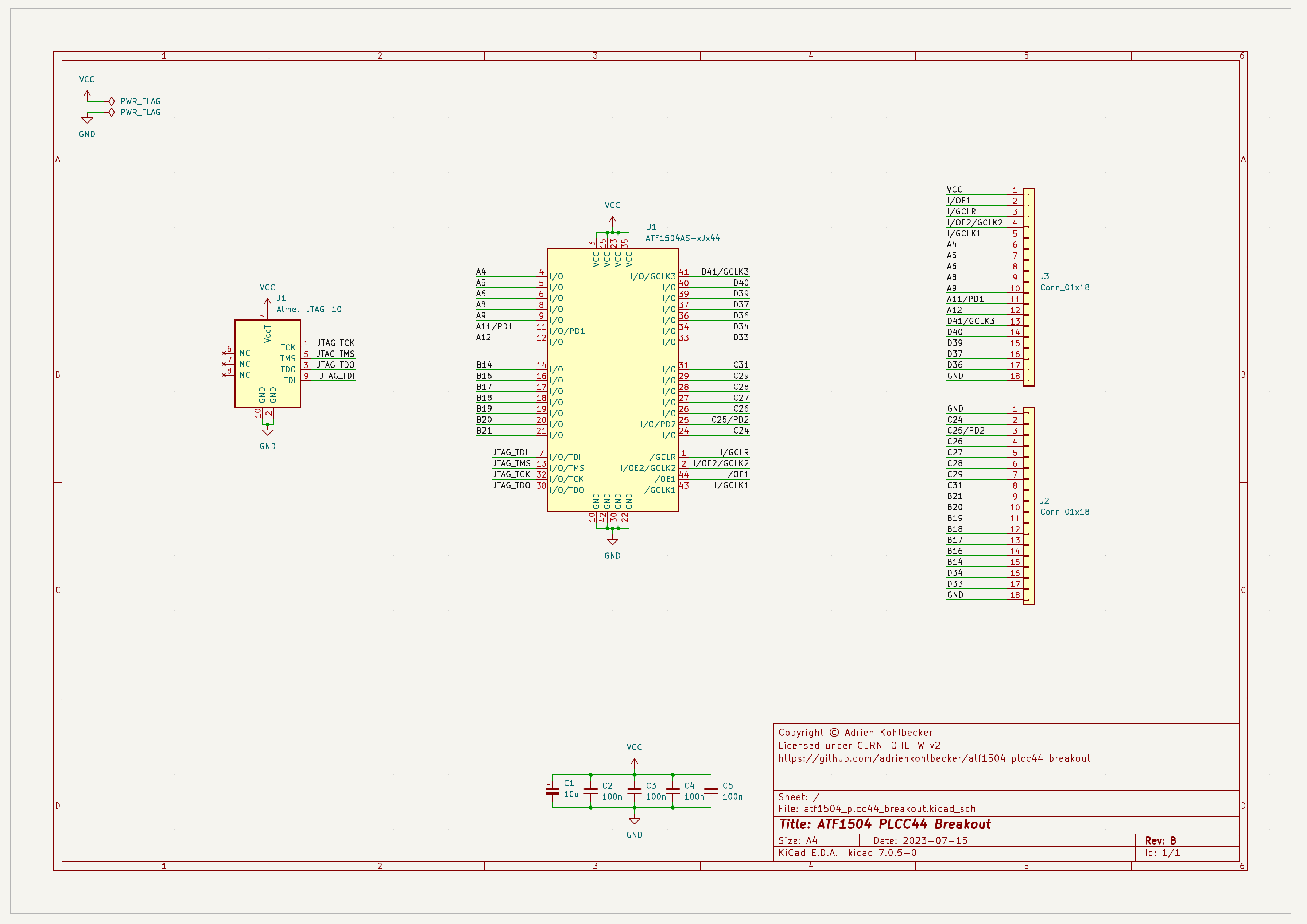

Schematic

BOM

RefsQtyComponentDescription
C1110uPolarized capacitor, through hole D4.0mm P1.5mm
C2, C3, C4, C54100nCeramic capacitor, SMD 0805
J11Atmel-JTAG-10Atmel 10-pin JTAG connector, 2x5 IDC
J2, J32Conn_01x18Generic connector, single row, 01x18
U11ATF1504AS-xJx44Microchip CPLD, in through hole PLCC-44 socket
