ECE411 Group 10 - 2022 Fall Practicum Project

Members

  • Jing Ma
  • Adam Martinez
  • Janvier Mpfizi
  • Tysen Tippetts

Product Design Specifications

>>HERE<<

Funcitonal Decomposition

L0

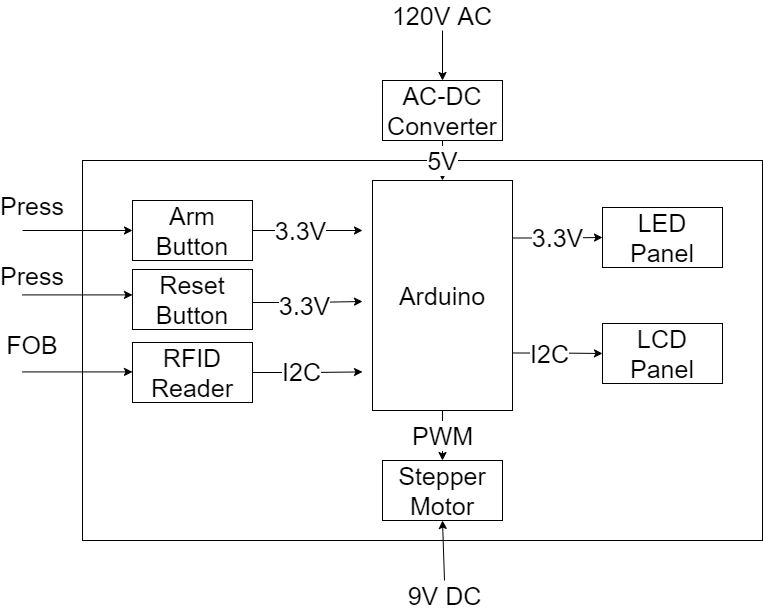

L1

Bill of Materials

Google Sheets Link

Controllers

  • Arduino Uno

Sensors

  • Photoresistors
  • RFID Sensor RC522
  • Button

Actuators

  • Servo Motor SG90
  • LED Lasor 6mm 5mW Red Dot Laser
  • LCD Screen 1602 w/ I2C controller

Misc

  • Wires
  • RFID Fob
  • Resistors
  • 3D Printed Enclosure
