README

SWD2Conthrough

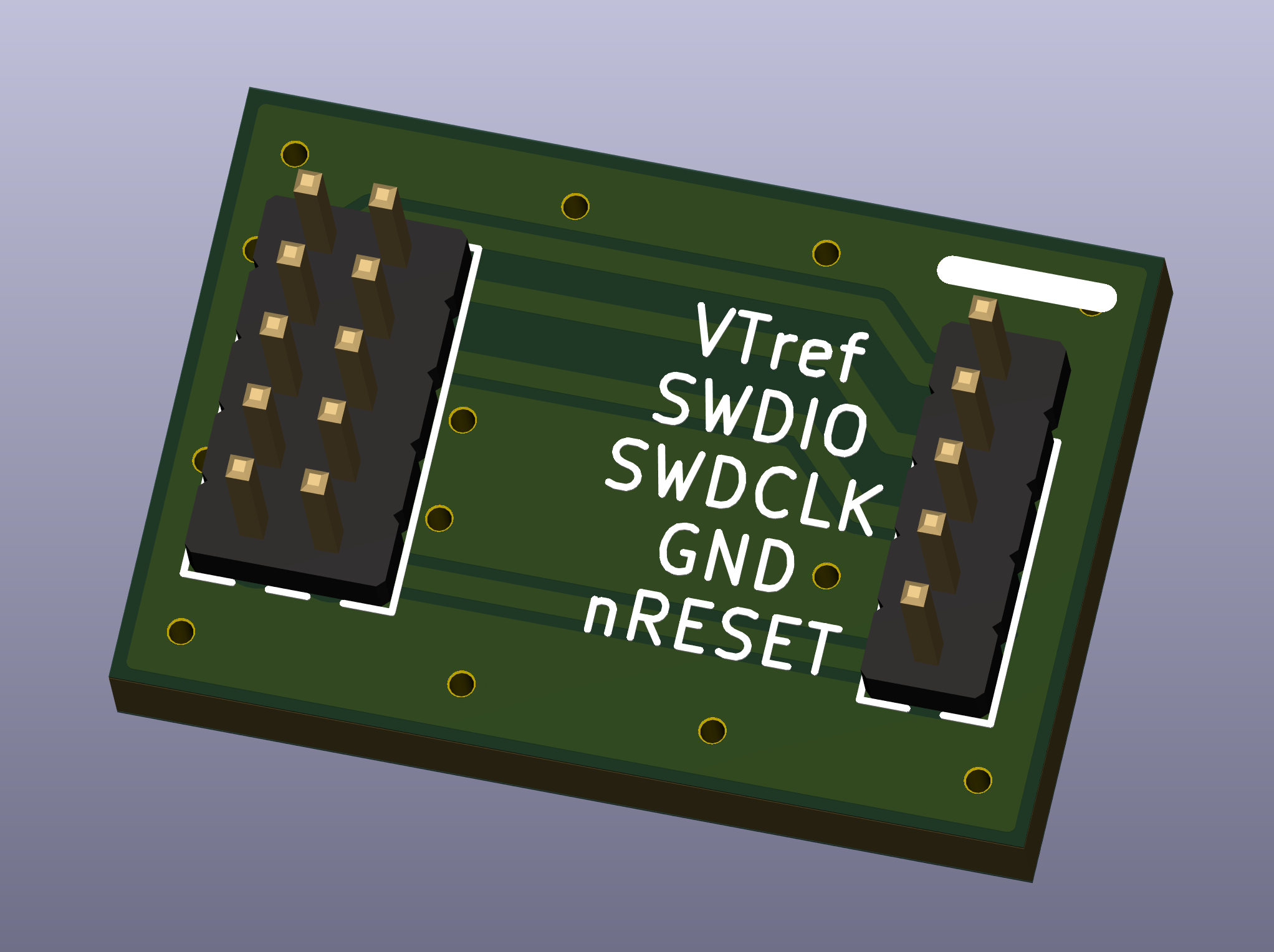

Jig to convert the J-Link 9pin Cortex-M adapter to a 5pin conthrough.

About Conthrough

A pin header with spring contact.
The XE-1 / Mac8 is used.
