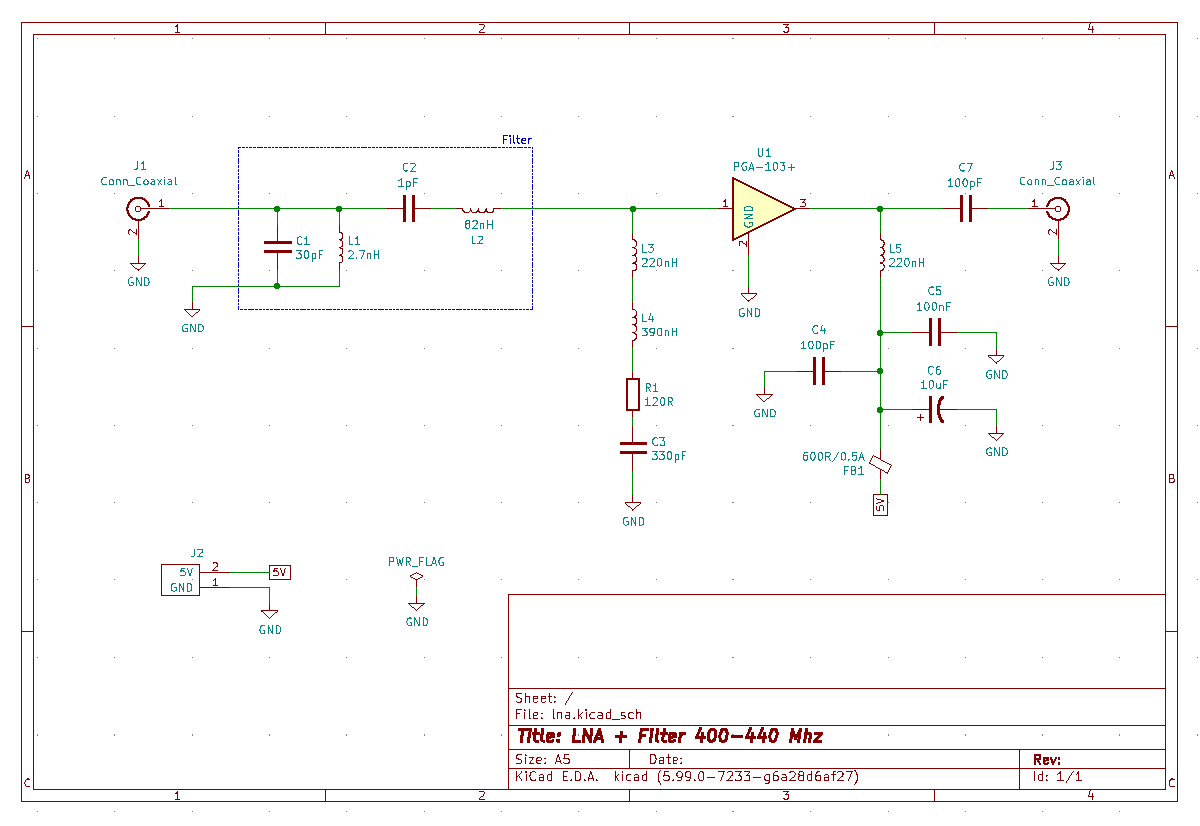

lna Schematic SVG view

Imported from GitHub: alicjamusial/LNA · commit d6f6f26

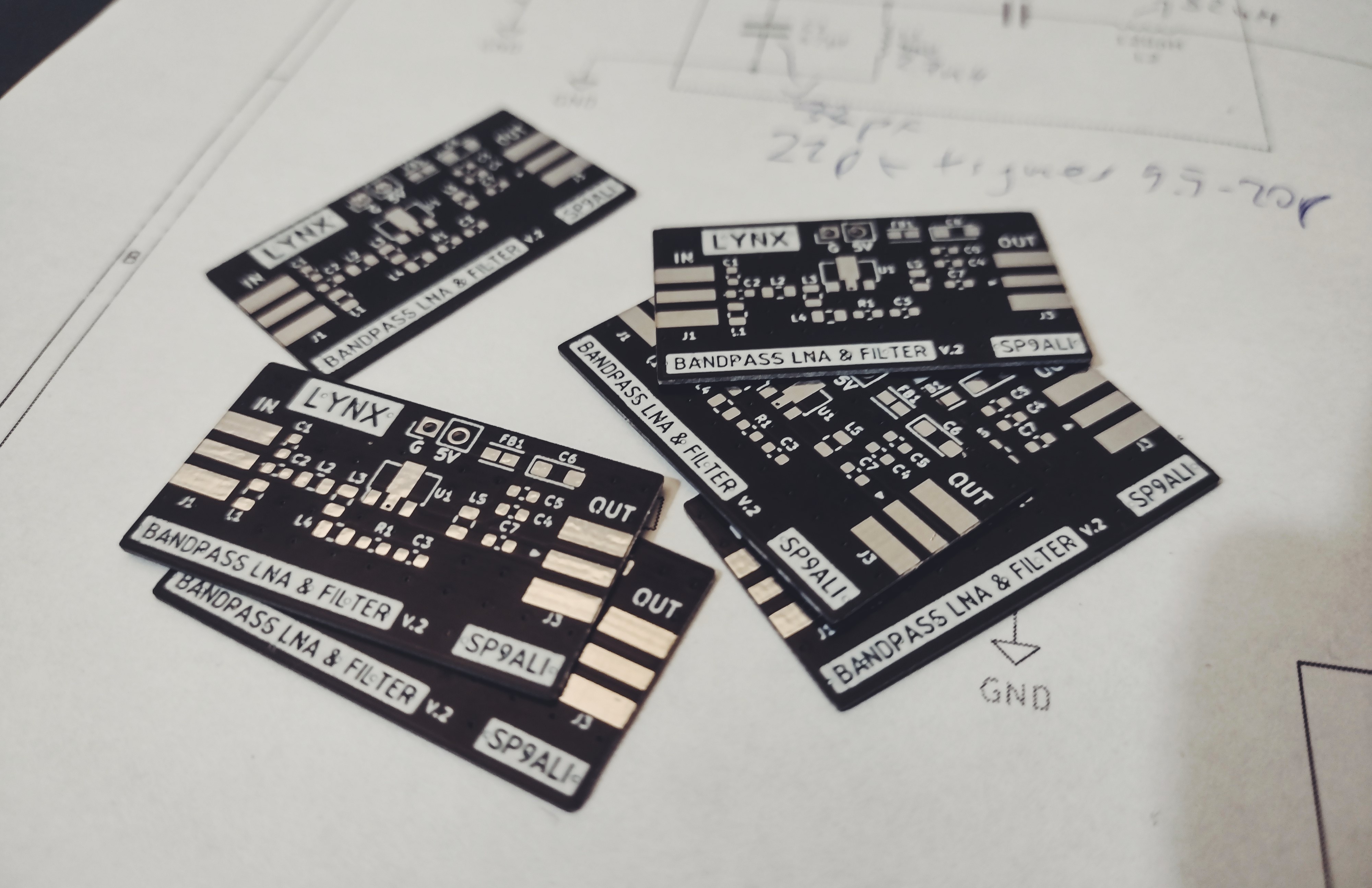

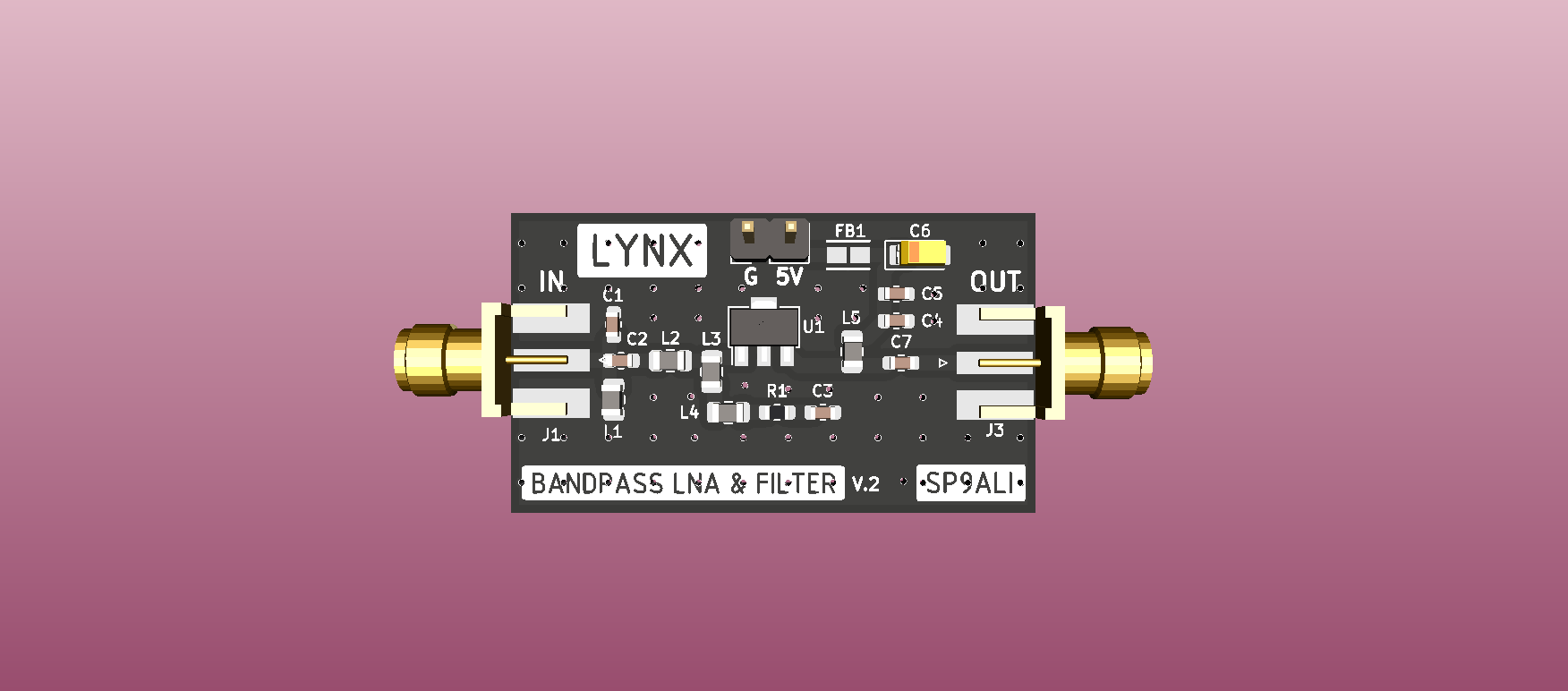

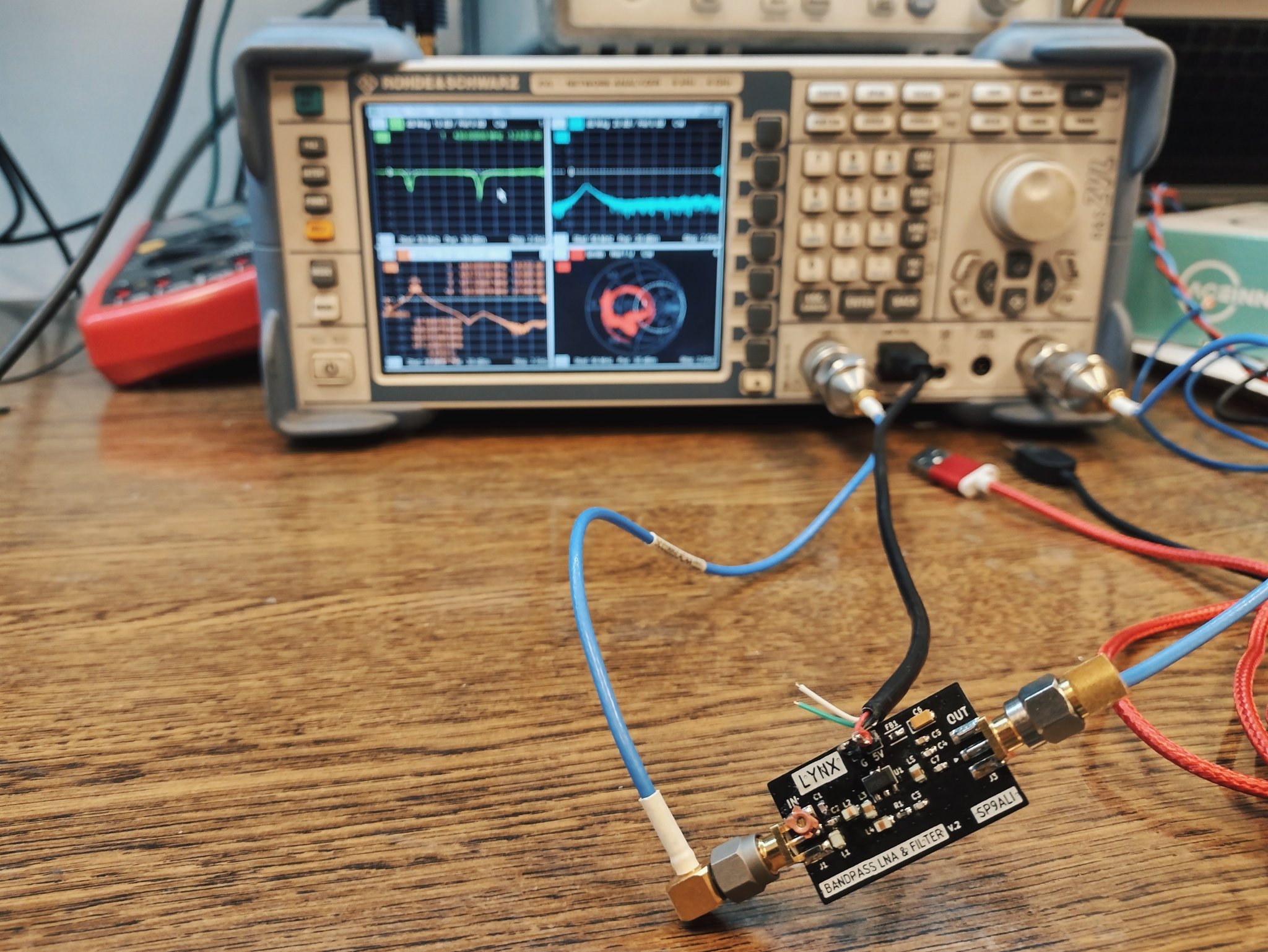

Description

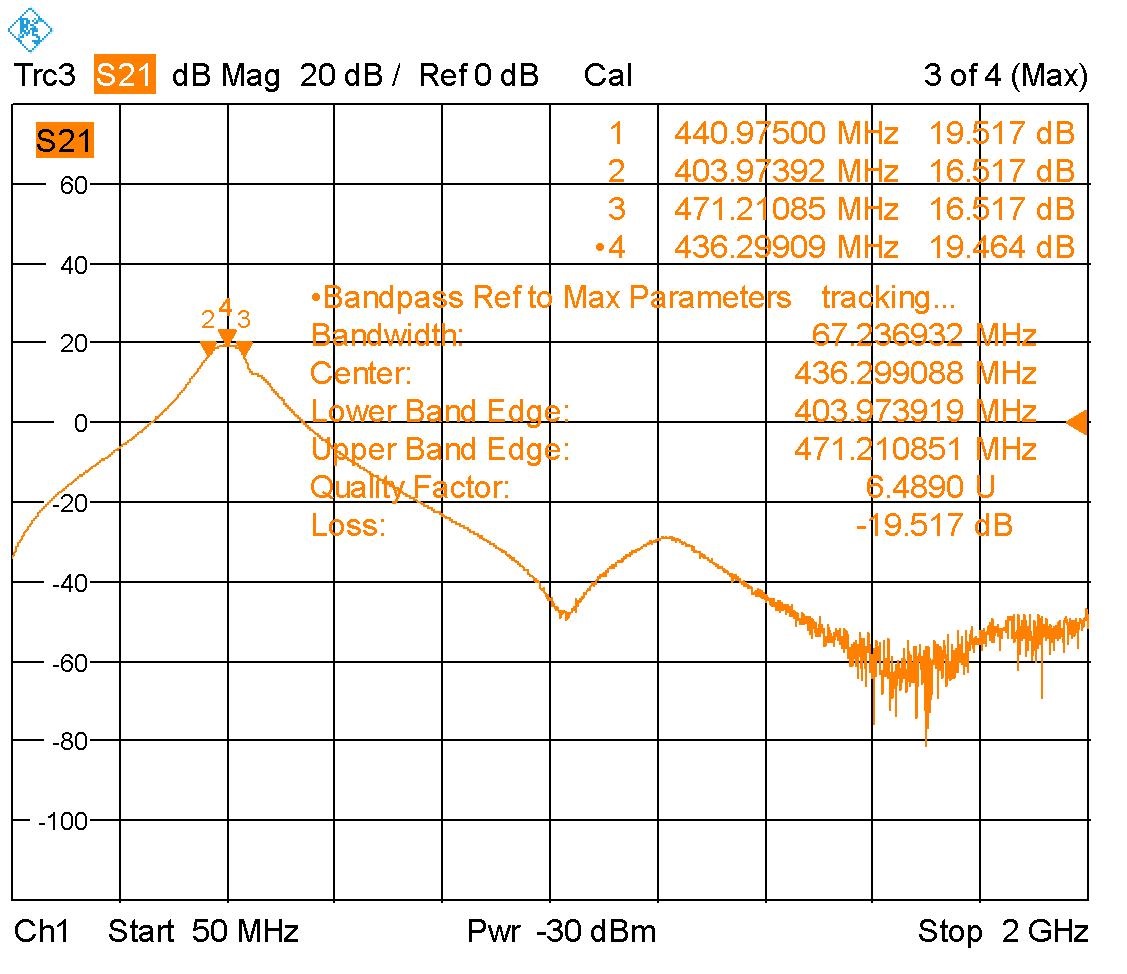

LNA with filter for 400-440 MHz (UHF for amateur satellites)

publicCC-BY-SA-4.0

lna

@alicjamusial

LNA with filter for 400-440 MHz (UHF for amateur satellites)

Tags

435mhzamplifierfilterlnalow-noiseradiouhfrf-lna-front-endcapacitorresistorinductorconnectorIC

003Sign in to save

Project info

Files14

Source201 KB

Extracted785 KB

Source formatKiCad KiCad project format 1

GitHub stars40

Imported fromGitHub

Saves0

Downloads3

UpdatedJul 1, 2026
