The ZEReader PCB is the custom open-hardware board designed for the ZEReader project — an open hardware eBook reader approach.
The project is supported by AISLER, which sponsors prototype boards. See Production for more information. Huge thanks to AISLER for their support!
Current Status: The board is working, but USB-C cannot be used for flashing. Use the Micro-USB port on the Raspberry Pi Pico 2 instead!

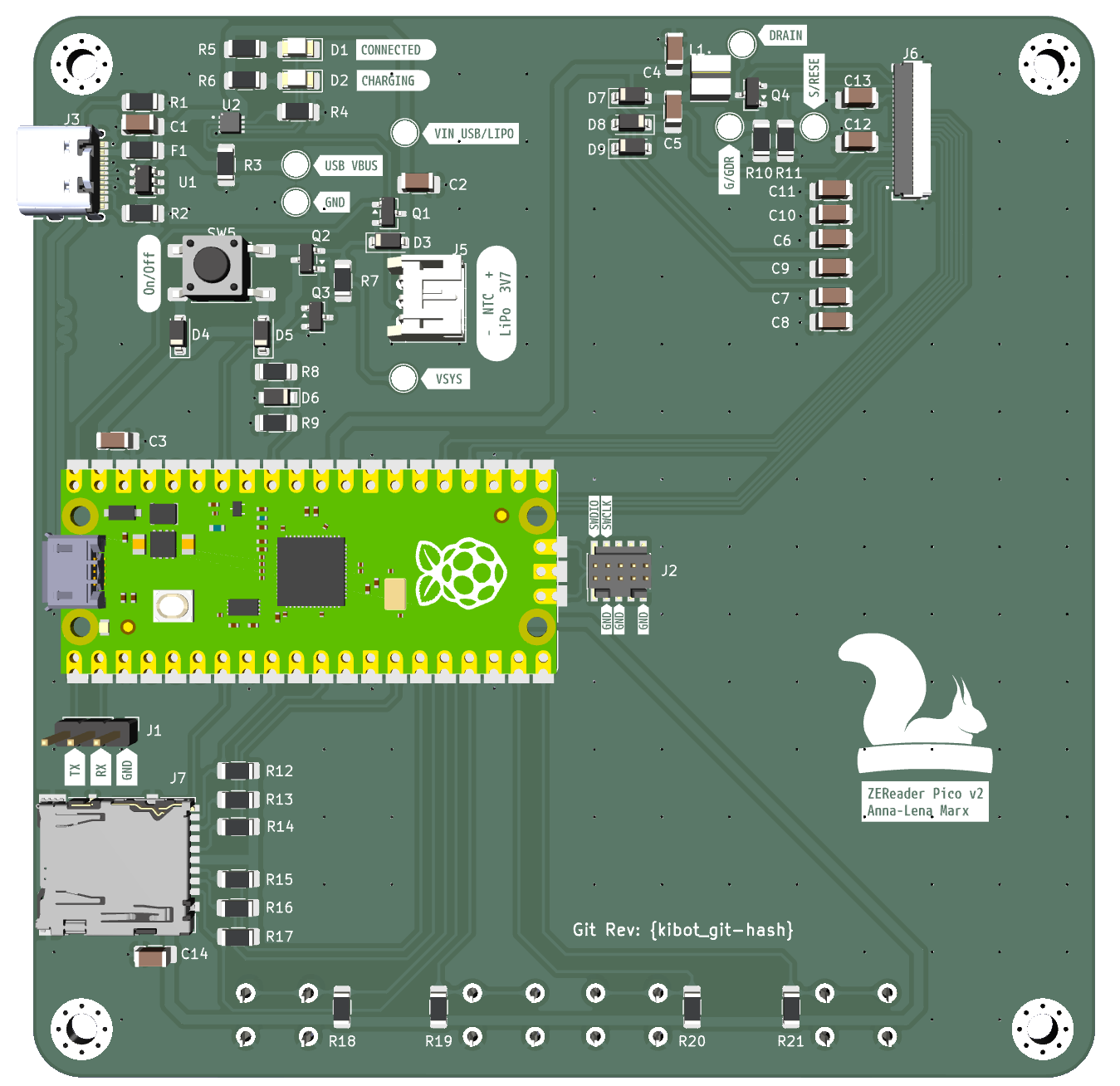

This revision is a major redesign, focused on fixing Rev 1 issues and significantly improving power handling and robustness.
Major improvements and changes in rev 2:
| Issue | Workaround/Impact |
|---|---|
| USB-C / Power Path | USB-C cannot be used for firmware flashing. The current power path design gates the entire circuit through the on/off button. Because flashing requires constant power, the controller cuts out during the process unless the button is manually held down (which is unreliable). Status: To be fixed in the next hardware revision. Use the Raspberry Pi Pico's micro-USB for now! |
| Front-Side Buttons | Front-side buttons are centered relative to the physical PCB dimensions, rather than the active display area. This results in a visual asymmetry. |

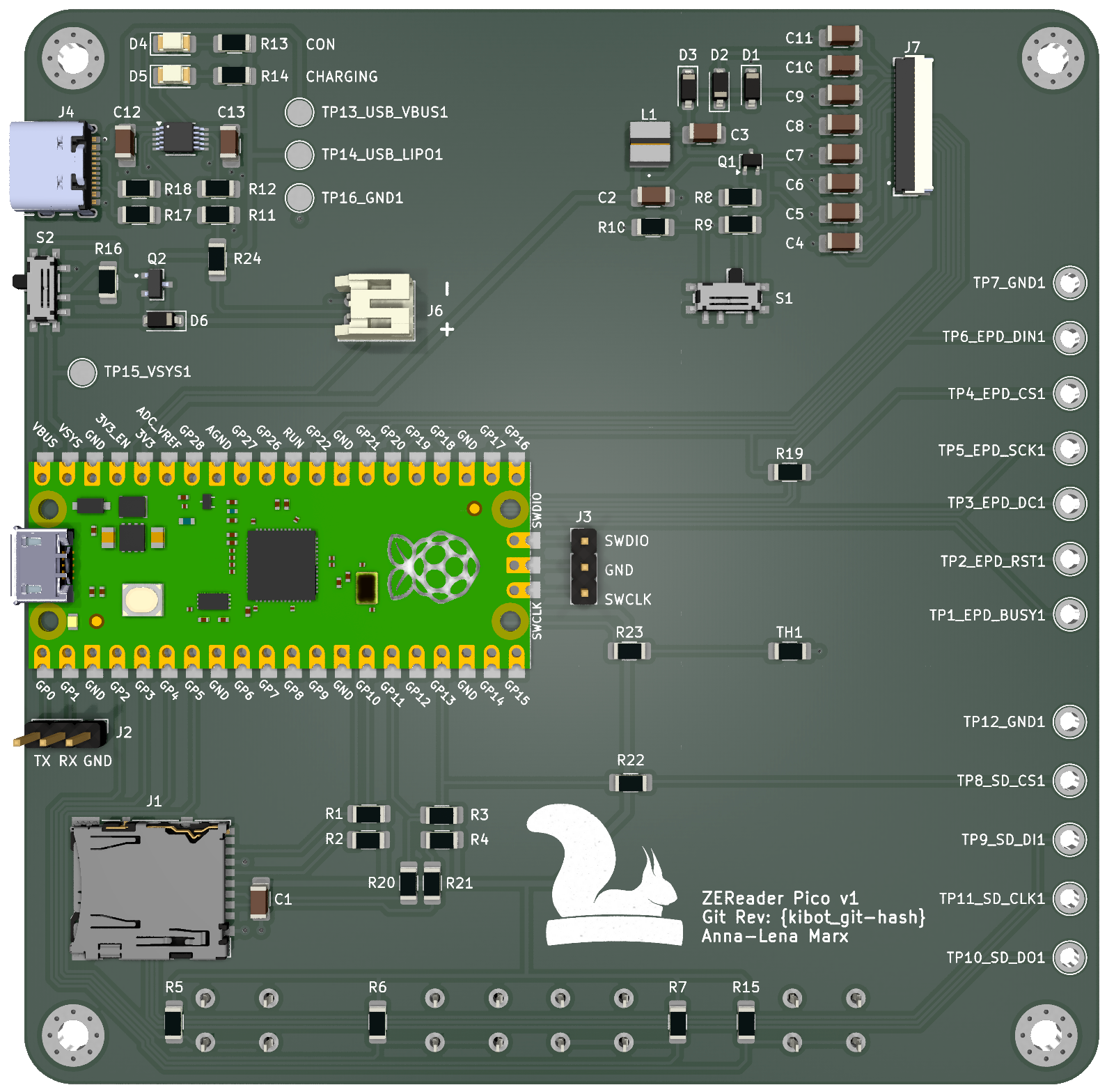

Current Status: The board is working, but the FFC connector is inverted. Twisting the cable solves the issue for now.
| Issue | Workaround/Impact |
|---|---|
| FFC Connector | Inverted! Requires twisting the FFC cable before connection. |
| Charging Circuit | R11 (ISET for BQ24092) is too large (2.7-kohms). This sets charging current to 200 mA, which is insufficient to drive the device standalone by USB-C. |
This project uses GitHub Actions and KiBot for continuous integration and delivery. This ensures that all manufacturing files are up-to-date and directly traceable to the source code.
Outputs can be downloaded in the Actions section. They include:
Version Control: All CI-generated output files like schematic and board should contain the git revision hash of the commit they were generated from to clearly identify the exact design version. The git revision hash is also added as a silkscreen label to the manufacturing files.
AISLER supports the ZEReader project with prototyping boards. Huge thank you for that!
To get the design from the latest commit manufactured, just follow this link for Uploading to AISLER.
The GitHub Actions output already contains a prepacked ZIP file with everything needed for production (Gerber files as well as the .kicad_pcb) and correct git revisions filled in. This is the best way to order a specific, verified commit version.
The generated output is optimized for AISLER. If using a different manufacturing service, please verify that the production files meet their specific requirements.
KiBot_Outputs artifact..kicad_pcb to AISLER.While the project is licensed as CERN Open Hardware Licence Version 2 - Strongly Reciprocal (CERN-OHL-S v2), the squirrel logo is a registered design and not allowed to be used in other contexts.
