LC Meter v2.0

A Capacimeter + Inductometer based on Arduino Nano.
Capacitor measurement with 3 working modes: accuracy (slow), balanced and speed.

Case 3D model included ;-)

This proyect was inspired on video Medidor de Bobinas/Inductores y Capacitores con Arduino y Display LCD (spanish) from Electgpl YouTube channel.



This project use the following electronic components:

• 1 x Arduino Nano v3.0
• 1 x LCD Display 16x2
• 1 x LCD Display I2C Module
• 1 x LM358 Operational Amplifier
• 1 x Capacitor 1uF
• 1 x Switch Button (2 positions)
• 3 x Push Button
• 1 x 220 ohm resistor
• 1 x 470 ohm resistor
• 1 x 10K ohm resistor
• 1 x 100K ohm resistor
• 1 x 1M ohm resistor
• 14 x pin-header 90 degress
• 2 x Bornier x2 (optional)
• 1 x DC conector (optional power 5-12V)
• 2 x Alligator clip conector (optional external measurement)
• wires



Screenshots

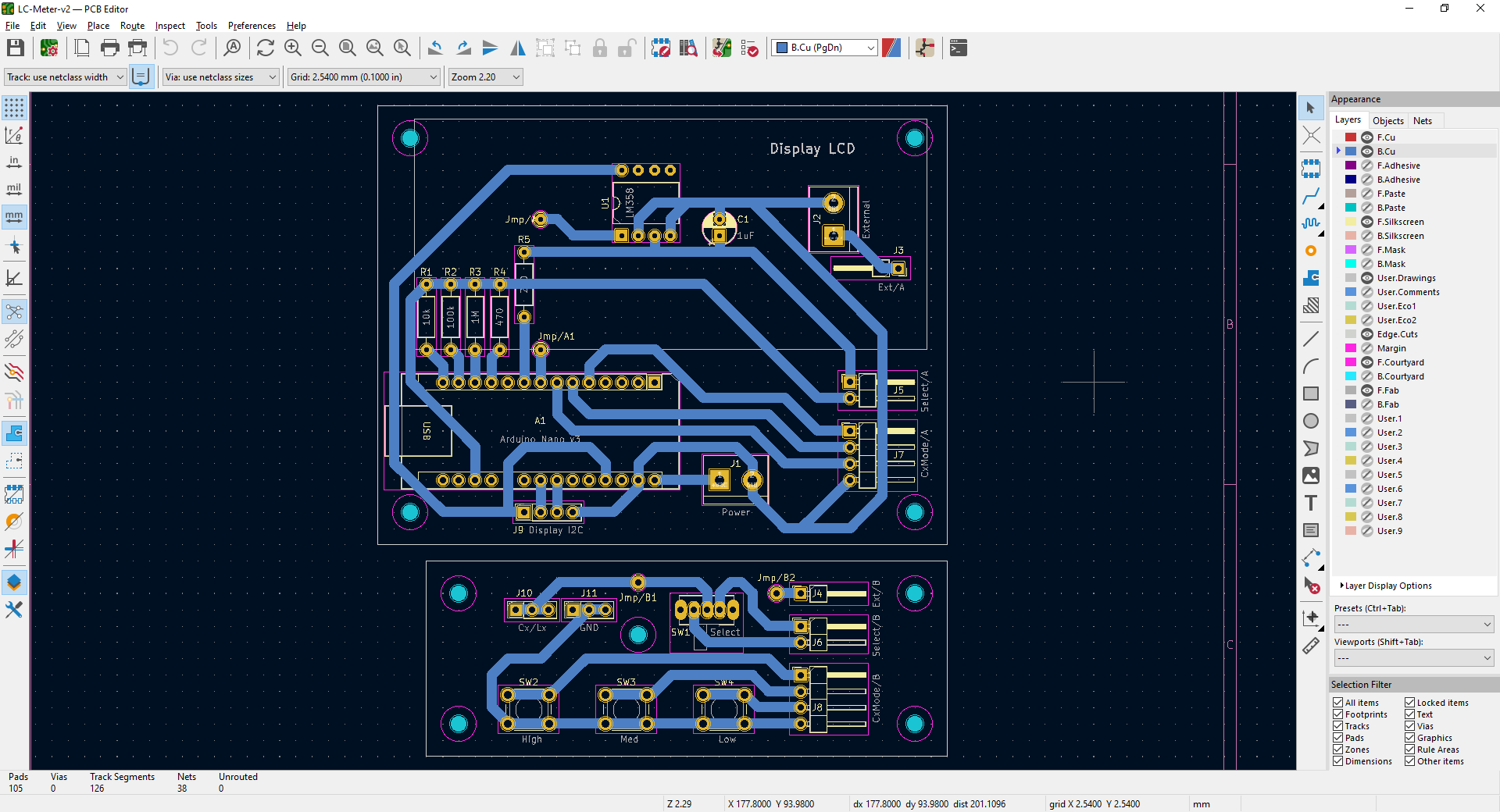

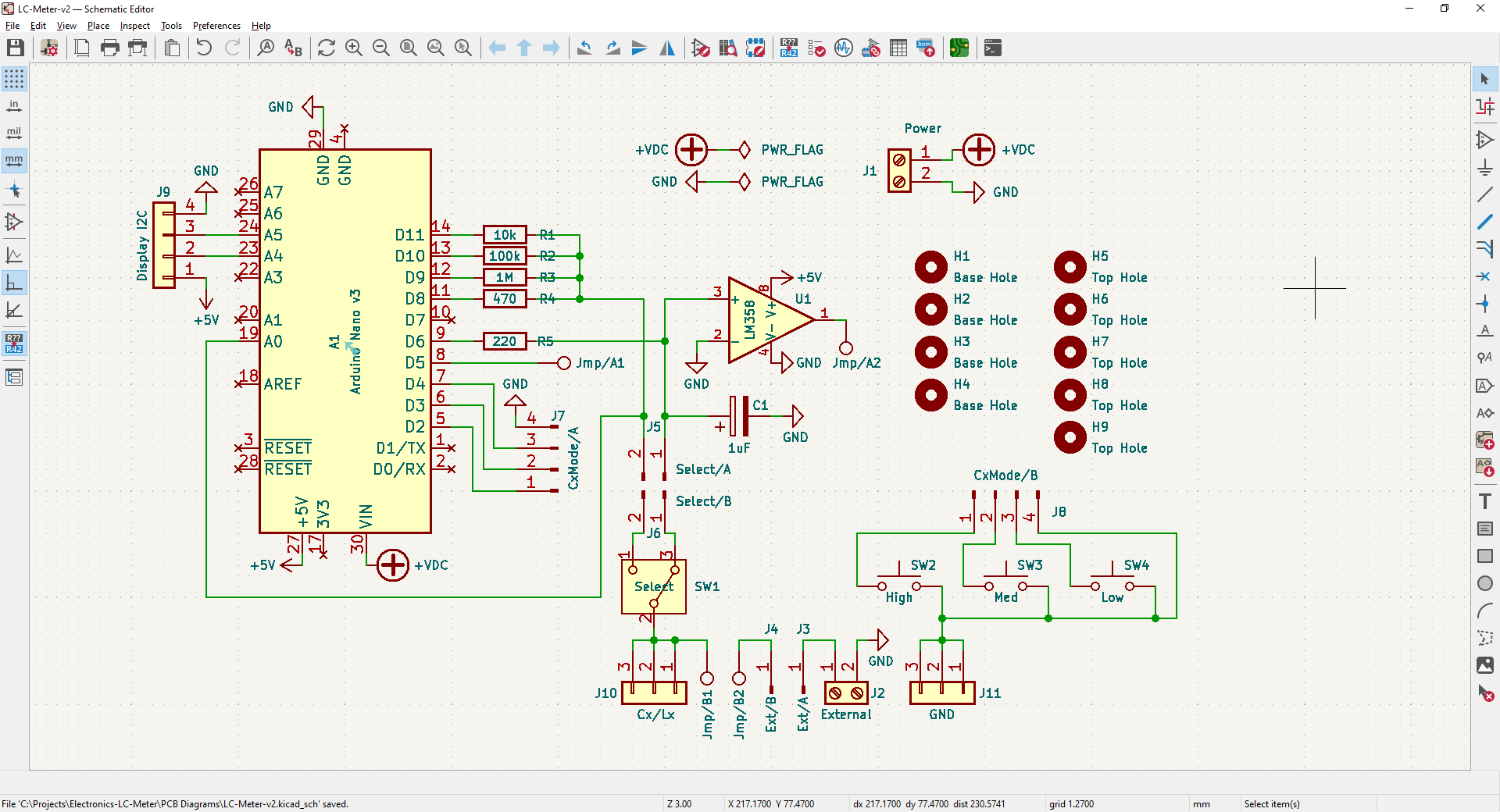

Diagram - Schematics	Diagram - PCB

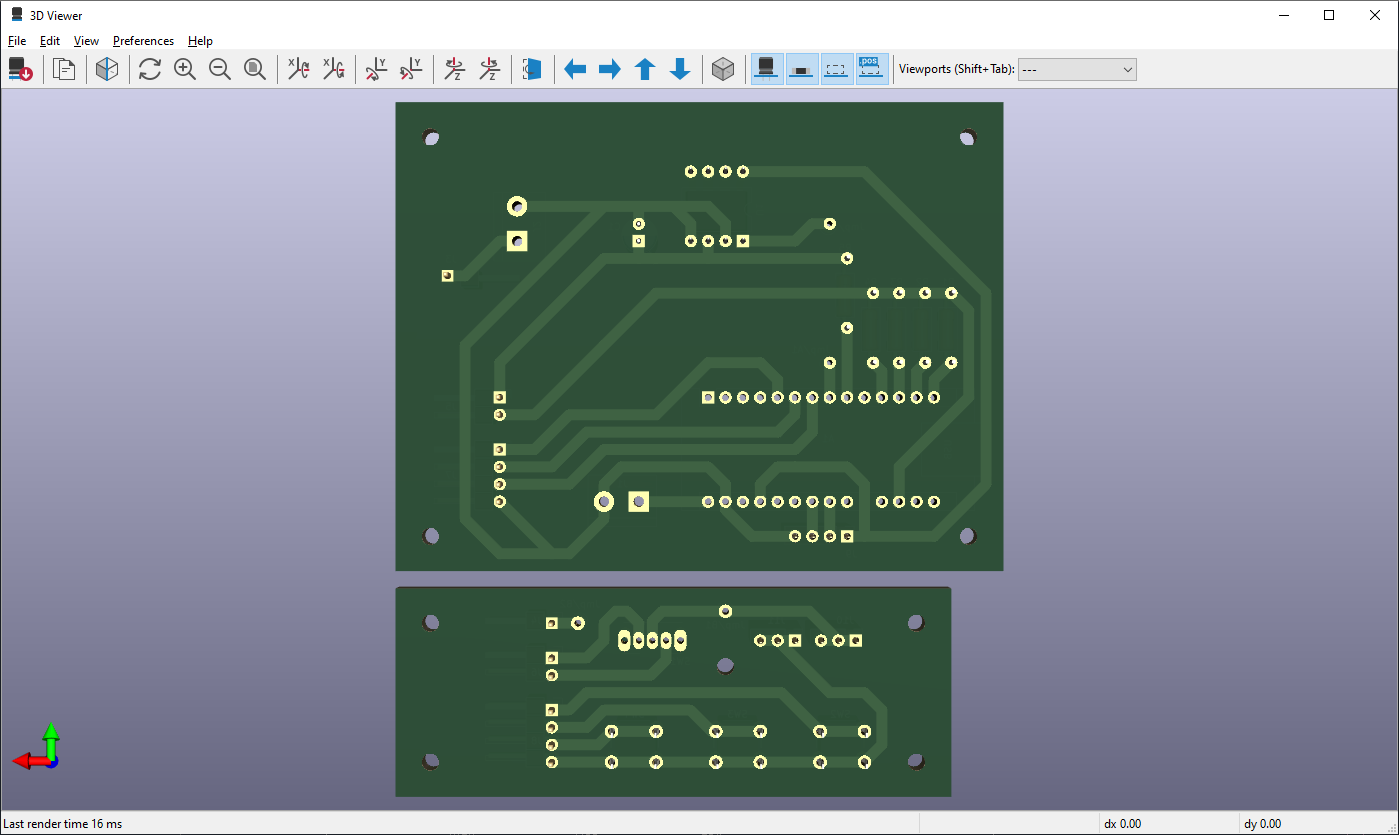

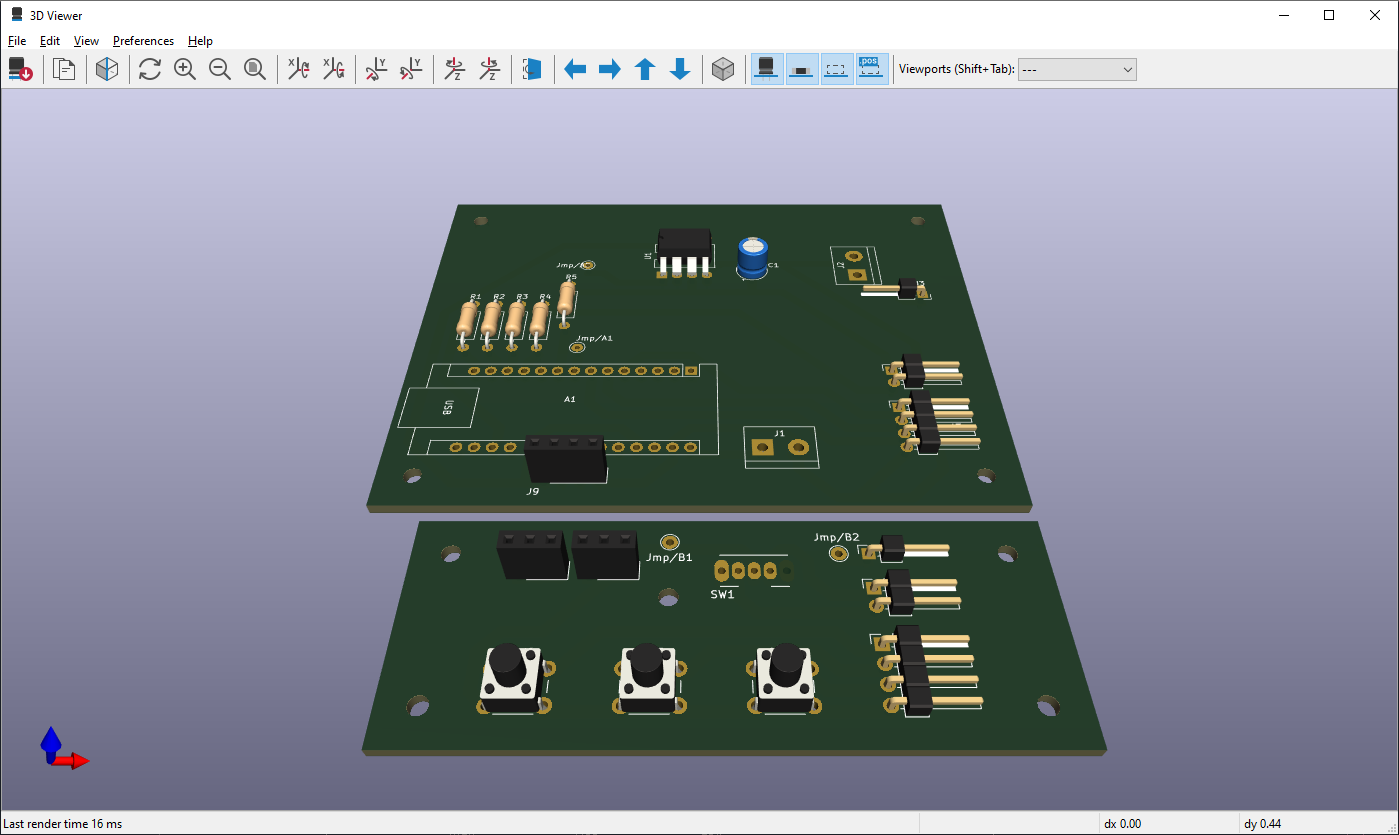

Diagram - PCB Render	Diagram - PCB Render

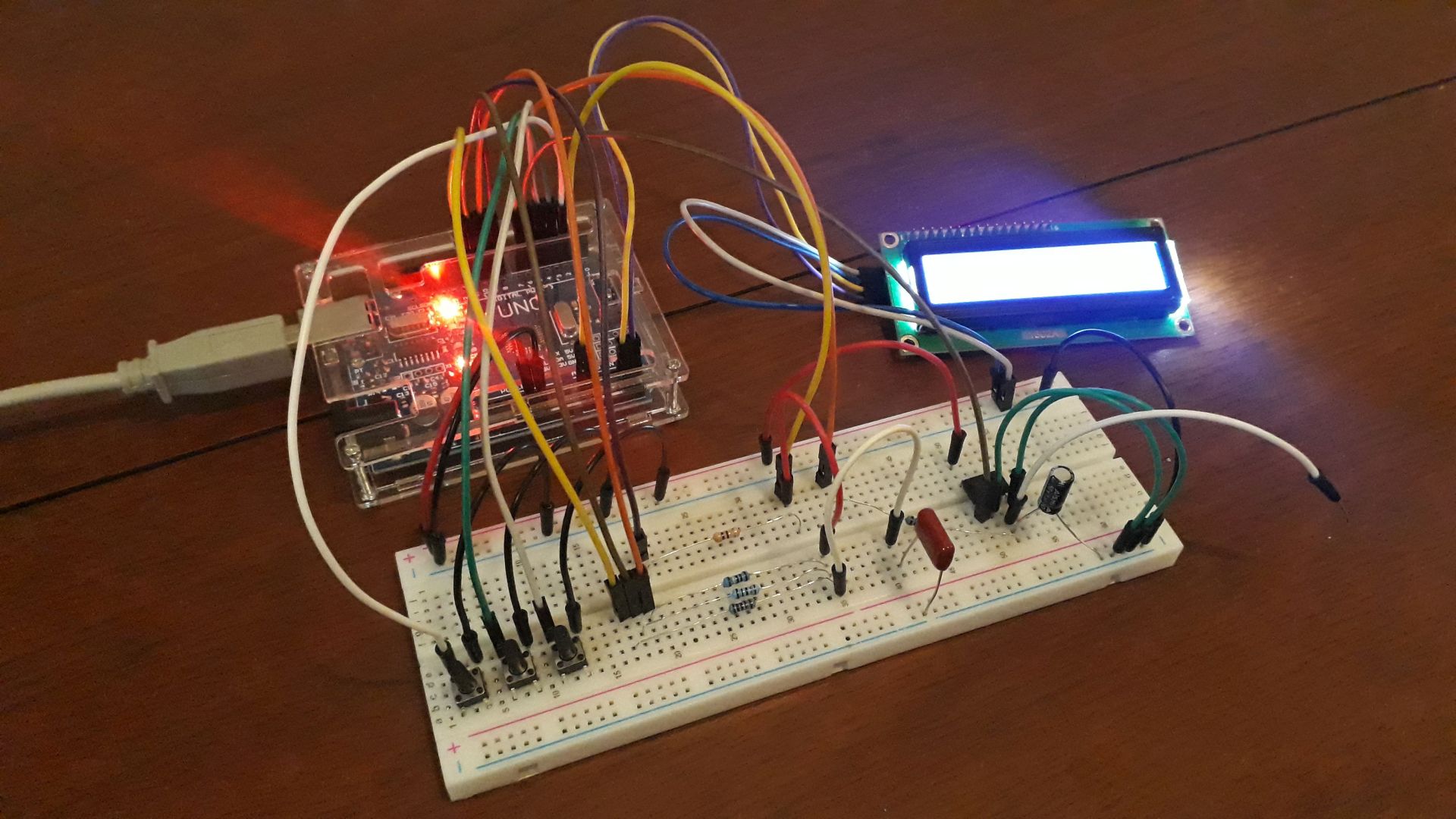

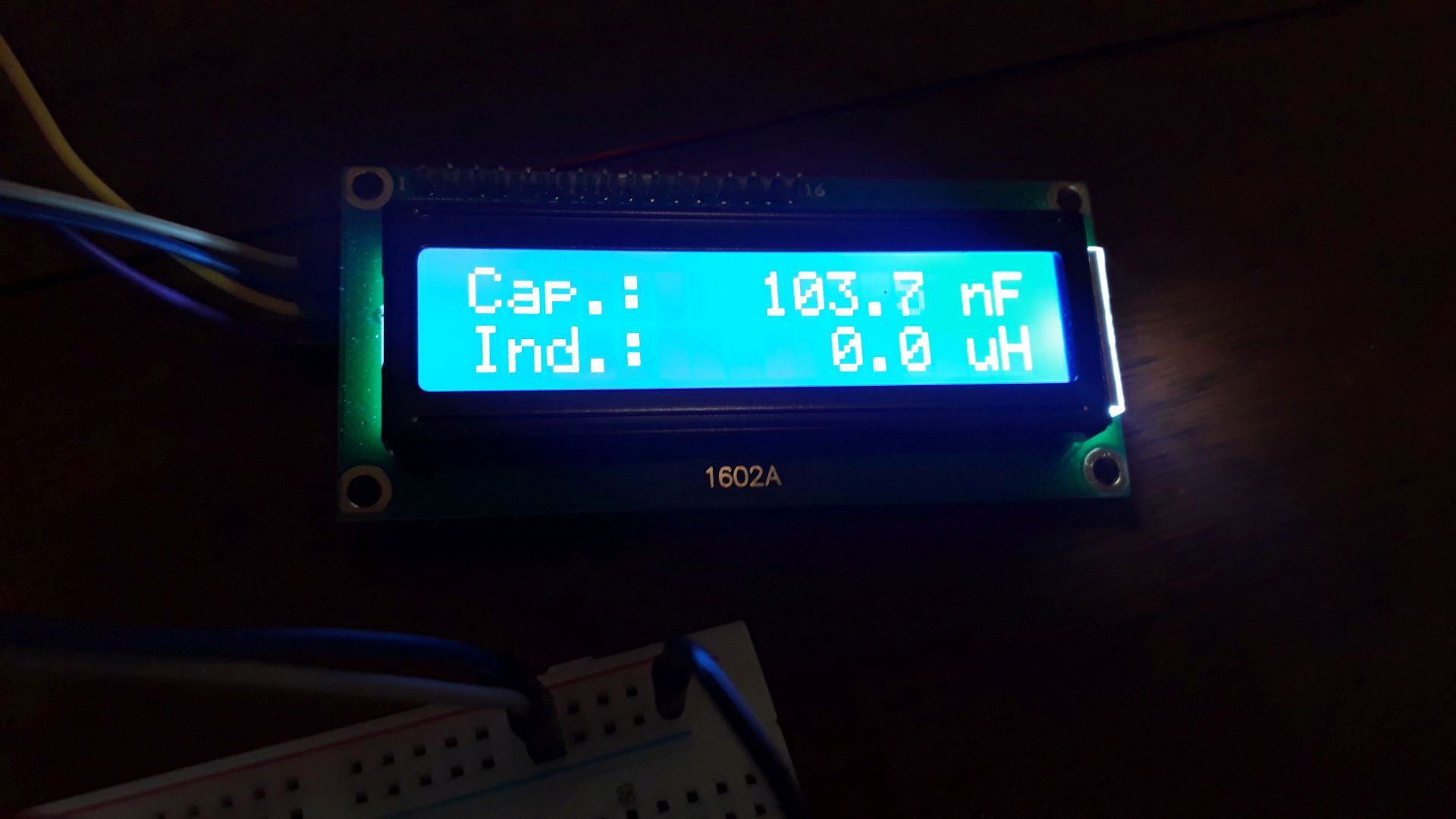

Prototype	Prototype

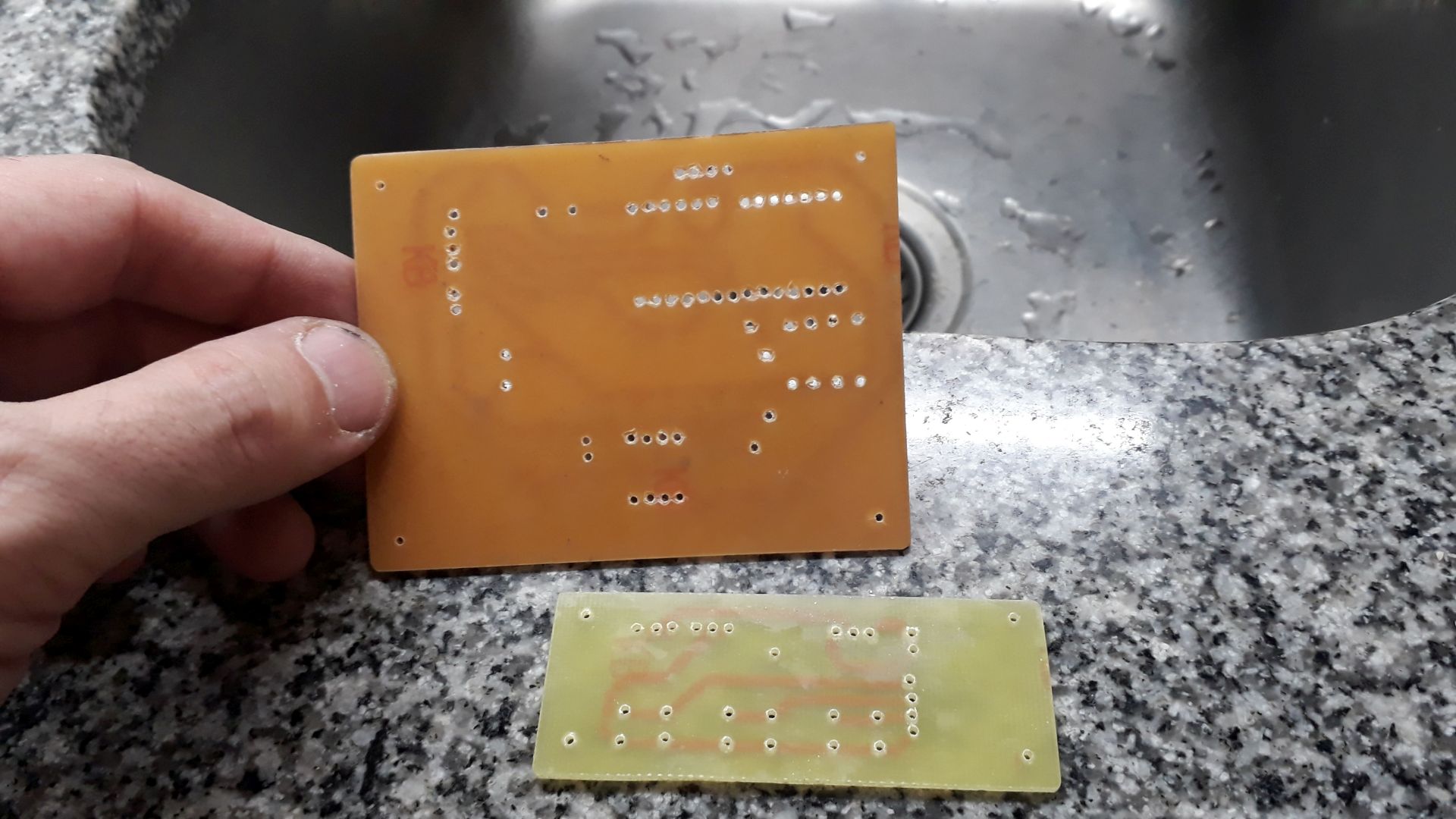

PCB Manufacturing	Project Assembly

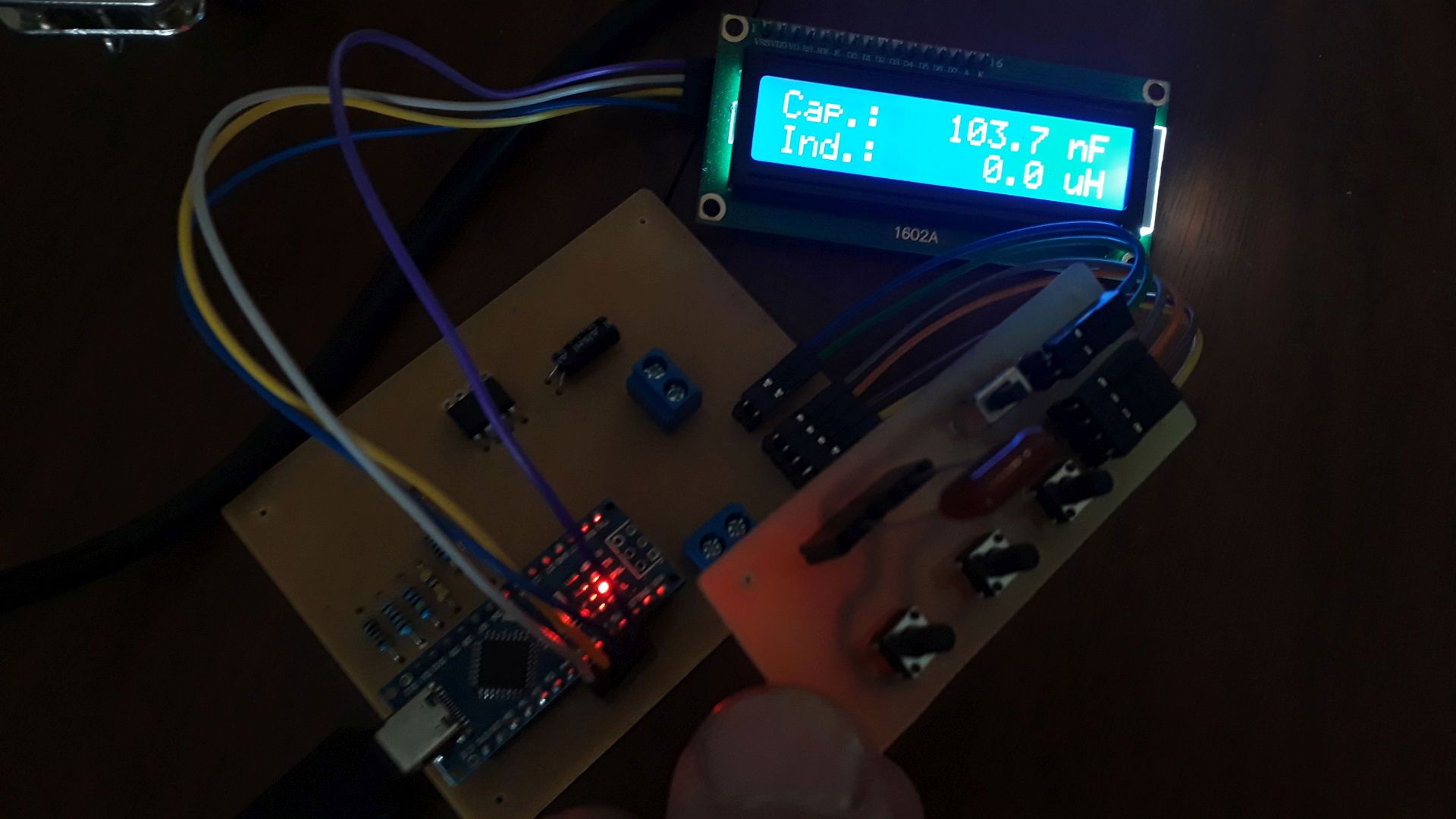

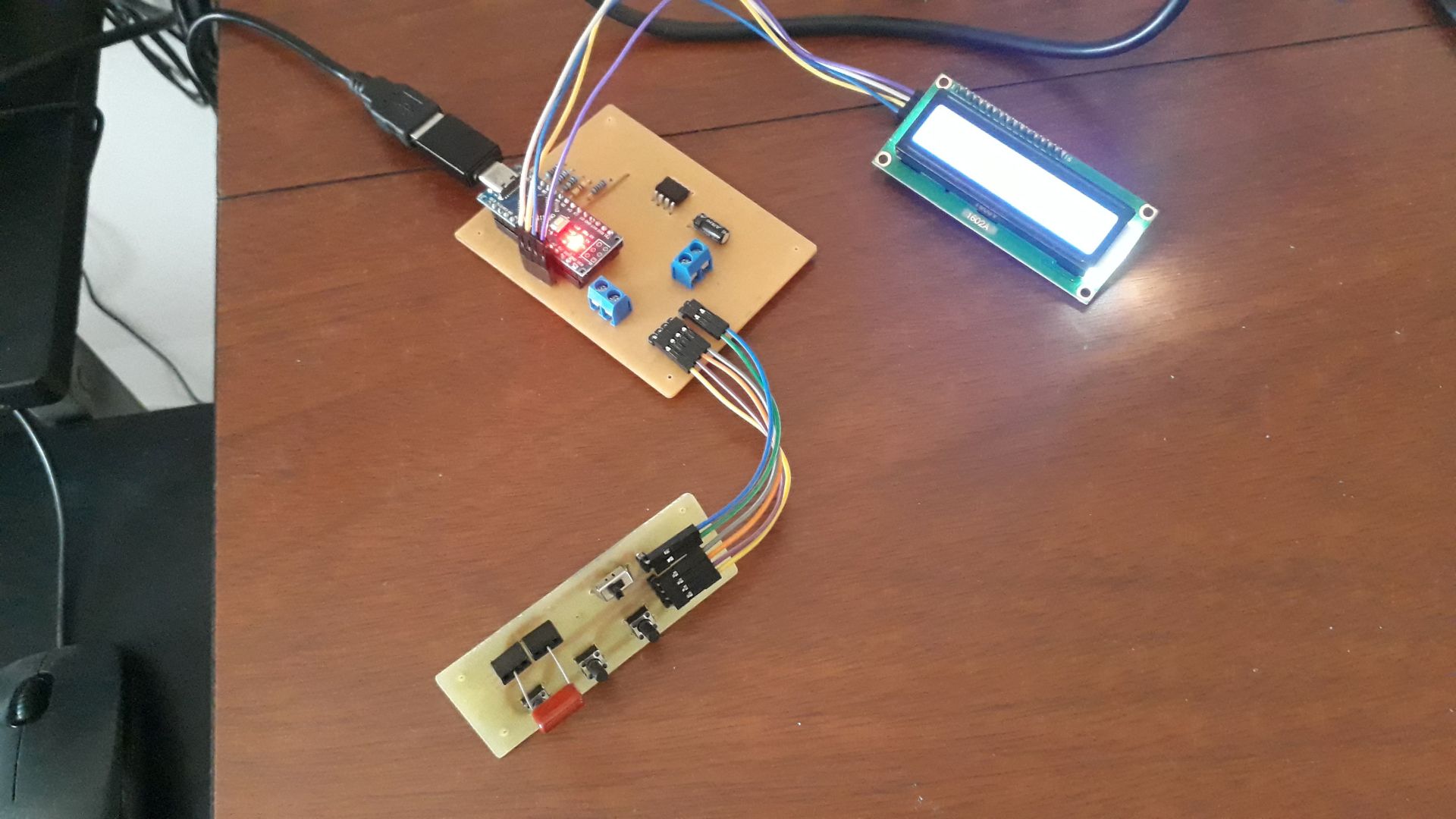

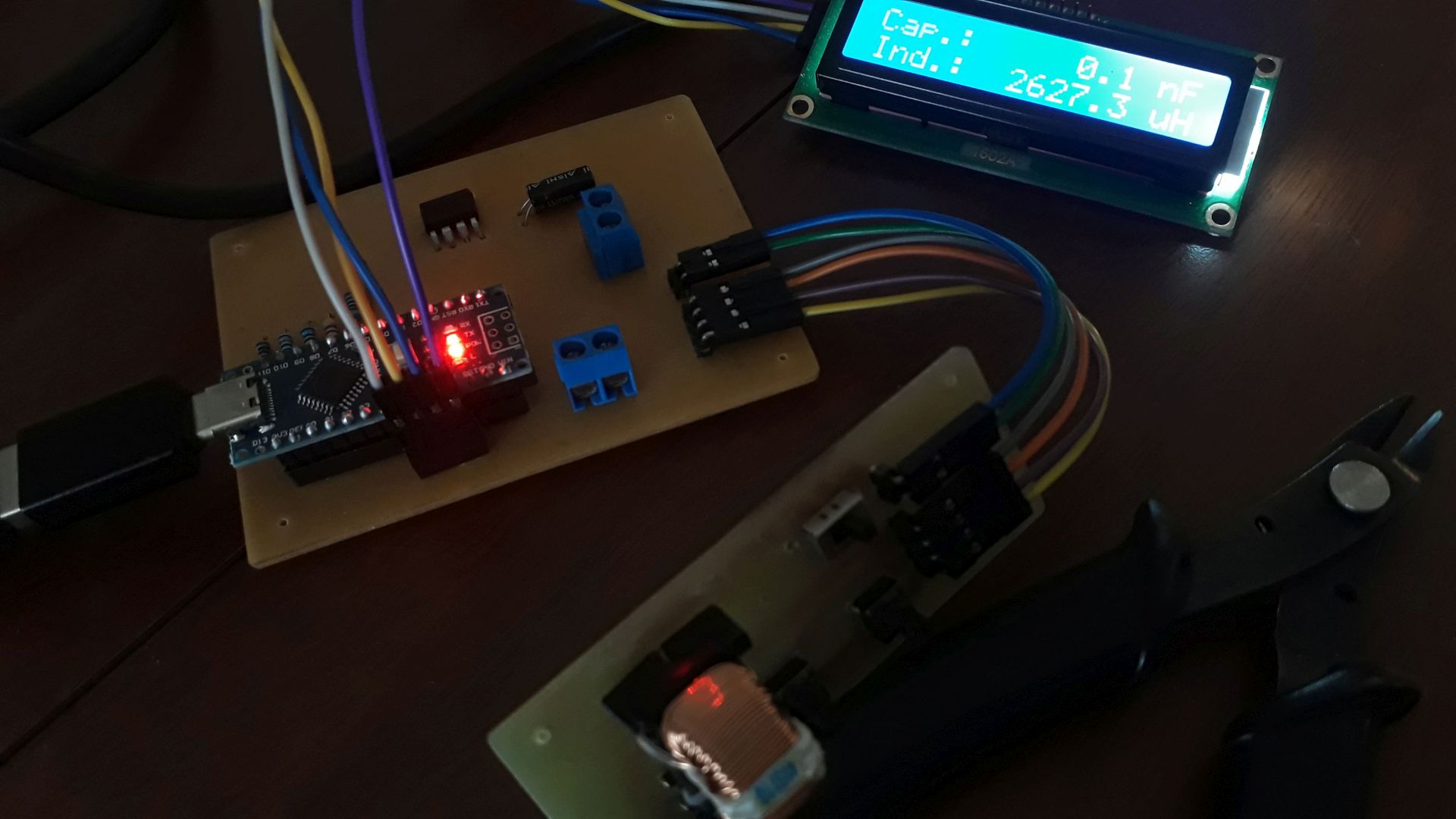

PCB Assembly	PCB Assembly

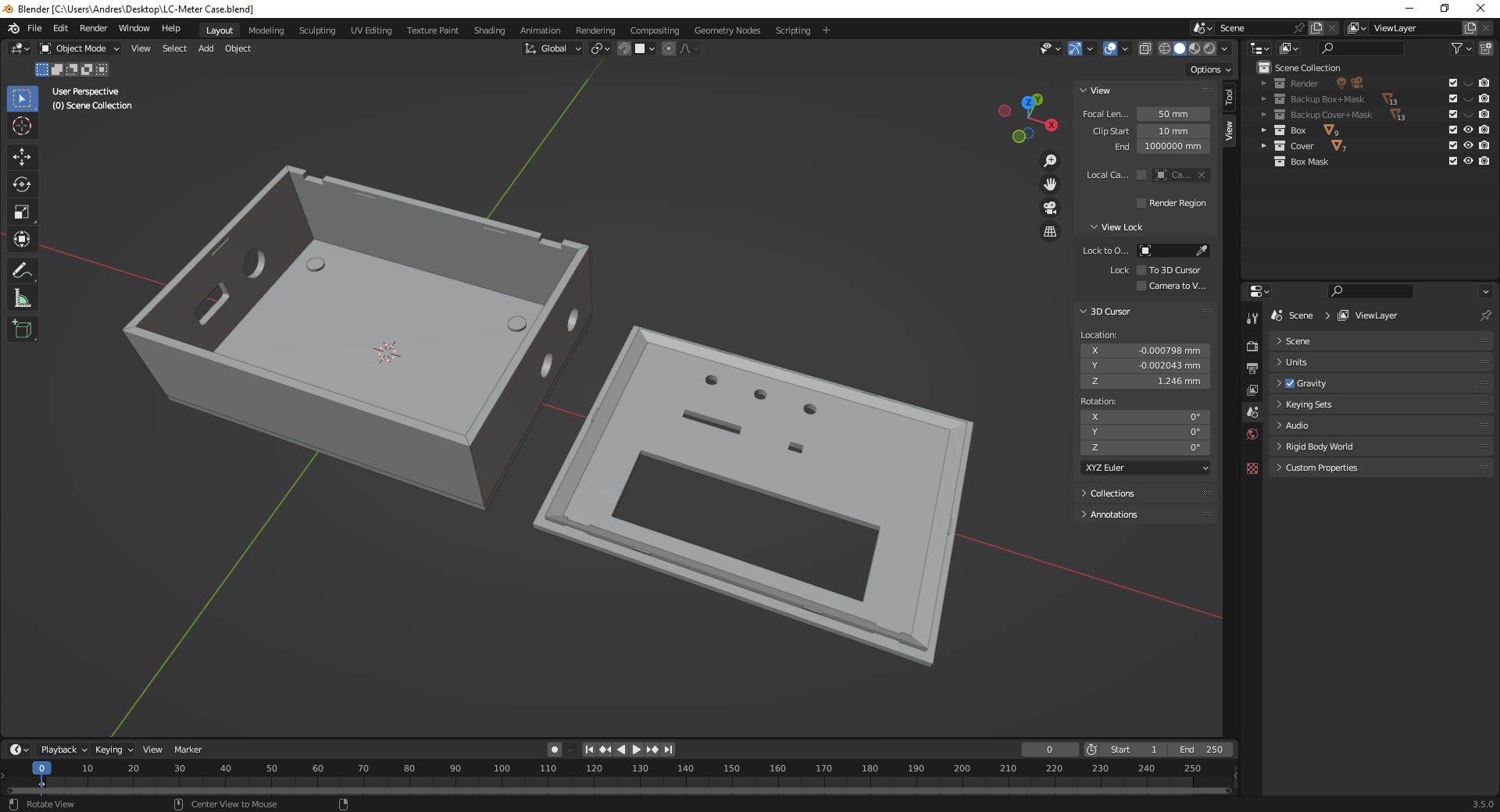

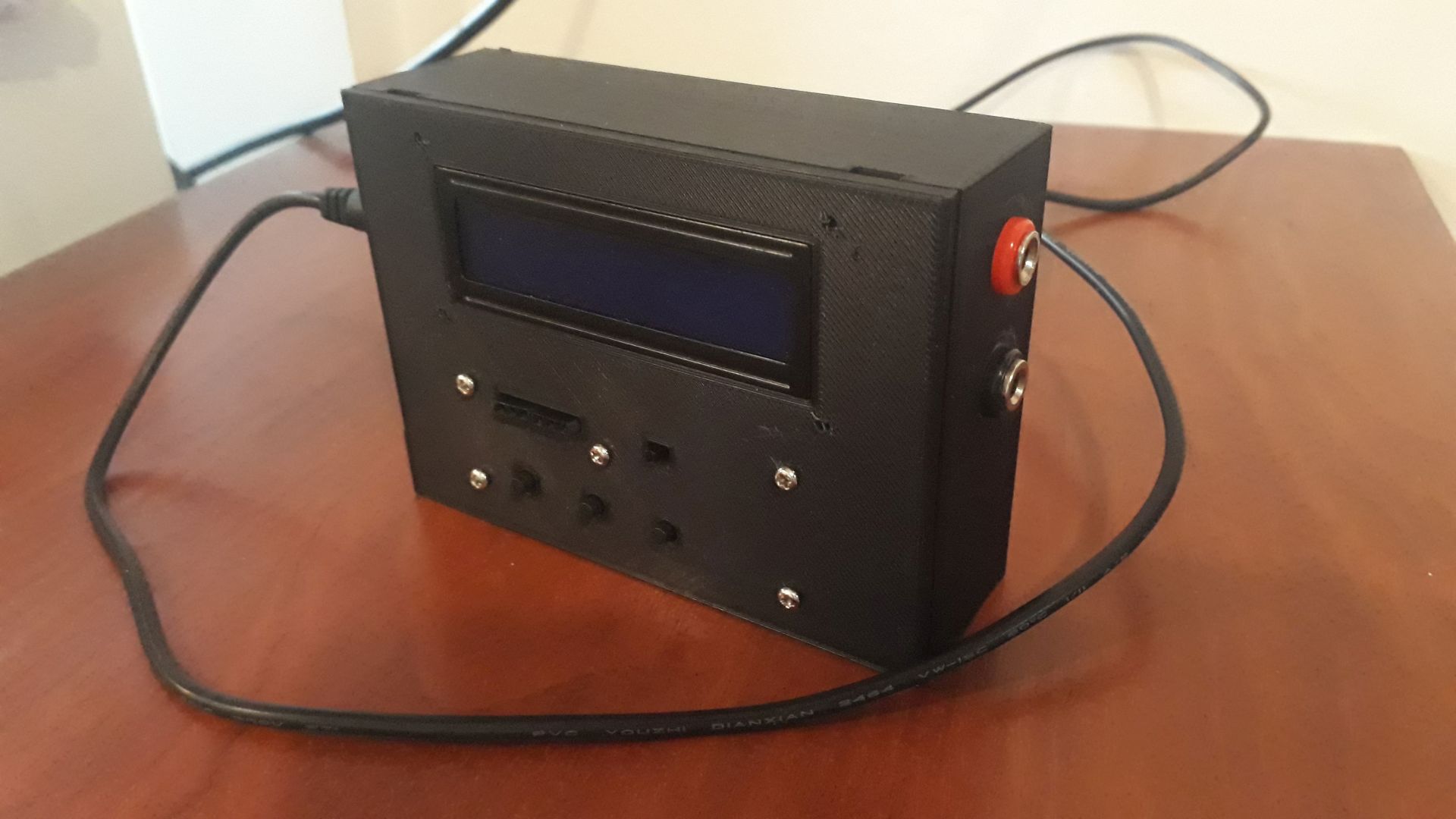

Case 3D model	Project Final

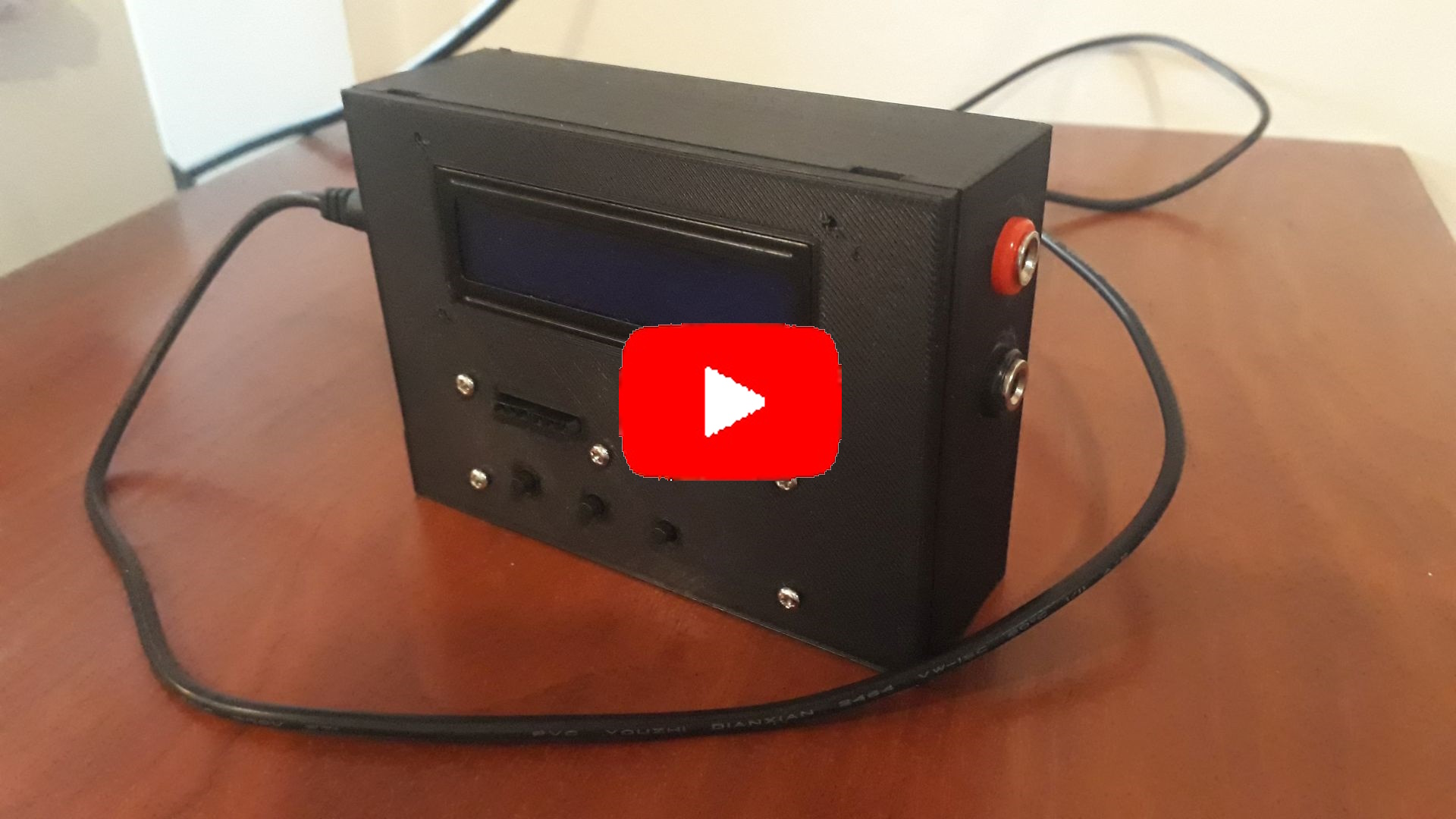

Capacimeter (YouTube video)	Inductometer (YouTube video)

See 'Rescources' sub-folder for more pictures & videos of the project.



Version History

v1.0 (2024.03.02) - Initial release.
v1.1 (2024.03.03) - Adding case 3D model.
v1.2 (2024.03.09) - Pin position & component annotations improvements.
v1.3 (2025.12.20) - Update project structure.
v1.4 (2025.12.26) - Adding 'Stickers' folder.



This source code is licensed under GPL v3.0
Please send me your feedback about this project: [email protected]
