Description

Adapter board converting MIPI DSI into LVDS with additional circuitry for integrating custom displays

README

CM4 Baseboard LVDS Adapter

Copyright (c) 2024-2025 Antmicro

Overview

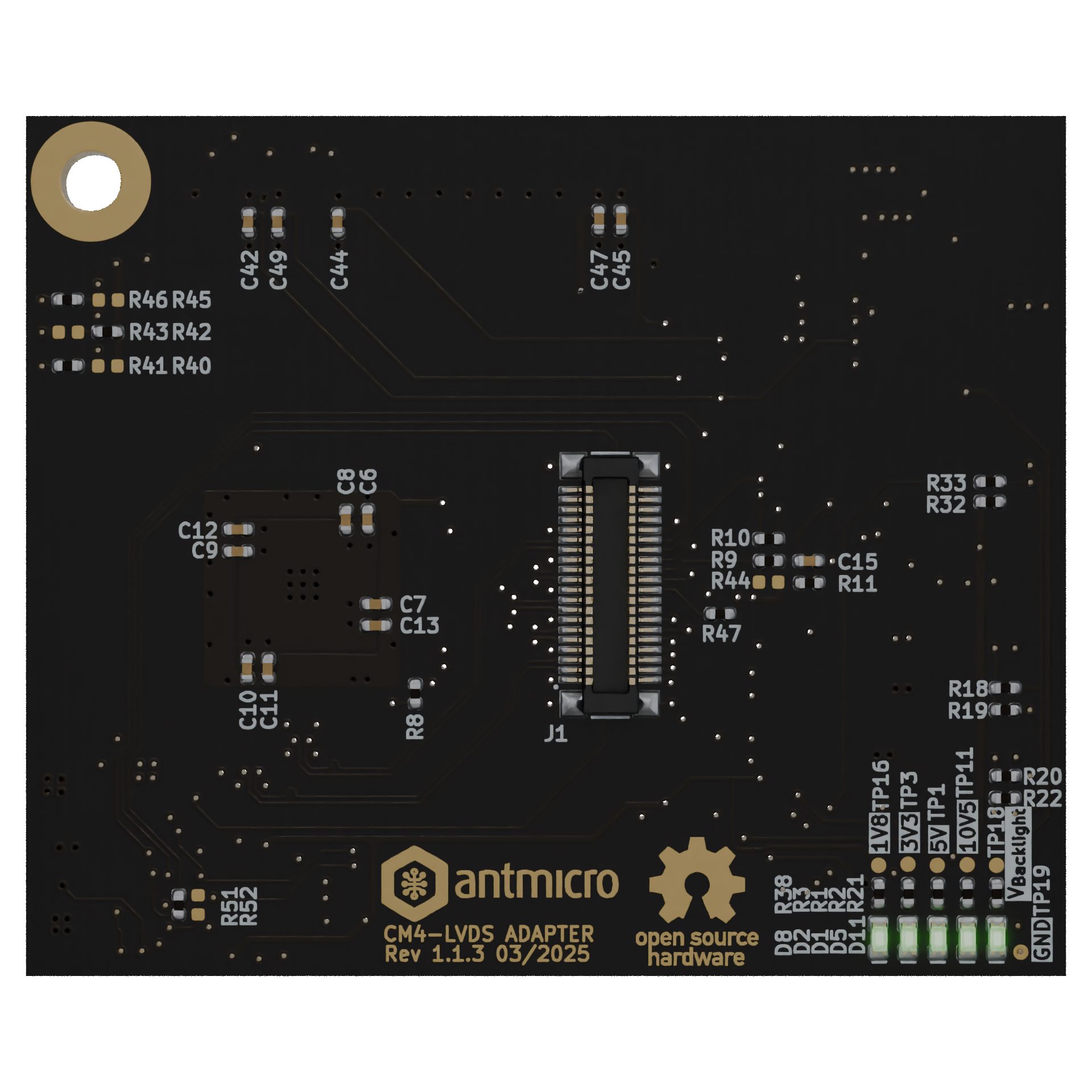

This project contains open hardware design files for an LVDS display adapter which is a bridge between Antmicro CM4 Baseboard and an LCD panel with a touchscreen interface. This is a reference design that can be customized for different displays. The PCB design files were prepared in KiCad 9.

Key features

• Fits into the Antmicro CM4 Baseboard
• Based on Texas Instruments/SN65DSI84TPAPRQ1 MIPI DSI to LVDS Bridge
• Supports I2C communication for the touchscreen interface
• Integrated power supply for a TFT display (18V, 9.6V, 3.9V, 3.3V)
• Integrated backlight driver

Project structure

The main project directory contains KiCad PCB project files, a LICENSE, and a README. The remaining files are stored in the following directories:

• assets - contains visual assets for showcasing this design on Open Hardware Portal

License

This project is published under the Apache-2.0 license.
