GMSL Serializer Board

Copyright (c) 2023-2025 Antmicro

Overview

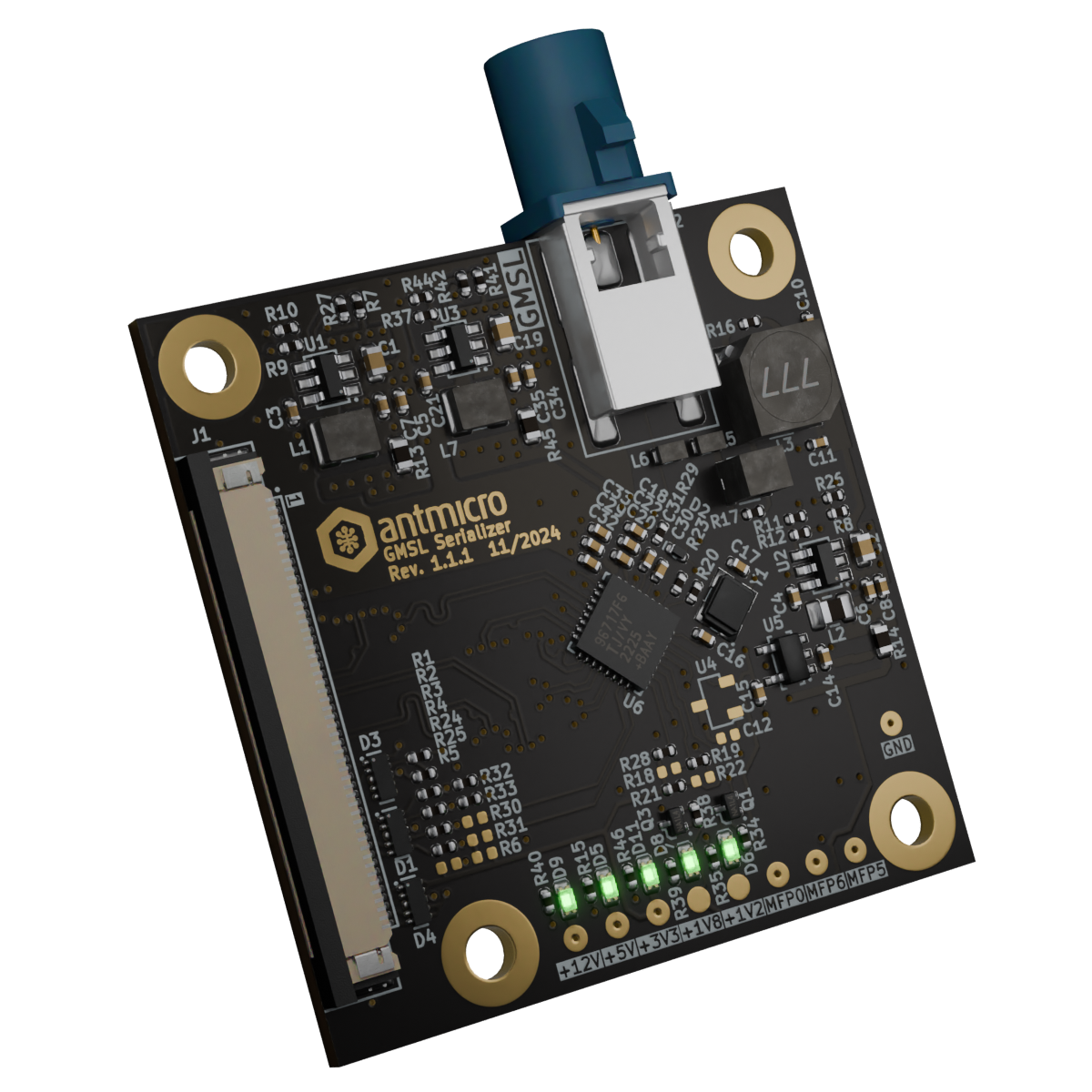

This project contains open hardware design files for the GMSL Serializer Board. This board accepts MIPI CSI-2 signals from Antmicro's 50-pin FFC video interface and transmits the video data over GMSL2. The GMSL Serializer Board is powered over GMSL coaxial cable.

The design files were prepared in KiCad 8.

Key features

• Input: 4-lane MIPI CSI-2 interface on a 50-pin Antmicro Dual Camera connector
• Output: GMSL2 interface exposed on a FAKRA connector
• PoC filter for sinking power from the GMSL coaxial cable

Project structure

The main project directory contains KiCad PCB project files, a LICENSE, and a README. The remaining files are stored in the following directories:

• doc - contains schematics
• assets - contains visual assets for showcasing the board on Antmicro Open Hardware Portal

Licensing

This project is published under the Apache-2.0 license.
