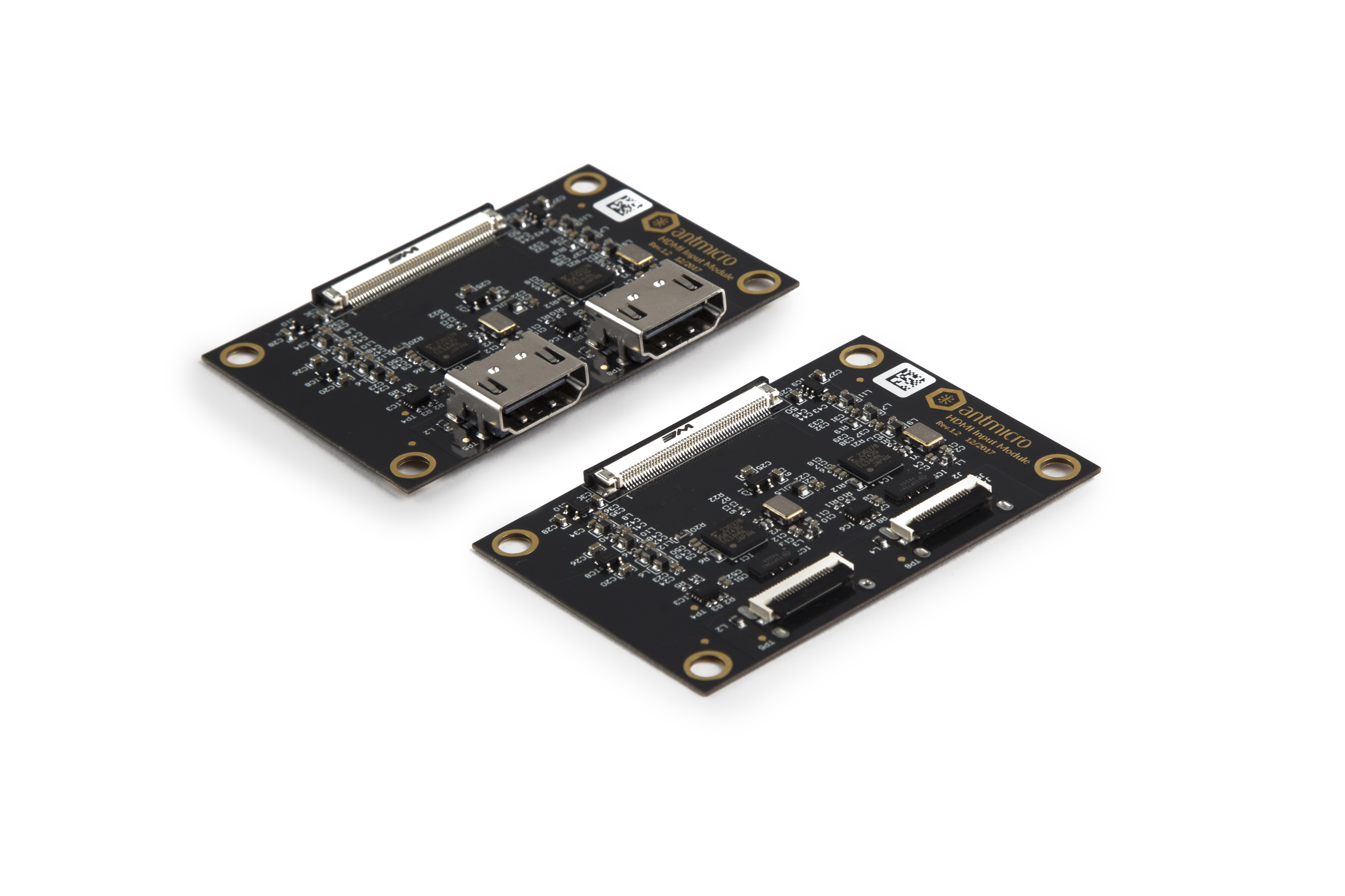

This repository contains the open hardware design files for Antmicro's HDMI-MIPI Bridge, which is a video accessory converting HDMI video stream into MIPI CSI-2 counterpart. The conversion is performed using Toshiba TC358743XBG HDMI interface bridge. The board includes two independent conversion channels supporting up to two HDMI streams.
The main repository directory contains KiCad PCB project files, a LICENSE, and a README. The remaining files are stored in the following directories:
lib - contains component librariesdoc - contains generated schematics and other documentationimg - contains graphics for this READMEThe board exposes MIPI CSI-2 data on a unified 50-pin FFC connector which is electrically compatible with a variety of processing platforms designed by Antmicro. Those platforms include:
Please note that some additional work might be required to integrate this board with a particular host platform. Antmicro’s services involve BSP development so you can hire us to make the necessary modifications.
This project is licensed under the Apache-2.0 license.
