Copyright (c) 2023-2025 Antmicro

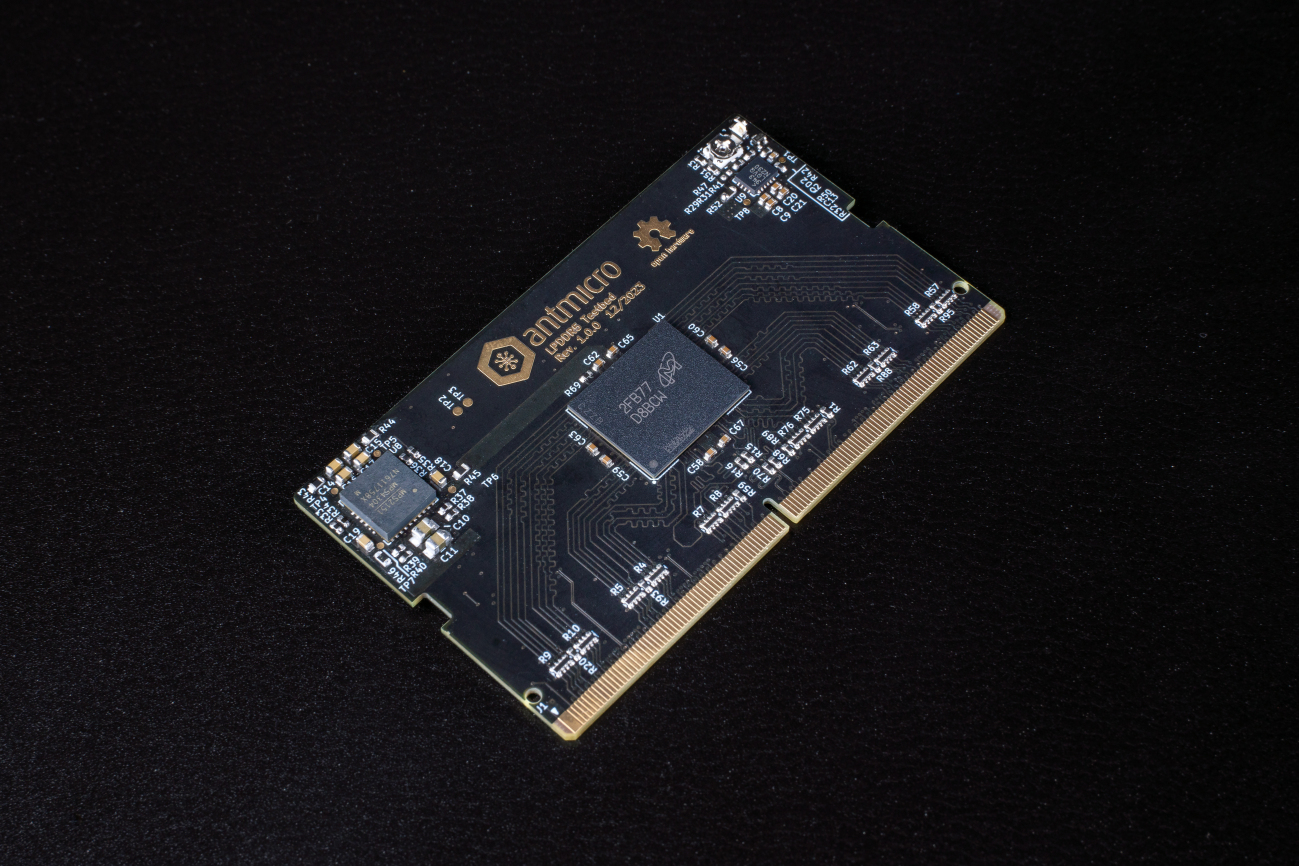

This project contains open hardware design files for an experimental test module in a mechanical form of SO-DIMM DDR5.
The module includes a standard 315-ball WFBGA (12.4mm × 15.0mm × 0.8mm, Ø0.42 SMD) LPDDR5 RAM footprint break-routed in the SO-DIMM edge connector. The design files were prepared in KiCad 9.x.
Please note that this board is not electrically compatible with off-the-shelf hot platforms accepting SO-DIMM DDR5 memory modules. It is compatible with this test platform.
The main project directory contains KiCad PCB project files, a LICENSE and README. The remaining files are stored in the following directories:
img - contains graphics for this READMEdoc - contains PDF schematicThis project is published under the Apache-2.0 license.
