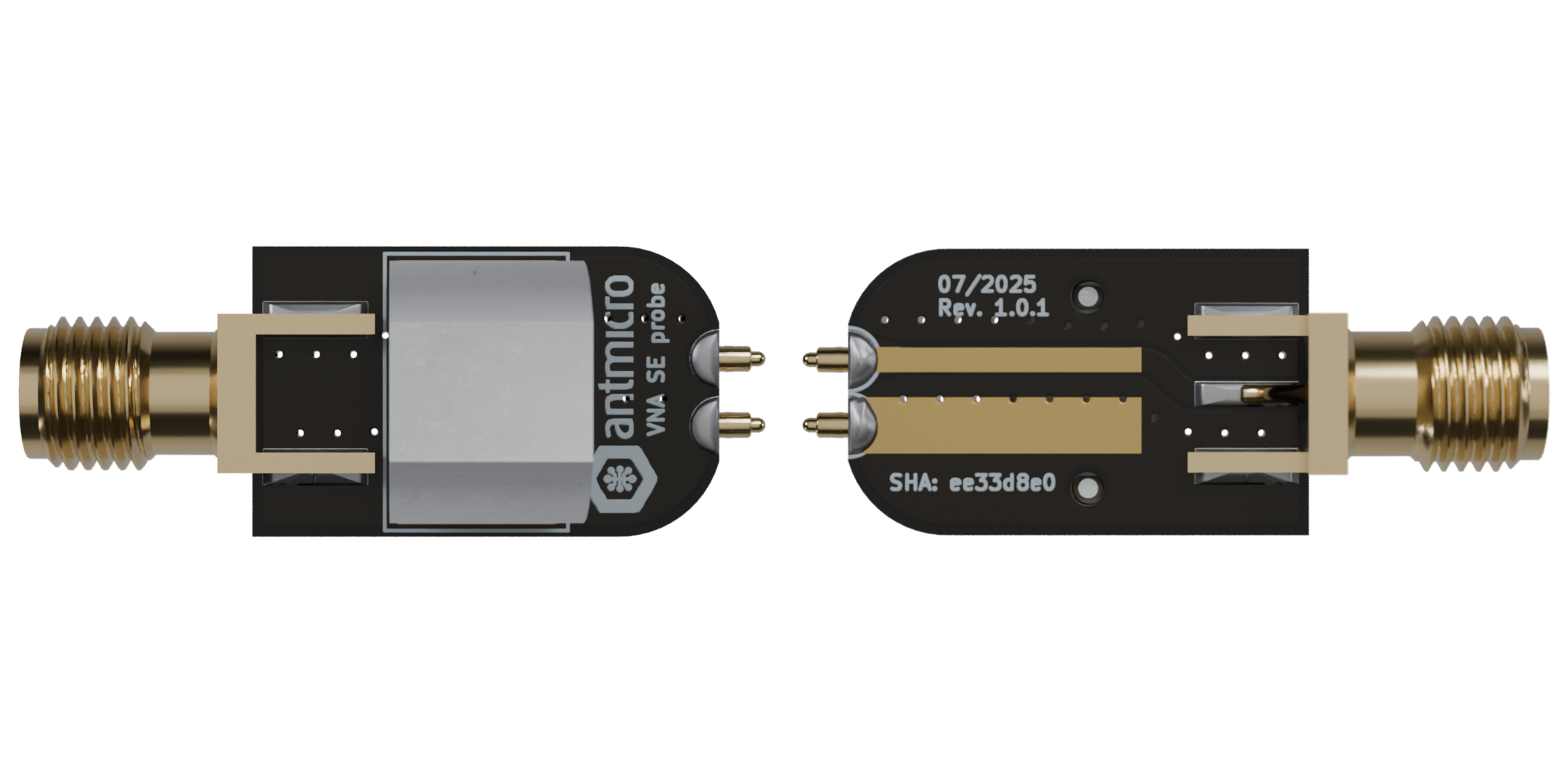

VNA SE probe

Copyright (c) 2025 Antmicro


Overview

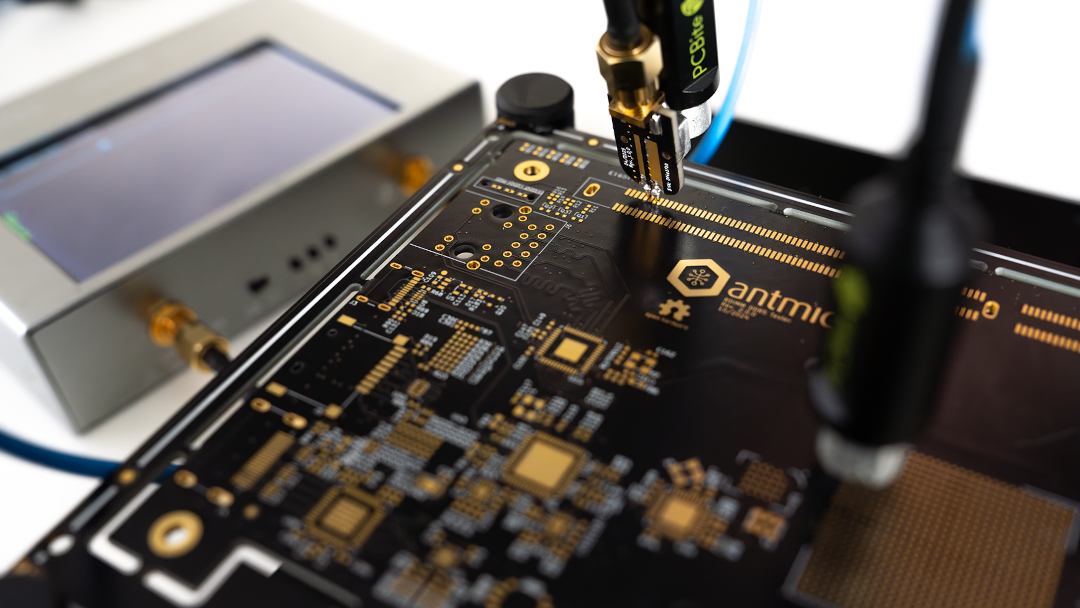

This project contains open hardware design files for a Vector Network Analyzer (VNA) Single Ended (SE) probe that can be used for VNA measurements on production PCBs, without the need to solder or add dedicated connectors.

Design features

  • SMA connector
  • Controlled 50 Ohm impedance
  • Compatible with M4 probe holder arms
  • Compatible with pogo pins and measurement needles
  • Probe pitch adjustable by soldering angle

Project structure

The main directory contains KiCad project files, a LICENSE and a README. The remaining files are stored in the following directories:

  • img - contains graphics for this README

License

This project is licened under the Apache-2.0 license.
