Mint

Mint Flight Controller Board is compact under a 27 mm square to fit on Micro/Nano class drones using a standard 20 x 20 mm mount. Despite the small form factor, it features a comprehensive set of IO interfaces for a wide range of peripherals.

This repository hosts the KiCAD project of the flight controller board.

• The PCB design is still under completion. This board has never been built and tested.
• Firmware for this target does not exist yet.

Specifications

• Processor and Sensors

  • STM32H723VIH6 MCU
  • ICM20602 and BMI088 IMUs
  • DPS310 Barometer

• Interfaces

  • 10x PWM outputs (8 for motors and 2 for peripherals)
  • 1x RC input (UART 1)
  • 1x I2C bus for external sensors
  • 1x CAN bus for external sensors
  • 5x UARTs
  • 4-in-1 ESC interface for Motor outputs 1-4
  • DJI Air Unit interface (UART 8)
  • 3x GPIO pins
  • 1x microSD card slot for logging

• Power

  • 4V - 32V voltage input (2S-7S)
  • Onboard 5V, 2A BEC for low-power peripherals

• Physical Dimensions

  • 26.5 x 26.25 mm
  • 20 x 20 mm, M2 mount pattern

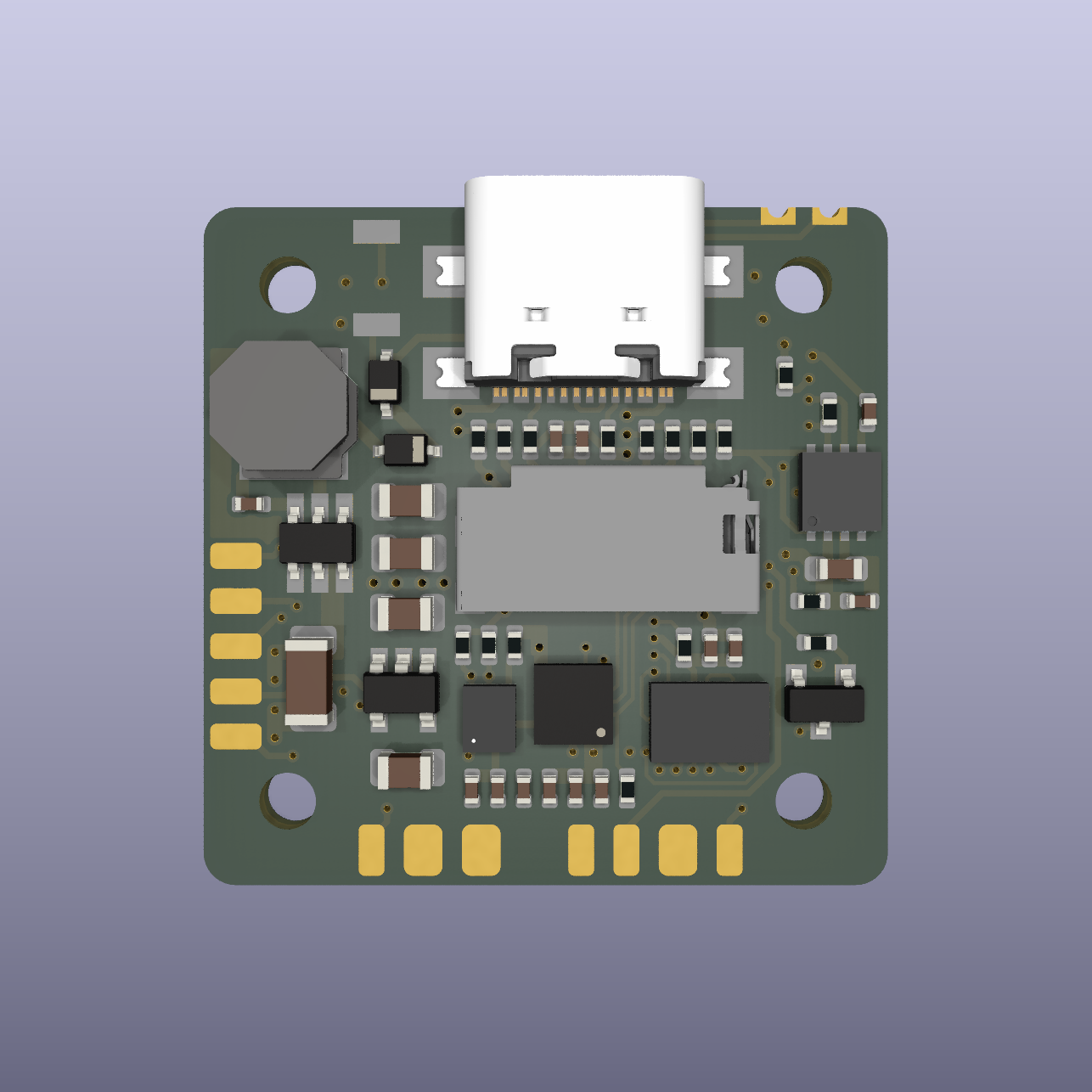

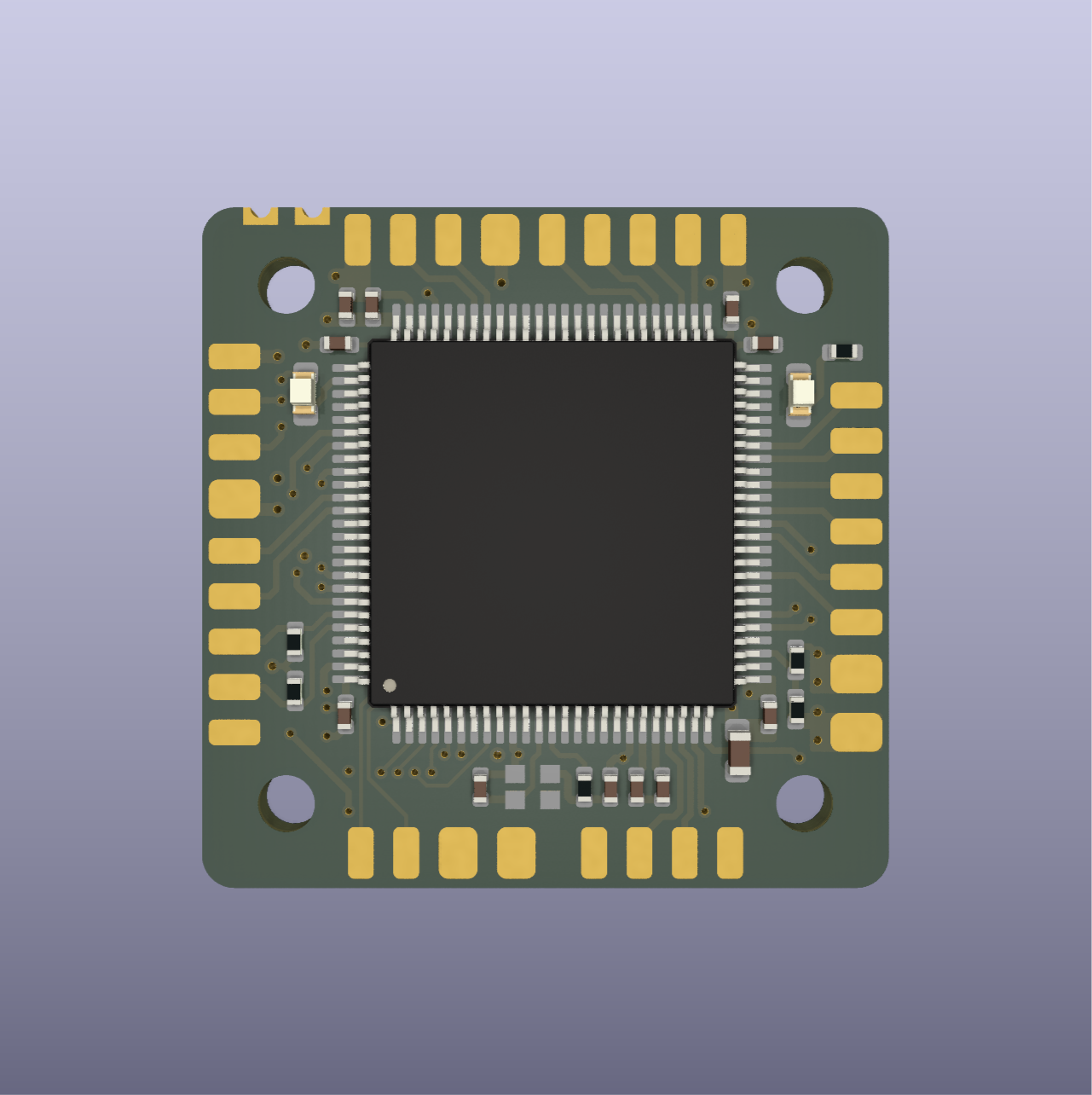

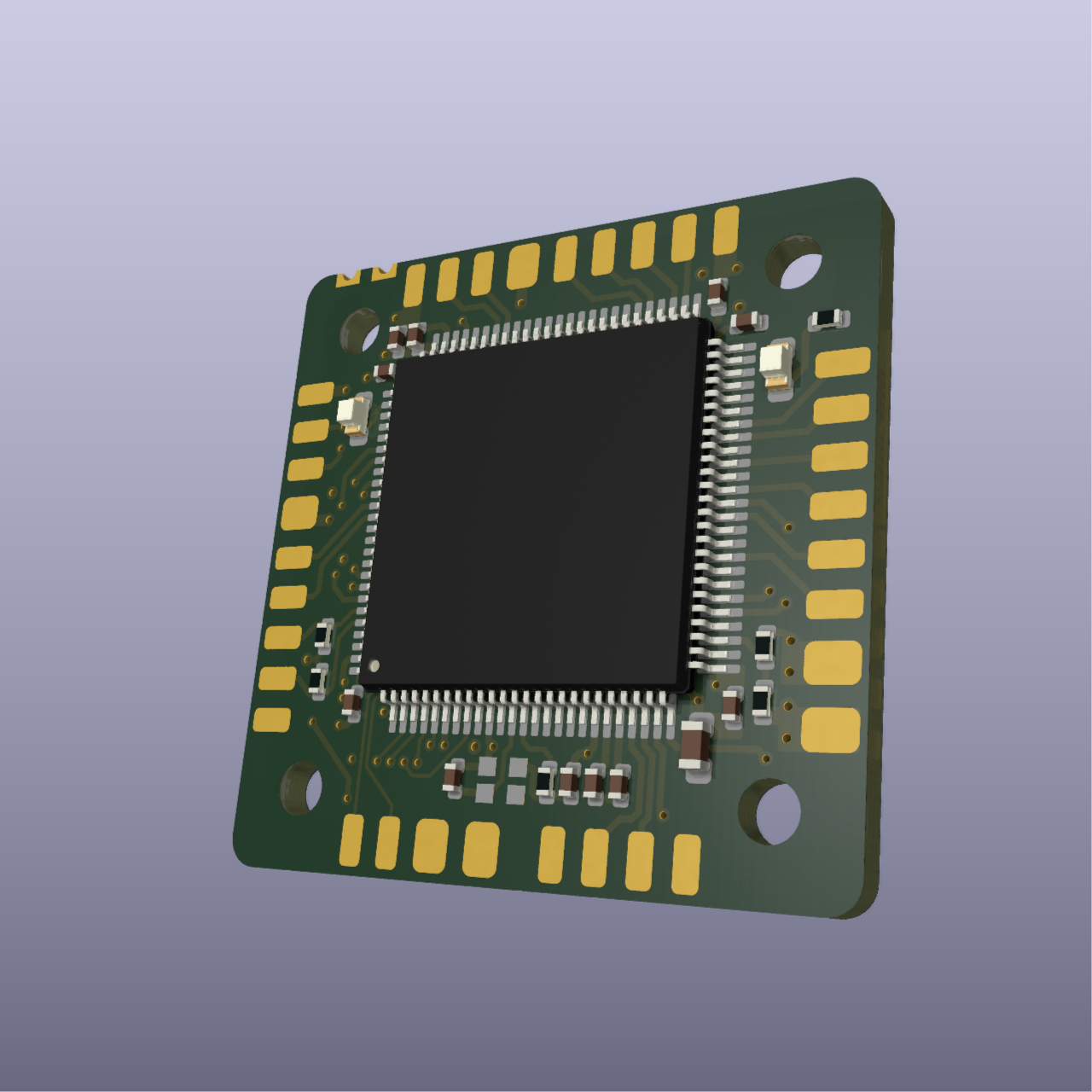

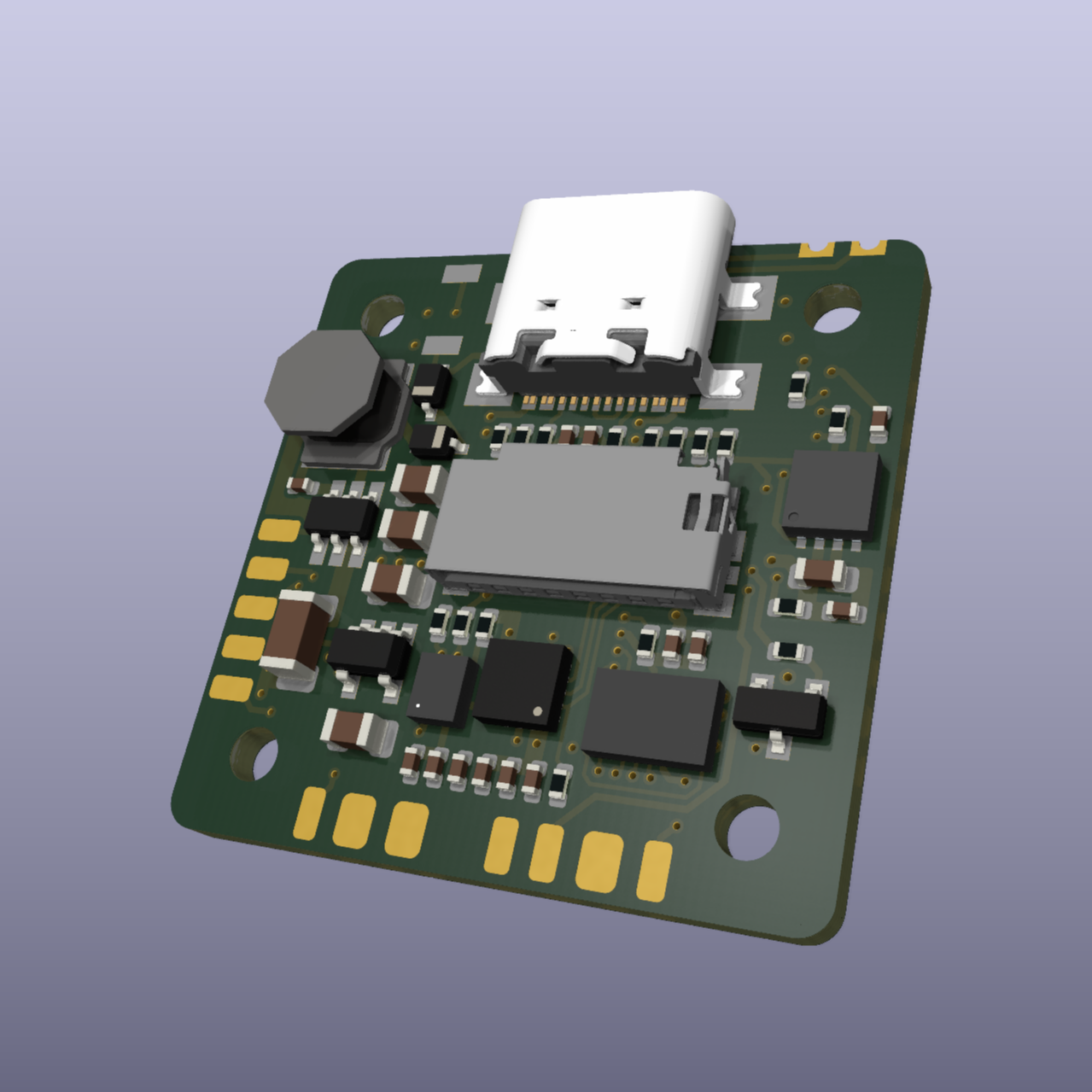

Images
