README

SD EMF

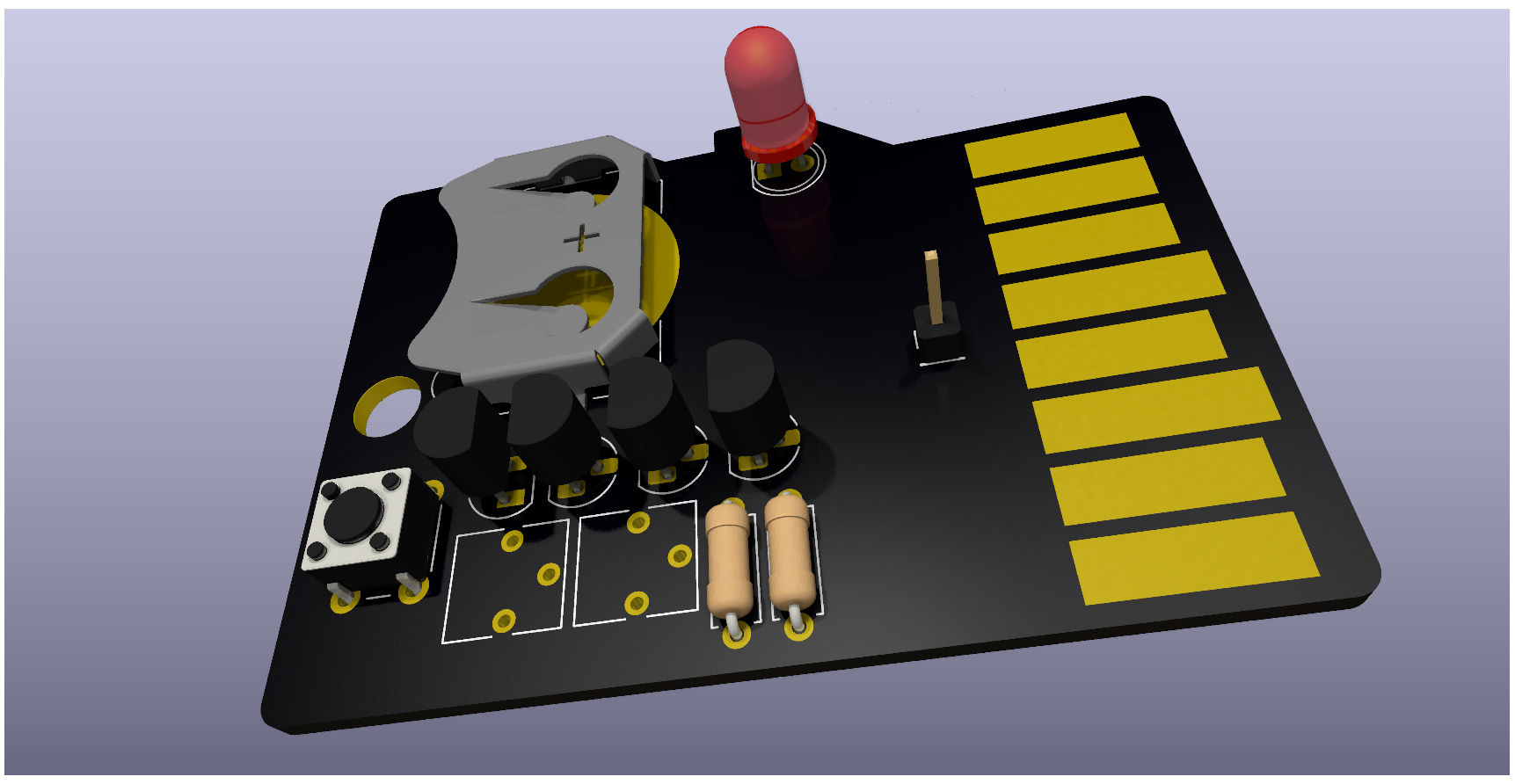

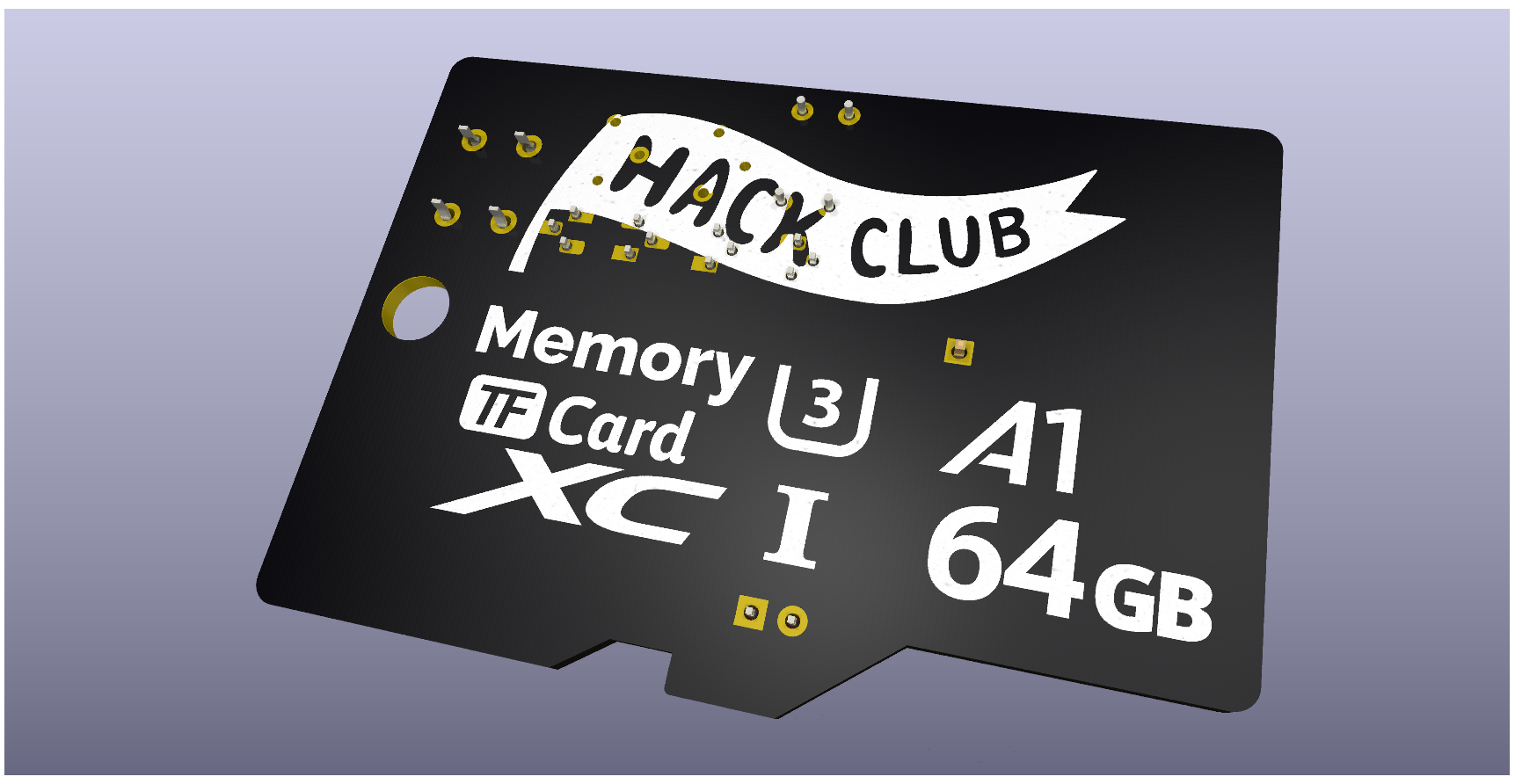

A simple EMF detector built using discrete components with a SD Card shaped PCB.

Schematic

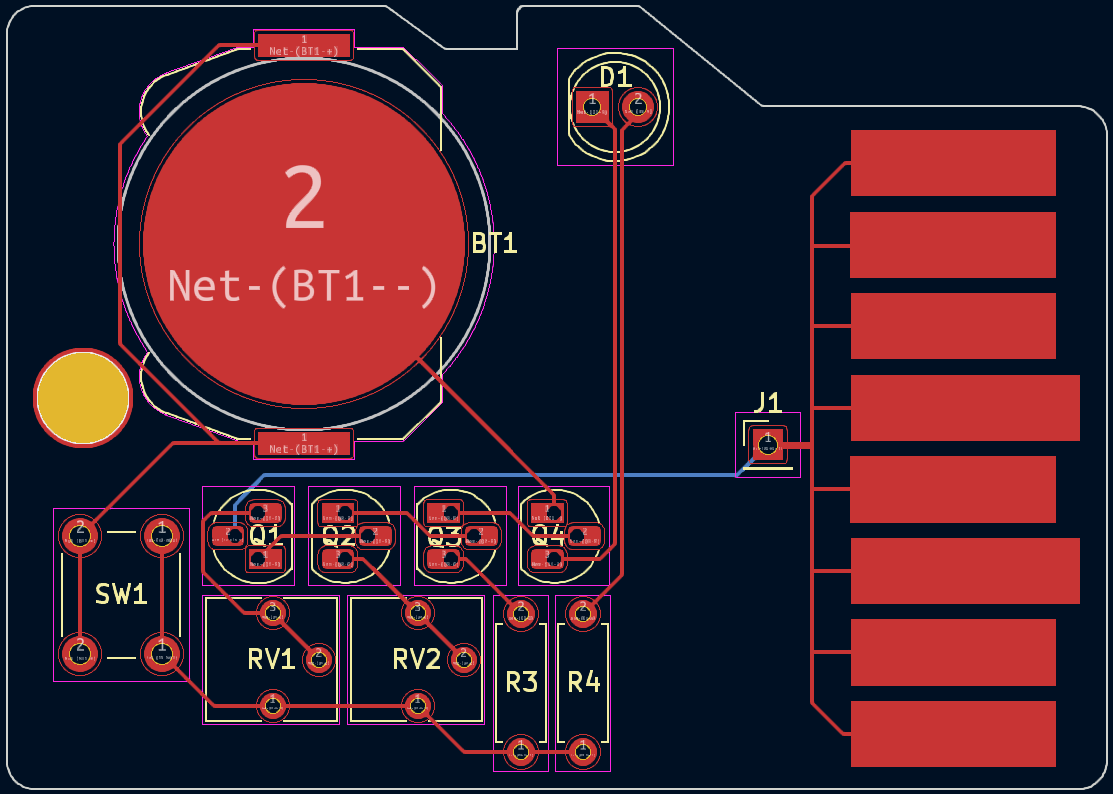

PCB

BOM

PartQuantity
Battery Holder1
LED1
2N3904 Transistor3
Resistor 220 Ohm1
Resistor 4.7k Ohm1
Potentiometer2
Push Button1

License

This project is licensed under the AGPL-3.0 License.

Author

Made by Arnav Kumar | Slack (@ak)
