README

NeoPixel Punk Console

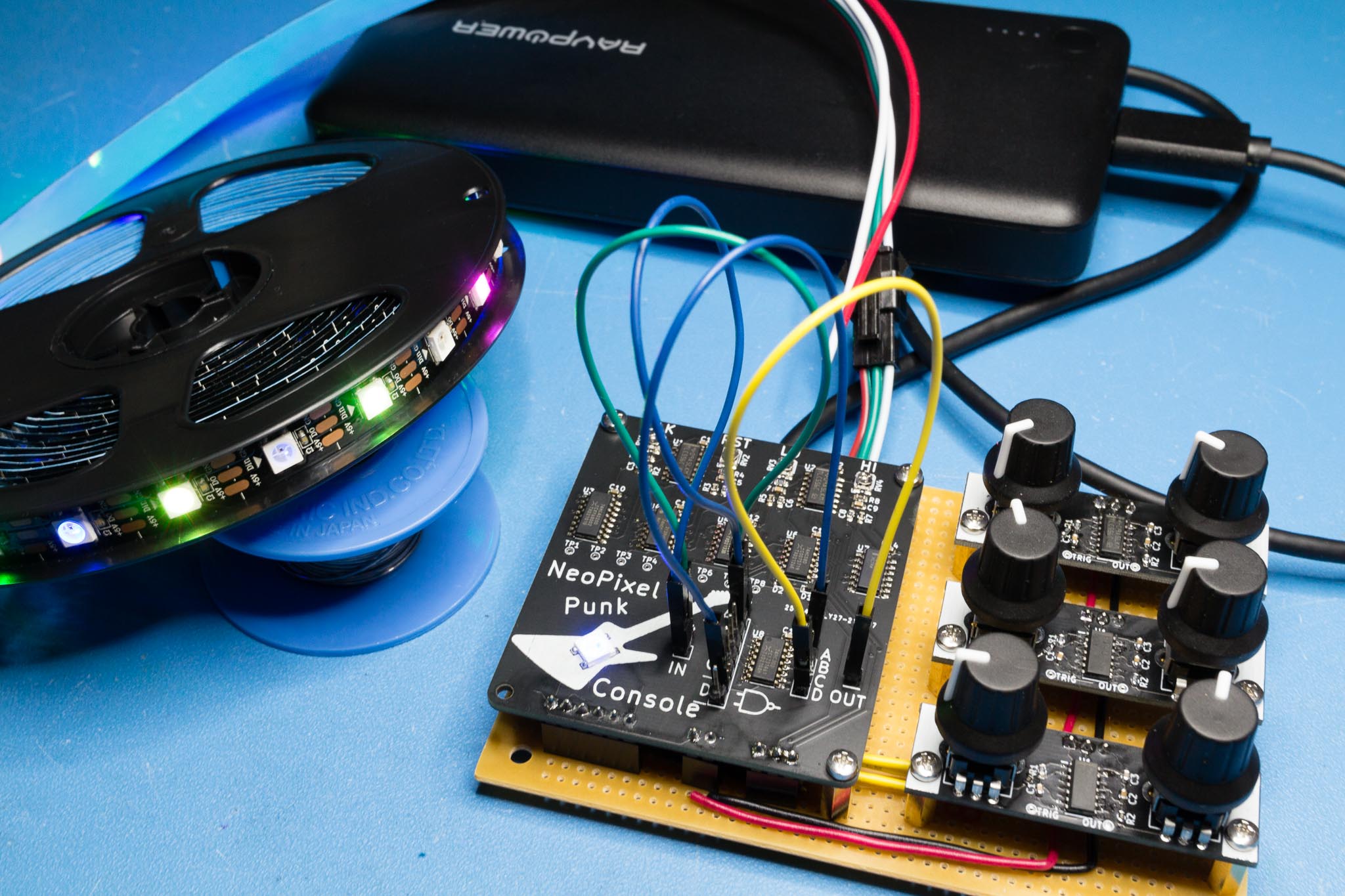

The goal of this project is to display colorful patterns on a strip of WS2812 or SK6812 RGB LEDs (aka NeoPixels) without the help of an MCU.

This repository contains the design files for the hardware.

Both folders contain a PDF of the schematic and the EDA project created with KiCad version 6.0.

A detailed discussion of the design is published here.

Featured on Hackaday
