README

corrupt

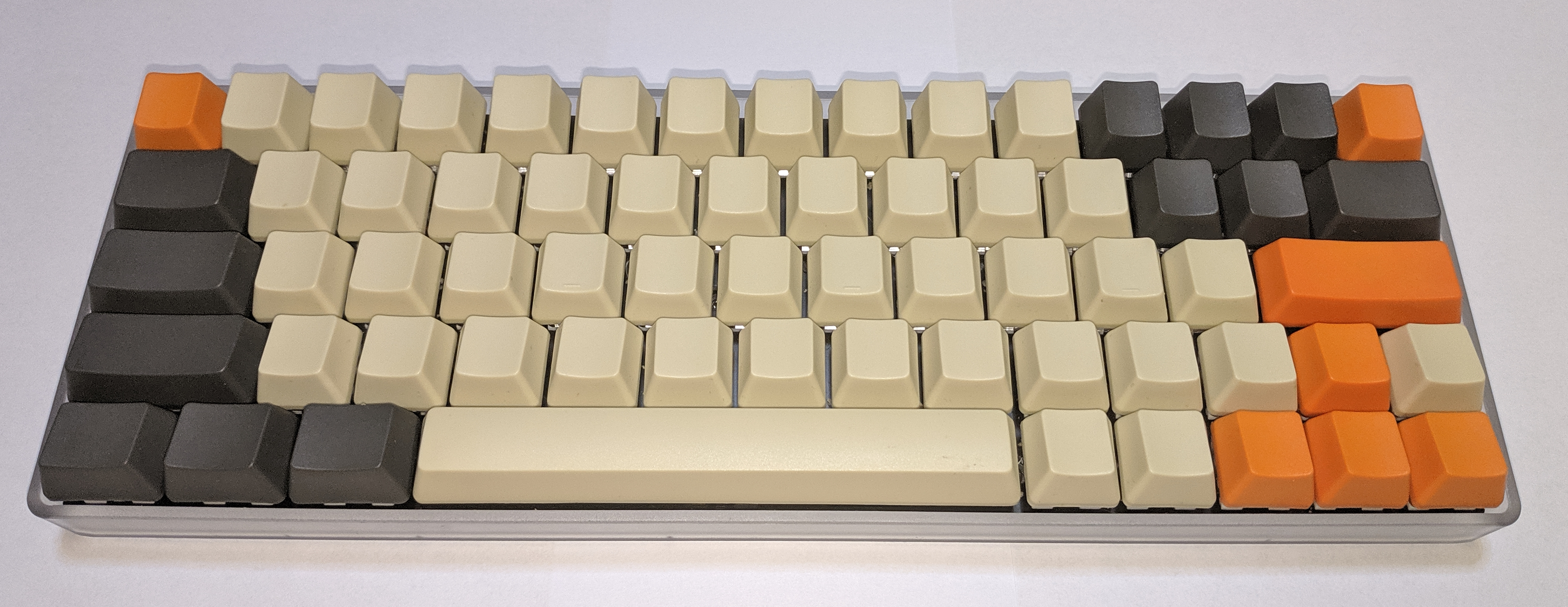

A 65% keyboard with a somewhat non-standard layout. Inspired by the KBT Pure Pro.

Specs

  • Standard GH60-style case support
  • MX-style switches
  • 2U left shift (bottom row shifted by 0.25U to the left)
  • Standard 6.25U spacebar
  • USB-C (wired-only)
  • zmk port
  • Compatible FR4 plate included in the repository
  • Under-the-spacebar WE-SKEDD debugging port
  • STM32F405 MCU (total overkill)
  • Both the key plate and the PCB can be manufactured by JLC, most components are available for PCBA

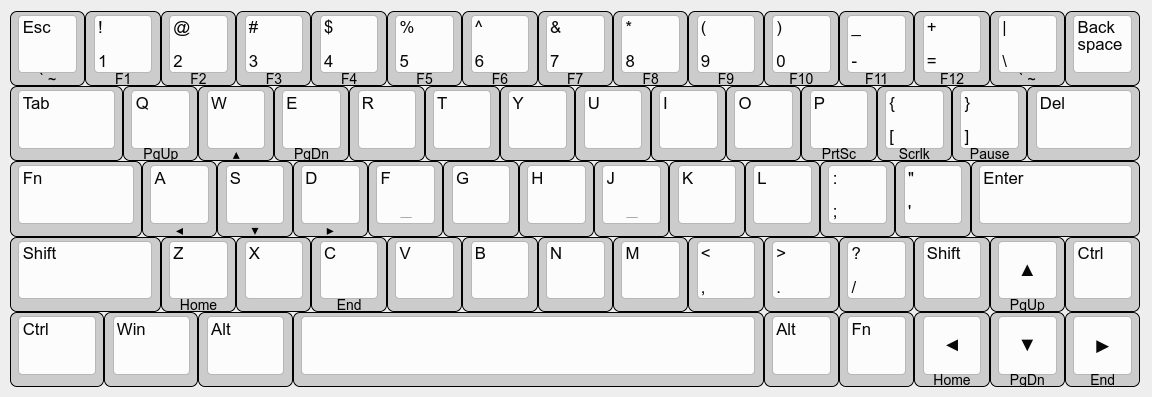

Layout

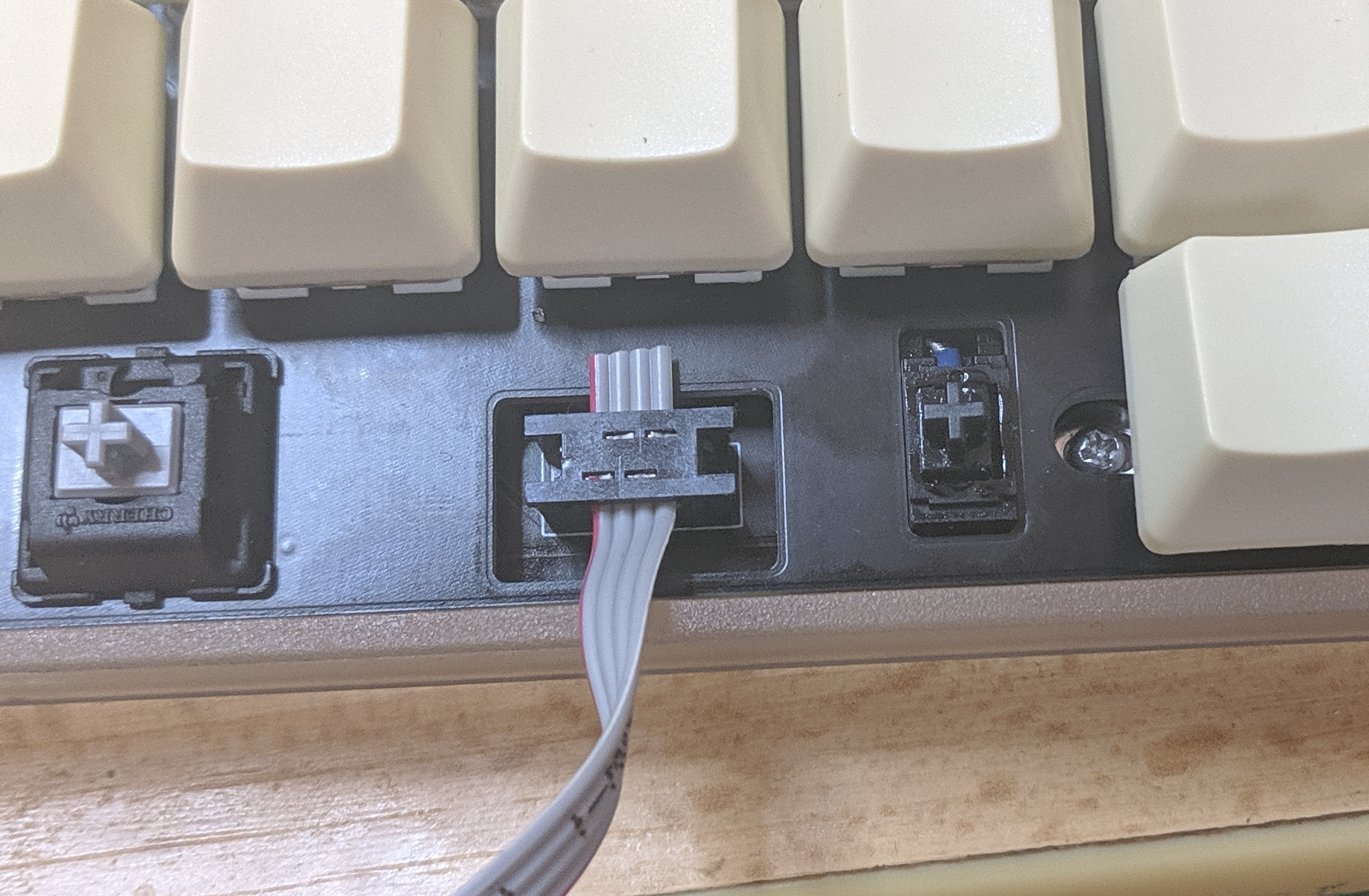

Debugging connector
