README

An Adapter PCB for BME280/BMP280 Breakouts Supporting Stemma/Qt and Grove

Here are the KiCAD (v7) design-files for a small adapter PCB adding Stemma/Qt and/or Grove I2C-connectors to a BME280/BMP280 breakout. These breakouts are omnipresent under names like GY-BME280/GY-BMP280. Be careful, both breakouts look identical and some sellers cheat you: they send the cheaper BMP280-variant instead of the BME280-variant.

The breakout suports two Stemma/Qt on top and bottom. On the top side, you can also add two horizontal Grove-connectors. For the bottom side, only vertical Grove-connectors will work.

The directory 3D contains design-files for an enclosure in OpenSCAD format. You also need the BOSL2-Library.

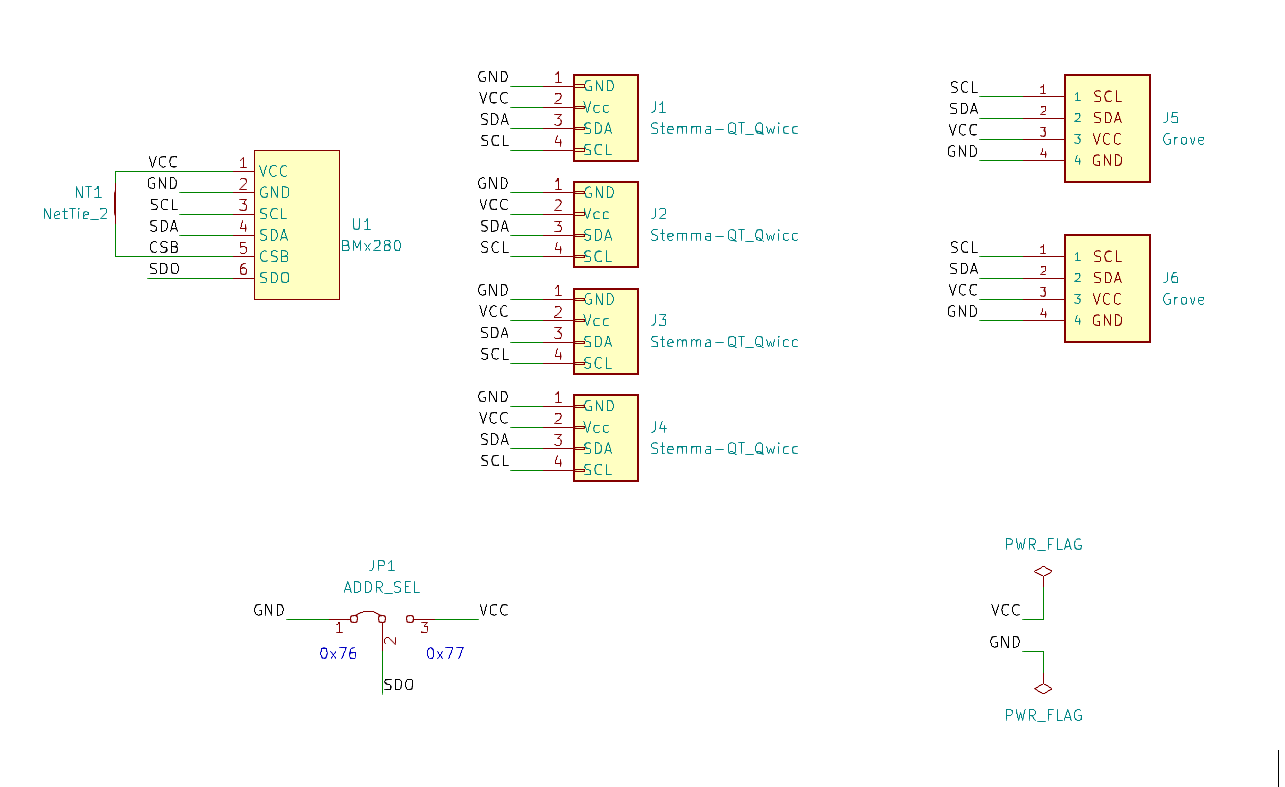

Schematic

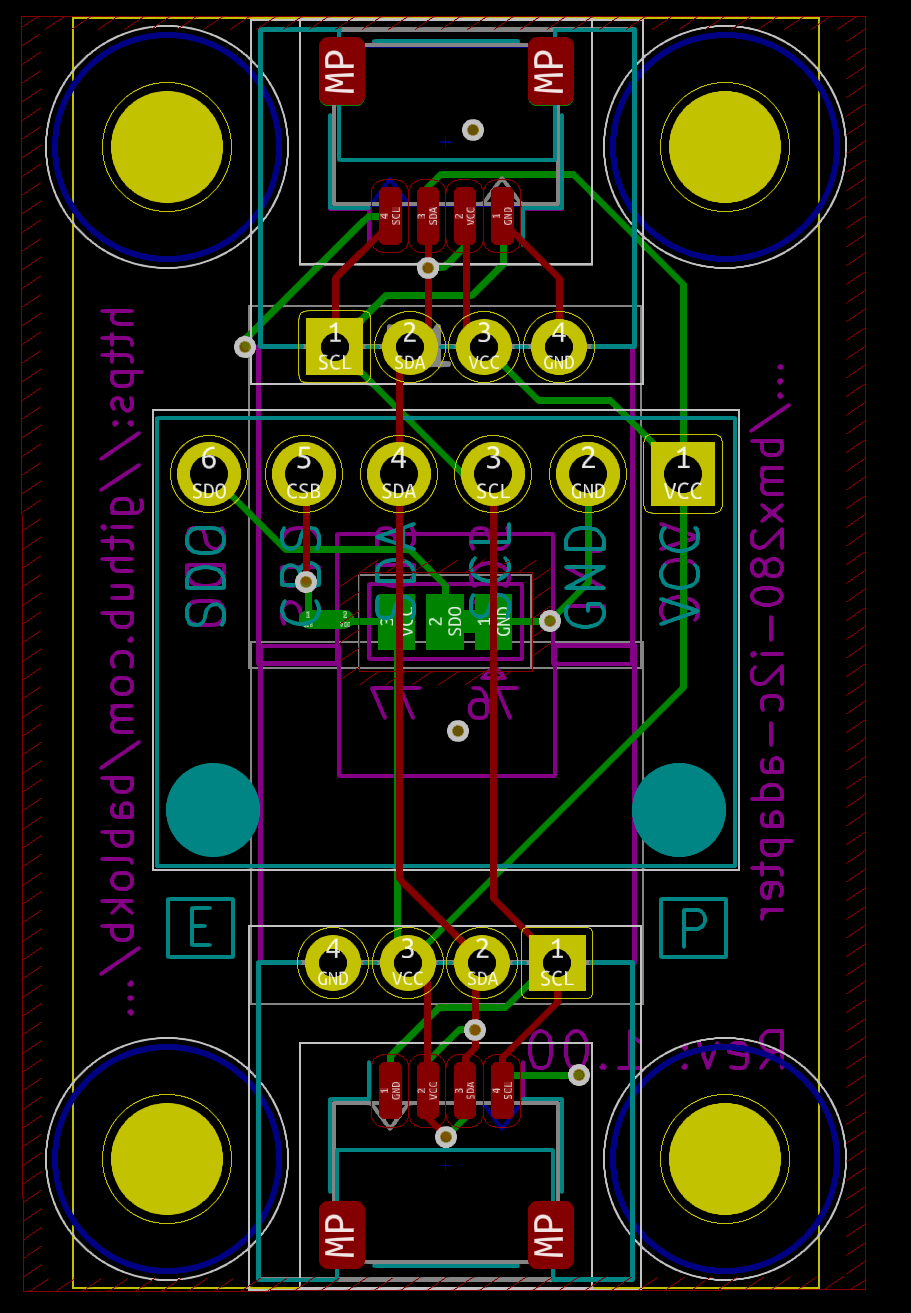

Layout

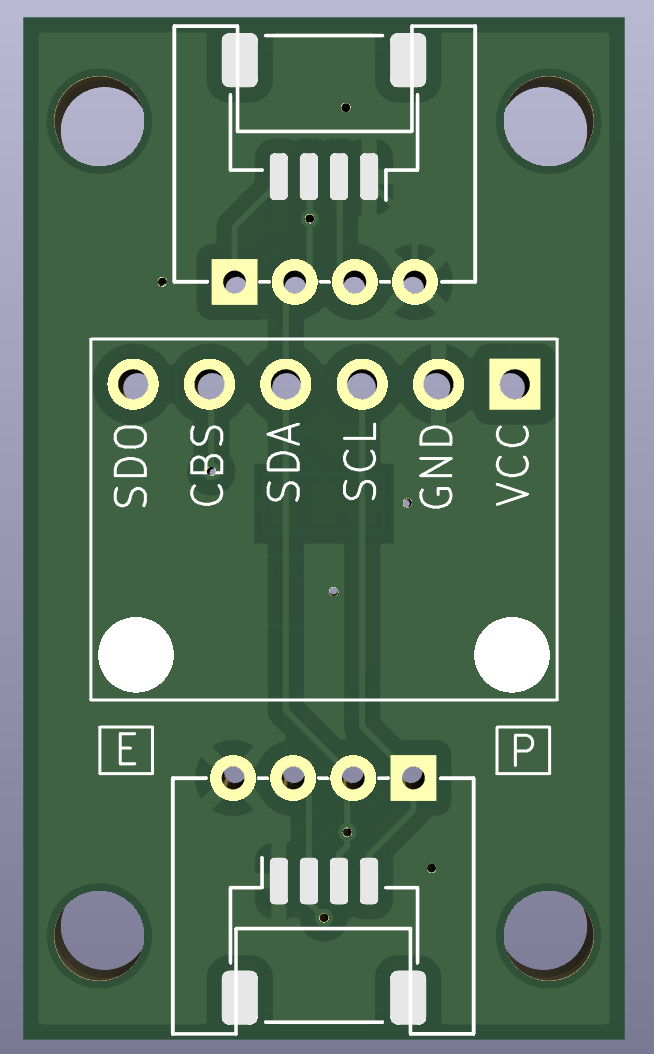

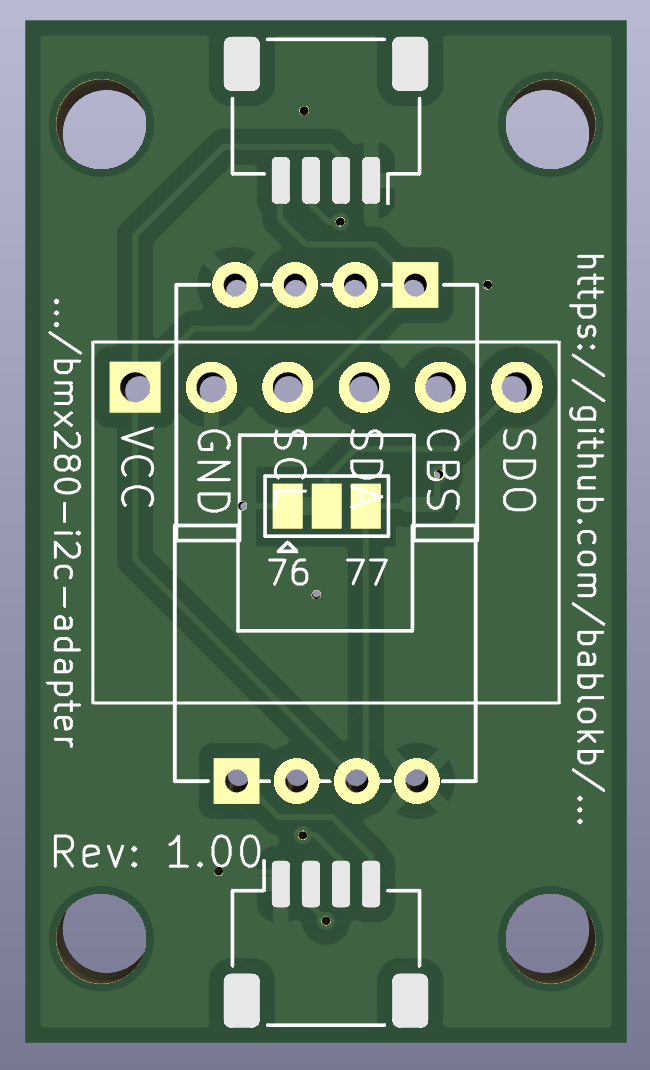

3D-Views

License

CC BY-SA 4.0

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
