PAW3395 PCB
PixArt PAW3395DM-T6QU low power laser mouse sensor breakout board.
- Compatible to PAW3950DM-T5QU.
- Be operated with 3.3V voltage level ONLY.
- Outlined as narrow as possible for side mount horizontally and perpendicular on low profile keyboards.
- Developed for zmk-paw3395-driver and zmk-paw3950-driver
Figure 1: Size comparing to Seeed XIAO BLE
PCB
Online preview avaliable here, powered by KiCanvas.

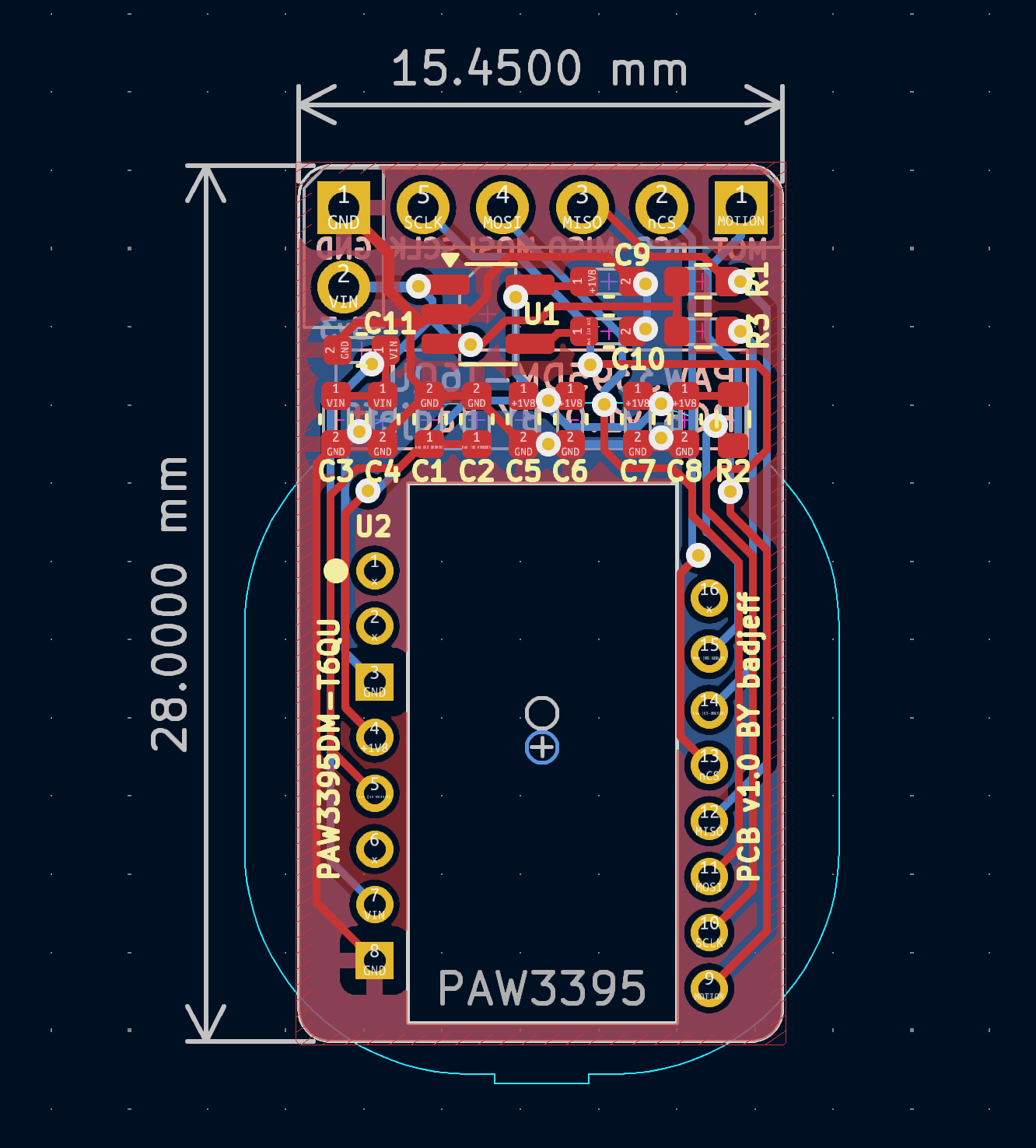

Figure 2: PCB edgecuts dimension

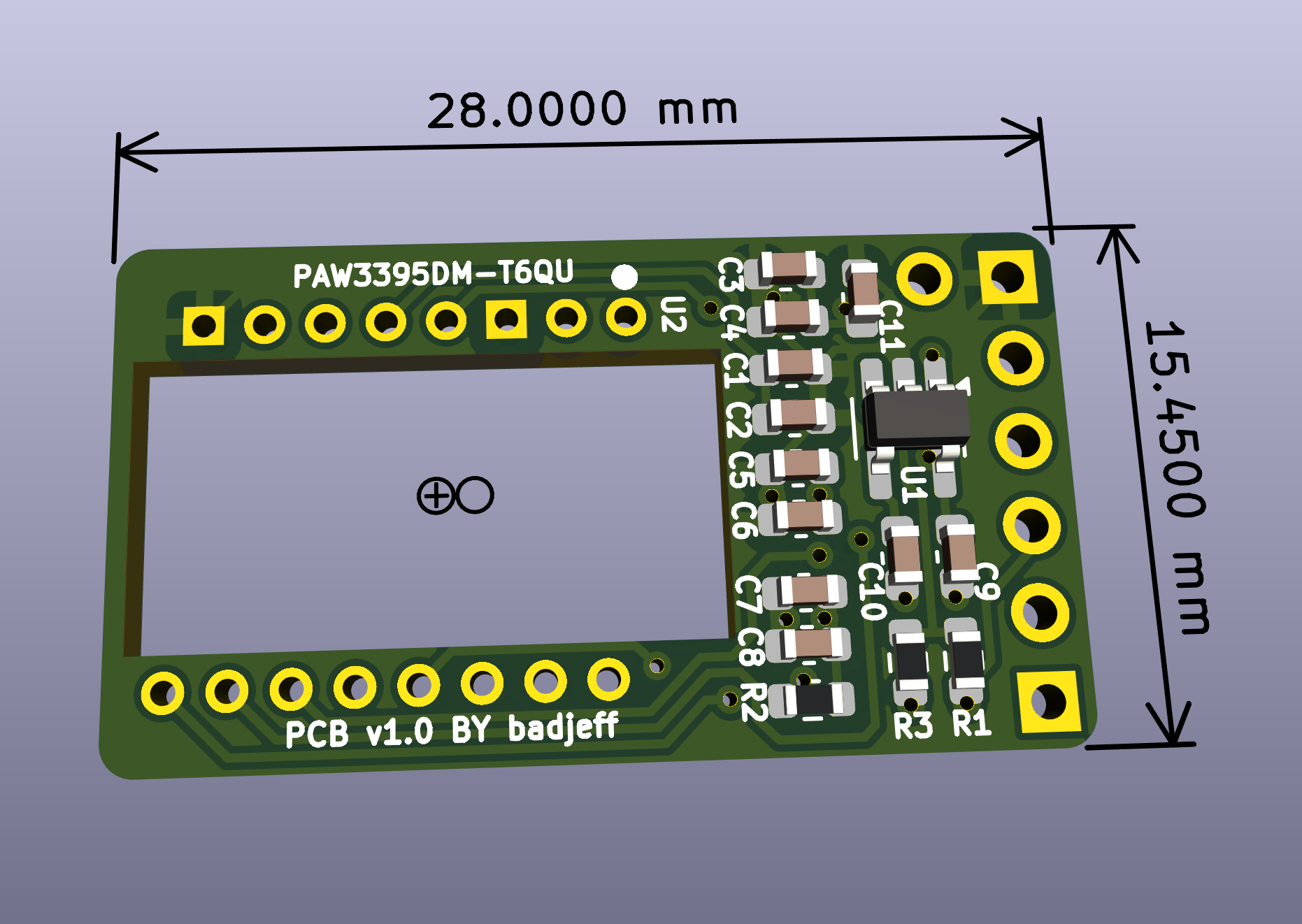

Figure 3: PCB 3D View - 1.6mm FR4
BOM
| Designator | Footprint | Quantity | Value | LCSC Part # |
|---|---|---|---|---|
| C1 | SMD 0603 | 1 | 4.7uF | |
| C11, C9 | SMD 0603 | 2 | 1uF | |
| C2, C4, C5 | SMD 0603 | 3 | 100nF | |
| C3, C6, C8 | SMD 0603 | 3 | 10uF | |
| C7 | SMD 0603 | 1 | 22uF | |
| C10 | SMD 0603 | 1 | DNI | |
| R1 | SMD 0603 | 1 | 10K | C25804 |
| R2 | SMD 0603 | 1 | 4.7 | C23164 |
| R3 | SMD 0603 | 1 | 2M | C22976 |
| U1 | SOT-23-5 | 1 | TLV74318PDBVR | |
| U2 | PAW3395DM-T6QU | 1 | PAW3395 | |
| PAW3950DM-T5QU | 1 | PAW3950 |
- DNI: don't install.
- SMD 0603 (Imperial) aka 1608 Metric.
U1LDO can be replace by RT9193-18GB, changeC10to 22nF.U1LDO can be replace by XC6219B182MR or TLV75519PDBVRC1can be replace by 3.3uF.- For PAW3395 Option
- PAW3395DM-T6QU needs to be used with compact LOAE-LSI1 lens, or chonky LM19-LSI lens.
- For PAW3950 Option
- PAW3950DM-T5QU needs to be used with compact LOAE-LSI1 lens, or chonky LM19-LSI lens.
R1should be DNIR2should be closed (with zero ohm resistor)- Pin 2 & 3 should be connecting with a 2.2uf capicator

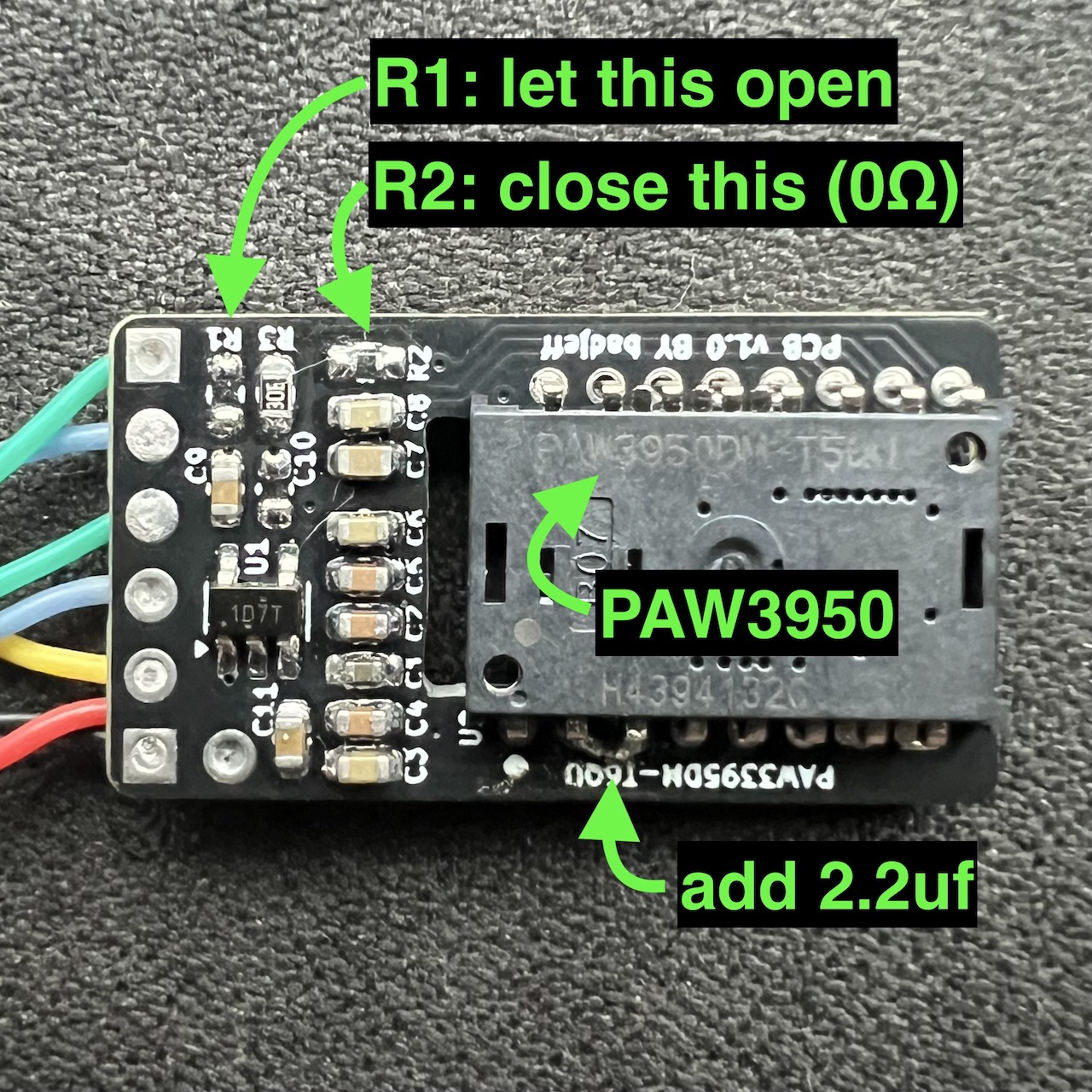

*Figure 4: PAW3950 option
Board Characteristics
- Copper layer count: 2
- Board thickness: 1.6 mm
- Board overall dimensions: 15.5 x 28 mm
Voltage level config
- 3.3V logic
- VIN: 3.3V
License
Available under the CERN-OHL-P v2 permissive license.
