BaldSense Sensor Feather Wing

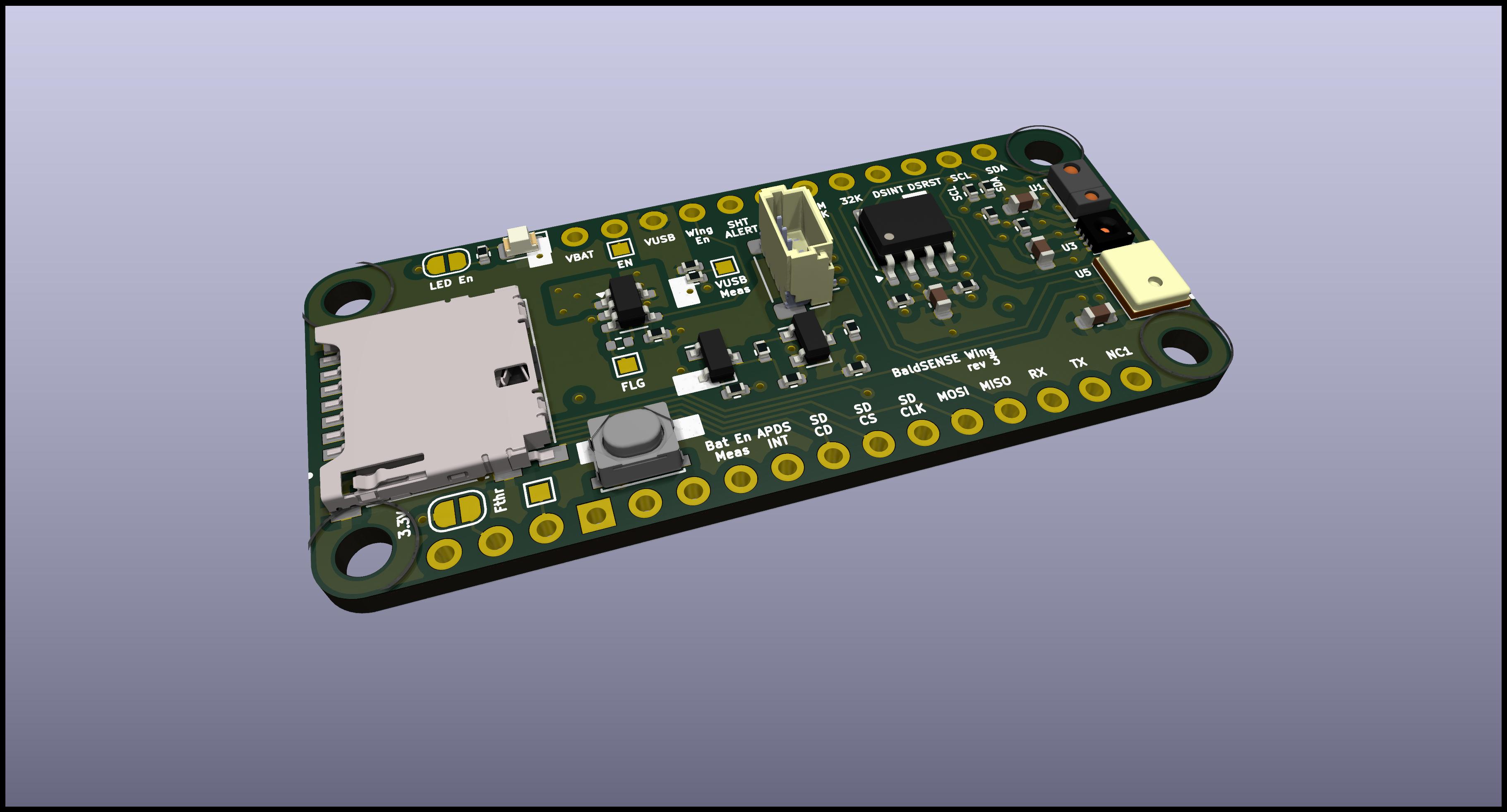

Project to fit a temperature, humidity, light, and sound sensor to an Adafruit Feather wing form factor.

Minimal environmental sensor board for characterizing a specific location.

Sensors Included:

  • Temp / Humidity:
    • SHT30-DIS-B2.5KS
  • Light:
    • APDS9960
  • Sound (Mic):
    • MP34DT01TR-M
  • Real-Time Clock (RTC):
    • DS3231S

Status: Work In Progress

Originally created as a livestream project. Being updated for a long-term IoT project.

V3 board fixes many issues with v1 and v2. Testing is underway with a FeatherS3 board provided by Unexpected Maker.

So far, each sensor is working as expected.
