Homemade 512k ROM/RAM board compatible with RC2014

README

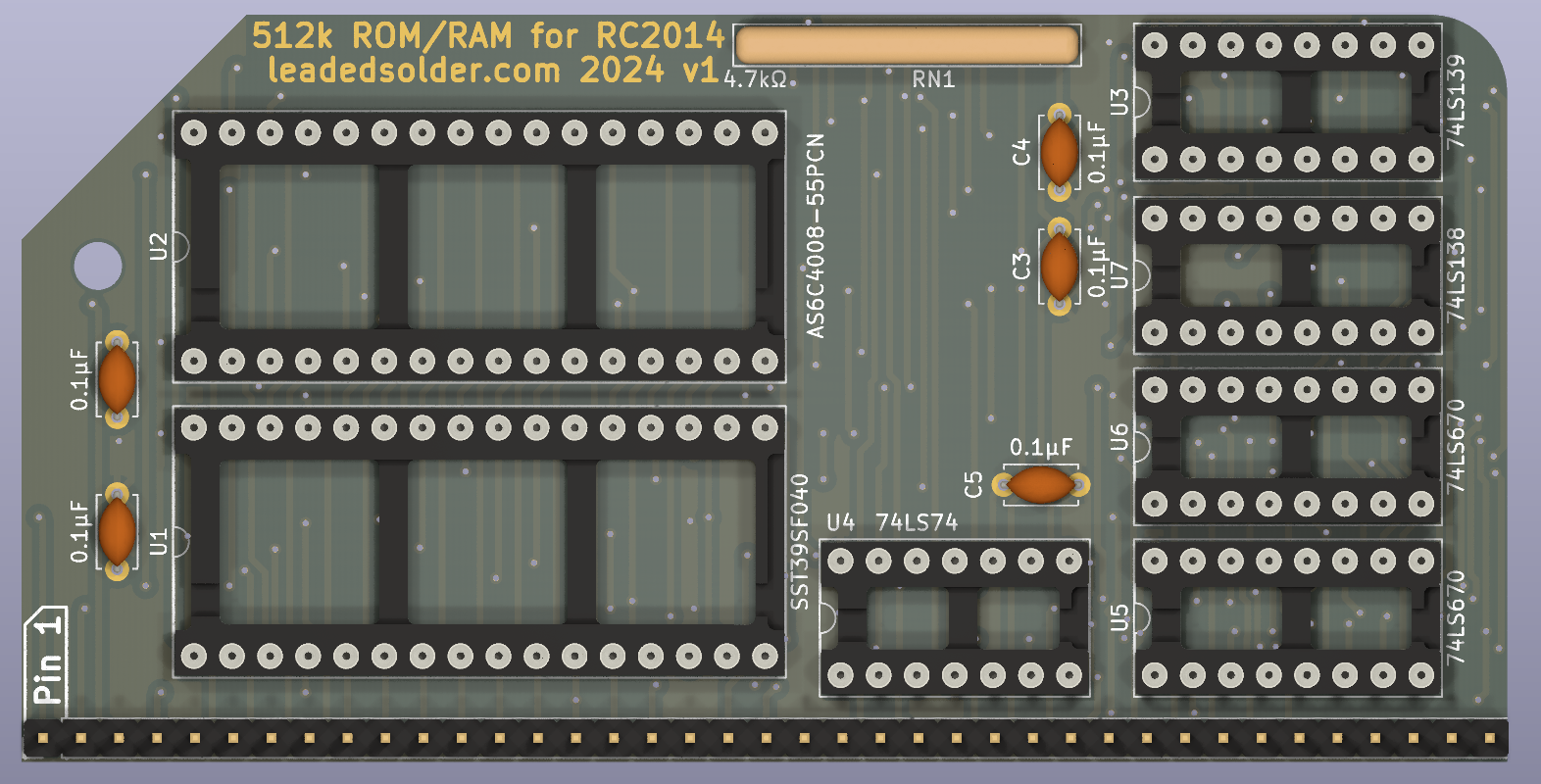

The Board

Licensing and Credits

This board is based on the schematic listed on the RC2014 website, which is in turn derived from Sergey Kiselev's Zeta 2 SBC (GPLv3). Please honour the licensing for any derivatives made of this board.

Symbol for the AS6C4008 ROM comes from SnapEDA.

Version 2

Fixed:

• D0 was not written into the 7474
• A18 was not connected on the RAM, due to a buggy (copy-paste error) SnapEDA symbol.
