A very impractical and stupid mouse jiggler using a crank mechanism, 12V DC motor, and a PWM circuit.

Purpose

I wanted a basic project with some gears, a mechanical movement, and a DC motor. So this was the simplest thing I could think of; Move a mouse back and forth.

The mechanical movement and gears gave me more experience with components/joints in Fusion 360. I also took the opportunity to learn KiCad and design a PCB for my basic PWM circuit.

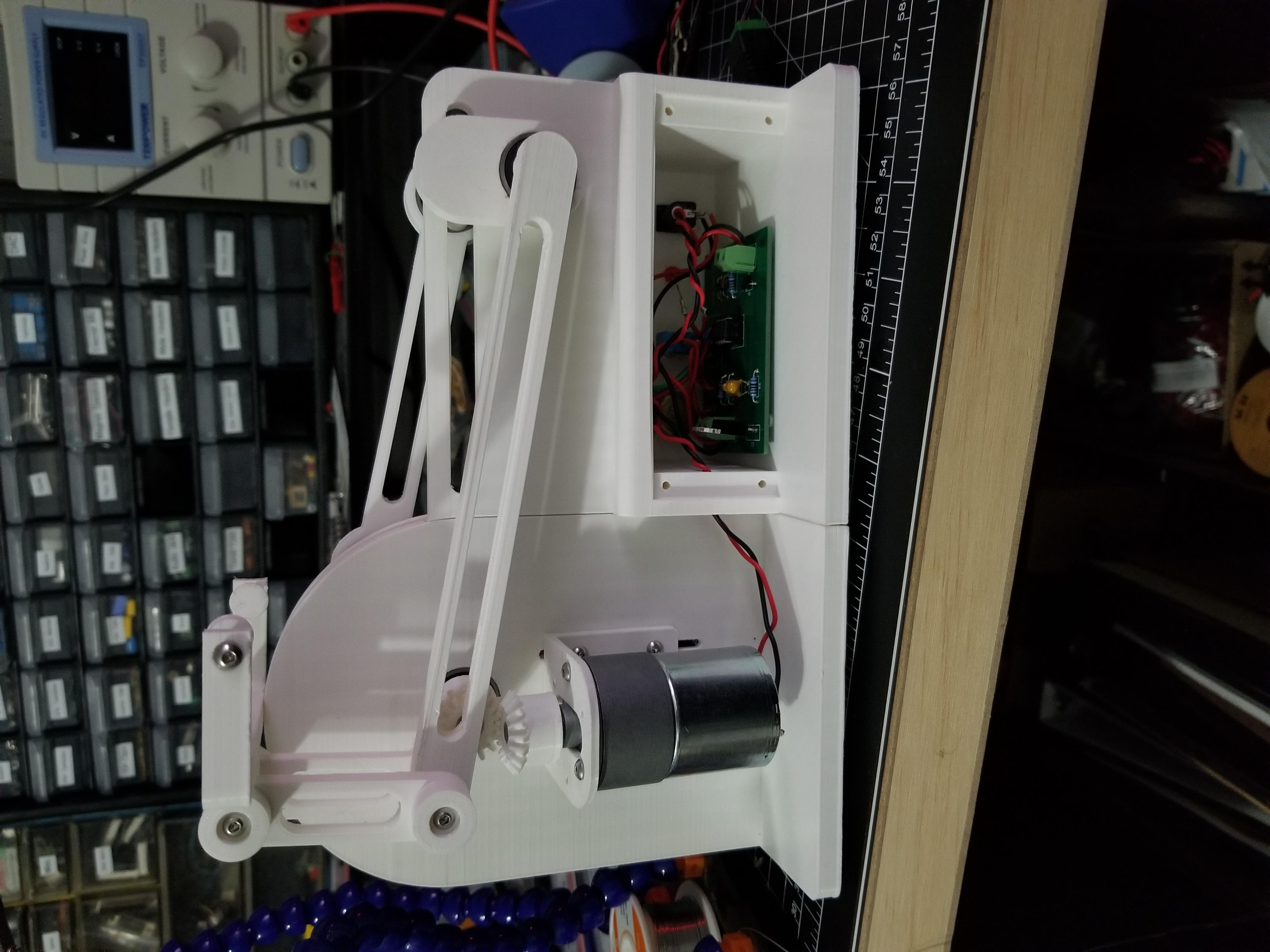

Finished Project

Definitely not perfect and I kept finding flaws. But, it was good enough for the project scope I made.

https://user-images.githubusercontent.com/15623775/172682833-343187b7-290f-4d06-a3b5-5a9f5e372b6b.mp4

https://user-images.githubusercontent.com/15623775/172682868-b304a3e7-49c9-4841-98fb-ab1815b85bfa.mp4

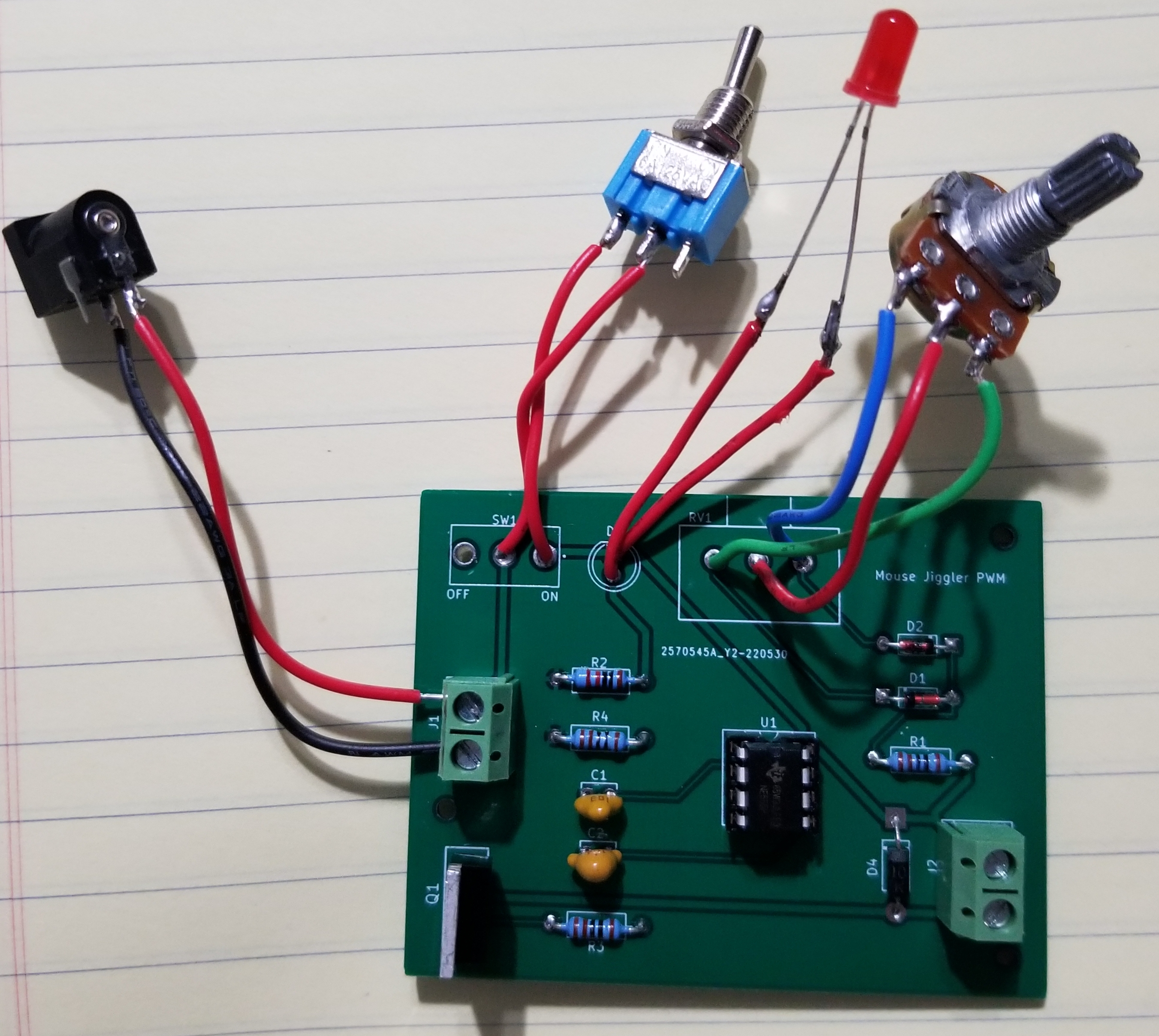

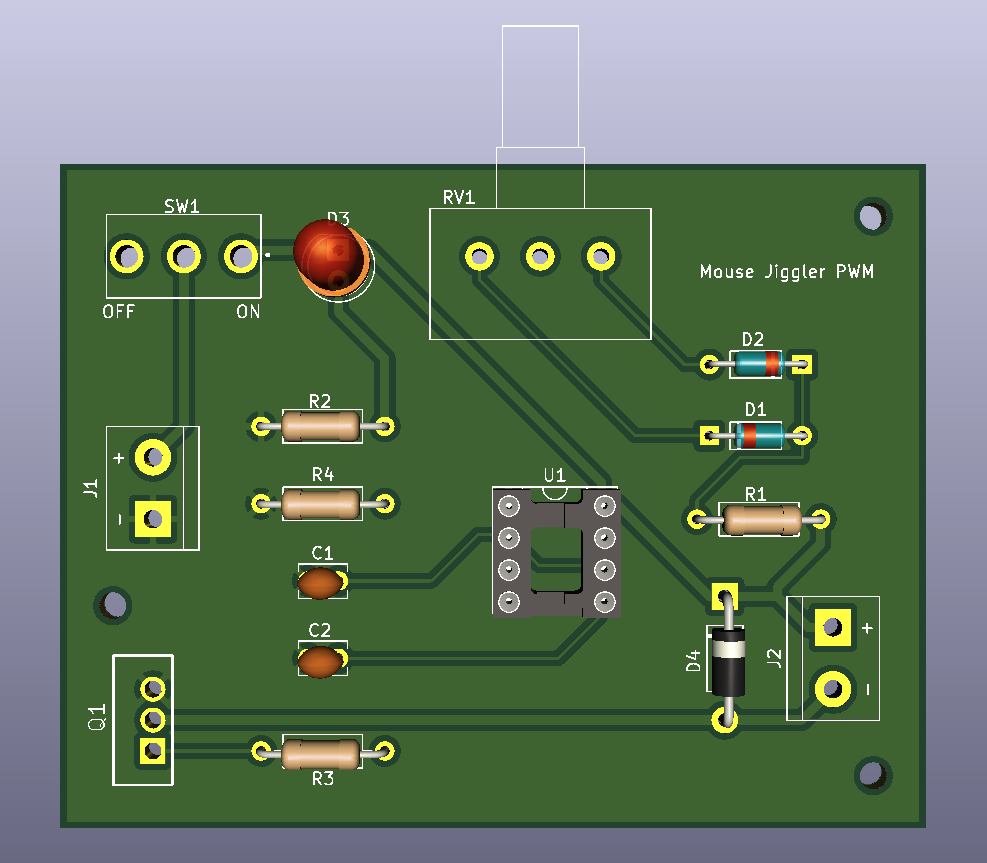

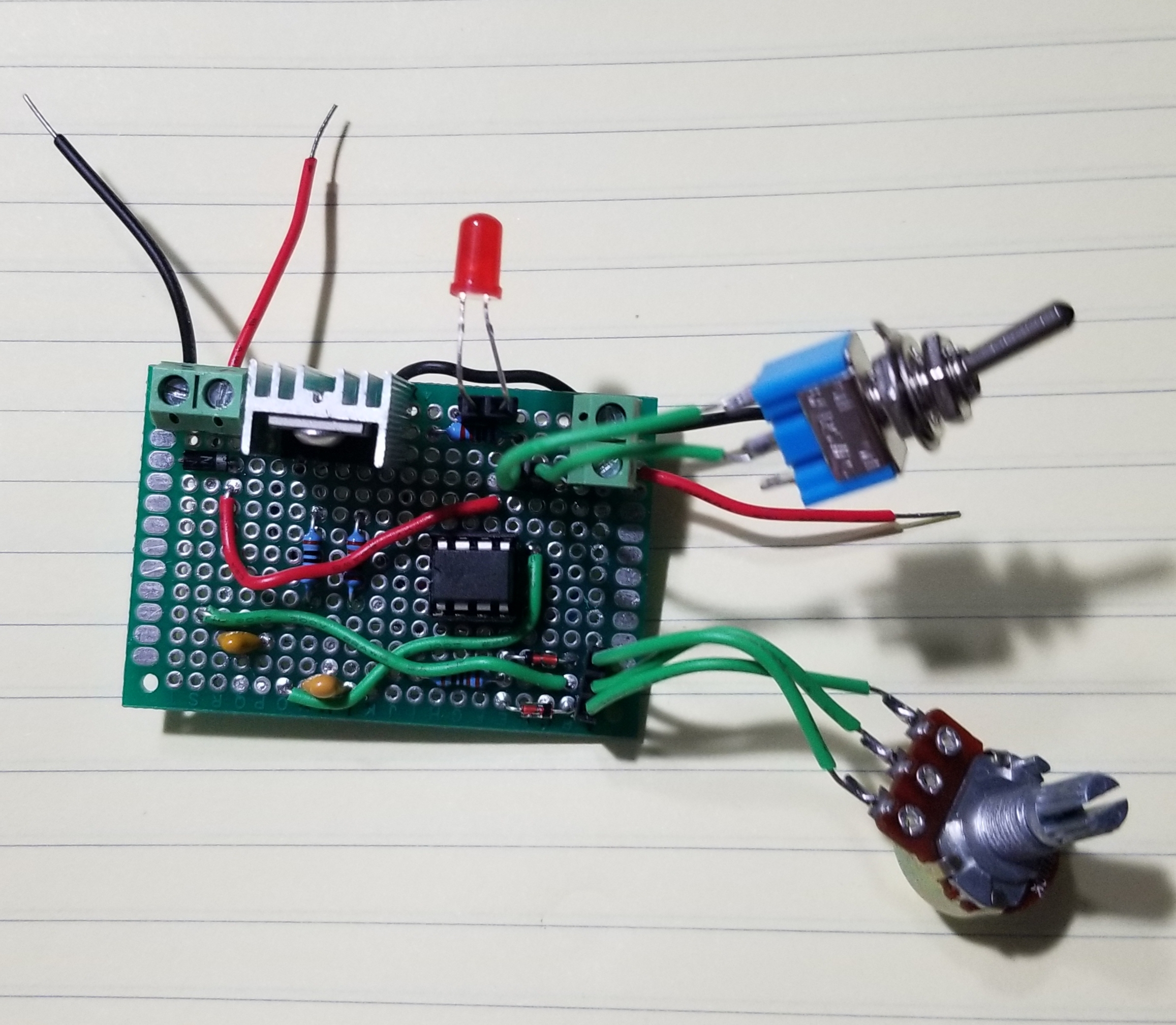

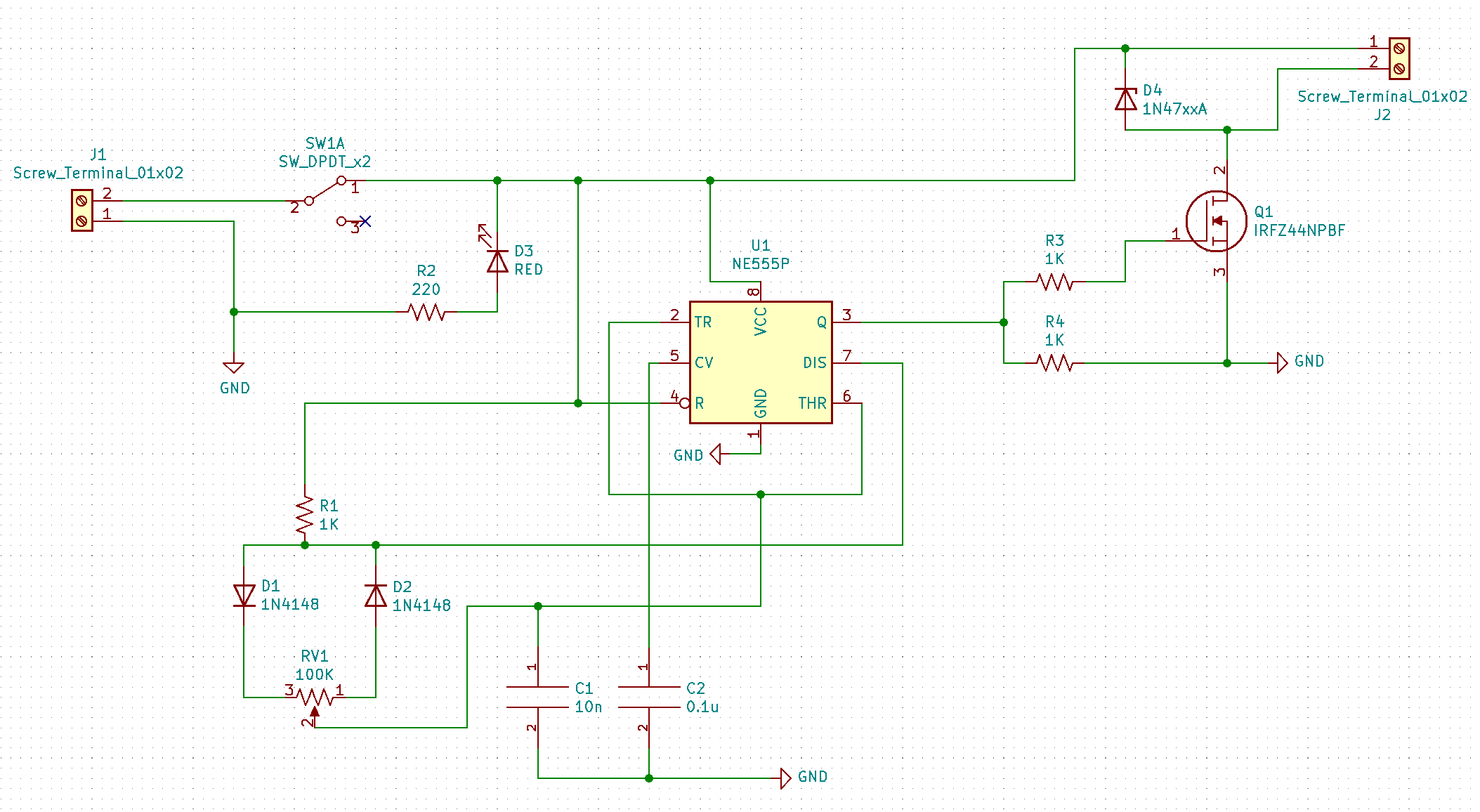

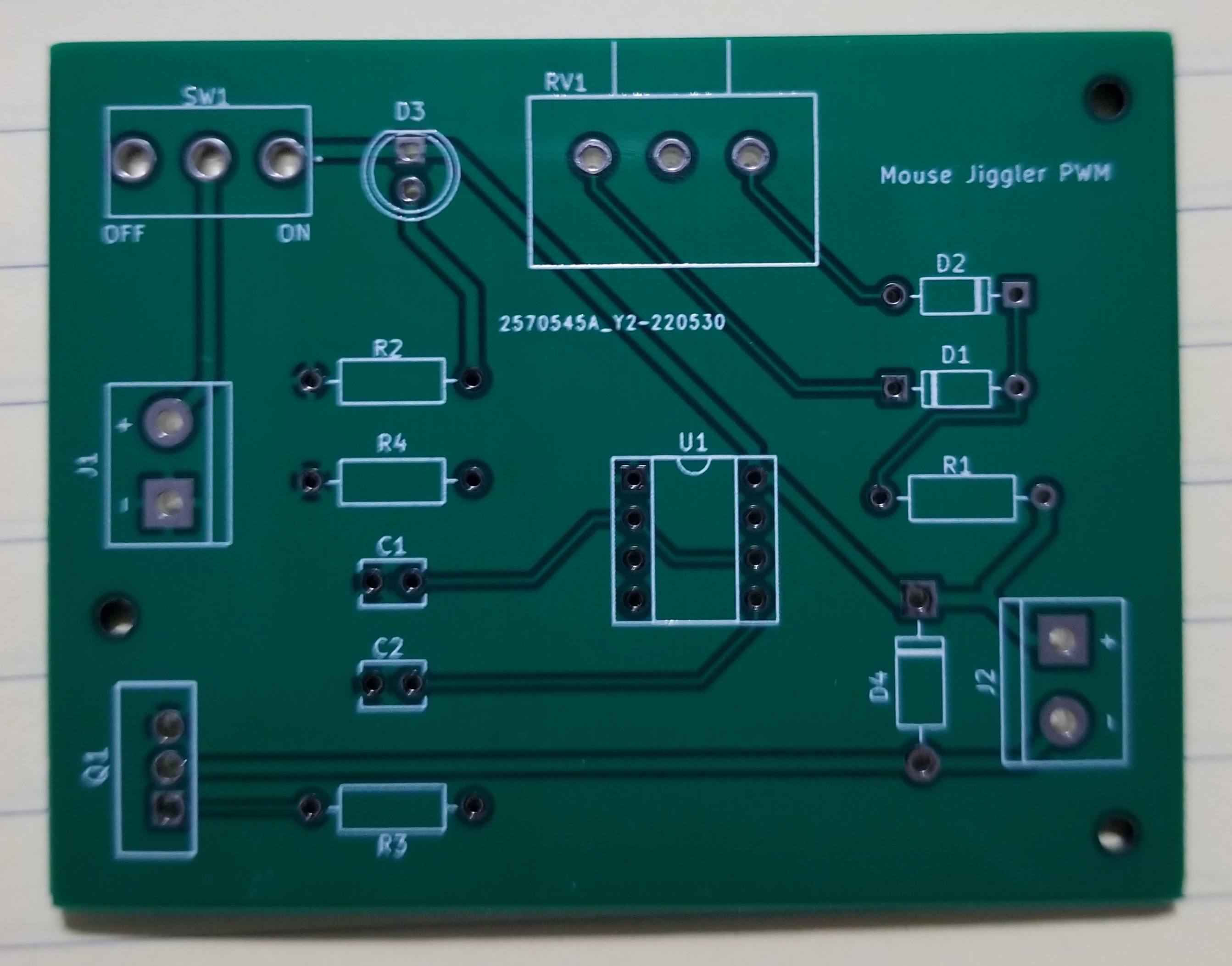

PWM Circuit

References

• 507 Movements #92
• 507 Movements #114
• KHK Gear Reference
• 555 Timer PWM circuit
