Description

KiCAD design files for an STM32F0 Nixie Clock

README

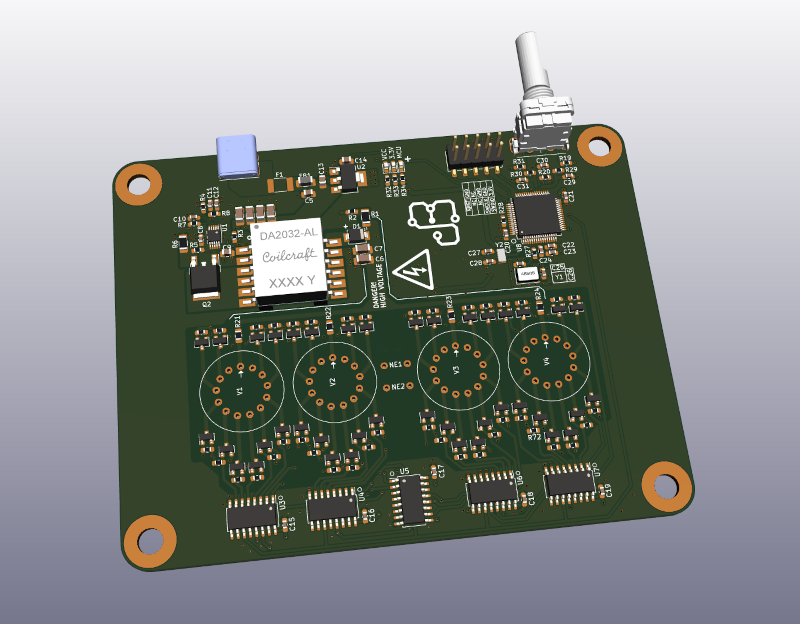

KiCAD STM32F0 Nixie Tube Clock

This repository contains the design files and assembly files for my nixie tube clock design. The code (firmware) can be located at https://github.com/bdebyl/stm32-nixieclock

The assembly files and docs are kept up to date to the best of my abilities.

Requirements

To use these design files you will require KiCAD >= 5.99.0, or simply build and install the latest KiCAD from their git repository.

Additionally, you will need my library files for proper viewing, and modification of the symbols, footprints, and viewing of 3D models:

Import these as either project or global libraries when opening the KiCAD project.

• kicad-footprints @ 24aded49
• kicad-symbols @ 2f7d2fdd
• kicad-packages3D @ 60a787a1

Additional Hardware

A custom model for an IN-14 holder or stand-off for 3D printing designed by myself is alos available via Thangs. This was designed to create additional height for the tubes on the PCB and aesthetic purposes (printed in black).

• IN-14 Nixie Tube Holder or Standoff
