README

MiniDiv

CC BY-SA 4.0

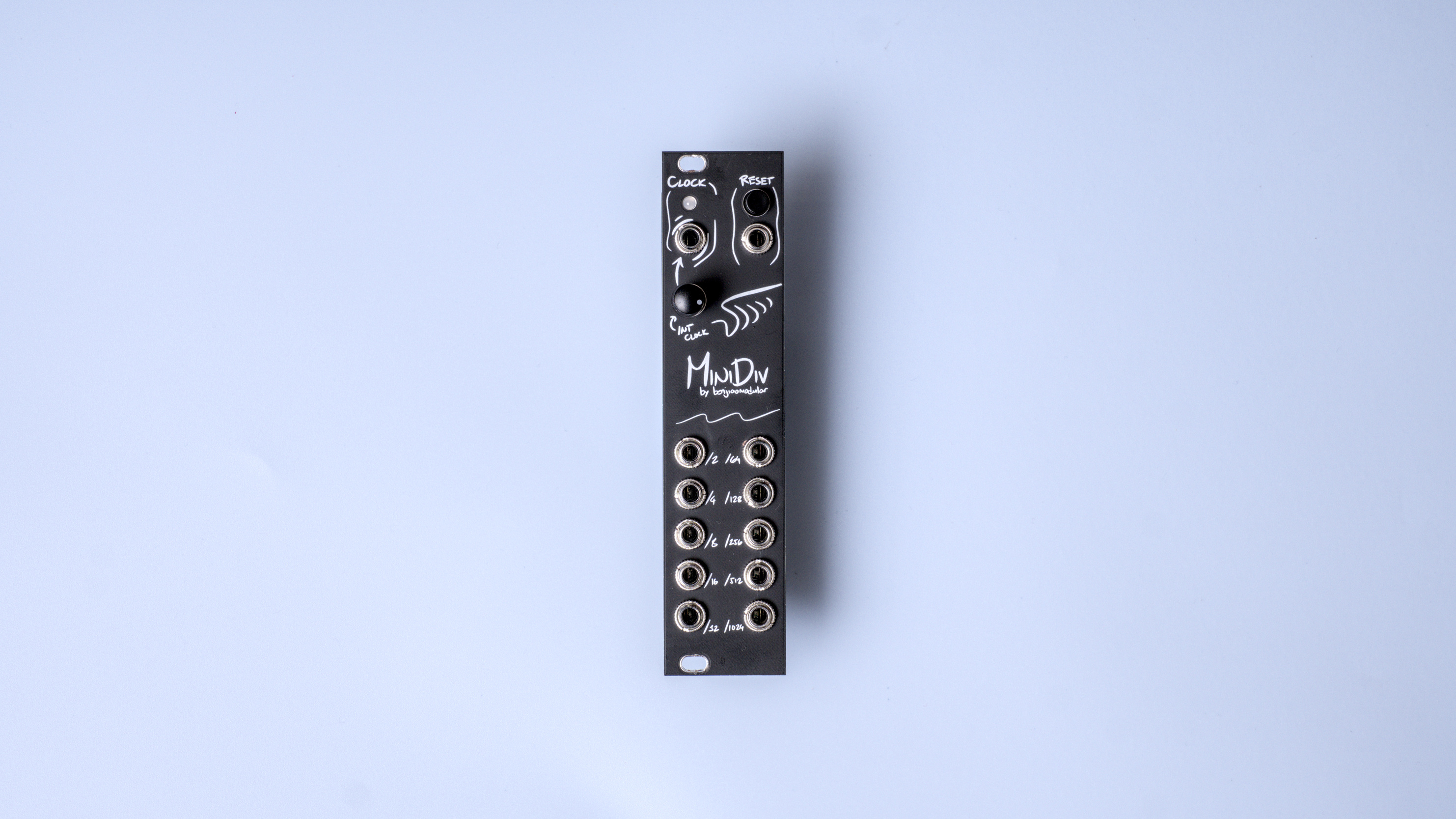

A simple clock divider based on HAGIWO's design.

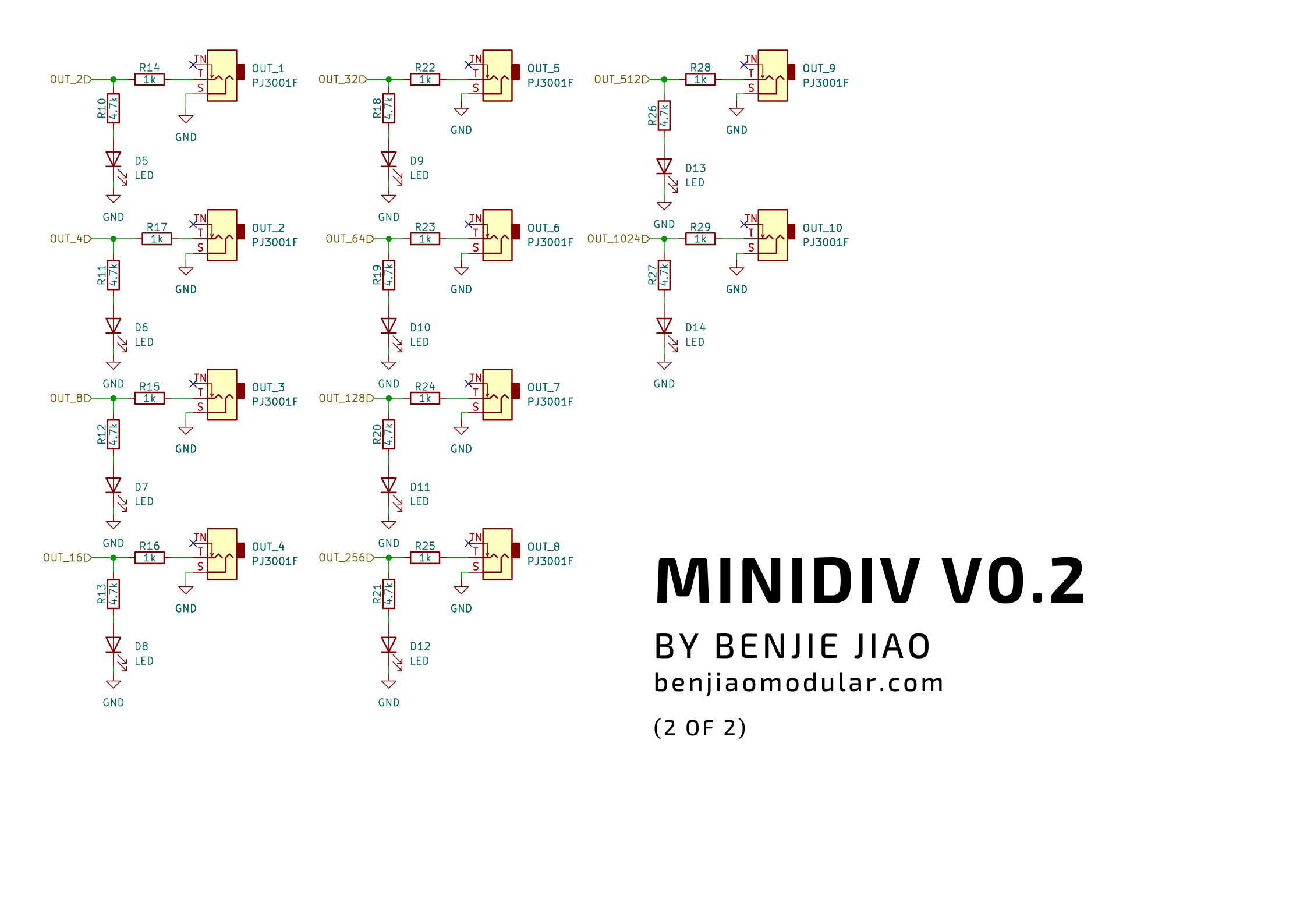

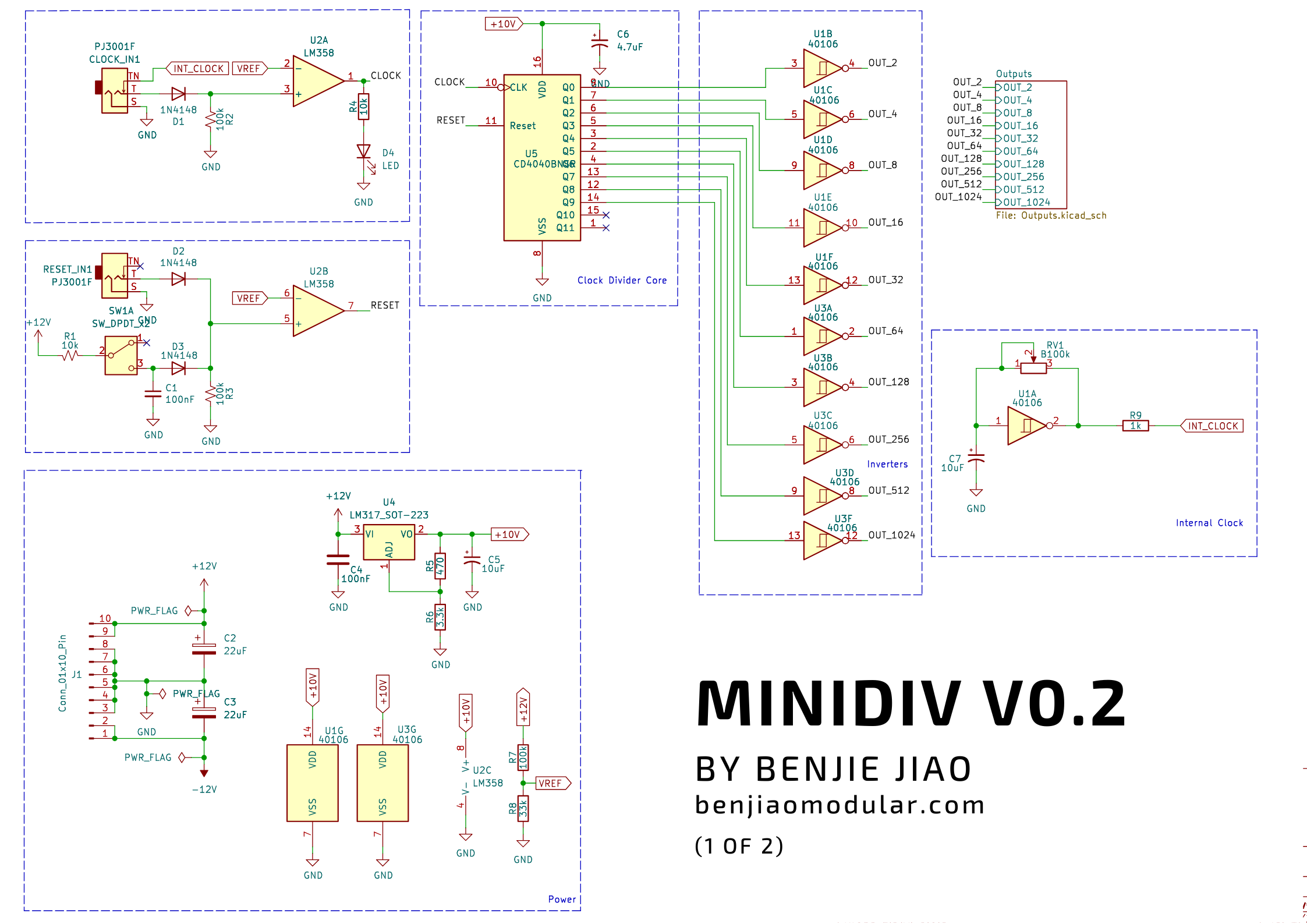

Schematics

Project sponsored by PCBWay.

See my full docs on my website: https://benjiaomodular.com/post/2024-11-22-minidiv-pcb/

Versions

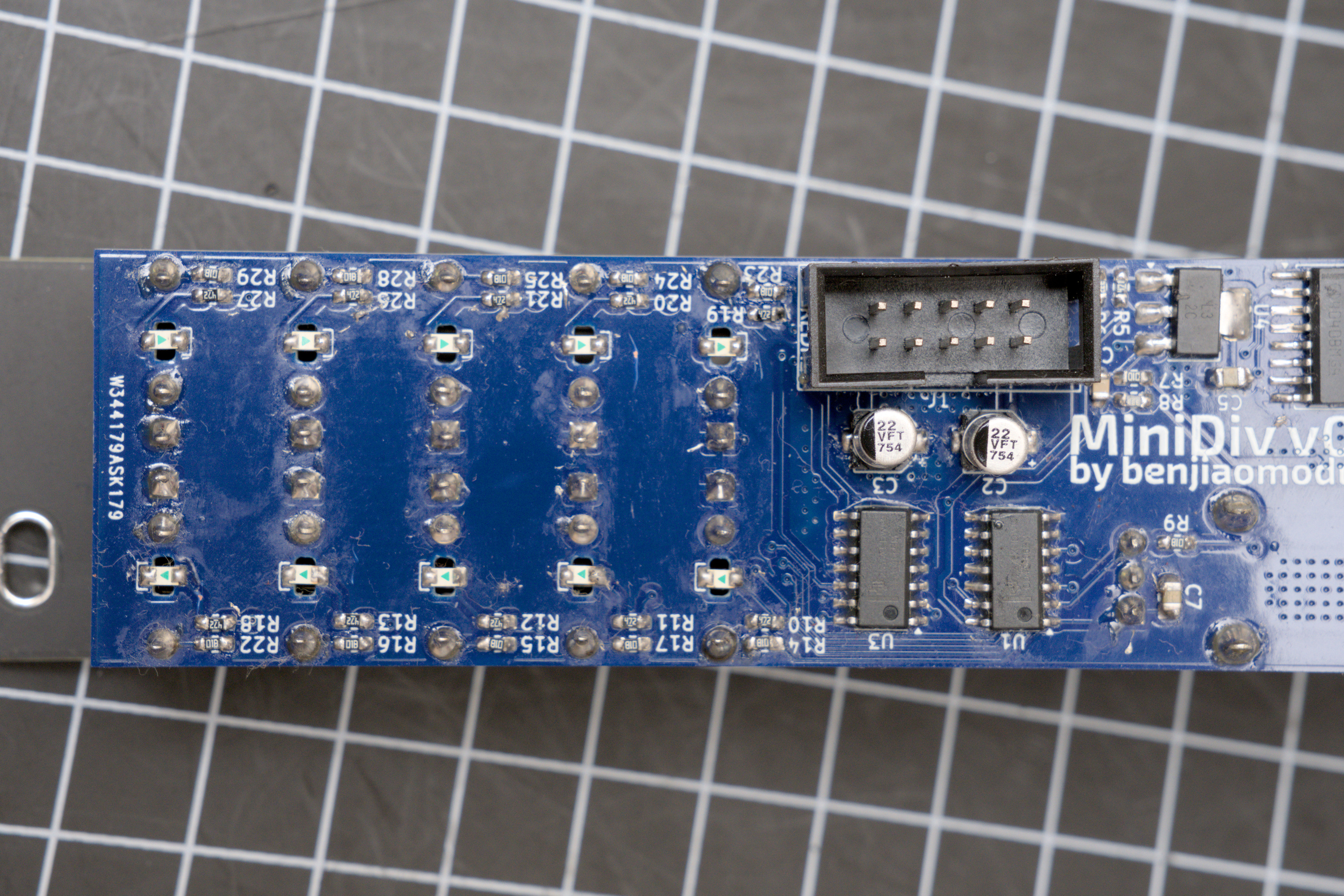

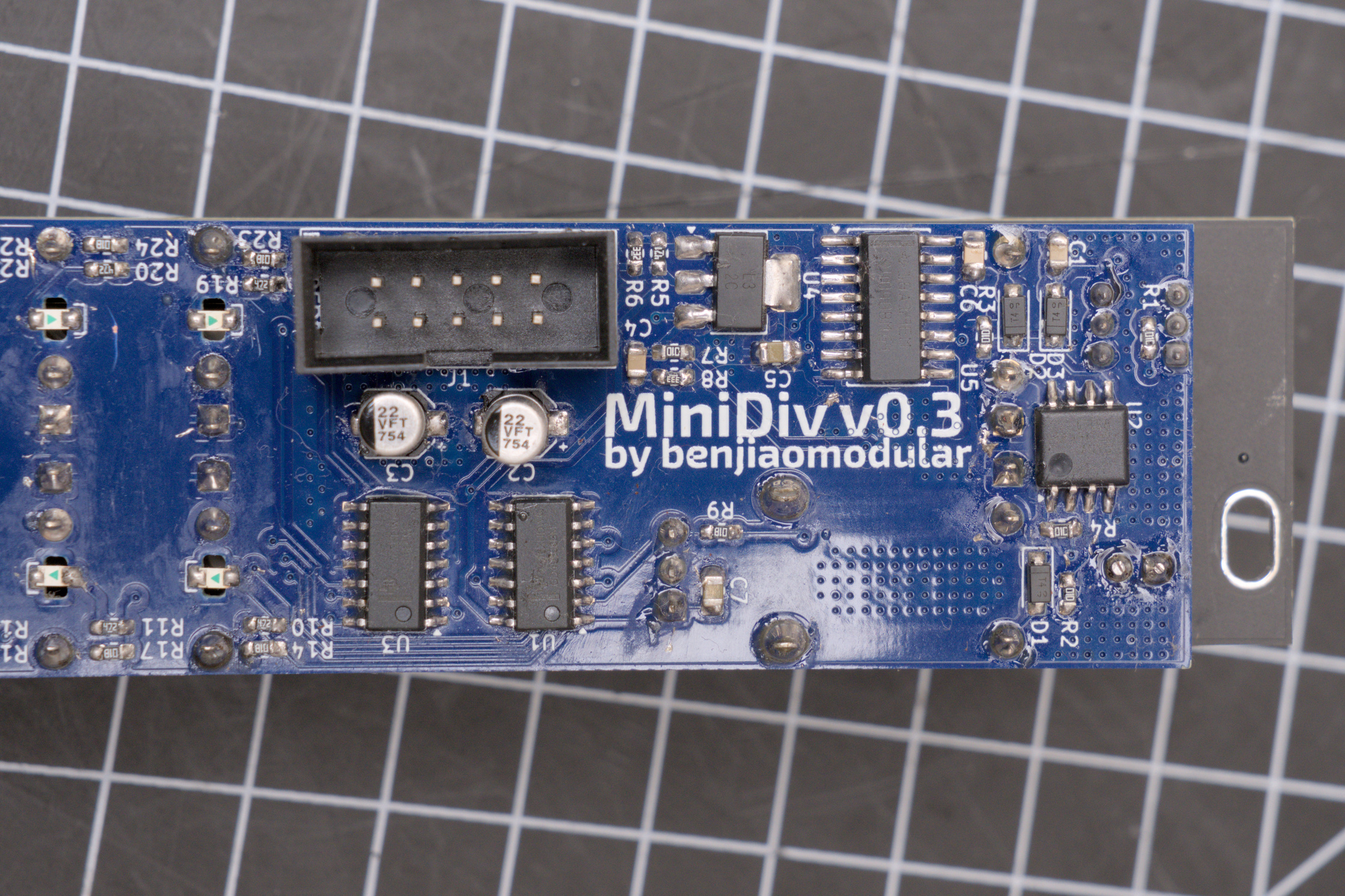

v0.3 - Fixed LED clearance issue

  • To address LED clearance issues, I moved the LEDs to be mounted to the back, facing down, such that the LED shines through a hole on the board.

v0.2 - Initial release

  • First working version
  • ISSUE: The LEDs were preventing the jacks from going in completly. The module still works but it might cause problems in the future.

License

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

CC BY-SA 4.0
