A schmitt-trigger inverter based sawtooth and pulse oscillator module

README

MiniOSC

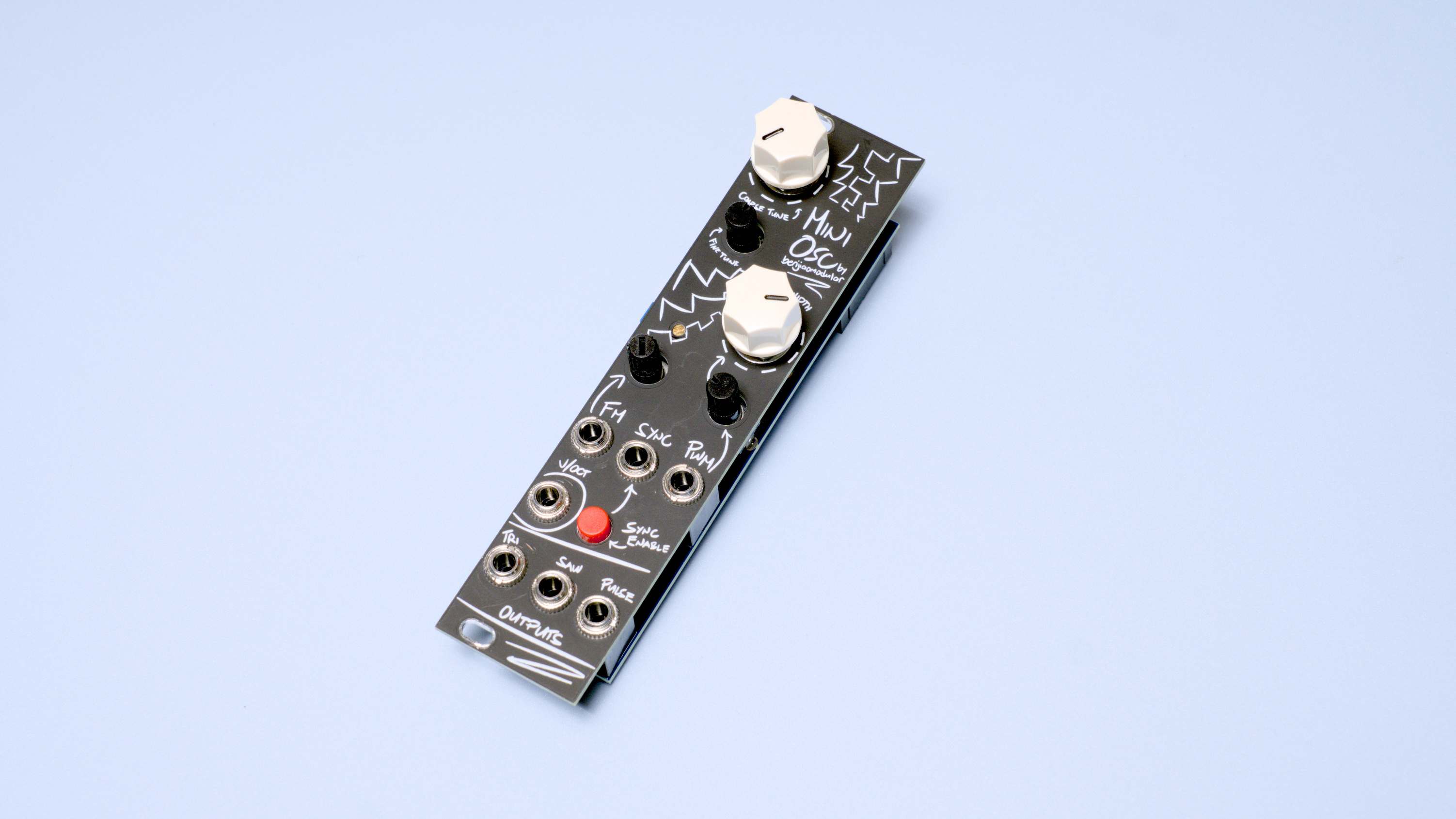

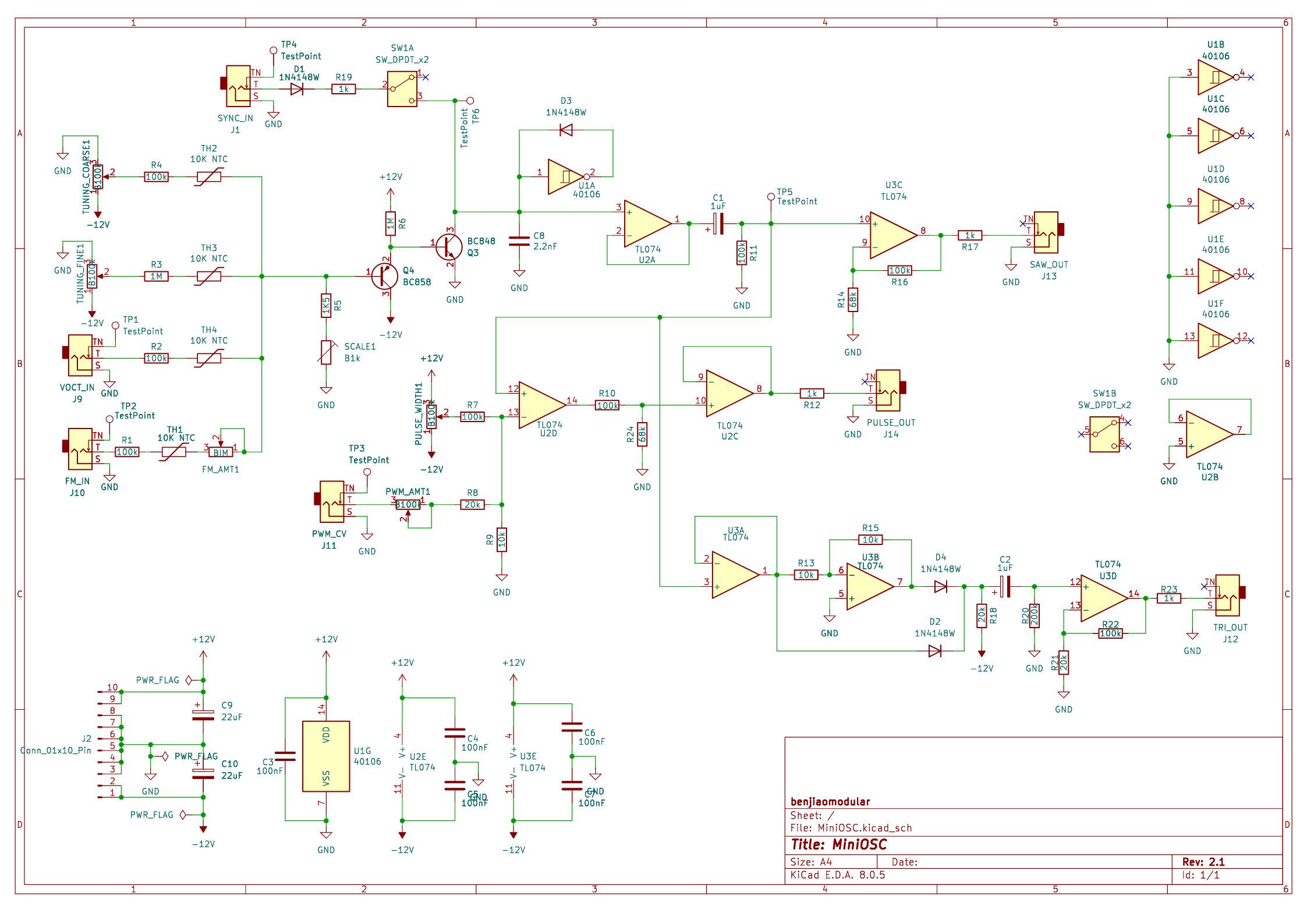

Schematics

Version 2.1

More info on my website:

PCBs

This project was sponsored by PCBWay. You can order the boards from them directly!

1. MiniOSC v2.1 - Front panel
2. MiniOSC v2.1 - Main board

You can also download my files from https://github.com/benjiaomodular/MiniOSC/blob/main/fabrication/

Old versions

Version 1.1

More info on my website: https://benjiaomodular.com/post/2021-12-03-volt-per-octave-40106-vco/

License

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
