README

MiniSeq

CC BY-SA 4.0

Full docs on my website: https://benjiaomodular.com/post/miniseq/

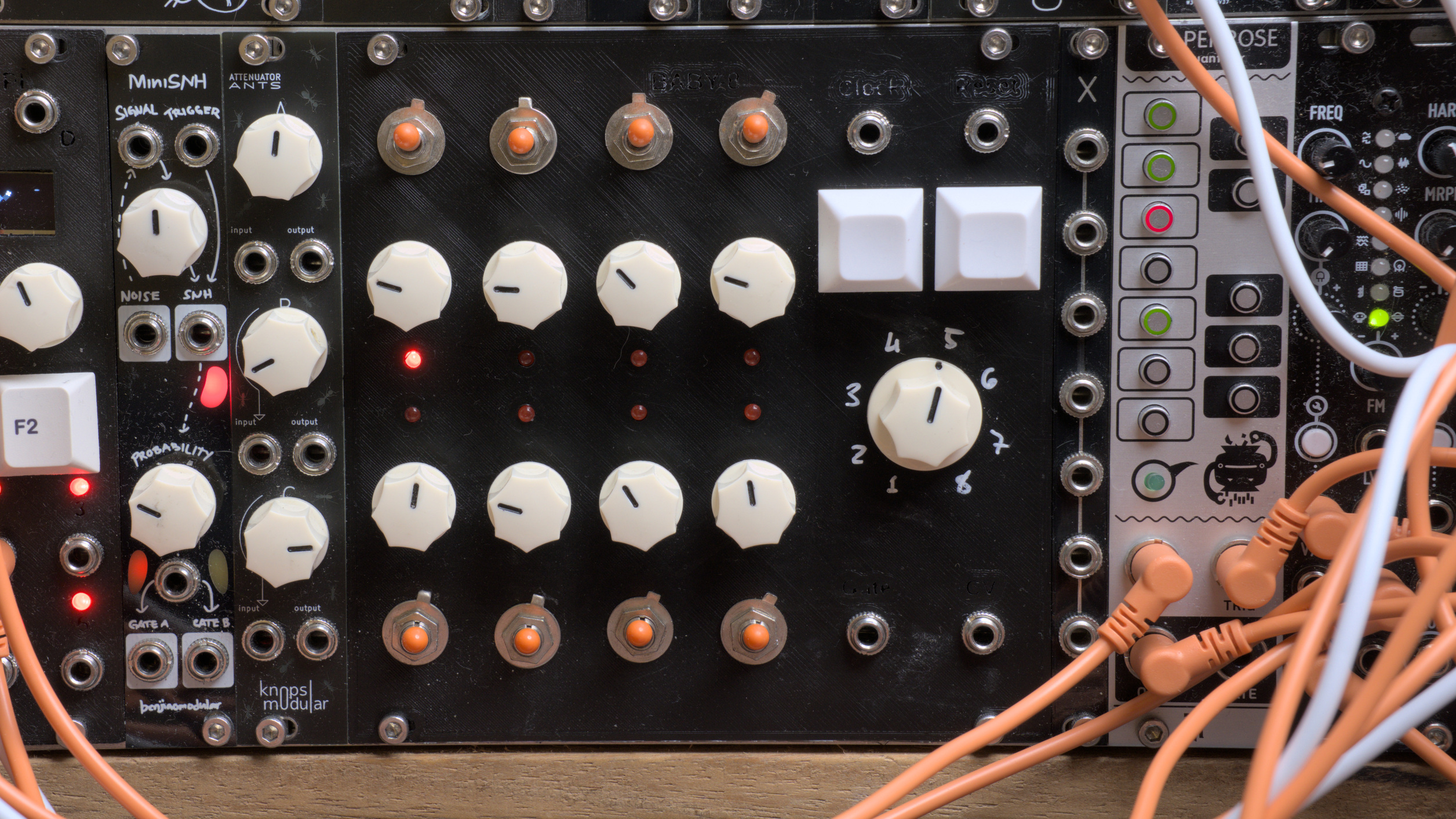

This is my second time building a Baby-8 step CV sequencer since my plexiglass Baby-8 build from two years ago. This, time I added a gate output, a reset input, and a step length control.

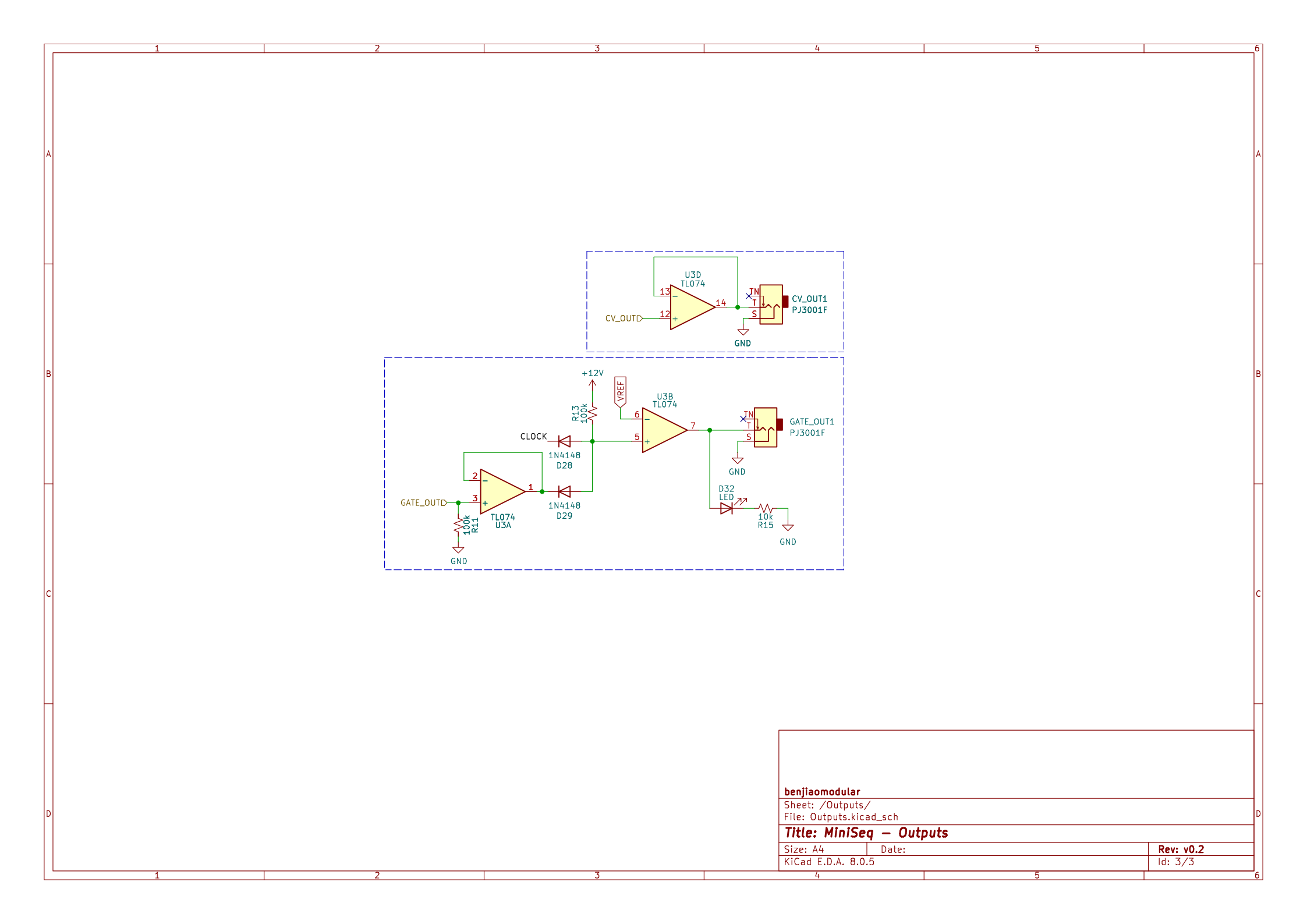

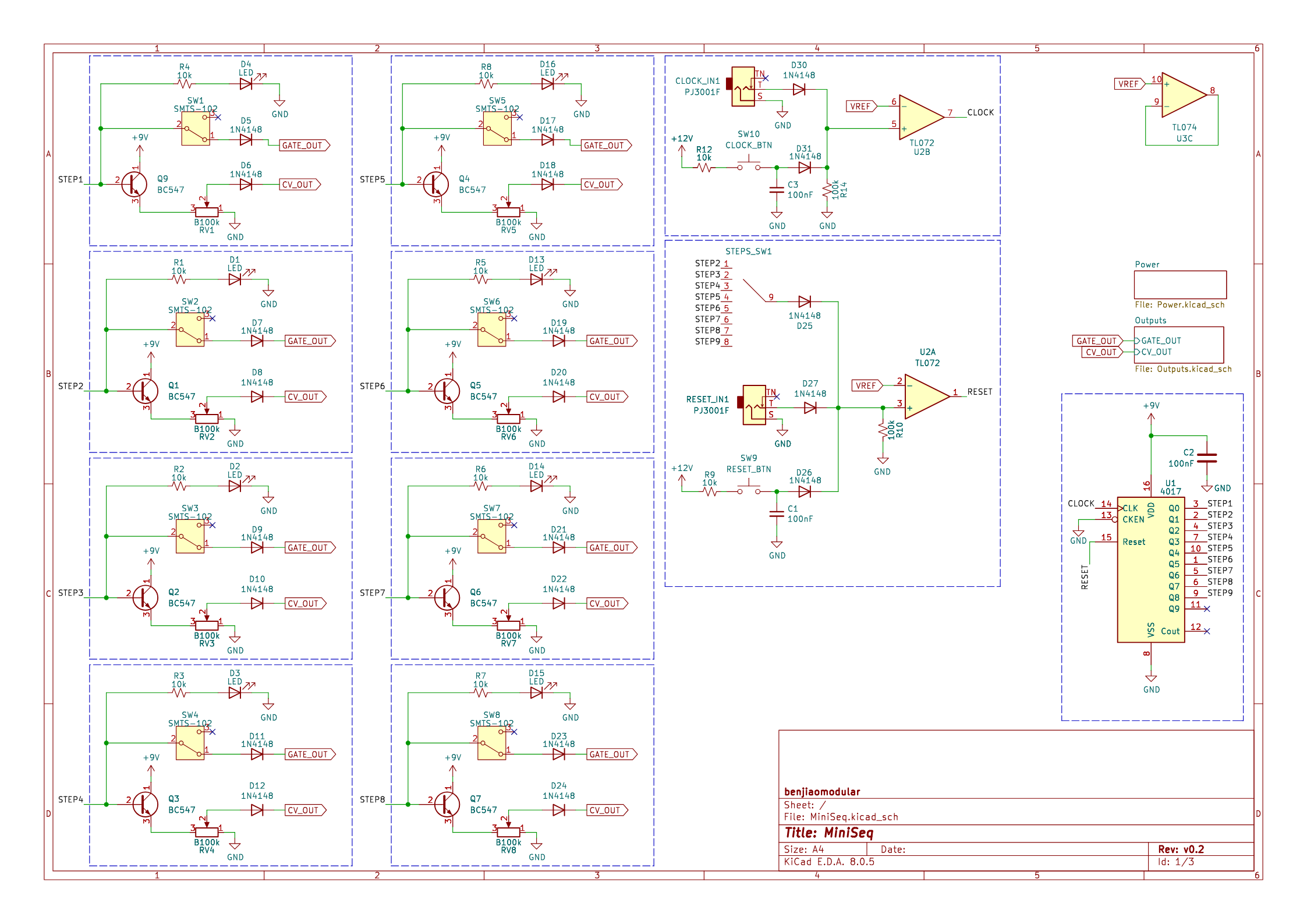

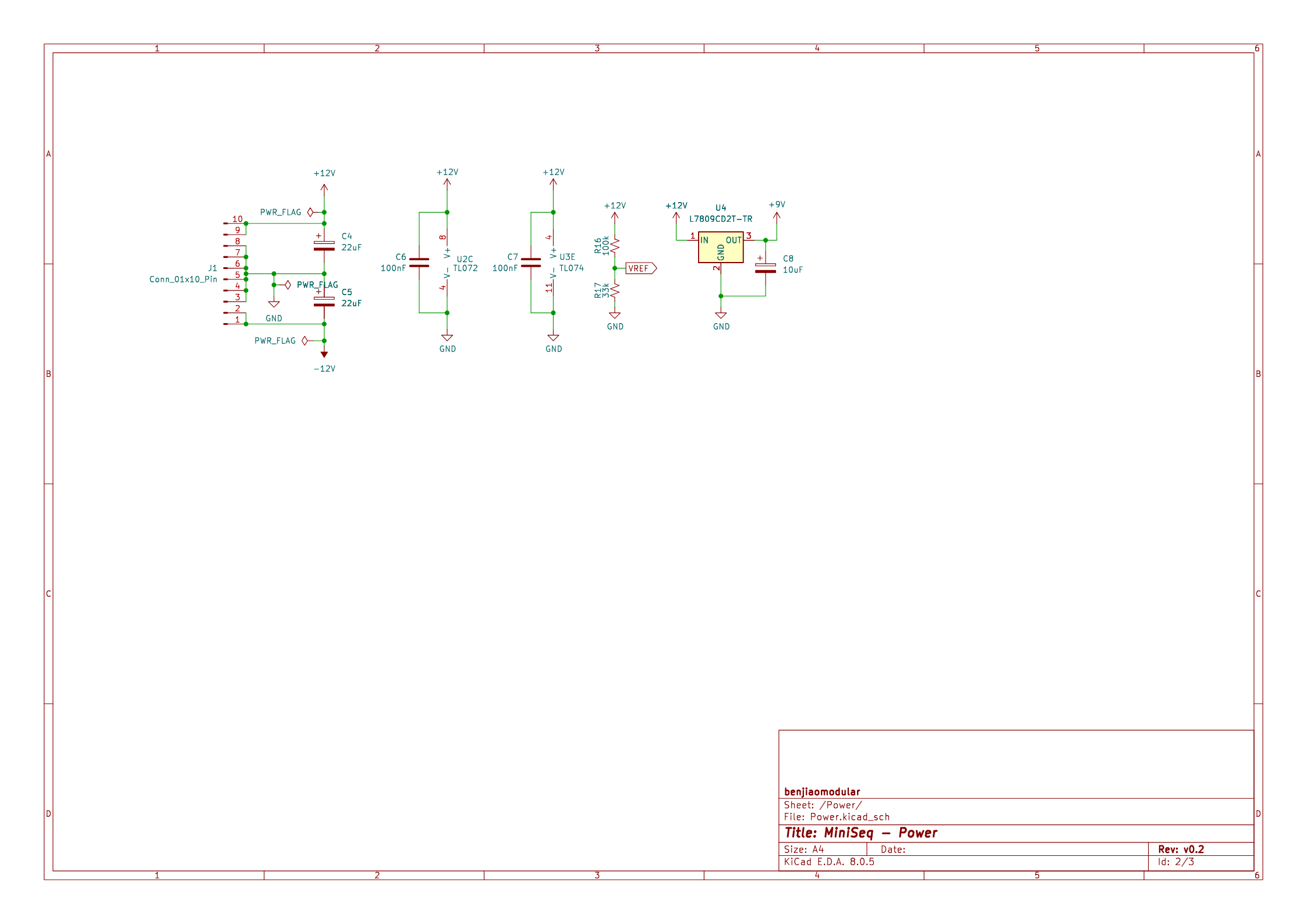

Schematics

License

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

CC BY-SA 4.0
