README

MiniVerb

A reverb module based around the Daisy Seed platform.

PCB Versions

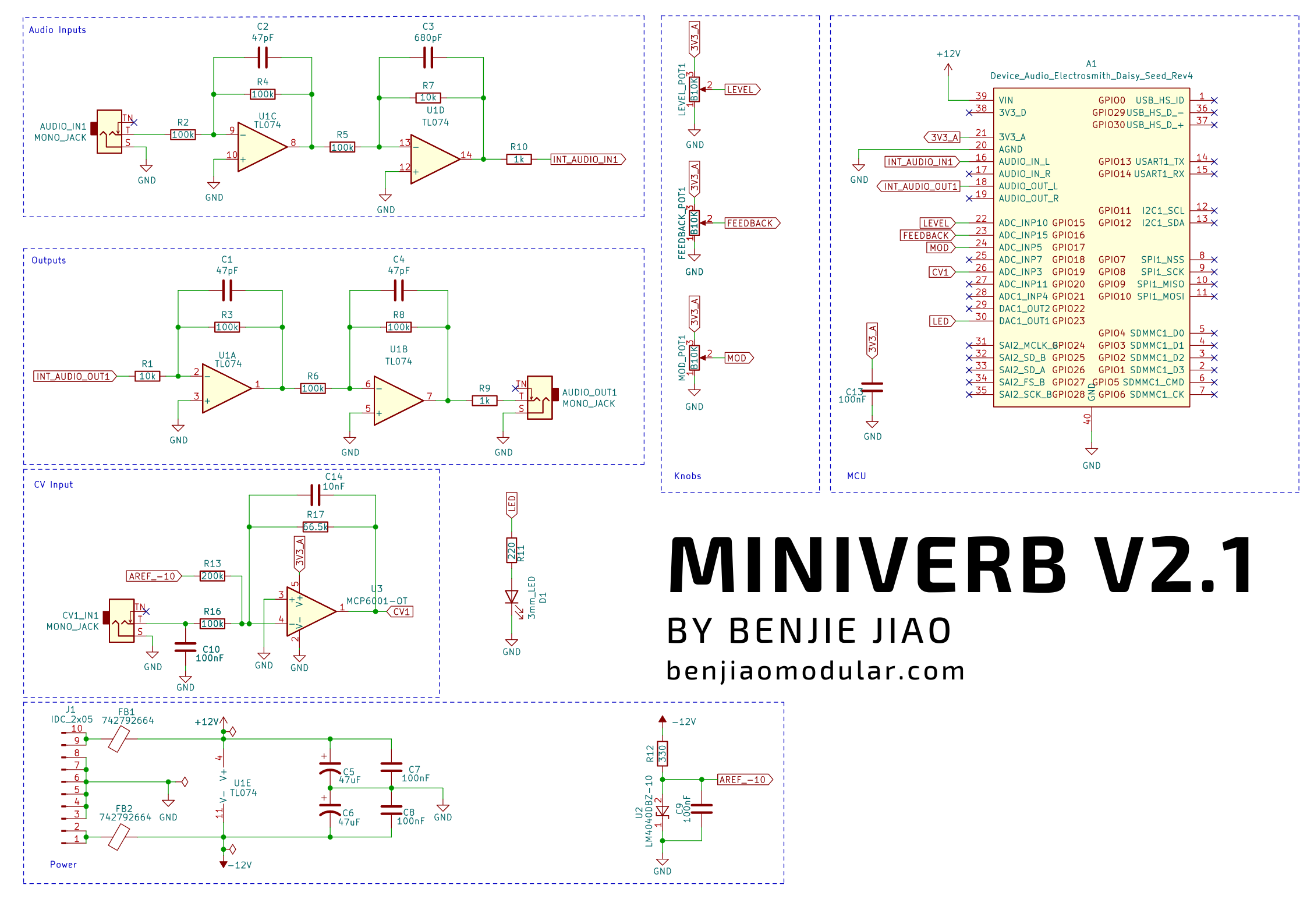

2.1

Finally, a working SMT version

Download zip files from: Hardware/MiniVerb v2.1/Fabrication

2.0 (not working)

First SMT Release. This version was unusable.

  • Added a single CV input

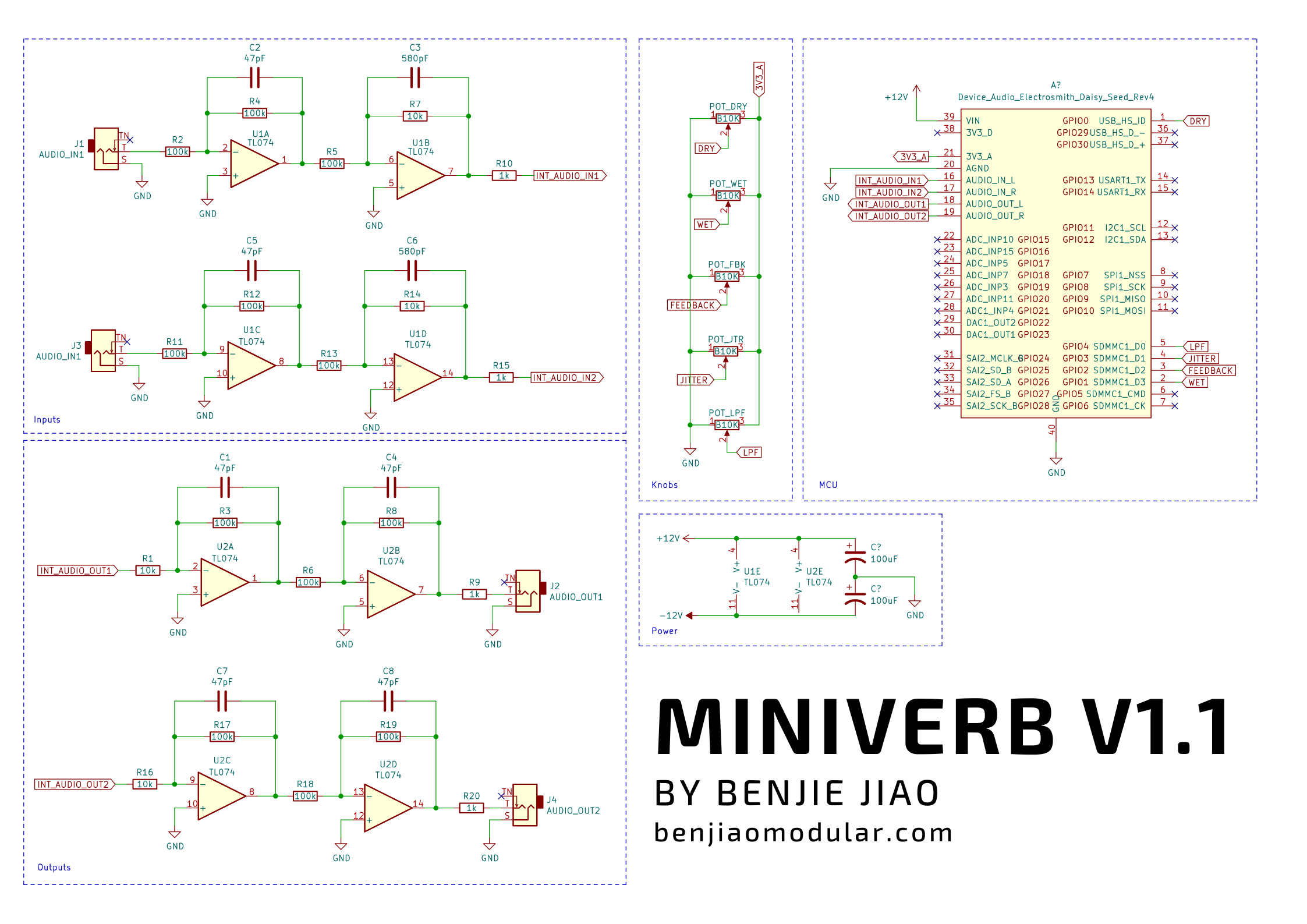

1.1

First batch of corrections

  • Fixed pot connections
  • Make IN(R) use IN(L) when no jack is inserted.

Download zip files from: Hardware/MiniVerb v1.1/Fabrication

1.0 (not working)

Initial release (does not work out of the box)

  • Pots connected to the wrong pins on the Daisy
