lard61 kb view
Description

Imported from GitHub: beulard/lard61 · commit 56d278c · license CC0-1.0

Description

A custom 60% ansi keyboard PCB.

README

lard61

A custom 60% ansi keyboard PCB.

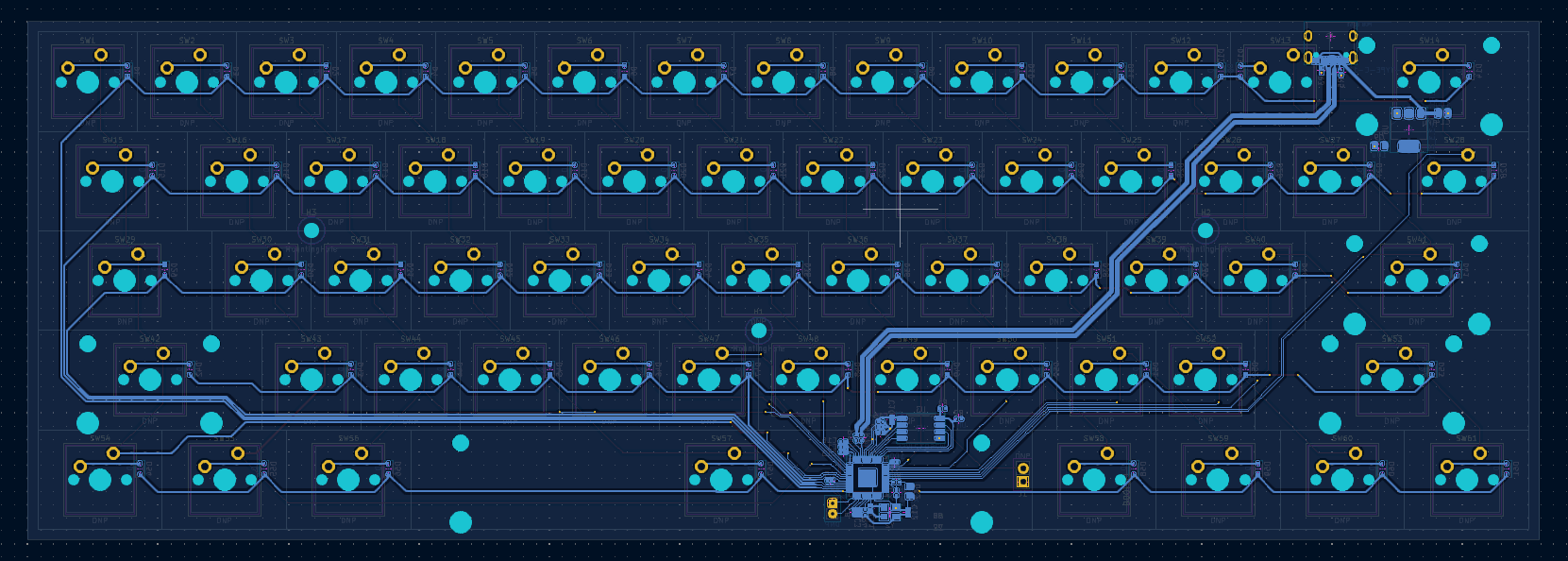

A screenshot of the PCB in KiCad

  • RP2040
  • 4MB flash
  • 12MHz crystal
  • USB-C
  • full n-key rollover
  • a single LED

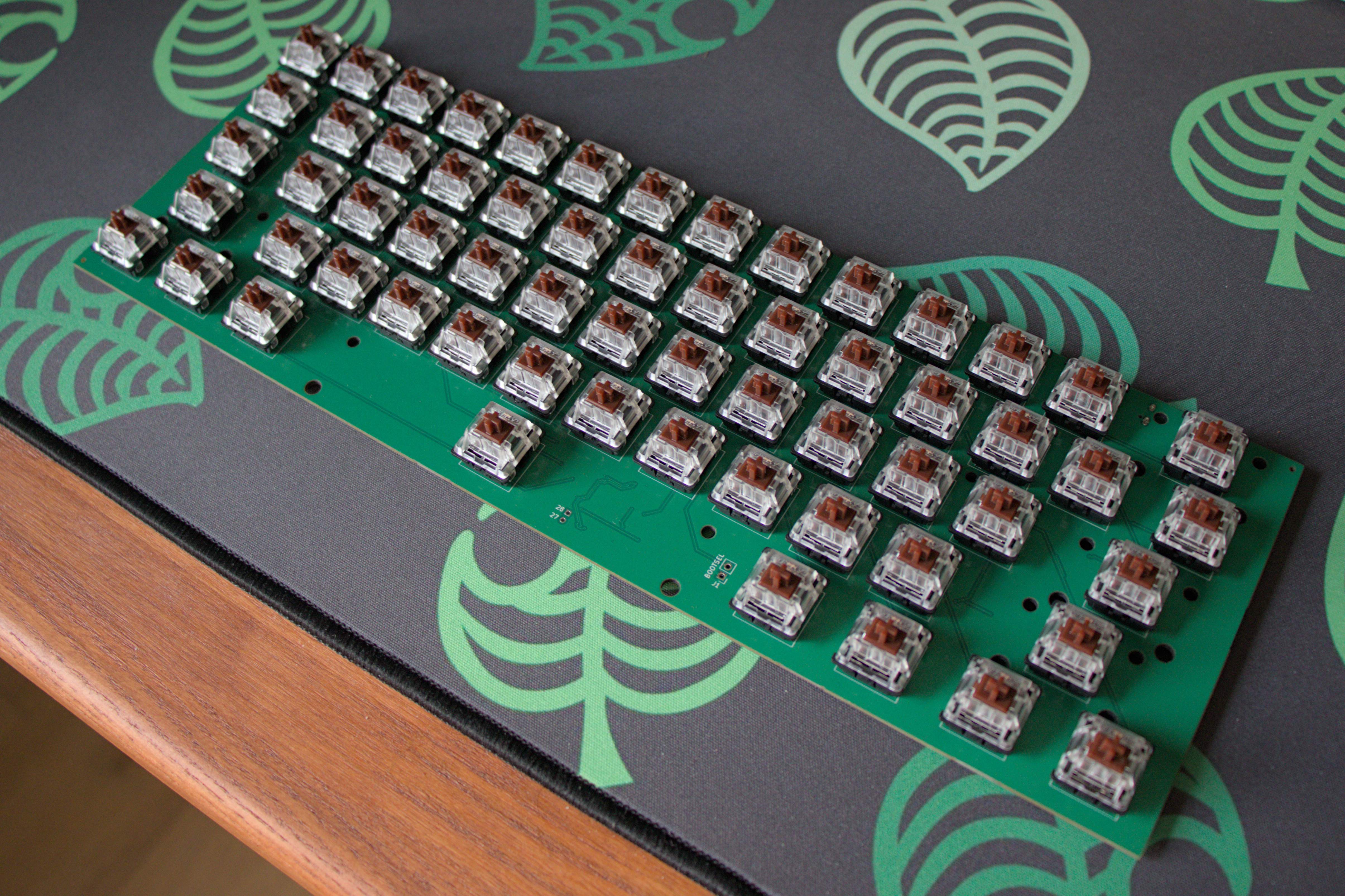

Picture of the top side with switches

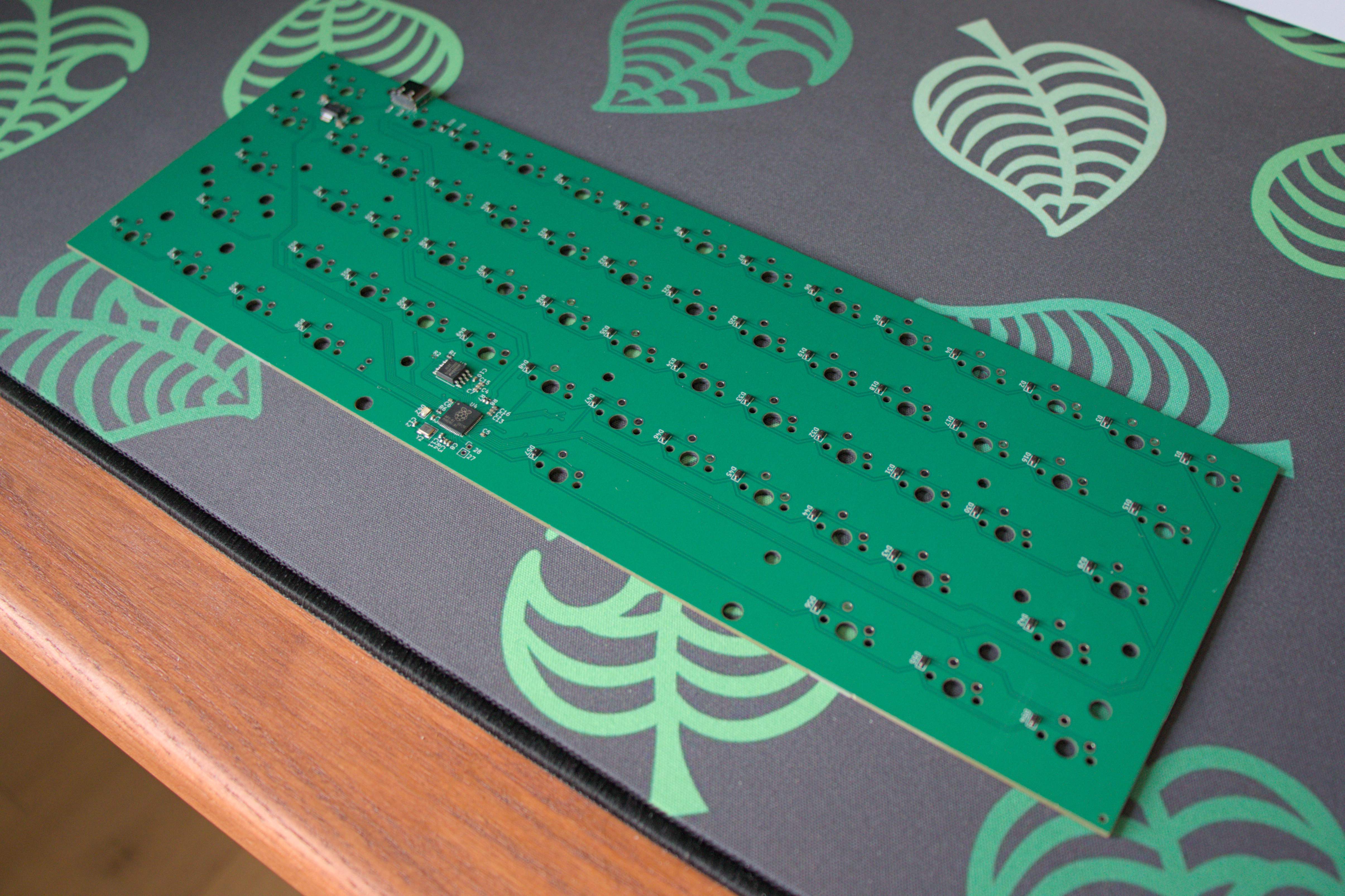

Picture of the bottom side

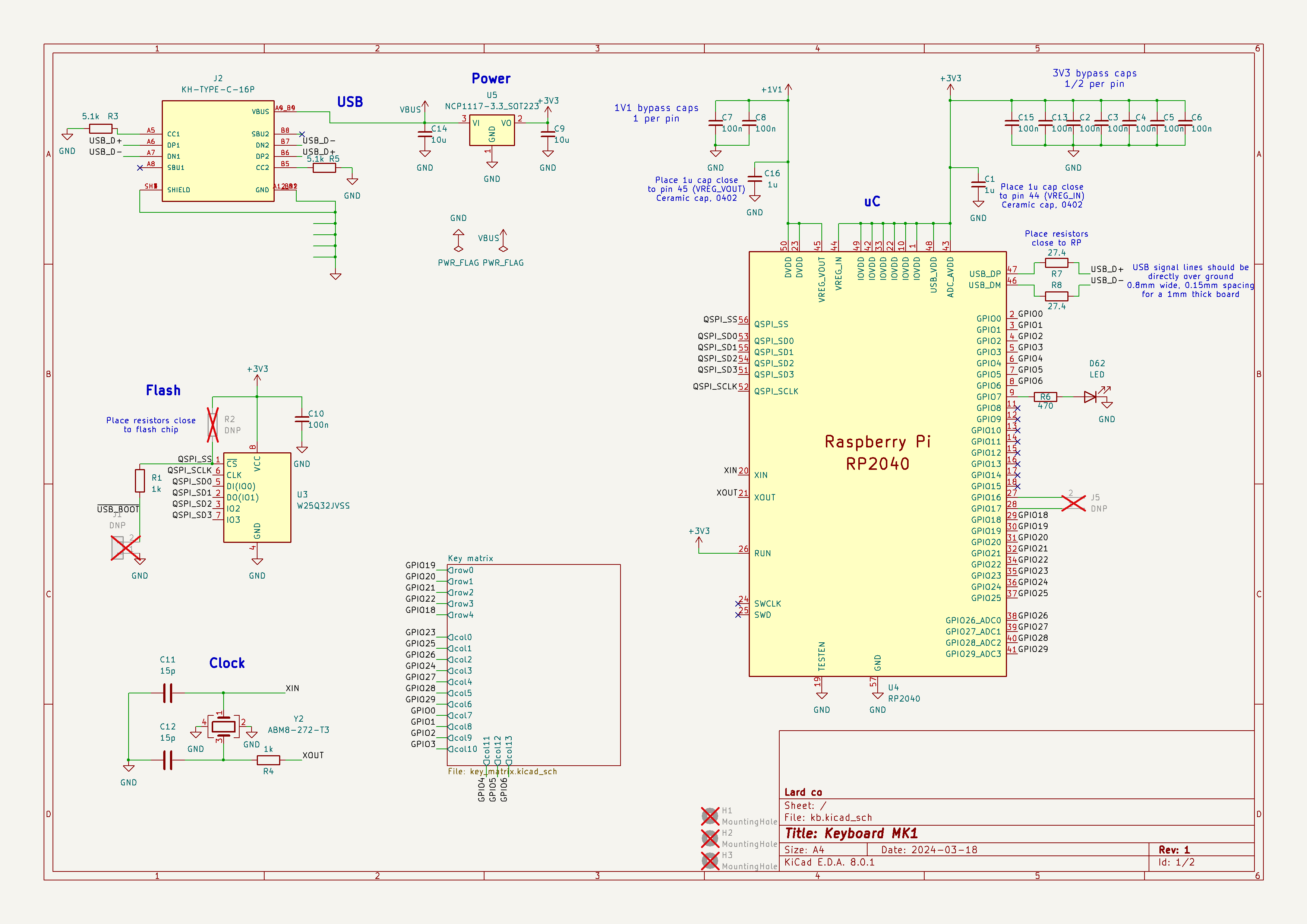

Preview of the schematic in KiCad
